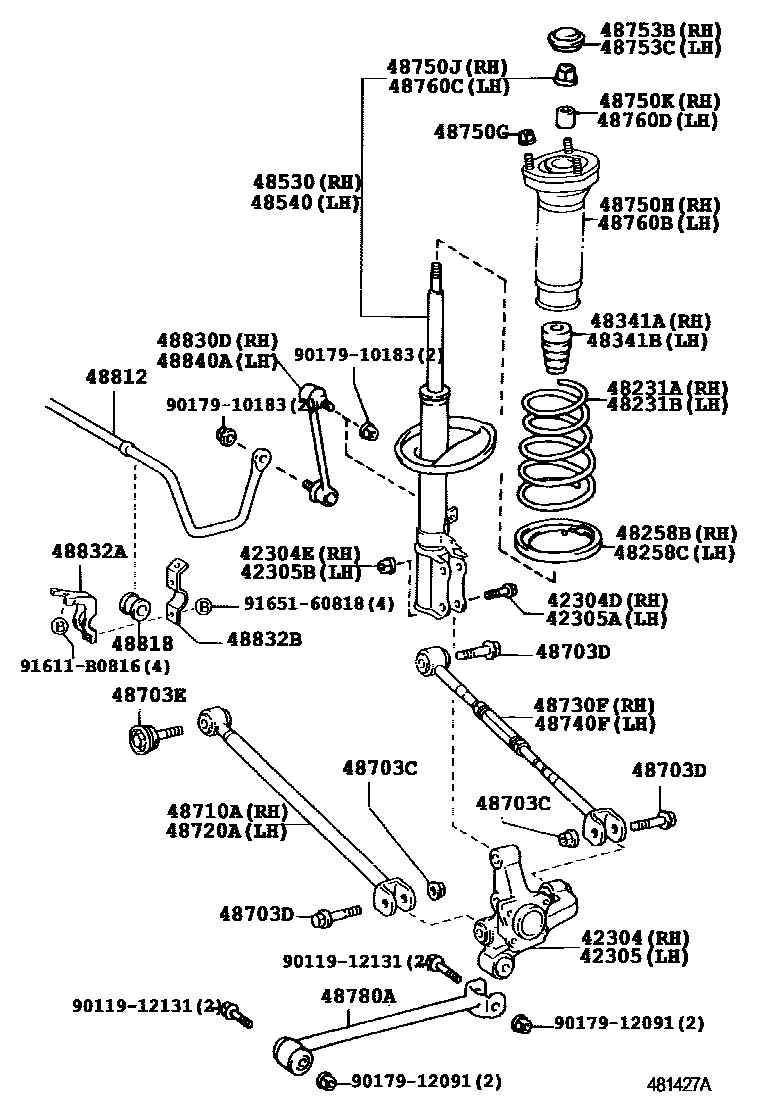

REAR SPRING & SHOCK ABSORBER
42304CARRIER SUB-ASSY, REAR AXLE, RH
(L)
(J)
42304DBOLT (FOR REAR AXLE CARRIER RH)
42304ENUT (FOR REAR AXLE CARRIER RH)
42305CARRIER SUB-ASSY, REAR AXLE, LH
(L)
(J)
42305ABOLT (FOR REAR AXLE CARRIER LH)
42305BNUT (FOR REAR AXLE CARRIER LH)
48231ASPRING, COIL, REAR RH
BRAZIL OR CHILE OR HONG KONG OR SINGAPORE SPEC
BRAZIL OR CHILE OR HONG KONG SPEC
ARGENTINA OR ISRAEL OR TURKEY SPEC
BRAZIL OR CHILE OR HONG KONG OR SINGAPORE SPEC
ARGENTINA OR ISRAEL OR TURKEY SPEC
CHINA OR GENERAL OR VENEZUELA OR INDIA SPEC
CHINA OR GENERAL OR VENEZUELA OR INDIA SPEC
48231BSPRING, COIL, REAR LH
BRAZIL OR CHILE OR HONG KONG OR SINGAPORE SPEC
BRAZIL OR CHILE OR HONG KONG OR SINGAPORE SPEC
ARGENTINA OR ISRAEL OR TURKEY SPEC
BRAZIL OR CHILE OR HONG KONG SPEC
ARGENTINA OR ISRAEL OR TURKEY SPEC
CHINA OR GENERAL OR VENEZUELA OR INDIA SPEC
CHINA OR GENERAL OR VENEZUELA OR INDIA SPEC
48258BINSULATOR, REAR COIL SPRING, LOWER RH
48258CINSULATOR, REAR COIL SPRING, LOWER LH
48341ABUMPER, REAR SPRING, NO.1 RH
sub48341-32054
48341BBUMPER, REAR SPRING, NO.1 LH
sub48341-32054
48530ABSORBER ASSY, SHOCK, REAR RH
BRAZIL OR CHILE OR CHINA OR GENERAL OR HONG KONG OR INDIA OR SINGAPORE OR VENEZUELA SPEC
sub48530-80164
sub48530-80166
MARK 48530-33281
MARK 48530-33301
MARK 48530-33301,ARGENTINA OR ISRAEL OR TURKEY SPEC
48540ABSORBER ASSY, SHOCK, REAR LH
BRAZIL OR CHILE OR CHINA OR GENERAL OR HONG KONG OR INDIA OR SINGAPORE OR VENEZUELA SPEC
sub48540-39605
sub48540-39625
MARK 48540-33281
MARK 48540-33301,ARGENTINA OR ISRAEL OR TURKEY SPEC
MARK 48540-33301
48703CNUT(FOR REAR SUSPENSION ARM)
48703DWASHER(FOR REAR SUSPENSION ARM)
48703EBOLT(FOR REAR SUSPENSION ARM)
*14-1.50PX76-36
48710AARM ASSY, REAR SUSPENSION, NO.1 RH
BRAZIL OR CHILE OR CHINA OR GENERAL OR HONG KONG OR INDIA OR SINGAPORE OR VENEZUELA SPEC
ARGENTINA OR ISRAEL OR TURKEY SPEC
48720AARM ASSY, REAR SUSPENSION, NO.1 LH
BRAZIL OR CHILE OR CHINA OR GENERAL OR HONG KONG OR INDIA OR SINGAPORE OR VENEZUELA SPEC
ARGENTINA OR ISRAEL OR TURKEY SPEC
48730FARM ASSY, REAR SUSPENSION, NO.2 RH
ARGENTINA OR ISRAEL OR TURKEY SPEC
BRAZIL OR CHILE OR CHINA OR GENERAL OR HONG KONG OR INDIA OR SINGAPORE OR VENEZUELA SPEC
48740FARM ASSY, REAR SUSPENSION, NO.2 LH
ARGENTINA OR ISRAEL OR TURKEY SPEC
BRAZIL OR CHILE OR CHINA OR GENERAL OR HONG KONG OR INDIA OR SINGAPORE OR VENEZUELA SPEC
48750GNUT(FOR REAR SUSPENSION SUPPORT)
48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)
48750KCOLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)
48753BCOVER, REAR SUSPENSION SUPOPORT, NO.1 RH
48753CCOVER, REAR SUSPENSION SUPOPORT, NO.1 LH
48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)
48760DCOLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)
48780AROD ASSY, STRUT, REAR
48812BAR, STABILIZER, REAR
48818BUSH, STABILIZER, REAR
48830DLINK ASSY, REAR STABILIZER, RH
48832ABRACKET, REAR STABILIZER BAR, NO.1
48832BBRACKET, REAR STABILIZER BAR, NO.2
48840ALINK ASSY, REAR STABILIZER, LH
9011912131
main90119-12131
9017910183
main90179-10183
9017912091
main90179-12091
91611B0816
main91611-B0816
9165160818
main91651-60818
42 parts on this diagram · 1 diagram in section
