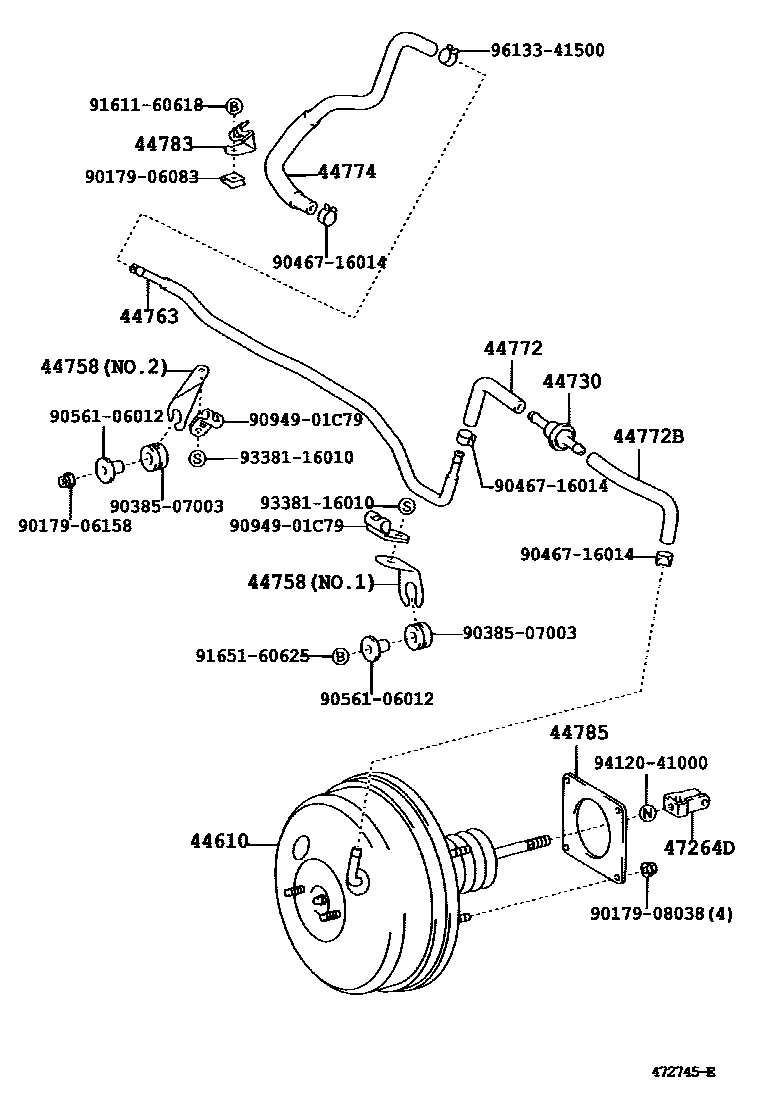

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1

44610BOOSTER ASSY, BRAKE

main44610-33710iACV3#,MCV30..LHD200108-200406

main44610-33720iACV3#,MCV30..RHD200109-200406

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-10010iACV3#,MCV30200108-200406

44758BRACKET, VACUUM CHECK VALVE

main44758-33070iMCV30..LHD200108-200406

main44758-33080iACV3#,MCV30..RHD200109-200406

main44758-33090iACV3#..LHD200108-200406

NO.1

main44758-33100iACV3#..LHD200108-200406

NO.2

44763TUBE, BOOSTER VACUUM

main44763-33040iACV3#..LHD200108-200406

main44763-33050iACV3#..RHD200109-200406

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-33090iACV3#..LHD200108-200406

main44772-33110iACV3#,MCV30..RHD200109-200406

44772BHOSE, CHECK VALVE TO BRAKE BOOSTER

main44772-33100iACV3#,MCV30..LHD200108-200406

44774HOSE, UNION TO CONNECTOR TUBE

main44774-33060iACV3#..LHD200108-200406

main44774-33070iACV3#..RHD200109-200406

44783CLAMP, VACUUM HOSE

main44783-28010iACV3#..LHD200108-200406

44785GASKET, BRAKE BOOSTER

main44785-20020iACV3#,MCV30200108-200406

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-12060iACV3#..RHD..ATM200402-200406

main47264-63010iACV3#..RHD..ATM200108-200406

9017906083

main90179-06083

9017906158

main90179-06158

9017908038

main90179-08038

9038507003

main90385-07003

9046716014

main90467-16014

9056106012

main90561-06012

9094901C79

main90949-01C79

9161160618

main91611-60618

9165160625

main91651-60625

9338116010

main93381-16010

9412041000

main94120-41000

9613341500

main96133-41500

22 parts on this diagram · 4 diagrams in section
