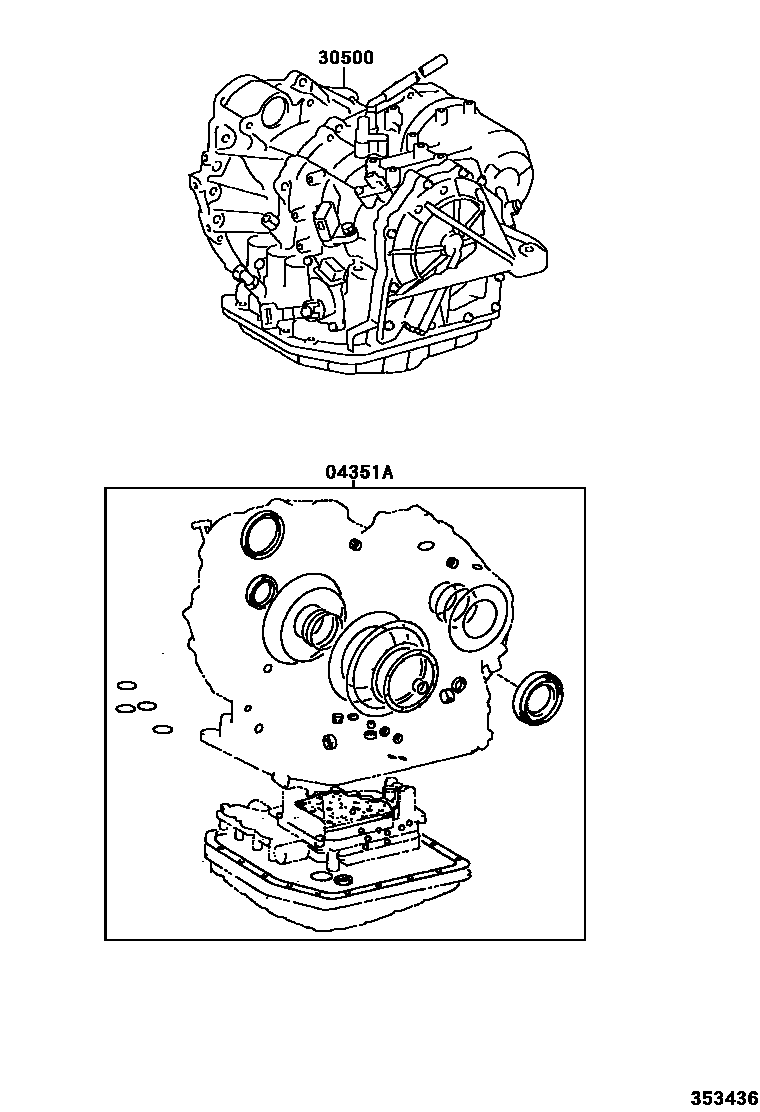

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

04351AGASKET KIT, TRANSAXLE OVERHAUL(ATM)

main04351-21130iMCV30200406-200601

main04351-33080iMCV30200108-200307

main04351-33120iACV3#..ATM200307-200406

main04351-33130iMCV30200307-200406

main04351-33230iACV31200406-200601

main04351-33520iACV30..ATM200406-200601

main04351-44010iACV3#..ATM200108-200307

30500TRANSAXLE ASSY, AUTOMATIC

main30500-33350iMCV30200108-200310

U140E

main30500-33351iMCV30200406-200601

U140E

main30500-33360iACV30..ATM200108-200310

U241E

main30500-33371iACV30..ATM200310-200406

U241E

main30500-33390iACV31200108-200310

U241E

main30500-33391iACV31200310-200406

U241E

2 parts on this diagram · 1 diagram in section
