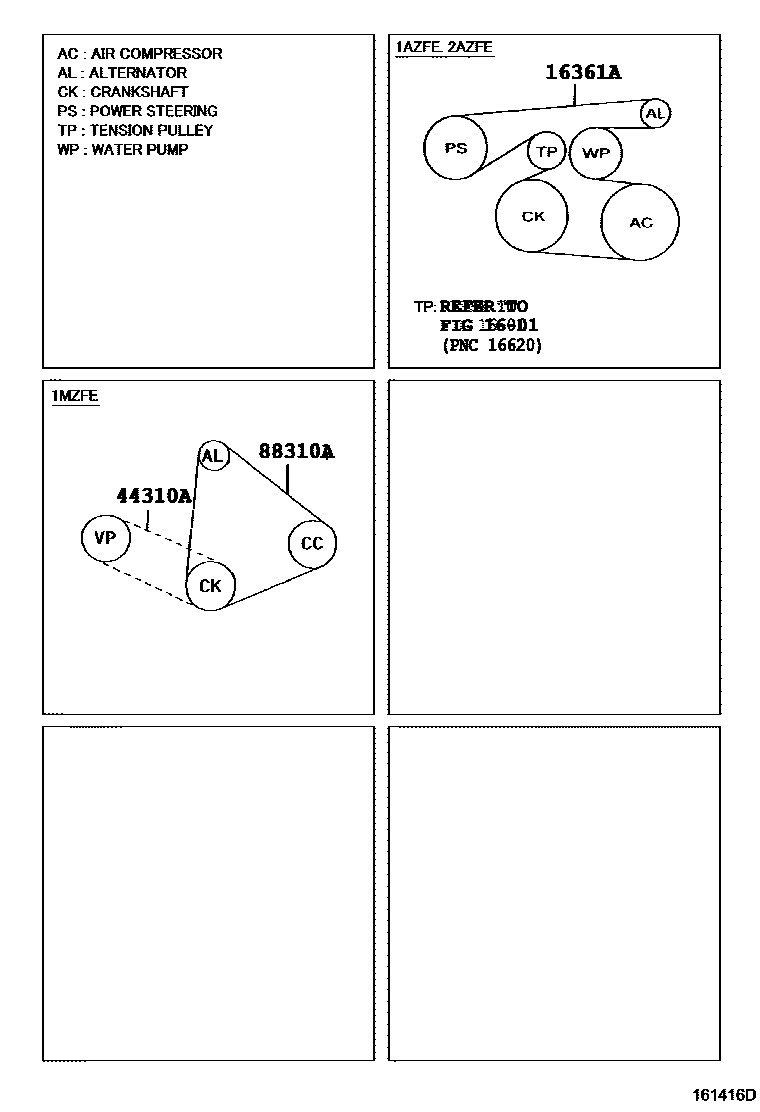

V-BELT

1601WATER PUMP

→ Go to FIG 16-01

16361ABELT, V(FOR FAN & ALTERNATOR)

main90080-91214i1AZFE,2AZFE..ACV3#200305-200402

(L)

main90916-02502i1AZFE,2AZFE..ACV3#200108-200402

main90916-02598i1AZFE,2AZFE..ACV3#200406-200407

(J)

44310ABELT, V(FOR VANE PUMP)

main90080-91088iMCV30200108-200406

L=878,DAYCO

main99364-90880iMCV30200108-200406

L=880,BANDO

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main90080-91147iMCV30200108-200406

L=1040,DAYCO

main99366-31040iMCV30200108-200406

L=1040,MITSUBOSHI

main99366-C1040iMCV30200406

L=1040,BANDO

main99366-D1040iMCV30200406

L=1040,MITSUBOSHI

4 parts on this diagram · 1 diagram in section
