HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1HEATER CONTROL PANEL 0002 1AIR DUCT 0003 1SENSOR 0004 1HEATER CONTROL PANEL 0005 1AIR DUCT 0006 1SENSOR

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

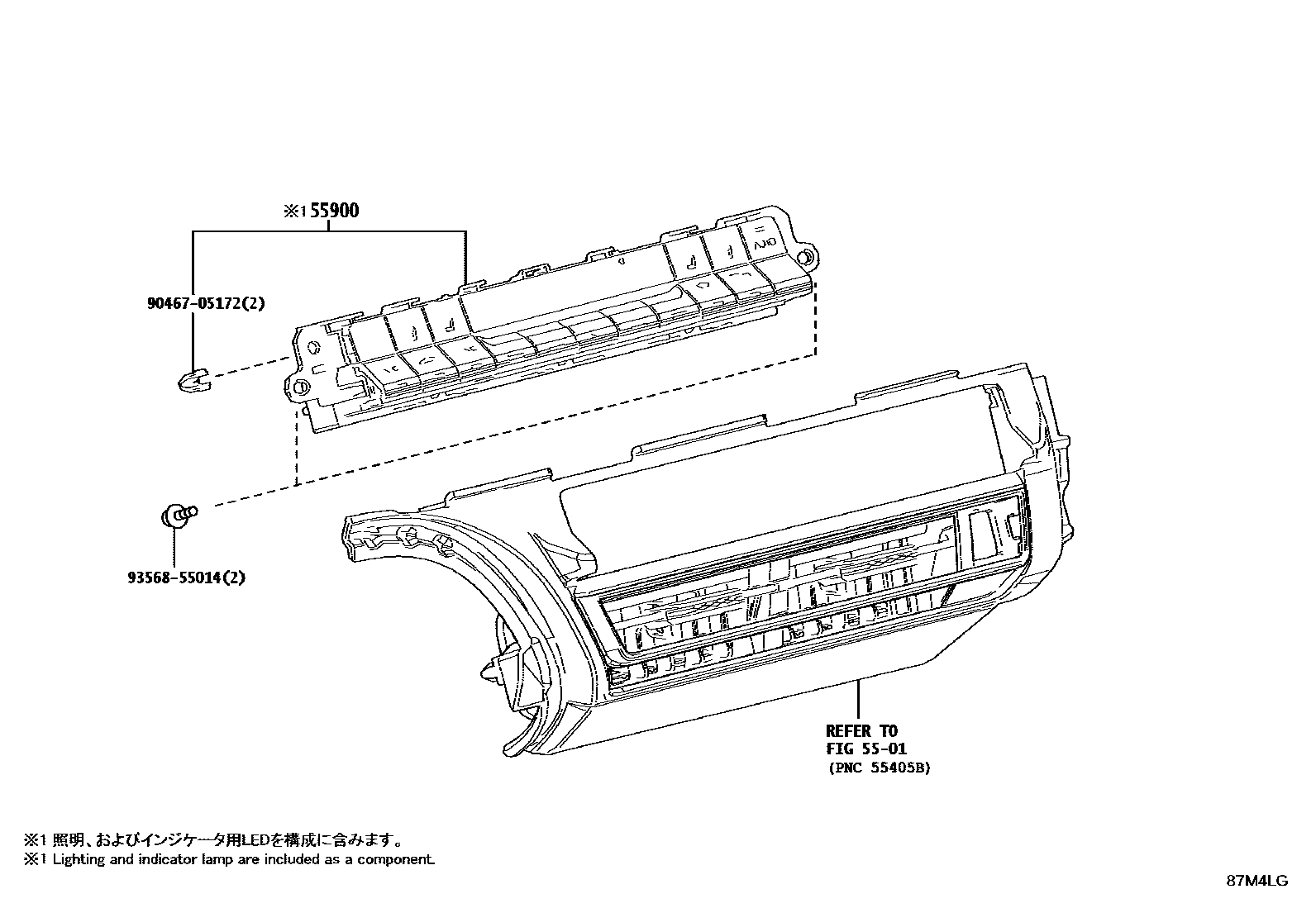

55900CONTROL ASSY, AIR CONDITIONER

main55900-33N00iAXVA80,AXVH80..D; AXVH80..N..GCC202406

VALUE PACKAGE

main55900-33N10iMXVA80..N202406

main55900-33N60iAXVA80,AXVH80..N..EUR202406

main55900-33N70iAXVH80,MXVA80..G..TAIW; AXVH80..G..GCC202406

UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE)

main55900-33N90iAXVH80..N..TAIW202406

main55900-33P00iAXVA80,AXVH80..G..GCC202406

main55900-33P10iAXVA80,AXVH80..N..GCC202406

main55900-33P40iAXVH80..G..ARL202406

main55900-33Q10iAXVH80..N..ARL202406

main55900-33N20supersedes 55900-33N50iAXVA80,AXVH80..LHD..G..EUR202406-202412

HEATER PACKAGE; UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE)

main55900-33N40iAXVH80..N..EUR202406

HEATER PACKAGE

main55900-33N50iAXVA80..G..EUR202412

EGYPT SPEC&; LIBYA SPEC&

main55900-33Q50supersedes 55900-33P70iAXVH80..RHD..EUR202412

REAR ARMREST-WITH(CUP HOLDER); SRI LANKA SPEC&&REAR ARMREST-WITH(CUP HOLDER)

9046705172

main90467-05172

9356855014

main93568-55014

4 parts on this diagram · 6 diagrams in section
