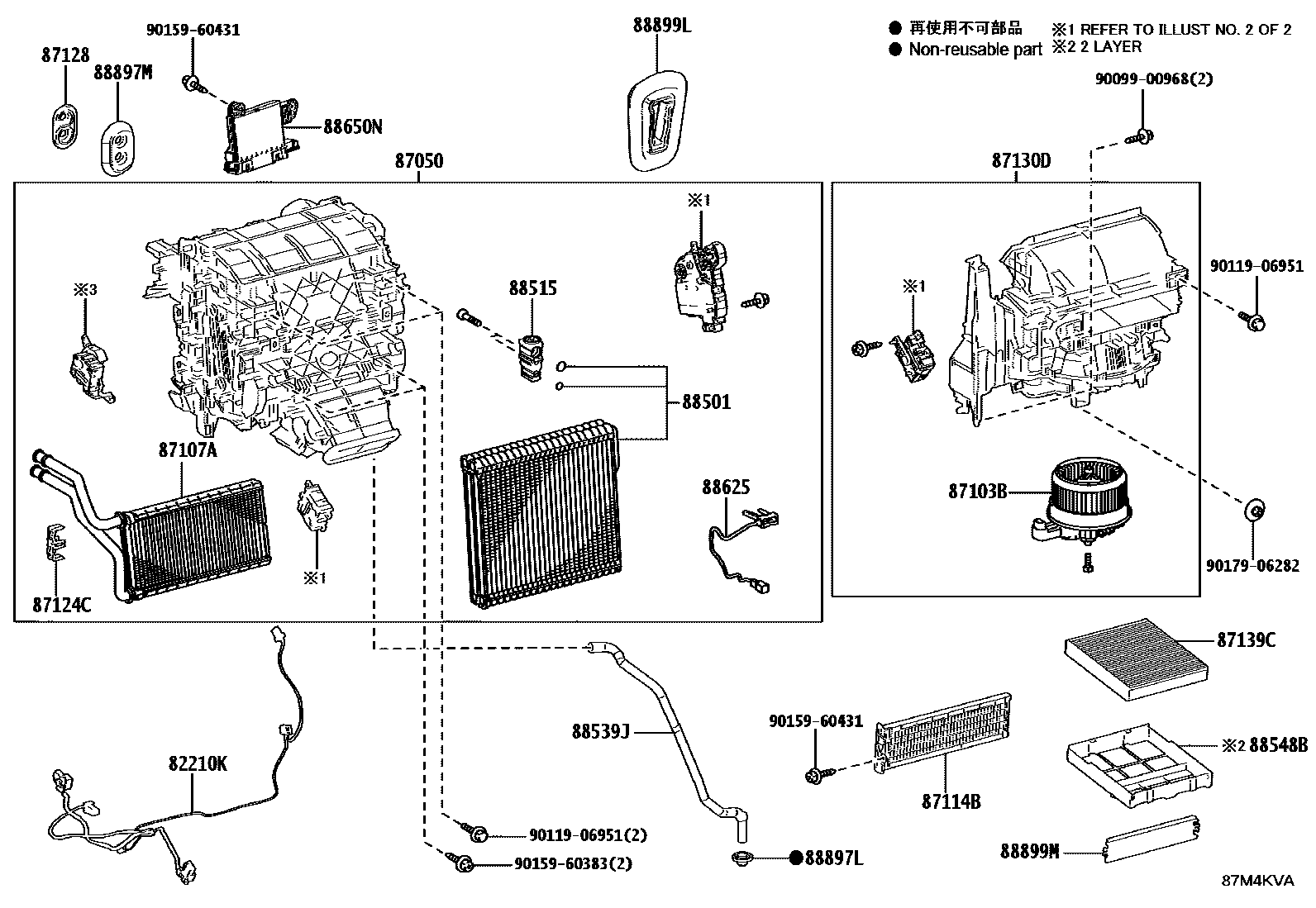

HEATING & AIR CONDITIONING - COOLER UNIT
82210KHARNESS ASSY, AIR CONDITIONER
main82212-33110iAXVA80,AXVH80..LHD..G..EUR; AXVA80..G..EUR;AXVH80..LHD..G..(EUR,GCC); AXVH80..G..TAIW; AXVH80..LHD..G..EUR202406
ARMENIA SPEC&UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE); CAUCASUS SPEC&UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE); KAZAKHSTAN SPEC&UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE); KOREA SPEC&UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE); KYRGYZSTAN SPEC&UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE); MOLDOVA SPEC&UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE); UKRAINE SPEC&UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE); UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE)
main82212-33120supersedes 82212-42050iAXVA80..EUR; AXVA80..G..EUR; AXVH80..LHD..G..EUR; AXVH80..N..TAIW;AXVH80..LHD..(EUR,GCC);AXVA80,MXVA80..GCC,TAIW202406
ARMENIA SPEC; CAUCASUS SPEC; EGYPT SPEC; ISRAEL SPEC; KYRGYZSTAN SPEC; LIBYA SPEC; MOLDOVA SPEC; UKRAINE SPEC
UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE)
87050RADIATOR ASSY, AIR CONDITIONER
main87050-33C62supersedes 87050-33C31iAXVA80..EUR; AXVA80..G..EUR; MXVA80..G;AXVA80..(G,N)..GCC202406
ARMENIA SPEC; CAUCASUS SPEC; EGYPT SPEC; KYRGYZSTAN SPEC; LIBYA SPEC; MOLDOVA SPEC; UKRAINE SPEC
main87050-33F91supersedes 87050-33G80iAXVH80..LHD..EUR; AXVH80..LHD..G..EUR; AXVH80..N..TAIW;AXVH80..(G,N)..GCC202406
ARMENIA SPEC; CAUCASUS SPEC; KAZAKHSTAN SPEC; KYRGYZSTAN SPEC; MOLDOVA SPEC; UKRAINE SPEC
VALUE PACKAGE
ARMENIA SPEC&UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE); CAUCASUS SPEC&UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE); KAZAKHSTAN SPEC&UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE); KOREA SPEC&UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE); KYRGYZSTAN SPEC&UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE); MOLDOVA SPEC&UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE); UKRAINE SPEC&UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE); UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE)
ISRAEL SPEC
UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE)
ARMENIA SPEC&UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE); CAUCASUS SPEC&UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE); KYRGYZSTAN SPEC&UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE); MOLDOVA SPEC&UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE); UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE)
REAR ARMREST-WITH(CUP HOLDER); SRI LANKA SPEC&&REAR ARMREST-WITH(CUP HOLDER)
ISRAEL SPEC&UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE)
87103BMOTOR SUB-ASSY, BLOWER W/FAN
main87103-52310iAXVA80..EUR; AXVA80..G..EUR; AXVH80..LHD..G..EUR; AXVH80..N..TAIW;AXVH80..LHD..(EUR,GCC);AXVA80,MXVA80..GCC,TAIW202406
ARMENIA SPEC; CAUCASUS SPEC; EGYPT SPEC; ISRAEL SPEC; KYRGYZSTAN SPEC; LIBYA SPEC; MOLDOVA SPEC; UKRAINE SPEC
ARMENIA SPEC&UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE); CAUCASUS SPEC&UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE); KAZAKHSTAN SPEC&UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE); KOREA SPEC&UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE); KYRGYZSTAN SPEC&UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE); MOLDOVA SPEC&UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE); UKRAINE SPEC&UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE); UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE)
87107AUNIT SUB-ASSY, HEATER RADIATOR
87114BCOVER, HEATER
87124CCLAMP, HEATER
87128GROMMET, HEATER
87130DBLOWER ASSY
main87130-33281iAXVA80..EUR; AXVA80..G..EUR; AXVH80..LHD..G..EUR; AXVH80..N..TAIW;AXVH80..LHD..(EUR,GCC);AXVA80,MXVA80..GCC,TAIW202406
ARMENIA SPEC; CAUCASUS SPEC; EGYPT SPEC; ISRAEL SPEC; KYRGYZSTAN SPEC; LIBYA SPEC; MOLDOVA SPEC; UKRAINE SPEC
ARMENIA SPEC&UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE); CAUCASUS SPEC&UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE); KAZAKHSTAN SPEC&UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE); KOREA SPEC&UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE); KYRGYZSTAN SPEC&UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE); MOLDOVA SPEC&UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE); UKRAINE SPEC&UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE); UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE)
87139CFILTER, CLEAN AIR
DEODORANT FILTER; DEODORANT FILTER,ARMENIA SPEC&UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE); DEODORANT FILTER,CAUCASUS SPEC&UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE); DEODORANT FILTER,ISRAEL SPEC; DEODORANT FILTER,KYRGYZSTAN SPEC&UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE); DEODORANT FILTER,MOLDOVA SPEC&UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE)
main87139-76020iAXVA80,AXVH80..LHD..G..EUR; AXVA80..G..EUR; AXVH80..LHD..G..EUR; AXVH80..RHD..EUR;AXVA80,AXVH80,MXVA80..ARL,GCC,TAIW202406
DEODORANT FILTER; DEODORANT FILTER,EGYPT SPEC; DEODORANT FILTER,KOREA SPEC&UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSHOPEN TYPE); DEODORANT FILTER,LIBYA SPEC
88501EVAPORATOR SUB-ASSY, COOLER, NO.1
88515VALVE, COOLER EXPANSION
main88515-52120iAXVA80,MXVA80;AXVH80..GCC,TAIW;AXVH80..RHD..EUR; AXVH80..LHD..EUR; AXVH80..LHD..G..EUR202406
ARMENIA SPEC; ARMENIA SPEC&UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE); CAUCASUS SPEC; CAUCASUS SPEC&UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE); KAZAKHSTAN SPEC; KAZAKHSTAN SPEC&UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE); KOREA SPEC&UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE); KYRGYZSTAN SPEC; KYRGYZSTAN SPEC&UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE); MOLDOVA SPEC; MOLDOVA SPEC&UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE); UKRAINE SPEC; UKRAINE SPEC&UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE)
ISRAEL SPEC
88539JHOSE, DRAIN COOLER
88548BCASE, AIR FILTER
UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE)
KOREA SPEC&UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE); UPPER GRADE PACKAGE&REAR ARMREST-WITH(CUP HOLDER:PUSH OPEN TYPE)
88625THERMISTOR, COOLER, NO.1
88650NAMPLIFIER ASSY, AIR CONDITIONER
88897LGROMMET (FOR DRAIN HOSE)
88897MGROMMET (FOR HEATER PIPE)
88899LPARTS, COOLING UNIT
88899MPLATE, COVER(FOR AIR FILTER)
9009900968
main90099-00968
9011906951
main90119-06951
9015960383
main90159-60383
9015960431
main90159-60431
9017906282
main90179-06282
24 parts on this diagram · 5 diagrams in section
