SEAT BELT & CHILD RESTRAINT SEAT
73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
main73023-58010-C1iAXVA80,AXVH80..(D,N)..(EUR,GCC); AXVA80,AXVH80..G..(EUR,GCC); AXVH80,MXVA80..ARL,TAIW202406
BLACK,TRIM0#,2#,4#; BLACK,TRIM2#; BLACK,TRIM2#,4#
73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
main73024-58010-C1iAXVA80,AXVH80..(D,N)..(EUR,GCC); AXVA80,AXVH80..G..(EUR,GCC); AXVH80,MXVA80..ARL,TAIW202406
BLACK,TRIM0#,2#,4#; BLACK,TRIM2#; BLACK,TRIM2#,4#
73119PLATE, SEAT BELT WEBBING CLIP
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-47282-C7iAXVA80,AXVH80..(D,N)..(EUR,GCC); AXVA80,AXVH80..G..(EUR,GCC); AXVH80,MXVA80..ARL,TAIW202406
BLACK/BLACK,TRIM0#,2#,4#; BLACK/BLACK,TRIM2#; BLACK/BLACK,TRIM2#,4#
73214PLATE, FRONT SEAT BELT ANCHOR
73219STOPPER, TONGUE PLATE
BLACK
GRAY
BEIGE
73220BELT ASSY, FRONT SEAT OUTER, LH
main73220-47222-C7iAXVA80,AXVH80..(D,N)..(EUR,GCC); AXVA80,AXVH80..G..(EUR,GCC); AXVH80,MXVA80..ARL,TAIW202406
BLACK/BLACK,TRIM0#,2#,4#; BLACK/BLACK,TRIM2#; BLACK/BLACK,TRIM2#,4#
73230BELT ASSY, FRONT SEAT INNER, RH
main73230-33B00-C0iAXVA80,AXVH80..(D,N)..(EUR,GCC); AXVA80,AXVH80..LHD..G..(EUR,GCC); MXVA80;AXVH80..N..TAIW202406
BLACK,TRIM0#,2#,4#; BLACK,TRIM2#; BLACK,TRIM2#,4#
BLACK,TRIM2#
BLACK,TRIM2#; UPPER GRADE PACKAGE&FRONT SEAT ADJUSTER-*DRP(8WAY POWER SEAT),BLACK,TRIM0#,2#,4#
VALUE PACKAGE,BLACK,TRIM2#
FRONT SEAT ADJUSTER-*DRS:POWER SEAT & *PAS:4WAY POWER SEAT,BLACK,TRIM0#,2#,4#; SRI LANKA SPEC&&FRONT SEAT ADJUSTER-*DRS:POWER SEAT & *PAS:4WAY POWER SEAT,BLACK,TRIM0#,2#,4#
73233COVER, LAP BELT OUTER ANCHOR
main73233-60020-C1×2iAXVA80,AXVH80..(D,N)..(EUR,GCC); AXVA80,AXVH80..G..(EUR,GCC); AXVH80,MXVA80..ARL,TAIW202406
BLACK,TRIM0#,2#,4#; BLACK,TRIM2#; BLACK,TRIM2#,4#
73240BELT ASSY, FRONT SEAT INNER, LH
BLACK,TRIM2#
BLACK,TRIM2#
main73230-33B20-C0iAXVA80,AXVH80..(D,N)..(EUR,GCC); AXVA80,AXVH80..LHD..G..(EUR,GCC); MXVA80..G;AXVH80..N..TAIW202406
BLACK,TRIM0#,2#,4#; BLACK,TRIM2#; BLACK,TRIM2#,4#
BLACK,TRIM2#; UPPER GRADE PACKAGE&FRONT SEAT ADJUSTER-*DRP(8WAY POWER SEAT),BLACK,TRIM0#,2#,4#
BLACK,TRIM2#
82711ECLAMP, WIRING HARNESS
9010510523
main90105-10523
9010510611
main90105-10611
9010511053
main90105-11053
9010911066
main90109-11066
9017811002
main90178-11002
9017911010
main90179-11010
9155380612
main91553-80612

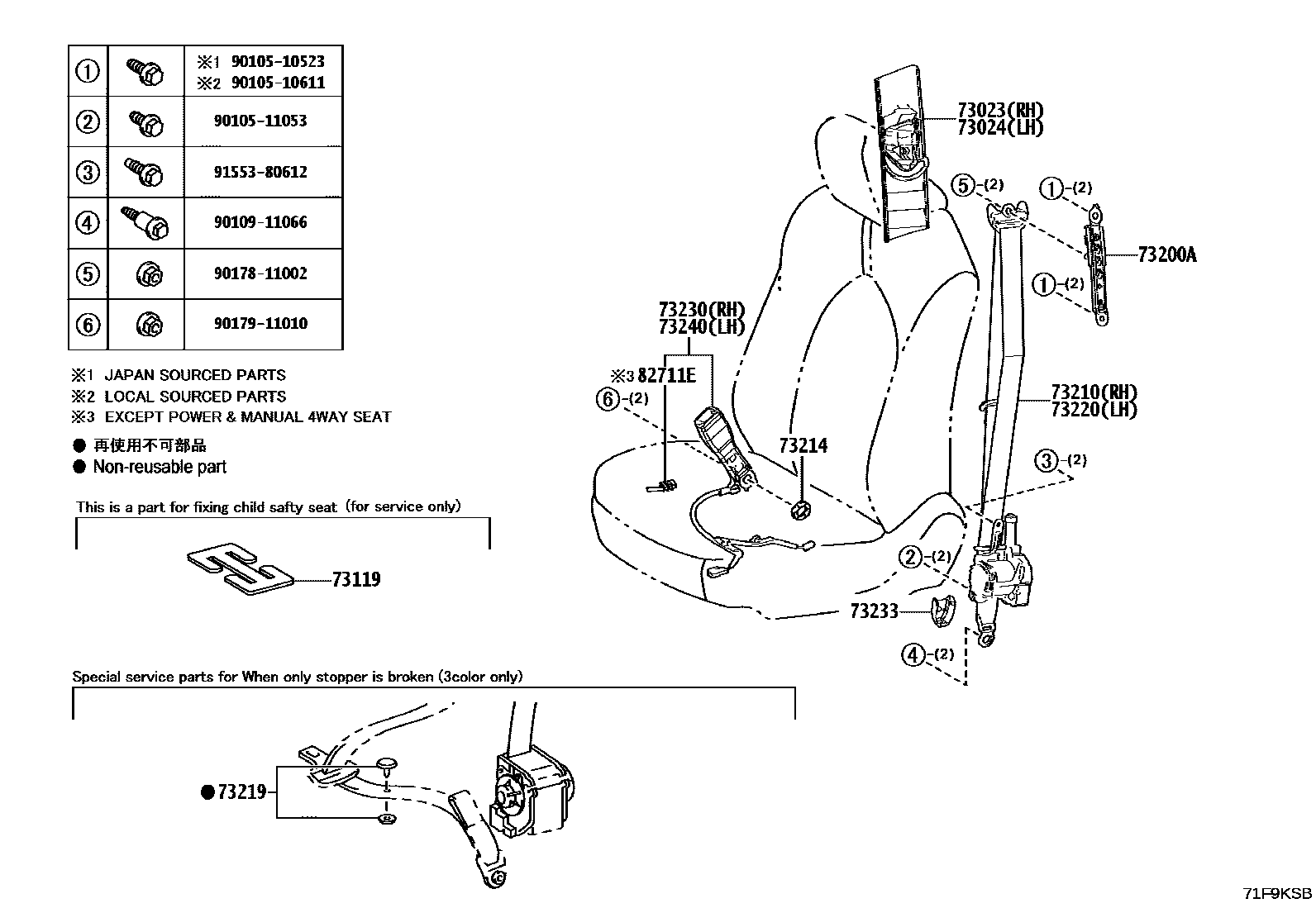

19 parts on this diagram · 2 diagrams in section
