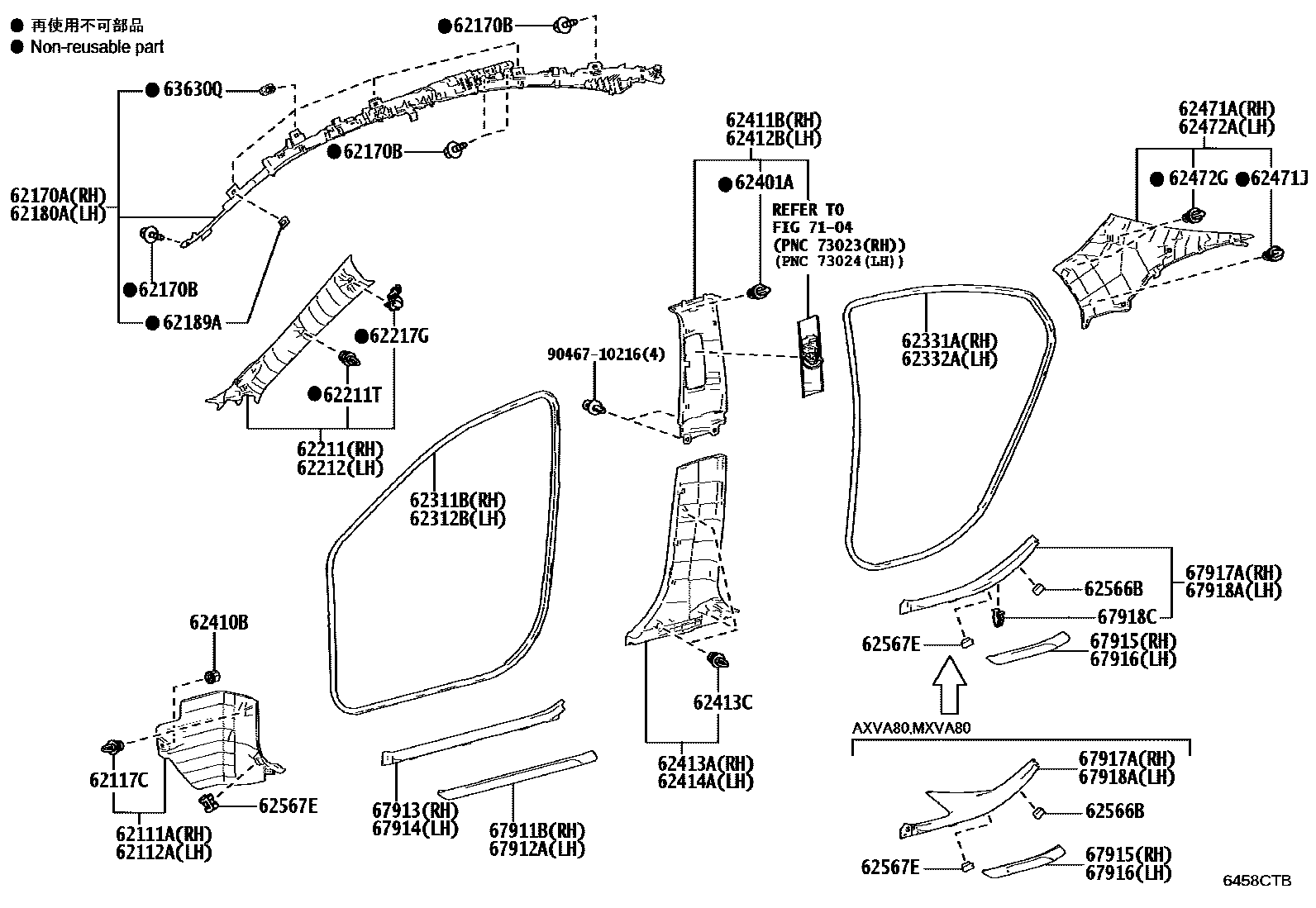

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

62111ATRIM SUB-ASSY, COWL SIDE, RH

main62101-33140-C0iAXVA80,AXVH80..(D,N)..(EUR,GCC)202406

BLACK,TRIM2#,4#

main62101-33140-C0iAXVA80,AXVH80..(D,N)..(EUR,GCC)202406

BLACK,TRIM0#,2#,4#

main62101-33140-C0iAXVA80,AXVH80..(D,N)..(EUR,GCC)202406

BLACK,TRIM2#

main62101-33160-C0iAXVH80..RHD..EUR202406

BLACK,TRIM0#,2#,4#

main62101-33160-C0iAXVH80..RHD..EUR202406

BLACK,TRIM2#

62112ATRIM SUB-ASSY, COWL SIDE, LH

main62102-33240-C0iAXVA80,AXVH80..G..(EUR,GCC)202406

BLACK,TRIM0#,2#,4#

main62102-33240-C0iAXVA80,AXVH80..G..(EUR,GCC)202406

BLACK,TRIM2#

main62102-33240-C0iAXVA80,AXVH80..G..(EUR,GCC)202406

BLACK,TRIM2#,4#

62117CCLIP, NO.2(FOR COWL SIDE TRIM)

main90467-10161iAXVA80,AXVH80,MXVA80202406

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-33200iAXVA80,AXVH80,MXVA80202406

62170BBOLT, W/WASHER

main91673-80616iAXVA80,AXVH80,MXVA80202406

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-33180iAXVA80,AXVH80,MXVA80202406

62189ASPACER, CURTAIN SHIELD AIRBAG CLIP

main62189-42010iAXVA80,AXVH80,MXVA80202406

62211GARNISH, FRONT PILLAR, RH

main62210-33300-C0iAXVH80..RHD..EUR202406-202412

BLACK,TRIM0#,2#,4#

main62210-33300-C0iAXVA80,AXVH80..(D,N)..(EUR,GCC)202406

BLACK,TRIM2#,4#

main62210-33300-C0iAXVA80,AXVH80..(D,N)..(EUR,GCC)202406

BLACK,TRIM2#

main62210-33320-C0iAXVH80..G..ARL202406

BLACK,TRIM2#

main62210-33320-C0iAXVH80..G..ARL202406

UPPER GRADE PACKAGE,BLACK,TRIM0#,2#,4#

main62210-33320-C0iAXVH80..RHD..EUR202412

BLACK,TRIM0#,2#,4#

62211TCLIP(FOR FRONT PILLAR GARNISH)

main90467-10161iAXVA80,AXVH80,MXVA80202406

62212GARNISH, FRONT PILLAR, LH

main62220-33310-C0iAXVH80..RHD..EUR202406-202412

BLACK,TRIM0#,2#,4#

main62220-33310-C0iAXVA80,AXVH80..(D,N)..(EUR,GCC)202406

BLACK,TRIM2#,4#

main62220-33310-C0iAXVA80,AXVH80..(D,N)..(EUR,GCC)202406

BLACK,TRIM2#

main62220-33320-C0iAXVH80..G..ARL202406

BLACK,TRIM2#

main62220-33320-C0iAXVH80..G..ARL202406

UPPER GRADE PACKAGE,BLACK,TRIM0#,2#,4#

main62220-33320-C0iAXVH80..RHD..EUR202412

BLACK,TRIM0#,2#,4#

62217GCLIP, FRONT PILLAR GARNISH

main62217-24020iAXVA80,AXVH80,MXVA80202406

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-33120iAXVA80,AXVH80,MXVA80202406

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-33120iAXVA80,AXVH80,MXVA80202406

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-33170iAXVA80,AXVH80,MXVA80202406

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-33170iAXVA80,AXVH80,MXVA80202406

62401ACLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)

main90467-10167iAXVA80,AXVH80,MXVA80202406

62410BCLIP

main90467-06147iAXVA80,AXVH80,MXVA80202406

62411BGARNISH, CENTER PILLAR, UPPER RH

main62410-33200-C1iAXVA80,AXVH80..G..(EUR,GCC)202406

BLACK,TRIM0#,2#,4#

main62410-33200-C1iAXVA80,AXVH80..G..(EUR,GCC)202406

BLACK,TRIM2#

main62410-33200-C1iAXVA80,AXVH80..G..(EUR,GCC)202406

BLACK,TRIM2#,4#

62412BGARNISH, CENTER PILLAR, UPPER LH

main62420-33190-C1iAXVA80,AXVH80..G..(EUR,GCC)202406

BLACK,TRIM0#,2#,4#

main62420-33190-C1iAXVA80,AXVH80..G..(EUR,GCC)202406

BLACK,TRIM2#

main62420-33190-C1iAXVA80,AXVH80..G..(EUR,GCC)202406

BLACK,TRIM2#,4#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-33140-C0iAXVA80,AXVH80..G..(EUR,GCC)202406

BLACK,TRIM0#,2#,4#

main62413-33140-C0iAXVA80,AXVH80..G..(EUR,GCC)202406

BLACK,TRIM2#

main62413-33140-C0iAXVA80,AXVH80..G..(EUR,GCC)202406

BLACK,TRIM2#,4#

62413CCLIP (FOR CENTER LOWER GARNISH)

main90467-10161iAXVA80,AXVH80,MXVA80202406

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-33130-C0iAXVA80,AXVH80..G..(EUR,GCC)202406

BLACK,TRIM0#,2#,4#

main62414-33130-C0iAXVA80,AXVH80..G..(EUR,GCC)202406

BLACK,TRIM2#

main62414-33130-C0iAXVA80,AXVH80..G..(EUR,GCC)202406

BLACK,TRIM2#,4#

62471AGARNISH, ROOF SIDE, INNER RH

main62470-33260-C0iAXVA80,AXVH80..G..(EUR,GCC)202406

BLACK,TRIM0#,2#,4#

main62470-33260-C0iAXVA80,AXVH80..G..(EUR,GCC)202406

BLACK,TRIM2#

main62470-33260-C0iAXVA80,AXVH80..G..(EUR,GCC)202406

BLACK,TRIM2#,4#

62471JCLIP (FOR ROOF SIDE GARNISH)

main90467-09245iAXVA80,AXVH80,MXVA80202406

62472AGARNISH, ROOF SIDE, INNER LH

main62480-33250-C0iAXVA80,AXVH80..G..(EUR,GCC)202406

BLACK,TRIM0#,2#,4#

main62480-33250-C0iAXVA80,AXVH80..G..(EUR,GCC)202406

BLACK,TRIM2#

main62480-33250-C0iAXVA80,AXVH80..G..(EUR,GCC)202406

BLACK,TRIM2#,4#

62472GCLIP (FOR ROOF SIDE GARNISH)

main90467-10188iAXVA80,AXVH80,MXVA80202406

62566BCLAMP, ROCKER PANEL INNER PROTECTER, NO.1

main62566-32010iAXVA80,AXVH80,MXVA80202406

62567ECLAMP, ROCKER PANEL INNER PROTECTOR, NO.2

main62567-33040iAXVA80,AXVH80,MXVA80202406

63630QCLIP

main90467-18017iAXVA80,AXVH80,MXVA80202406

67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH

main67911-33081iMXVA80..N;AXVA80,AXVH80..D202406

VALUE PACKAGE

main67911-33091iMXVA80..G;AXVA80,AXVH80..G,N202406

67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH

main67912-33081iMXVA80..N;AXVA80,AXVH80..D202406

VALUE PACKAGE

main67912-33121iMXVA80..G;AXVA80,AXVH80..G,N202406

67913PLATE, FRONT DOOR SCUFF, RH

main67913-33170-C0iAXVA80,AXVH80..G..(EUR,GCC)202406

BLACK,TRIM0#,2#,4#

main67913-33170-C0iAXVA80,AXVH80..G..(EUR,GCC)202406

BLACK,TRIM2#

main67913-33170-C0iAXVA80,AXVH80..G..(EUR,GCC)202406

BLACK,TRIM2#,4#

67914PLATE, FRONT DOOR SCUFF, LH

main67914-33170-C0iAXVA80,AXVH80..G..(EUR,GCC)202406

BLACK,TRIM0#,2#,4#

main67914-33170-C0iAXVA80,AXVH80..G..(EUR,GCC)202406

BLACK,TRIM2#

main67914-33170-C0iAXVA80,AXVH80..G..(EUR,GCC)202406

BLACK,TRIM2#,4#

67915PLATE, REAR DOOR SCUFF, OUTSIDE RH

main67915-33121iAXVA80,AXVH80,MXVA80..D,N202406

main67915-33131iAXVA80,AXVH80,MXVA80..G202406

67916PLATE, REAR DOOR SCUFF, OUTSIDE LH

main67916-33121iAXVA80,AXVH80,MXVA80..D,N202406

main67916-33131iAXVA80,AXVH80,MXVA80..G202406

67917APLATE, REAR DOOR SCUFF, RH

main67917-33130-C0iMXVA80202406

BLACK,TRIM2#

main67917-33130-C0iMXVA80202406

BLACK,TRIM0#,2#,4#

main67917-33130-C0iMXVA80202406

BLACK,TRIM2#,4#

main67917-33140-C0iAXVH80..(D,N)..(EUR,GCC)202406

BLACK,TRIM2#,4#

main67917-33140-C0iAXVH80..(D,N)..(EUR,GCC)202406

BLACK,TRIM0#,2#,4#

main67917-33140-C0iAXVH80..(D,N)..(EUR,GCC)202406

BLACK,TRIM2#

67918APLATE, REAR DOOR SCUFF, LH

main67918-33130-C0iMXVA80202406

BLACK,TRIM2#

main67918-33130-C0iMXVA80202406

BLACK,TRIM0#,2#,4#

main67918-33130-C0iMXVA80202406

BLACK,TRIM2#,4#

main67918-33140-C0iAXVH80..(D,N)..(EUR,GCC)202406

BLACK,TRIM2#,4#

main67918-33140-C0iAXVH80..(D,N)..(EUR,GCC)202406

BLACK,TRIM0#,2#,4#

main67918-33140-C0iAXVH80..(D,N)..(EUR,GCC)202406

BLACK,TRIM2#

67918CCLIP(FOR REAR SCUFF PLATE)

main90467-05171iAXVH80202406

7104

9046710216

main90467-10216

40 parts on this diagram · 1 diagram in section
