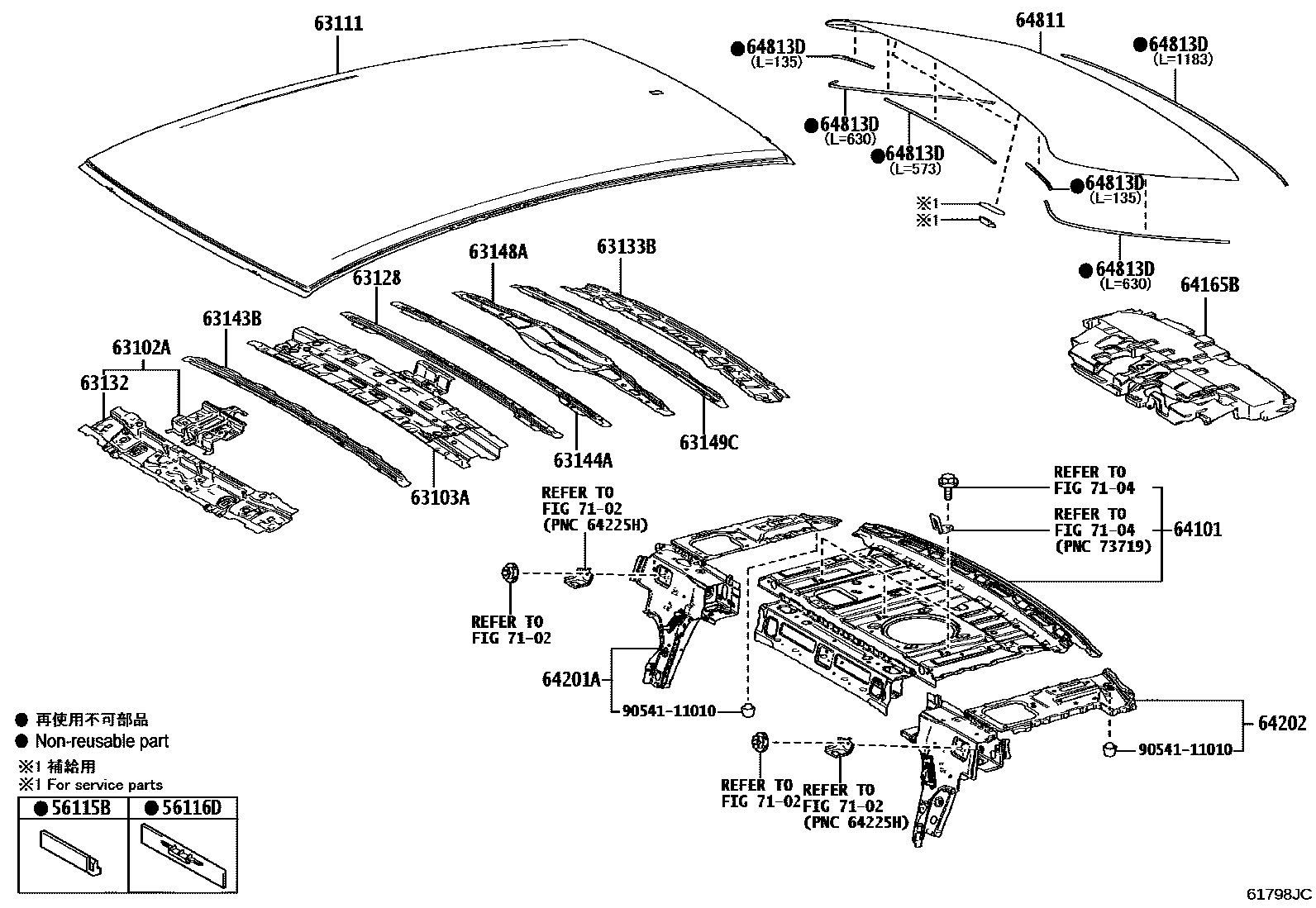

ROOF PANEL & BACK WINDOW GLASS
56115BSTOPPER, BACK WINDOW GLASS, NO.1
56116DSTOPPER, BACK WINDOW GLASS, NO.2
63102APANEL SUB-ASSY, WINDSHIELD HEADER
KOREA SPEC&UPPER GRADE PACKAGE&WITHOUT(REMOTE AIR CONDITIONER PACKAGE); WITHOUT(REMOTE AIR CONDITIONER PACKAGE)
main63102-33909iAXVA80,AXVH80..D;AXVA80,MXVA80..EUR,TAIW;AXVH80..N..(ARL,EUR,TAIW);AXVH80..LHD..G..(EUR,TAIW)202406
63103AREINFORCEMENT SUB-ASSY, ROOF PANEL
ARMENIA SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE); KAZAKHSTAN SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE); KYRGYZSTAN SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE); MOLDOVA SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE)
NEW ZEALAND SPEC&VALUE PACKAGE&WITHOUT(REMOTE AIR CONDITIONER PACKAGE); VALUE PACKAGE
63111PANEL, ROOF
main63111-33310iAXVA80,AXVH80..D;AXVH80,MXVA80..TAIW; AXVA80..EUR; AXVA80..G..EUR; AXVH80..LHD..EUR; AXVH80..N..ARL202406
CAUCASUS SPEC; CAUCASUS SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE); EGYPT SPEC; LIBYA SPEC; MOLDOVA SPEC; MOLDOVA SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE); NEW ZEALAND SPEC&VALUE PACKAGE&WITHOUT(REMOTE AIR CONDITIONER PACKAGE); NEW ZEALAND SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE); UKRAINE SPEC; UKRAINE SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE)
UAE SPEC&WITH(REMOTE AIR CONDITIONER PACKAGE)
VALUE PACKAGE&AUDIO-8INCH 6SPEAKER
KOREA SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE); UAE SPEC&WITH(REMOTE AIR CONDITIONER PACKAGE)
63128REINFORCEMENT, ROOF PANEL, NO.6
main63128-33030iAXVH80..N..GCC; MXVA80;AXVH80..D;AXVA80..D,N;AXVH80..N..(ARL,EUR,TAIW);AXVA80,AXVH80..LHD..G..(EUR,TAIW)202406
VALUE PACKAGE&AUDIO-8INCH 6SPEAKER
63132PANEL, WINDSHIELD HEADER, INNER
main63132-33110iAXVH80..N..GCC; MXVA80;AXVH80..D;AXVA80..D,N;AXVH80..N..(ARL,EUR,TAIW);AXVA80,AXVH80..LHD..G..(EUR,TAIW)202406
VALUE PACKAGE&AUDIO-8INCH 6SPEAKER
63133BFRAME, BACK WINDOW
main63133-33130iAXVH80..N..GCC; MXVA80;AXVH80..D;AXVA80..D,N;AXVH80..N..(ARL,EUR,TAIW);AXVA80,AXVH80..LHD..G..(EUR,TAIW)202406
VALUE PACKAGE&AUDIO-8INCH 6SPEAKER
63143BREINFORCEMENT, ROOF PANEL, NO.3
main63143-33110iAXVA80,AXVH80..D;AXVA80,MXVA80..EUR,TAIW;AXVH80..N..(ARL,EUR,TAIW);AXVH80..LHD..G..(EUR,TAIW)202406
63144AREINFORCEMENT, ROOF PANEL, NO.4
main63144-33150iAXVH80..N..GCC; MXVA80;AXVH80..D;AXVA80..D,N;AXVH80..N..(ARL,EUR,TAIW);AXVA80,AXVH80..LHD..G..(EUR,TAIW)202406
VALUE PACKAGE&AUDIO-8INCH 6SPEAKER
63148AREINFORCEMENT, ROOF PANEL, NO.7
main63148-33070iAXVH80..N..GCC; MXVA80;AXVH80..D;AXVA80..D,N;AXVH80..N..(ARL,EUR,TAIW);AXVA80,AXVH80..LHD..G..(EUR,TAIW)202406
VALUE PACKAGE&AUDIO-8INCH 6SPEAKER
63149CREINFORCEMENT, ROOF PANEL SIDE, LH
main63149-33040iAXVH80..N..GCC; MXVA80;AXVH80..D;AXVA80..D,N;AXVH80..N..(ARL,EUR,TAIW);AXVA80,AXVH80..LHD..G..(EUR,TAIW)202406
VALUE PACKAGE&AUDIO-8INCH 6SPEAKER
64101PANEL SUB-ASSY, UPPER BACK
64165BCOVER, UPPER BACK PANEL HOLE, NO.1
KOREA SPEC
KOREA SPEC&UPPER GRADE PACKAGE&ILLUMINATED ENTRY SYSTEM-WITH(ROOM & KEY & INSIDE HANDLE & FOOT); UPPER GRADE PACKAGE&ILLUMINATED ENTRY SYSTEM-WITH(ROOM & KEY & INSIDE HANDLE & FOOT)
64201AEXTENSION SUB-ASSY, PACKAGE TRAY, RH
64202EXTENSION SUB-ASSY, PACKAGE TRAY, LH
64811GLASS, BACK WINDOW
PRIVACY PACKAGE
64813DDAM, BACK WINDOW GLASS ADHESIVE
CUT REQUIRED LENGTH
7102REAR SEAT & SEAT TRACK
7104SEAT BELT & CHILD RESTRAINT SEAT
9054111010
main90541-11010
21 parts on this diagram · 6 diagrams in section
