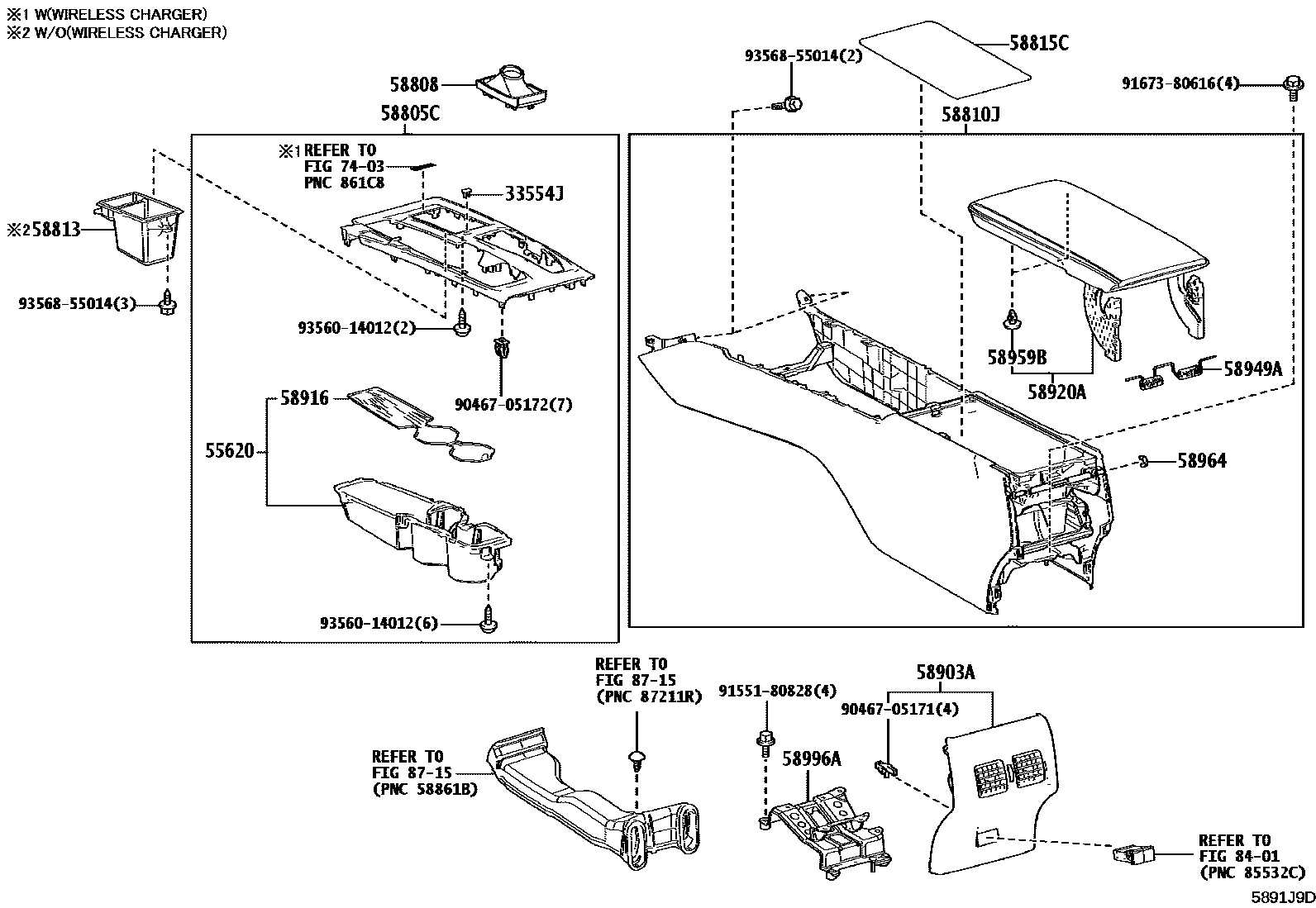

CONSOLE BOX & BRACKET

0001 1 0002 1

33554JCOVER, SHIFT LOCK RELEASE BUTTON

main33554-48090iAXVA80,AXVH80,MXVA80202406

55620HOLDER ASSY, INSTRUMENT PANEL CUP

main55620-33420iAXVA80,AXVH80,MXVA80..LHD202406

main55620-33520iAXVH80..RHD202406

58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR

main58805-33E30iMXVA80..N202406

VALUE PACKAGE

main58805-33E40iMXVA80..G;AXVA80,AXVH80..LHD..(G,N)202406

main58805-33E60iAXVH80..RHD202406

main58805-33E70iAXVA80,AXVH80..D202406

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-33111-C0iAXVA80,AXVH80..(D,N)..(EUR,GCC)202406

BLACK,TRIM2#,4#

main58808-33111-C0iAXVA80,AXVH80..(D,N)..(EUR,GCC)202406

BLACK,TRIM0#,2#,4#

main58808-33111-C0iAXVA80,AXVH80..(D,N)..(EUR,GCC)202406

BLACK,TRIM2#

main58808-33131-C0iAXVH80..RHD..EUR202406

BLACK,TRIM0#,2#,4#

main58808-33131-C0iAXVH80..RHD..EUR202406

BLACK,TRIM2#

58810JBOX ASSY, CONSOLE

main58810-33460-C2iAXVA80..D,N;AXVH80..(D,N)..GCC202406

BLACK,TRIM2#,4#

main58810-33460-C2iAXVA80..D,N;AXVH80..(D,N)..GCC202406

BLACK,TRIM2#

main58810-33460-C2iAXVA80..D,N;AXVH80..(D,N)..GCC202406

MOLDOVA SPEC,BLACK,TRIM2#,4#

main58810-33460-C2iAXVA80..D,N;AXVH80..(D,N)..GCC202406

UKRAINE SPEC,BLACK,TRIM2#,4#

main58810-33460-C2iAXVA80..D,N;AXVH80..(D,N)..GCC202406

CAUCASUS SPEC,BLACK,TRIM2#,4#

main58810-33460-C2iAXVA80..D,N;AXVH80..(D,N)..GCC202406

KAZAKHSTAN SPEC,BLACK,TRIM2#,4#

main58810-33460-C2iAXVA80..D,N;AXVH80..(D,N)..GCC202406

ARMENIA SPEC,BLACK,TRIM2#,4#

main58810-33470-C4iAXVA80..G;AXVH80..G..GCC202406

BLACK/SHELL,TRIM0#

main58810-33470-C4iAXVA80..G;AXVH80..G..GCC202406

MOLDOVA SPEC,BLACK/SHELL,TRIM0#

main58810-33470-C4iAXVA80..G;AXVH80..G..GCC202406

UKRAINE SPEC,BLACK/SHELL,TRIM0#

main58810-33470-C4iAXVA80..G;AXVH80..G..GCC202406

CAUCASUS SPEC,BLACK/SHELL,TRIM0#

main58810-33470-C4iAXVA80..G;AXVH80..G..GCC202406

KAZAKHSTAN SPEC,BLACK/SHELL,TRIM0#

main58810-33470-C4iAXVA80..G;AXVH80..G..GCC202406

KYRGYZSTAN SPEC,BLACK/SHELL,TRIM0#

main58810-33470-C4iAXVA80..G;AXVH80..G..GCC202406

ARMENIA SPEC,BLACK/SHELL,TRIM0#

main58810-33470-C5iAXVA80,MXVA80..G;AXVH80..G..(GCC,TAIW)202406

BLACK/DARK GRAY,TRIM2#

main58810-33470-C5iAXVA80,MXVA80..G;AXVH80..G..(GCC,TAIW)202406

MOLDOVA SPEC,BLACK/DARK GRAY,TRIM2#

main58810-33470-C5iAXVA80,MXVA80..G;AXVH80..G..(GCC,TAIW)202406

UKRAINE SPEC,BLACK/DARK GRAY,TRIM2#

main58810-33470-C5iAXVA80,MXVA80..G;AXVH80..G..(GCC,TAIW)202406

CAUCASUS SPEC,BLACK/DARK GRAY,TRIM2#

main58810-33470-C5iAXVA80,MXVA80..G;AXVH80..G..(GCC,TAIW)202406

KAZAKHSTAN SPEC,BLACK/DARK GRAY,TRIM2#

main58810-33470-C5iAXVA80,MXVA80..G;AXVH80..G..(GCC,TAIW)202406

KYRGYZSTAN SPEC,BLACK/DARK GRAY,TRIM2#

main58810-33470-C5iAXVA80,MXVA80..G;AXVH80..G..(GCC,TAIW)202406

ARMENIA SPEC,BLACK/DARK GRAY,TRIM2#

main58810-33470-C6iAXVA80..G;AXVH80..G..GCC202406

BLACK/OCHER,TRIM4#

main58810-33470-C6iAXVA80..G;AXVH80..G..GCC202406

MOLDOVA SPEC,BLACK/OCHER,TRIM4#

main58810-33470-C6iAXVA80..G;AXVH80..G..GCC202406

UKRAINE SPEC,BLACK/OCHER,TRIM4#

main58810-33470-C6iAXVA80..G;AXVH80..G..GCC202406

CAUCASUS SPEC,BLACK/OCHER,TRIM4#

main58810-33470-C6iAXVA80..G;AXVH80..G..GCC202406

KAZAKHSTAN SPEC,BLACK/OCHER,TRIM4#

main58810-33470-C6iAXVA80..G;AXVH80..G..GCC202406

KYRGYZSTAN SPEC,BLACK/OCHER,TRIM4#

main58810-33470-C6iAXVA80..G;AXVH80..G..GCC202406

ARMENIA SPEC,BLACK/OCHER,TRIM4#

main58810-33480-C1iAXVH80..N..EUR202406

BLACK,TRIM2#,4#

main58810-33490-C4iAXVH80..LHD..G..EUR202406

BLACK/SHELL,TRIM0#

main58810-33490-C4iAXVH80..LHD..G..EUR202406

ISRAEL SPEC,BLACK/SHELL,TRIM0#

main58810-33490-C5iAXVH80..LHD..G..EUR202406

BLACK/DARK GRAY,TRIM2#

main58810-33490-C5iAXVH80..LHD..G..EUR202406

ISRAEL SPEC,BLACK/DARK GRAY,TRIM2#

main58810-33490-C6iAXVH80..LHD..G..EUR202406

BLACK/OCHER,TRIM4#

main58810-33490-C6iAXVH80..LHD..G..EUR202406

ISRAEL SPEC,BLACK/OCHER,TRIM4#

main58810-33500-C2iAXVH80..N..ARL202406

BLACK,TRIM2#

main58810-33510-C4iAXVH80..RHD..EUR202406

BLACK/SHELL,TRIM0#

main58810-33510-C5iAXVH80..RHD..G202406

BLACK/DARK GRAY,TRIM2#

main58810-33510-C6iAXVH80..RHD..EUR202406

BLACK/OCHER,TRIM4#

58813BOX, CONSOLE, UPPER

main58813-33090iMXVA80..N;AXVA80,AXVH80..D202406

VALUE PACKAGE

58815CCARPET, CONSOLE BOX

main58815-33230iAXVA80,AXVH80,MXVA80202406

58903APANEL SUB-ASSY, CONSOLE REAR END

main58903-33330-C0iAXVA80,AXVH80..G..(EUR,GCC)202406

BLACK,TRIM0#,2#,4#

main58903-33330-C0iAXVA80,AXVH80..G..(EUR,GCC)202406

BLACK,TRIM2#

main58903-33330-C0iAXVA80,AXVH80..G..(EUR,GCC)202406

BLACK,TRIM2#,4#

58916MAT, BOX BOTTOM

main58916-33180iAXVA80,AXVH80,MXVA80..LHD202406

main58916-33190iAXVH80..RHD202406

58920AARMREST ASSY, REAR CONSOLE

main58920-33160-C2iAXVA80,AXVH80..(D,N)..(EUR,GCC)202406

BLACK,TRIM2#,4#

main58920-33160-C2iAXVA80,AXVH80..(D,N)..(EUR,GCC)202406

BLACK,TRIM2#

main58920-33170-C4iAXVA80,AXVH80..G..(EUR,GCC)202406

BLACK/SHELL,TRIM0#

main58920-33170-C4iAXVA80,AXVH80..G..(EUR,GCC)202406

ISRAEL SPEC,BLACK/SHELL,TRIM0#

main58920-33170-C5iAXVA80,AXVH80,MXVA80..G202406

BLACK/DARK GRAY,TRIM2#

main58920-33170-C5iAXVA80,AXVH80,MXVA80..G202406

ISRAEL SPEC,BLACK/DARK GRAY,TRIM2#

main58920-33170-C6iAXVA80,AXVH80..G..(EUR,GCC)202406

BLACK/OCHER,TRIM4#

main58920-33170-C6iAXVA80,AXVH80..G..(EUR,GCC)202406

ISRAEL SPEC,BLACK/OCHER,TRIM4#

58949ASPRING, CONSOLE BOX MOUNTING BRACKET

main58949-33080iAXVA80,AXVH80,MXVA80202406

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main58959-60060iAXVA80,AXVH80,MXVA80202406

58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1

main58964-33040iAXVA80,AXVH80,MXVA80202406

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-33101iAXVA80,AXVH80,MXVA80202406

7403

8401

8715

9046705171

main90467-05171

9046705172

main90467-05172

9155180828

main91551-80828

9167380616

main91673-80616

9356014012

main93560-14012

9356855014

main93568-55014

23 parts on this diagram · 2 diagrams in section
