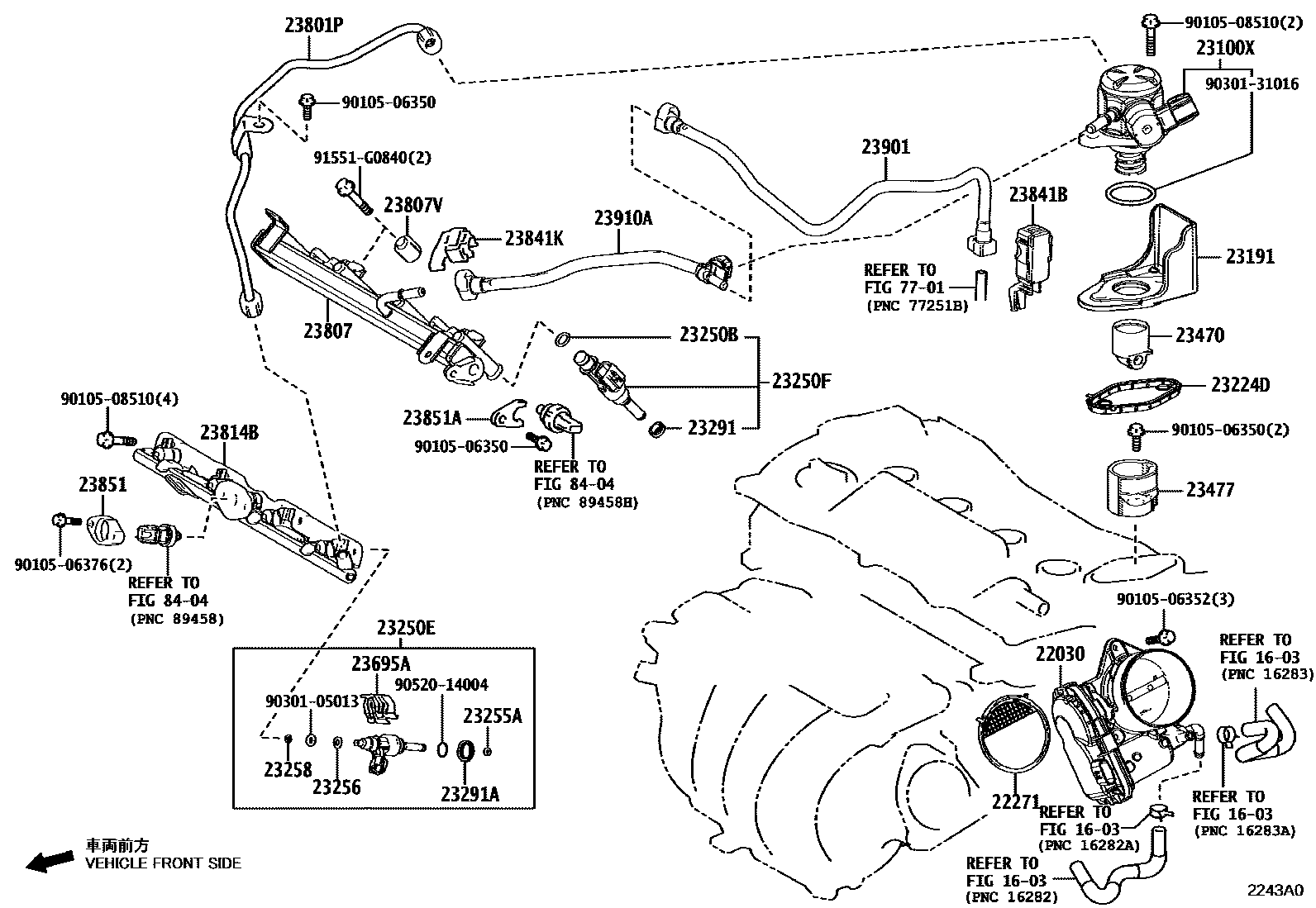

FUEL INJECTION SYSTEM
1603RADIATOR & WATER OUTLET
22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22271GASKET, THROTTLE BODY
23100XPUMP ASSY, FUEL (ENGINE ROOM SIDE)
23191FLANGE, FUEL PUMP
main23191-25050iA25..AXVA80;A25..AXVH80..TAIW;A25..AXVH80..RHD..EUR; A25..AXVH80..LHD..EUR; A25..AXVH80..LHD..G..EUR; M20..MXVA80202406
ARMENIA SPEC; CAUCASUS SPEC; KAZAKHSTAN SPEC; KYRGYZSTAN SPEC; MOLDOVA SPEC
main23191-25070iA25..AXVH80..LHD..G..EUR; A25..AXVH80..LHD..G..EUR;A25..AXVH80..G..(ARL,GCC);A25..AXVH80..(D,N)..(ARL,EUR,GCC)202406
ISRAEL SPEC
23224DGASKET, FUEL PUMP SPACER
23250BRING, O(FOR FUEL INJECTOR)
(J)
(L)
(L)
23250EINJECTOR ASSY, FUEL(FOR DIRECT)
MARK 1,REFER REPAIR MANUAL
MARK 2,REFER REPAIR MANUAL
MARK 3,REFER REPAIR MANUAL
MARK 4,REFER REPAIR MANUAL
MARK 5,REFER REPAIR MANUAL
MARK 6,REFER REPAIR MANUAL
MARK 7,REFER REPAIR MANUAL
MARK 8,REFER REPAIR MANUAL
MARK 9,REFER REPAIR MANUAL
MARK 1,REFER REPAIR MANUAL
MARK 2,REFER REPAIR MANUAL
MARK 3,REFER REPAIR MANUAL
MARK 4,REFER REPAIR MANUAL
MARK 5,REFER REPAIR MANUAL
MARK 6,REFER REPAIR MANUAL
MARK 7,REFER REPAIR MANUAL
MARK 8,REFER REPAIR MANUAL
MARK 9,REFER REPAIR MANUAL
23250FINJECTOR ASSY, FUEL(FOR PORT)
23255ASEAL, FUEL INJECTOR
23256RING, FUEL INJECTOR BACK-UP, NO.1
23258RING, FUEL INJECTOR BACK-UP, NO.3
23291INSULATOR, INJECTOR VIBRATION
23291AINSULATOR, INJECTOR VIBRATION
23470LIFTER ASSY, FUEL PUMP
23477GUIDE, FUEL PUMP LIFTER
23695ACLAMP, NOZZLE HOLDER
23801PPIPE SUB-ASSY, FUEL, NO.1
23807PIPE SUB-ASSY, FUEL DELIVERY
23807VSPACER, NO.1(FOR DELIVERY PIPE)
23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)
23841KCLAMP, FUEL PIPE
23851HOLDER, FUEL PRESSURE SENSOR, NO.1
23851AHOLDER, FUEL PRESSURE SENSOR, NO.2
23901TUBE SUB-ASSY, FUEL
main23901-25031iA25..AXVH80..ARL,GCC,TAIW; A25..AXVH80..LHD..EUR; A25..AXVH80..LHD..G..EUR; A25..AXVH80..N..EUR; A25..AXVH80..RHD..EUR202406
ARMENIA SPEC; CAUCASUS SPEC; ISRAEL SPEC; KAZAKHSTAN SPEC; KYRGYZSTAN SPEC; MOLDOVA SPEC; SRI LANKA SPEC; UKRAINE SPEC
KOREA SPEC
7701FUEL TANK & TUBE
8404ELECTRONIC FUEL INJECTION SYSTEM
9010506350
main90105-06350
9010506352
main90105-06352
9010506376
main90105-06376
9010508510
main90105-08510
9030105013
main90301-05013
9030131016
main90301-31016
9052014004
main90520-14004
91551G0840
main91551-G0840
37 parts on this diagram · 3 diagrams in section
