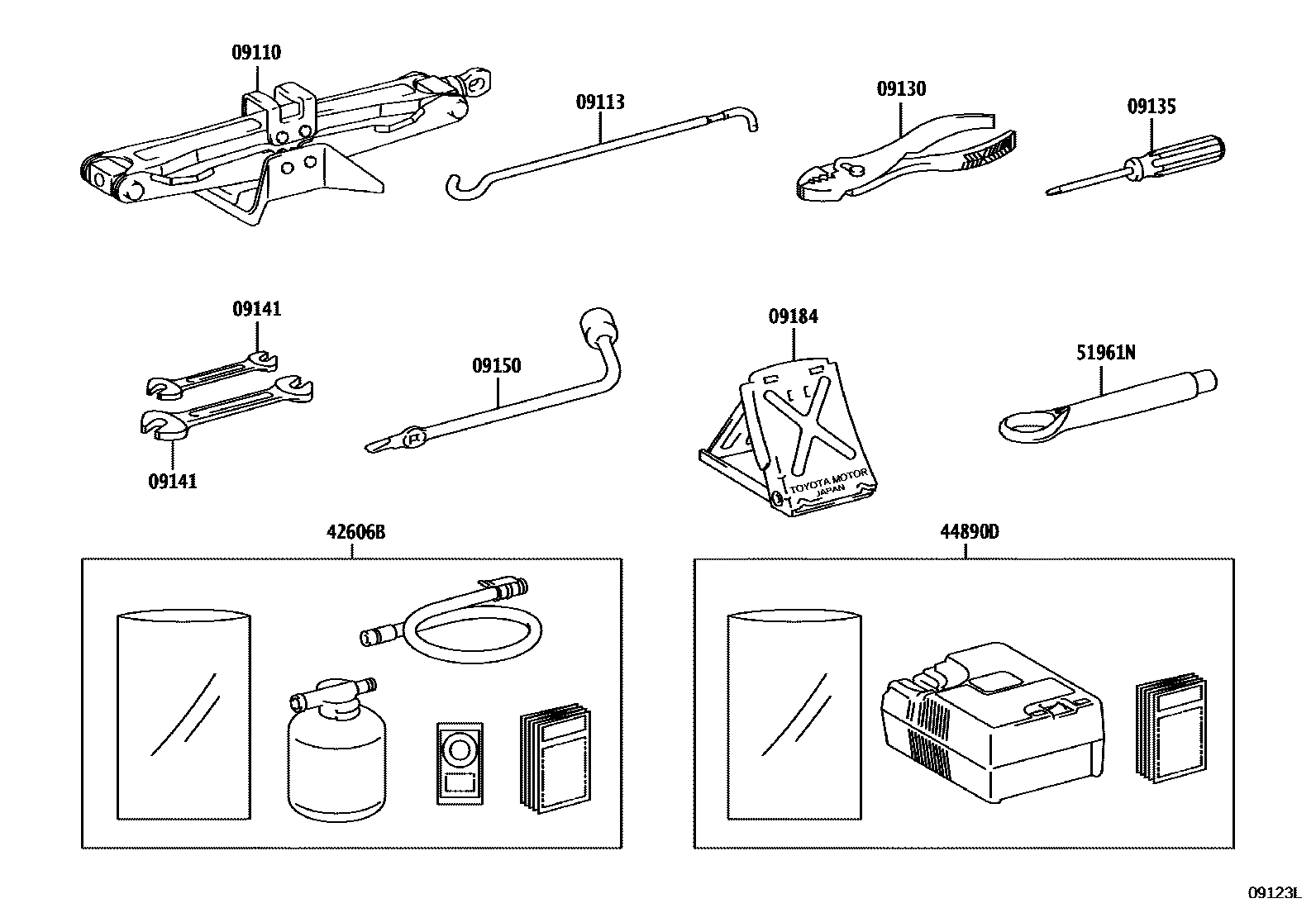

STANDARD TOOL

09110JACK ASSY

main09110-33050iAXVH80..ARL202406

main09111-33051iAXVH80..LHD..EUR202406

SPARE TIRE-GROUND TIRE

09113HANDLE, JACK

main09113-42030iAXVA80;AXVH80..ARL,GCC;AXVH80..RHD..EUR202406

SPARE TIRE-GROUND TIRE

09130PLIERS

main99913-11500iAXVA80..G..EUR202406

LIBYA SPEC

main99913-11500iAXVH80..RHD..EUR;AXVA80,AXVH80..GCC202406

EGYPT SPEC

09135DRIVER, SCREW

main99915-10700iAXVH80..RHD..EUR;AXVA80,AXVH80..GCC202406

EGYPT SPEC

main99915-10700iAXVH80..RHD..EUR;AXVA80,AXVH80..GCC202406

LIBYA SPEC

09141SPANNER

main99914-10810iAXVH80..RHD..EUR;AXVA80,AXVH80..GCC202406

8 X 10,EGYPT SPEC,8 X 10

main99914-10810iAXVH80..RHD..EUR;AXVA80,AXVH80..GCC202406

8 X 10,8 X 10

main99914-10810iAXVH80..RHD..EUR;AXVA80,AXVH80..GCC202406

8 X 10,LIBYA SPEC,8 X 10

main99914-11214iAXVH80..RHD..EUR;AXVA80,AXVH80..GCC202406

12 X 14,12 X 14

main99914-11214iAXVH80..RHD..EUR;AXVA80,AXVH80..GCC202406

12 X 14,EGYPT SPEC,12 X 14

main99914-11214iAXVH80..RHD..EUR;AXVA80,AXVH80..GCC202406

12 X 14,LIBYA SPEC,12 X 14

09150WRENCH, HUB NUT BOX

main09150-42010iAXVA80;AXVH80..ARL,GCC;AXVH80..RHD..EUR202406

SPARE TIRE-GROUND TIRE

09184STOPPER, WHEEL

main09184-00010iAXVH80..RHD..EUR202406

EGYPT SPEC

main09184-00010iAXVH80..RHD..EUR202406

LIBYA SPEC

42606BREPAIR KIT, TUBELESS TIRE

main42606-42080iAXVH80,MXVA80..LHD..(EUR,TAIW)202406

SPARE TIRE-GROUND TIRE

44890DCOMPRESSOR ASSY, AIR

main44890-42050iAXVH80,MXVA80..LHD..(EUR,TAIW)202406

51961NHOOK, TRANSPORT

main51961-11030iAXVA80,AXVH80,MXVA80202411

main51961-33020iAXVA80,AXVH80,MXVA80202406-202411

10 parts on this diagram · 1 diagram in section
