EPC Data

FRONT SEAT & SEAT TRACK

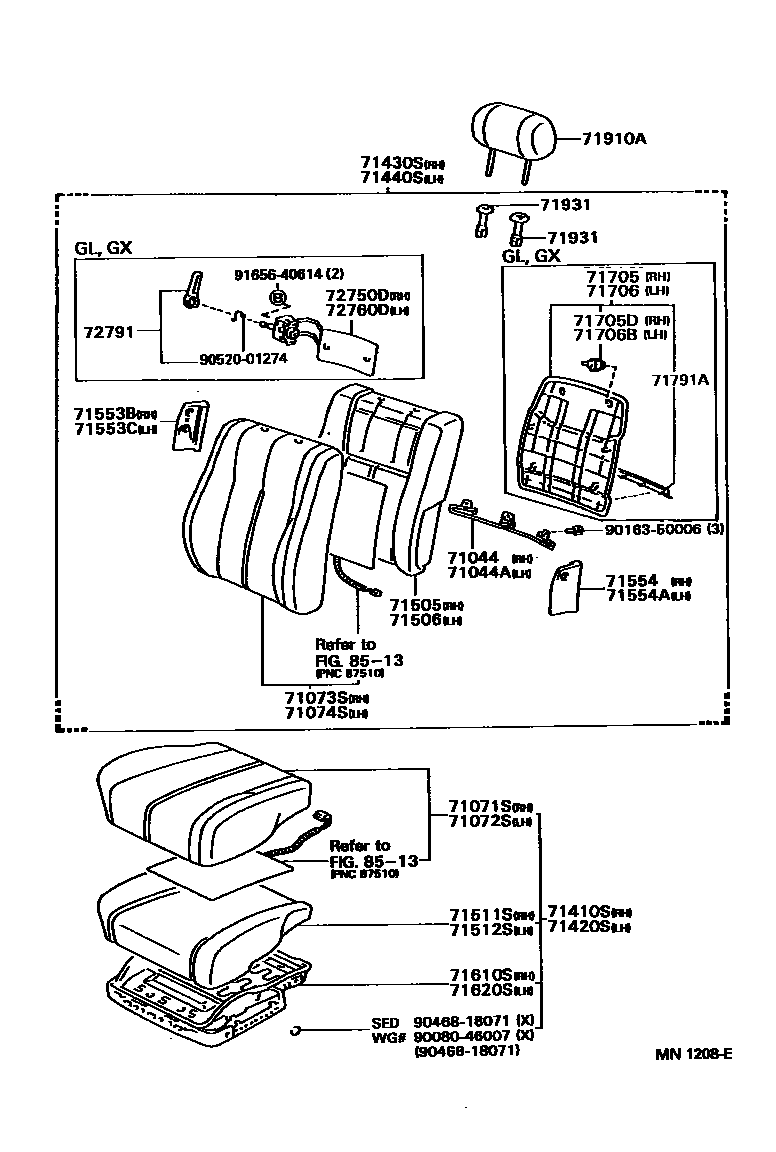

Parts diagram
71044WIRE SUB-ASSY, FRONT SEATBACK, LOWER RH
71044AWIRE SUB-ASSY, FRONT SEATBACK, LOWER LH
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-06010-B0i199203-199309
MEDIUM GRAY,TRIM1#
main71071-06010-J0i199203-199309
DARK BLUE,TRIM8#
main71071-06011-B1i199309-199408
MEDIUM GRAY,TRIM1#
main71071-06011-B4i199408-199508
MEDIUM GRAY,TRIM1#
main71071-06011-E1i199309-199408
MEDIUM OAK,TRIM4#
main71071-06011-E4i199408-199508
MEDIUM OAK,TRIM4#
main71071-06012-B5i199508-199607
MEDIUM GRAY,TRIM1#
main71071-06012-E5i199508-199607
MEDIUM OAK,TRIM4#
main71071-06030-B0i199203-199408
MEDIUM GRAY,TRIM1#
main71071-06030-E0i199309-199408
MEDIUM OAK,TRIM4#
main71071-06030-J0i199203-199309
DARK BLUE,TRIM8#
main71071-06031-B2i199408-199607
MEDIUM GRAY,TRIM1#
main71071-06031-E2i199408-199607
MEDIUM OAK,TRIM4#
main71071-06040-B0i199203-199309
W(LEATHER SEAT)-*99,MEDIUM GRAY,TRIM1#
main71071-06040-J0i199203-199309
W(LEATHER SEAT)-*99,DARK BLUE,TRIM8#
main71071-06050-B0i199203-199408
MEDIUM GRAY,TRIM1#
main71071-06050-E0i199309-199408
MEDIUM OAK,TRIM4#
main71071-06050-J0i199203-199309
DARK BLUE,TRIM8#
main71071-06051-B2i199408-199607
MEDIUM GRAY,TRIM1#
main71071-06051-E2i199408-199607
MEDIUM OAK,TRIM4#
main71071-06060-B0i199203-199408
MEDIUM GRAY,TRIM1#
main71071-06060-E0i199309-199408
OAK,TRIM4#
main71071-06060-J0i199203-199309
DARK BLUE,TRIM8#
main71071-06061-B2i199408-199607
MEDIUM GRAY,TRIM1#
main71071-06061-E2i199408-199607
MEDIUM OAK,TRIM4#
main71071-06070-B0i199203-199309
W(LEATHER SEAT)-*99,MEDIUM GRAY,TRIM1#
main71071-06070-J0i199203-199309
W(LEATHER SEAT)-*99,DARK BLUE,TRIM8#
main71071-06080-B0i199203-199408
MEDIUM GRAY,TRIM1#
main71071-06080-E0i199309-199408
OAK,TRIM4#
main71071-06080-J0i199203-199309
DARK BLUE,TRIM8#
main71071-06081-B2i199408-199607
MEDIUM GRAY,TRIM1#
main71071-06081-E2i199408-199607
MEDIUM OAK,TRIM4#
main71071-06101-B0i199309-199408
W(LEATHER SEAT & POWER SEAT)-*99,MEDIUM GRAY,TRIM1#
main71071-06101-E0i199309-199408
W(LEATHER SEAT & POWER SEAT)-*99,LIGHT OAK,TRIM4#
main71071-06102-B5i199408-199607
W(LEATHER SEAT & POWER SEAT)-*99,MEDIUM GRAY,TRIM1#
main71071-06102-E5i199408-199607
W(LEATHER SEAT & POWER SEAT)-*99,LIGHT OAK,TRIM4#
main71071-06110-B0i199203-199309
W(SEAT HEATER),MEDIUM GRAY,TRIM1#
main71071-06110-J0i199203-199309
W(SEAT HEATER),DARK BLUE,TRIM8#
main71071-06111-B1i199309-199408
W(SEAT HEATER),MEDIUM GRAY,TRIM1#
main71071-06111-B3i199408-199508
W(SEAT HEATER),MEDIUM GRAY,TRIM1#
main71071-06111-E0i199309-199408
W(SEAT HEATER),MEDIUM OAK,TRIM4#
main71071-06111-E2i199408-199508
W(SEAT HEATER),MEDIUM OAK,TRIM4#
main71071-06112-B4i199508-199607
W(SEAT HEATER),MEDIUM GRAY,TRIM1#
main71071-06112-E3i199508-199607
W(SEAT HEATER),MEDIUM OAK,TRIM4#
main71071-06120-B0i199309-199408
W(POWER SEAT & SEAT HEATER),MEDIUM GRAY,TRIM1#
main71071-06120-E0i199309-199408
W(SEAT HEATER),MEDIUM OAK,TRIM4#
main71071-06120-J0i199203-199309
W(SEAT HEATER),DARK BLUE,TRIM8#
main71071-06121-B2i199408-199607
W(POWER SEAT & SEAT HEATER),MEDIUM GRAY,TRIM1#
main71071-06121-E2i199408-199607
W(POWER SEAT & SEAT HEATER),MEDIUM OAK,TRIM4#
main71071-06130-B0i199309-199408
W(LEATHER SEAT & POWER SEAT & SEAT HEATER)-*99,MEDIUM GRAY,TRIM1#
main71071-06130-E0i199309-199408
W(LEATHER SEAT & POWER SEAT & SEAT HEATER)-*99,LIGHT OAK,TRIM4#
main71071-06130-J0i199203-199309
W(LEATHER SEAT & SEAT HEATER)-*99,DARK BLUE,TRIM8#
main71071-06131-B0i199309-199408
W(LEATHER SEAT & SEAT HEATER) OR W(LEATHER SEAT & POWER SEAT & SEAT HEATER)-*99,MEDIUM GRAY,TRIM1#; W(LEATHER SEAT & SEAT HEATER)-*99,MEDIUM GRAY,TRIM1#
main71071-06131-E0i199309-199408
W(LEATHER SEAT & SEAT HEATER) OR W(LEATHER SEAT & POWER SEAT & SEAT HEATER)-*99,LIGHT OAK,TRIM4#; W(LEATHER SEAT & SEAT HEATER)-*99,LIGHT OAK,TRIM4#
main71071-06132-B3i199408-199607
W(LEATHER SEAT & SEAT HEATER) OR W(LEATHER SEAT & POWER SEAT & SEAT HEATER)-*99,MEDIUM GRAY,TRIM1#; W(LEATHER SEAT & SEAT HEATER)-*99,MEDIUM GRAY,TRIM1#
main71071-06132-E3i199408-199607
W(LEATHER SEAT & SEAT HEATER) OR W(LEATHER SEAT & POWER SEAT & SEAT HEATER)-*99,LIGHT OAK,TRIM4#; W(LEATHER SEAT & SEAT HEATER)-*99,LIGHT OAK,TRIM4#
main71071-06140-B0i199203-199408
W(SEAT HEATER),MEDIUM GRAY,TRIM1#
main71071-06140-J0i199203-199309
W(SEAT HEATER),DARK BLUE,TRIM8#
main71071-06141-B2i199408-199607
W(SEAT HEATER),MEDIUM GRAY,TRIM1#
main71071-06141-E2i199408-199607
W(SEAT HEATER),MEDIUM OAK,TRIM4#
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-06030-B0i199203-199408
MEDIUM GRAY,TRIM1#
main71072-06030-E0i199309-199408
MEDIUM OAK,TRIM4#
main71072-06030-J0i199203-199309
DARK BLUE,TRIM8#
main71072-06031-B2i199408-199607
MEDIUM GRAY,TRIM1#
main71072-06031-E2i199408-199607
MEDIUM OAK,TRIM4#
main71072-06050-B0i199309-199408
W(POWER SEAT),MEDIUM GRAY,TRIM1#
main71072-06050-E0i199309-199408
W(POWER SEAT),MEDIUM OAK,TRIM4#
main71072-06051-B2i199408-199607
W(POWER SEAT),MEDIUM GRAY,TRIM1#
main71072-06051-E2i199408-199607
W(POWER SEAT),MEDIUM OAK,TRIM4#
main71072-06070-B0i199203-199408
MEDIUM GRAY,TRIM1#
main71072-06070-E0i199309-199408
MEDIUM OAK,TRIM4#
main71072-06070-J0i199203-199309
DARK BLUE,TRIM8#
main71072-06071-B2i199408-199607
MEDIUM GRAY,TRIM1#
main71072-06071-E2i199408-199607
MEDIUM OAK,TRIM4#
main71072-06090-B0i199203-199309
MEDIUM GRAY,TRIM1#
main71072-06090-J0i199203-199309
DARK BLUE,TRIM8#
main71072-06091-B1i199309-199408
MEDIUM GRAY,TRIM1#
main71072-06091-B3i199408-199508
MEDIUM GRAY,TRIM1#
main71072-06091-E0i199309-199408
MEDIUM OAK,TRIM4#
main71072-06091-E2i199408-199508
MEDIUM OAK,TRIM4#
main71072-06092-B4i199508-199607
MEDIUM GRAY,TRIM1#
main71072-06092-E3i199508-199607
MEDIUM OAK,TRIM4#
main71072-06100-B0i199203-199408
MEDIUM GRAY,TRIM1#
main71072-06100-E0i199309-199408
OAK,TRIM4#
main71072-06100-J0i199203-199309
DARK BLUE,TRIM8#
main71072-06101-B3i199408-199607
MEDIUM GRAY,TRIM1#
main71072-06101-E3i199408-199607
MEDIUM OAK,TRIM4#
main71072-06110-B0i199309-199408
W(LEATHER SEAT & POWER SEAT)-*99,MEDIUM GRAY,TRIM1#
main71072-06110-E0i199309-199408
W(LEATHER SEAT & POWER SEAT)-*99,OAK,TRIM4#
main71072-06110-J0i199203-199309
W(LEATHER SEAT)-*99,DARK BLUE,TRIM8#
main71072-06111-B0i199309-199408
W(LEATHER SEAT) OR W(LEATHER SEAT & POWER SEAT)-*99,MEDIUM GRAY,TRIM1#
main71072-06111-E0i199309-199408
W(LEATHER SEAT) OR W(LEATHER SEAT & POWER SEAT)-*99,LIGHT OAK,TRIM4#
main71072-06112-B5i199408-199607
W(LEATHER SEAT & POWER SEAT)-*99,MEDIUM GRAY,TRIM1#
main71072-06112-E5i199408-199607
W(LEATHER SEAT & POWER SEAT)-*99,LIGHT OAK,TRIM4#
main71072-06120-B0i199203-199309
W(LEATHER SEAT)-*99,MEDIUM GRAY,TRIM1#
main71072-06120-J0i199203-199309
W(LEATHER SEAT)-*99,DARK BLUE,TRIM8#
main71072-06130-B0i199203-199408
MEDIUM GRAY,TRIM1#
main71072-06130-E0i199309-199408
OAK,TRIM4#
main71072-06130-J0i199203-199309
DARK BLUE,TRIM8#
main71072-06131-B2i199408-199607
MEDIUM GRAY,TRIM1#
main71072-06131-E2i199408-199607
MEDIUM OAK,TRIM4#
main71072-06140-B0i199203-199309
W(SEAT HEATER),MEDIUM GRAY,TRIM1#
main71072-06140-J0i199203-199309
W(SEAT HEATER),DARK BLUE,TRIM8#
main71072-06141-B1i199309-199408
W(SEAT HEATER),MEDIUM GRAY,TRIM1#
main71072-06141-B3i199508-199607
W(SEAT HEATER),MEDIUM GRAY
main71072-06141-E0i199309-199408
W(SEAT HEATER),MEDIUM OAK,TRIM4#
main71072-06141-E2i199408-199508
W(SEAT HEATER),MEDIUM OAK,TRIM4#
main71072-06142-B4i199508-199607
W(SEAT HEATER),MEDIUM GRAY,TRIM1#
main71072-06142-E3i199508-199607
W(SEAT HEATER),MEDIUM OAK,TRIM4#
main71072-06150-B0i199203-199309
W(SEAT HEATER),MEDIUM GRAY,TRIM1#
main71072-06150-J0i199203-199309
W(SEAT HEATER),DARK BLUE,TRIM8#
main71072-06160-B0i199203-199309
W(LEATHER SEAT & SEAT HEATER)-*99,MEDIUM GRAY,TRIM1#
main71072-06160-J0i199203-199309
W(LEATHER SEAT & SEAT HEATER)-*99,DARK BLUE,TRIM8#
main71072-06161-B0i199309-199408
W(LEATHER SEAT & SEAT HEATER)-*99,MEDIUM GRAY,TRIM1#
main71072-06161-E0i199309-199408
W(LEATHER SEAT & SEAT HEATER)-*99,LIGHT OAK,TRIM4#
main71072-06162-B2i199408-199607
W(LEATHER SEAT & SEAT HEATER)-*99,MEDIUM GRAY,TRIM1#
main71072-06162-E2i199408-199607
W(LEATHER SEAT & SEAT HEATER)-*99,LIGHT OAK,TRIM4#
main71072-06170-B0i199203-199408
W(SEAT HEATER),MEDIUM GRAY,TRIM1#
main71072-06170-J0i199203-199309
W(SEAT HEATER),DARK BLUE,TRIM8#
main71072-06171-B2i199408-199607
W(SEAT HEATER),MEDIUM GRAY,TRIM1#
main71072-06171-E2i199408-199607
W(SEAT HEATER),MEDIUM OAK,TRIM4#
main71072-06180-B0i199309-199408
W(POWER SEAT & SEAT HEATER),MEDIUM GRAY,TRIM1#
main71072-06180-E0i199309-199408
W(POWER SEAT & SEAT HEATER),MEDIUM OAK,TRIM4#
main71072-06181-B2i199408-199607
W(POWER SEAT & SEAT HEATER),MEDIUM GRAY,TRIM1#
main71072-06181-E2i199408-199607
W(POWER SEAT & SEAT HEATER),MEDIUM OAK,TRIM4#
main71072-06191-B1i199309-199408
W(LEATHER SEAT & POWER SEAT & SEAT HEATER)-*99,MEDIUM GRAY,TRIM1#
main71072-06191-E1i199309-199408
W(LEATHER SEAT & POWER SEAT & SEAT HEATER)-*99,LIGHT OAK,TRIM4#
main71072-06192-B3i199408-199607
W(LEATHER SEAT & POWER SEAT & SEAT HEATER)-*99,MEDIUM GRAY,TRIM1#
main71072-06192-E3i199408-199607
W(LEATHER SEAT & POWER SEAT & SEAT HEATER)-*99,LIGHT OAK,TRIM4#
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-06010-B0i199203-199309
MEDIUM GRAY,TRIM1#
main71073-06010-J0i199203-199309
DARK BLUE,TRIM8#
main71073-06011-B1i199309-199408
MEDIUM GRAY,TRIM1#
main71073-06011-B4i199408-199508
MEDIUM GRAY,TRIM1#
main71073-06011-E1i199309-199408
MEDIUM OAK,TRIM4#
main71073-06011-E4i199408-199508
MEDIUM OAK,TRIM4#
main71073-06012-B5i199508-199607
MEDIUM GRAY,TRIM1#
main71073-06012-E5i199508-199607
MEDIUM OAK,TRIM4#
main71073-06030-B0i199203-199408
MEDIUM GRAY,TRIM1#
main71073-06030-E0i199309-199408
OAK,TRIM4#
main71073-06030-J0i199203-199309
DARK BLUE,TRIM8#
main71073-06031-B2i199408-199607
MEDIUM GRAY,TRIM1#
main71073-06031-E3i199408-199607
MEDIUM OAK,TRIM4#
main71073-06040-B0i199309-199408
W(LEATHER SEAT & POWER SEAT)-*99,MEDIUM GRAY,TRIM1#
main71073-06040-E0i199309-199408
W(LEATHER SEAT & POWER SEAT)-*99,OAK,TRIM4#
main71073-06040-J0i199203-199309
W(LEATHER SEAT)-*99,DARK BLUE,TRIM8#
main71073-06041-B0i199309-199408
W(LEATHER SEAT) OR W(LEATHER SEAT & POWER SEAT)-*99,MEDIUM GRAY,TRIM1#
main71073-06041-B4i199408-199607
W(LEATHER SEAT & POWER SEAT)-*99,MEDIUM GRAY,TRIM1#
main71073-06041-E0i199309-199408
W(LEATHER SEAT) OR W(LEATHER SEAT & POWER SEAT)-*99,LIGHT OAK,TRIM4#
main71073-06041-E5i199408-199607
W(LEATHER SEAT & POWER SEAT)-*99,LIGHT OAK,TRIM4#
main71073-06050-B0i199203-199408
MEDIUM GRAY,TRIM1#
main71073-06050-E0i199309-199408
MEDIUM OAK,TRIM4#
main71073-06050-J0i199203-199309
DARK BLUE,TRIM8#
main71073-06051-B2i199408-199607
MEDIUM GRAY,TRIM1#
main71073-06051-E2i199408-199607
MEDIUM OAK,TRIM4#
main71073-06080-B0i199203-199309
W(SEAT HEATER),MEDIUM GRAY,TRIM1#
main71073-06080-J0i199203-199309
W(SEAT HEATER),DARK BLUE,TRIM8#
main71073-06081-B1i199309-199408
W(SEAT HEATER),MEDIUM GRAY,TRIM1#
main71073-06081-B3i199408-199508
W(SEAT HEATER),MEDIUM GRAY,TRIM1#
main71073-06081-E0i199309-199408
W(SEAT HEATER),MEDIUM OAK,TRIM4#
main71073-06081-E2i199408-199508
W(SEAT HEATER),MEDIUM OAK,TRIM4#
main71073-06082-B4i199508-199607
W(SEAT HEATER),MEDIUM GRAY,TRIM1#
main71073-06082-E3i199508-199607
W(SEAT HEATER),MEDIUM OAK,TRIM4#
main71073-06090-B0i199203-199309
W(SEAT HEATER),MEDIUM GRAY,TRIM1#
main71073-06090-E0i199309-199408
W(SEAT HEATER),MEDIUM OAK,TRIM4#
main71073-06090-J0i199203-199309
W(SEAT HEATER),DARK BLUE,TRIM8#
main71073-06091-B2i199408-199607
W(POWER SEAT & SEAT HEATER),MEDIUM GRAY,TRIM1#
main71073-06091-E2i199408-199607
W(POWER SEAT & SEAT HEATER),MEDIUM OAK,TRIM4#
main71073-06100-B0i199203-199309
W(LEATHER SEAT & SEAT HEATER)-*99,MEDIUM GRAY,TRIM1#
main71073-06100-E0i199309-199408
W(LEATHER SEAT & POWER SEAT & SEAT HEATER)-*99,LIGHT OAK,TRIM4#
main71073-06100-J0i199203-199309
W(LEATHER SEAT & SEAT HEATER)-*99,DARK BLUE,TRIM8#
main71073-06101-B0i199309-199408
W(LEATHER SEAT & SEAT HEATER) OR W(LEATHER SEAT & POWER SEAT & SEAT HEATER)-*99,MEDIUM GRAY,TRIM1#; W(LEATHER SEAT & SEAT HEATER)-*99,MEDIUM GRAY,TRIM1#
main71073-06101-B3i199408-199607
W(LEATHER SEAT & SEAT HEATER) OR W(LEATHER SEAT & POWER SEAT & SEAT HEATER)-*99,MEDIUM GRAY,TRIM1#; W(LEATHER SEAT & SEAT HEATER)-*99,MEDIUM GRAY,TRIM1#
main71073-06101-E0i199309-199408
W(LEATHER SEAT & SEAT HEATER) OR W(LEATHER SEAT & POWER SEAT & SEAT HEATER)-*99,LIGHT OAK,TRIM4#; W(LEATHER SEAT & SEAT HEATER)-*99,LIGHT OAK,TRIM4#
main71073-06101-E3i199408-199607
W(LEATHER SEAT & SEAT HEATER) OR W(LEATHER SEAT & POWER SEAT & SEAT HEATER)-*99,LIGHT OAK,TRIM4#; W(LEATHER SEAT & SEAT HEATER)-*99,LIGHT OAK,TRIM4#
main71073-06110-B0i199203-199408
W(SEAT HEATER),MEDIUM GRAY,TRIM1#
main71073-06110-E0i199309-199408
W(SEAT HEATER),OAK,TRIM4#
main71073-06110-J0i199203-199309
W(SEAT HEATER),DARK BLUE,TRIM8#
main71073-06111-B2i199408-199607
W(SEAT HEATER),MEDIUM GRAY,TRIM1#
main71073-06111-E2i199408-199607
W(SEAT HEATER),MEDIUM OAK,TRIM4#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71073-06010-B0i199203-199309
MEDIUM GRAY,TRIM1#
main71073-06010-J0i199203-199309
DARK BLUE,TRIM8#
main71073-06011-B1i199309-199408
MEDIUM GRAY,TRIM1#
main71073-06011-B4i199408-199508
MEDIUM GRAY,TRIM1#
main71073-06011-E1i199309-199408
MEDIUM OAK,TRIM4#
main71073-06011-E4i199408-199508
MEDIUM OAK,TRIM4#
main71073-06012-B5i199508-199607
MEDIUM GRAY,TRIM1#
main71073-06012-E5i199508-199607
MEDIUM OAK,TRIM4#
main71073-06030-B0i199203-199408
MEDIUM GRAY,TRIM1#
main71073-06030-E0i199309-199408
OAK,TRIM4#
main71073-06030-J0i199203-199309
DARK BLUE,TRIM8#
main71073-06031-B2i199408-199607
MEDIUM GRAY,TRIM1#
main71073-06031-E3i199408-199607
MEDIUM OAK,TRIM4#
main71073-06040-B0i199203-199309
W(LEATHER SEAT),MEDIUM GRAY,TRIM1#
main71073-06040-E0i199309-199408
W(LEATHER SEAT & POWER SEAT)-*99,OAK,TRIM4#
main71073-06040-J0i199203-199309
W(LEATHER SEAT),DARK BLUE,TRIM8#
main71073-06041-B0i199309-199408
W(LEATHER SEAT) OR W(LEATHER SEAT & POWER SEAT)-*99,MEDIUM GRAY,TRIM1#
main71073-06041-B4i199408-199607
W(LEATHER SEAT & POWER SEAT)-*99,MEDIUM GRAY,TRIM1#
main71073-06041-E0i199309-199408
W(LEATHER SEAT) OR W(LEATHER SEAT & POWER SEAT)-*99,LIGHT OAK,TRIM4#
main71073-06041-E5i199408-199607
W(LEATHER SEAT & POWER SEAT)-*99,LIGHT OAK,TRIM4#
main71073-06050-B0i199203-199408
MEDIUM GRAY,TRIM1#
main71073-06050-E0i199309-199408
MEDIUM OAK,TRIM4#
main71073-06050-J0i199203-199309
DARK BLUE,TRIM8#
main71073-06051-B2i199408-199607
MEDIUM GRAY,TRIM1#
main71073-06051-E2i199408-199607
MEDIUM OAK,TRIM4#
main71074-06030-B0i199309-199408
W(POWER SEAT & SEAT HEATER),MEDIUM GRAY,TRIM1#
main71074-06030-E0i199309-199408
W(POWER SEAT & SEAT HEATER),MEDIUM OAK,TRIM4#; W(SEAT HEATER),MEDIUM OAK,TRIM4#
main71074-06030-J0i199203-199309
W(SEAT HEATER),DARK BLUE,TRIM8#
main71074-06031-B2i199408-199607
W(POWER SEAT & SEAT HEATER),MEDIUM GRAY,TRIM1#
main71074-06031-E2i199408-199607
W(POWER SEAT & SEAT HEATER),MEDIUM OAK,TRIM4#
main71074-06040-B0i199203-199309
W(LEATHER SEAT & SEAT HEATER)-*99,MEDIUM GRAY,TRIM1#
main71074-06040-E0i199309-199408
W(LEATHER SEAT & POWER SEAT & SEAT HEATER)-*99,LIGHT OAK,TRIM4#
main71074-06040-J0i199203-199309
W(LEATHER SEAT & SEAT HEATER)-*99,DARK BLUE,TRIM8#
main71074-06041-B0i199309-199408
W(LEATHER SEAT & SEAT HEATER) OR W(LEATHER SEAT & POWER SEAT & SEAT HEATER)-*99,MEDIUM GRAY,TRIM1#; W(LEATHER SEAT & SEAT HEATER)-*99,MEDIUM GRAY,TRIM1#
main71074-06041-B3i199408-199607
W(LEATHER SEAT & SEAT HEATER) OR W(LEATHER SEAT & POWER SEAT & SEAT HEATER)-*99,MEDIUM GRAY,TRIM1#; W(LEATHER SEAT & SEAT HEATER)-*99,MEDIUM GRAY,TRIM1#
main71074-06041-E0i199309-199408
W(LEATHER SEAT & SEAT HEATER) OR W(LEATHER SEAT & POWER SEAT & SEAT HEATER)-*99,LIGHT OAK,TRIM4#; W(LEATHER SEAT & SEAT HEATER)-*99,LIGHT OAK,TRIM4#
main71074-06041-E3i199408-199607
W(LEATHER SEAT & SEAT HEATER) OR W(LEATHER SEAT & POWER SEAT & SEAT HEATER)-*99,LIGHT OAK,TRIM4#; W(LEATHER SEAT & SEAT HEATER)-*99,LIGHT OAK,TRIM4#
main71074-06050-B0i199203-199309
W(SEAT HEATER),MEDIUM GRAY,TRIM1#
main71074-06050-J0i199203-199309
W(SEAT HEATER),DARK BLUE,TRIM8#
main71074-06051-B1i199309-199408
W(SEAT HEATER),MEDIUM GRAY,TRIM1#
main71074-06051-B3i199408-199508
W(SEAT HEATER),MEDIUM GRAY,TRIM1#
main71074-06051-E0i199309-199408
W(SEAT HEATER),MEDIUM OAK,TRIM4#
main71074-06051-E2i199408-199508
W(SEAT HEATER),MEDIUM OAK,TRIM4#
main71074-06052-B4i199508-199607
W(SEAT HEATER),MEDIUM GRAY,TRIM1#
main71074-06052-E3i199508-199607
W(SEAT HEATER),MEDIUM OAK,TRIM4#
main71074-06060-B0i199203-199408
W(SEAT HEATER),MEDIUM GRAY,TRIM1#
main71074-06060-E0i199309-199408
W(SEAT HEATER),OAK,TRIM4#
main71074-06060-J0i199203-199309
W(SEAT HEATER),DARK BLUE,TRIM8#
main71074-06061-B2i199408-199607
W(SEAT HEATER),MEDIUM GRAY,TRIM1#
main71074-06061-E2i199408-199607
W(SEAT HEATER),MEDIUM OAK,TRIM4#
71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71410-06010-B0i199203-199309
MEDIUM GRAY,TRIM1#
main71410-06010-J0i199203-199309
DARK BLUE,TRIM8#
main71410-06011-B1i199309-199408
MEDIUM GRAY,TRIM1#
main71410-06011-B3i199408-199508
MEDIUM GRAY,TRIM1#
main71410-06011-E1i199309-199408
MEDIUM OAK,TRIM4#
main71410-06011-E3i199408-199508
OAK,TRIM4#
main71410-06012-B4i199508-199607
MEDIUM GRAY,TRIM1#
main71410-06012-E4i199508-199607
MEDIUM OAK,TRIM4#
main71410-06030-B0i199203-199408
MEDIUM GRAY,TRIM1#
main71410-06030-E0i199309-199408
MEDIUM OAK,TRIM4#
main71410-06030-J0i199203-199309
DARK BLUE,TRIM8#
main71410-06031-B1i199408-199607
MEDIUM GRAY,TRIM1#
main71410-06031-E1i199408-199607
OAK,TRIM4#
main71410-06040-B0i199203-199309
W(LEATHER SEAT)-*99,MEDIUM GRAY,TRIM1#
main71410-06040-J0i199203-199309
W(LEATHER SEAT)-*99,DARK BLUE,TRIM8#
main71410-06050-B0i199203-199408
MEDIUM GRAY,TRIM1#
main71410-06050-E0i199309-199408
OAK,TRIM4#
main71410-06050-J0i199203-199309
DARK BLUE,TRIM8#
main71410-06051-B2i199408-199607
MEDIUM GRAY,TRIM1#
main71410-06051-E1i199408-199607
OAK,TRIM4#
main71410-06120-B0i199203-199309
W(SEAT HEATER),MEDIUM GRAY,TRIM1#
main71410-06120-J0i199203-199309
W(SEAT HEATER),DARK BLUE,TRIM8#
main71410-06121-B1i199309-199408
W(SEAT HEATER),MEDIUM GRAY,TRIM1#
main71410-06121-B2i199408-199508
W(SEAT HEATER),MEDIUM GRAY,TRIM1#
main71410-06121-E0i199309-199408
W(SEAT HEATER),MEDIUM OAK,TRIM4#
main71410-06121-E1i199408-199508
W(SEAT HEATER),OAK,TRIM4#
main71410-06122-B3i199508-199607
W(SEAT HEATER),MEDIUM GRAY,TRIM1#
main71410-06122-E2i199508-199607
W(SEAT HEATER),MEDIUM OAK,TRIM4#
main71410-06140-B0i199203-199408
W(SEAT HEATER),MEDIUM GRAY,TRIM1#
main71410-06140-E0i199309-199408
W(SEAT HEATER),OAK,TRIM4#
main71410-06140-J0i199203-199309
W(SEAT HEATER),DARK BLUE,TRIM8#
main71410-06141-B1i199408-199607
W(SEAT HEATER),MEDIUM GRAY,TRIM1#
main71410-06141-E1i199408-199607
W(SEAT HEATER),OAK,TRIM4#
main71410-06150-B0i199203-199408
MEDIUM GRAY,TRIM1#
main71410-06150-E0i199309-199408
OAK,TRIM4#
main71410-06150-J0i199203-199309
DARK BLUE,TRIM8#
main71410-06151-B1i199408-199607
MEDIUM GRAY,TRIM1#
main71410-06151-E1i199408-199607
OAK,TRIM4#
main71410-06170-B0i199309-199408
W(POWER SEAT & SEAT HEATER),MEDIUM GRAY,TRIM1#
main71410-06170-E0i199309-199408
W(SEAT HEATER),MEDIUM OAK,TRIM4#
main71410-06170-J0i199203-199309
W(SEAT HEATER),DARK BLUE,TRIM8#
main71410-06171-B1i199408-199607
W(POWER SEAT & SEAT HEATER),MEDIUM GRAY,TRIM1#
main71410-06171-E1i199408-199607
W(POWER SEAT & SEAT HEATER),OAK,TRIM4#
main71410-06180-B0i199203-199408
MEDIUM GRAY,TRIM1#
main71410-06180-E0i199309-199408
OAK,TRIM4#
main71410-06180-J0i199203-199309
DARK BLUE,TRIM8#
main71410-06181-B1i199408-199607
MEDIUM GRAY,TRIM1#
main71410-06181-E1i199408-199607
OAK,TRIM4#
main71410-06210-B0i199203-199309
W(LEATHER SEAT & SEAT HEATER)-*99,MEDIUM GRAY,TRIM1#
main71410-06210-J0i199203-199309
W(LEATHER SEAT & SEAT HEATER)-*99,DARK BLUE,TRIM8#
main71410-06211-B0i199309-199408
W(LEATHER SEAT & SEAT HEATER) OR W(LEATHER SEAT & POWER SEAT & SEAT HEATER)-*99,MEDIUM GRAY,TRIM1#; W(LEATHER SEAT & SEAT HEATER)-*99,MEDIUM GRAY,TRIM1#
main71410-06211-E0i199309-199408
W(LEATHER SEAT & SEAT HEATER) OR W(LEATHER SEAT & POWER SEAT & SEAT HEATER)-*99,LIGHT OAK,TRIM4#; W(LEATHER SEAT & SEAT HEATER)-*99,LIGHT OAK,TRIM4#
main71410-06212-B2i199408-199607
W(LEATHER SEAT & SEAT HEATER) OR W(LEATHER SEAT & POWER SEAT & SEAT HEATER)-*99,MEDIUM GRAY,TRIM1#; W(LEATHER SEAT & SEAT HEATER)-*99,MEDIUM GRAY,TRIM1#
main71410-06212-E2i199408-199607
W(LEATHER SEAT & SEAT HEATER) OR W(LEATHER SEAT & POWER SEAT & SEAT HEATER)-*99,OAK,TRIM4#; W(LEATHER SEAT & SEAT HEATER)-*99,OAK,TRIM4#
main71410-06220-B0i199203-199309
W(LEATHER SEAT)-*99,MEDIUM GRAY,TRIM1#
main71410-06220-J0i199203-199309
W(LEATHER SEAT)-*99,DARK BLUE,TRIM8#
main71410-06231-B0i199309-199408
W(LEATHER SEAT & POWER SEAT)-*99,MEDIUM GRAY,TRIM1#
main71410-06231-E0i199309-199408
W(LEATHER SEAT & POWER SEAT)-*99,LIGHT OAK,TRIM4#
main71410-06232-B3i199408-199607
W(LEATHER SEAT & POWER SEAT)-*99,MEDIUM GRAY,TRIM1#
main71410-06232-E3i199408-199607
W(LEATHER SEAT & POWER SEAT)-*99,OAK,TRIM4#
71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
main71420-06030-B0i199203-199408
MEDIUM GRAY,TRIM1#
main71420-06030-E0i199309-199408
OAK,TRIM4#
main71420-06030-J0i199203-199309
DARK BLUE,TRIM8#
main71420-06031-B1i199408-199607
MEDIUM GRAY,TRIM1#
main71420-06031-E1i199408-199607
OAK,TRIM4#
main71420-06040-B0i199309-199408
W(POWER SEAT),MEDIUM GRAY,TRIM1#
main71420-06040-E0i199309-199408
W(POWER SEAT),MEDIUM OAK,TRIM4#
main71420-06041-B1i199408-199607
W(POWER SEAT),MEDIUM GRAY,TRIM1#
main71420-06041-E1i199408-199607
W(POWER SEAT),OAK,TRIM4#
main71420-06060-B0i199203-199408
MEDIUM GRAY,TRIM1#
main71420-06060-E0i199309-199408
OAK,TRIM4#
main71420-06060-J0i199203-199309
DARK BLUE,TRIM8#
main71420-06061-B1i199408-199607
MEDIUM GRAY,TRIM1#
main71420-06061-E1i199408-199607
OAK,TRIM4#
main71420-06110-B0i199203-199309
MEDIUM GRAY,TRIM1#
main71420-06110-J0i199203-199309
DARK BLUE,TRIM8#
main71420-06111-B1i199309-199408
MEDIUM GRAY,TRIM1#
main71420-06111-B2i199408-199508
MEDIUM GRAY,TRIM1#
main71420-06111-E0i199309-199408
MEDIUM OAK,TRIM4#
main71420-06111-E1i199408-199508
OAK,TRIM4#
main71420-06112-B3i199508-199607
MEDIUM GRAY,TRIM1#
main71420-06112-E2i199508-199607
MEDIUM OAK,TRIM4#
main71420-06120-B0i199203-199309
W(SEAT HEATER),MEDIUM GRAY,TRIM1#
main71420-06120-J0i199203-199309
W(SEAT HEATER),DARK BLUE,TRIM8#
main71420-06121-B1i199309-199408
W(SEAT HEATER),MEDIUM GRAY,TRIM1#
main71420-06121-B2i199408-199508
W(SEAT HEATER),MEDIUM GRAY,TRIM1#
main71420-06121-E0i199309-199408
W(SEAT HEATER),MEDIUM OAK,TRIM4#
main71420-06121-E1i199408-199508
W(SEAT HEATER),OAK,TRIM4#
main71420-06122-B3i199508-199607
W(SEAT HEATER),MEDIUM GRAY,TRIM1#
main71420-06122-E2i199508-199607
W(SEAT HEATER),MEDIUM OAK,TRIM4#
main71420-06130-B0i199203-199408
MEDIUM GRAY,TRIM1#
main71420-06130-E0i199309-199408
OAK,TRIM4#
main71420-06130-J0i199203-199309
DARK BLUE,TRIM8#
main71420-06131-B1i199408-199607
MEDIUM GRAY,TRIM1#
main71420-06131-E1i199408-199607
OAK,TRIM4#
main71420-06140-B0i199203-199408
W(SEAT HEATER),MEDIUM GRAY,TRIM1#
main71420-06140-E0i199309-199408
W(SEAT HEATER),OAK,TRIM4#
main71420-06140-J0i199203-199309
W(SEAT HEATER),DARK BLUE,TRIM8#
main71420-06141-B1i199408-199607
W(SEAT HEATER),MEDIUM GRAY,TRIM1#
main71420-06141-E1i199408-199607
W(SEAT HEATER),OAK,TRIM4#
main71420-06151-B1i199309-199409
W(LEATHER SEAT & POWER SEAT & SEAT HEATER)-*99,MEDIUM GRAY,TRIM1#
main71420-06151-E1i199309-199409
W(LEATHER SEAT & POWER SEAT & SEAT HEATER)-*99,LIGHT OAK,TRIM4#
main71420-06152-B2i199408-199607
W(LEATHER SEAT & POWER SEAT & SEAT HEATER)-*99,MEDIUM GRAY,TRIM1#
main71420-06152-E2i199408-199607
W(LEATHER SEAT & POWER SEAT & SEAT HEATER)-*99,OAK,TRIM4#
main71420-06160-B0i199309-199408
W(POWER SEAT & SEAT HEATER),MEDIUM GRAY,TRIM1#
main71420-06160-E0i199309-199408
W(POWER SEAT & SEAT HEATER),MEDIUM OAK,TRIM4#
main71420-06161-B1i199408-199607
W(POWER SEAT & SEAT HEATER),MEDIUM GRAY,TRIM1#
main71420-06161-E1i199408-199607
W(POWER SEAT & SEAT HEATER),OAK,TRIM4#
main71420-06170-B0i199203-199309
W(SEAT HEATER),MEDIUM GRAY,TRIM1#
main71420-06170-J0i199203-199309
W(SEAT HEATER),DARK BLUE,TRIM8#
main71420-06180-B0i199203-199408
MEDIUM GRAY,TRIM1#
main71420-06180-E0i199309-199408
OAK,TRIM4#
main71420-06180-J0i199203-199309
DARK BLUE,TRIM8#
main71420-06181-B1i199408-199607
MD.GRAY,TRIM1#
main71420-06181-E2i199408-199607
OAK,TRIM4#
main71420-06200-B0i199203-199309
W(LEATHER SEAT)-*99,MEDIUM GRAY,TRIM1#
main71420-06200-J0i199203-199309
W(LEATHER SEAT)-*99,DARK BLUE,TRIM8#
main71420-06210-B0i199203-199309
W(LEATHER SEAT & SEAT HEATER)-*99,MEDIUM GRAY,TRIM1#
main71420-06210-J0i199203-199309
W(LEATHER SEAT & SEAT HEATER)-*99,DARK BLUE,TRIM8#
main71420-06211-B0i199309-199408
W(LEATHER SEAT & SEAT HEATER)-*99,MEDIUM GRAY,TRIM1#
main71420-06211-E0i199309-199408
W(LEATHER SEAT & SEAT HEATER)-*99,LIGHT OAK,TRIM4#
main71420-06212-B1i199408-199607
W(LEATHER SEAT & SEAT HEATER)-*99,MEDIUM GRAY,TRIM1#
main71420-06212-E1i199408-199607
W(LEATHER SEAT & SEAT HEATER)-*99,OAK,TRIM4#
main71420-06220-B0i199203-199309
W(LEATHER SEAT)-*99,MEDIUM GRAY,TRIM1#
main71420-06220-J0i199203-199309
W(LEATHER SEAT)-*99,DARK BLUE,TRIM8#
main71420-06221-B0i199309-199408
W(LEATHER SEAT & POWER SEAT)-*99,MEDIUM GRAY,TRIM1#
main71420-06221-E0i199309-199408
W(LEATHER SEAT & POWER SEAT)-*99,LIGHT OAK,TRIM4#
main71420-06222-B2i199408-199607
W(LEATHER SEAT & POWER SEAT)-*99,MEDIUM GRAY,TRIM1#
main71420-06222-E3i199408-199607
W(LEATHER SEAT & POWER SEAT)-*99,OAK,TRIM4#
71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71430-06010-B0i199203-199309
MEDIUM GRAY,TRIM1#
main71430-06010-J0i199203-199309
DARK BLUE,TRIM8#
main71430-06011-B1i199309-199408
MEDIUM GRAY,TRIM1#
main71430-06011-B3i199408-199508
MEDIUM GRAY,TRIM1#
main71430-06011-E1i199309-199408
MEDIUM OAK,TRIM4#
main71430-06011-E3i199408-199508
OAK,TRIM4#
main71430-06012-B4i199508-199607
MEDIUM GRAY,TRIM1#
main71430-06012-E4i199508-199607
MEDIUM OAK,TRIM4#
main71430-06110-B0i199309-199408
MEDIUM GRAY,TRIM1#
main71430-06110-E0i199309-199408
MEDIUM OAK,TRIM4#
main71430-06111-B1i199408-199607
MEDIUM GRAY,TRIM1#
main71430-06111-E1i199408-199607
OAK,TRIM4#
main71430-06120-B0i199203-199309
W(SEAT HEATER),MEDIUM GRAY,TRIM1#
main71430-06120-J0i199203-199309
W(SEAT HEATER),DARK BLUE,TRIM8#
main71430-06121-B1i199309-199408
W(SEAT HEATER),MEDIUM GRAY,TRIM1#
main71430-06121-B2i199408-199508
W(SEAT HEATER),MEDIUM GRAY,TRIM1#
main71430-06121-E0i199309-199408
W(SEAT HEATER),MEDIUM OAK,TRIM4#
main71430-06121-E1i199408-199508
W(SEAT HEATER),OAK,TRIM4#
main71430-06122-B3i199508-199607
W(SEAT HEATER),MEDIUM GRAY,TRIM1#
main71430-06122-E2i199508-199607
W(SEAT HEATER),MEDIUM OAK,TRIM4#
main71430-06130-B0i199203-199309
***,MEDIUM GRAY,MEDIUM GRAY,TRIM1#
main71430-06130-E0i199309-199408
MEDIUM OAK,TRIM4#
main71430-06130-J0i199203-199309
DARK BLUE,TRIM8#
main71430-06131-B1i199408-199607
MEDIUM GRAY,TRIM1#
main71430-06131-E1i199408-199607
OAK,TRIM4#
main71430-06140-B0i199203-199408
W(SEAT HEATER),MEDIUM GRAY,TRIM1#
main71430-06140-E0i199309-199408
W(SEAT HEATER),OAK,TRIM4#
main71430-06140-J0i199203-199309
W(SEAT HEATER),DARK BLUE,TRIM8#
main71430-06141-B1i199408-199607
W(SEAT HEATER),MEDIUM GRAY,TRIM1#
main71430-06141-E1i199408-199607
W(SEAT HEATER),OAK,TRIM4#
main71430-06160-B0i199203-199408
MEDIUM GRAY,TRIM1#
main71430-06160-E0i199309-199408
OAK,TRIM4#
main71430-06160-J0i199203-199309
DARK BLUE,TRIM8#
main71430-06161-B1i199408-199607
MEDIUM GRAY,TRIM1#
main71430-06161-E2i199408-199607
OAK,TRIM4#
main71430-06170-B0i199203-199309
W(SEAT HEATER),MEDIUM GRAY,TRIM1#
main71430-06170-E0i199309-199408
W(SEAT HEATER),MEDIUM OAK,TRIM4#
main71430-06170-J0i199203-199309
W(SEAT HEATER),DARK BLUE,TRIM8#
main71430-06171-B1i199408-199607
W(POWER SEAT & SEAT HEATER),MEDIUM GRAY,TRIM1#
main71430-06171-E1i199408-199607
W(POWER SEAT & SEAT HEATER),OAK,TRIM4#
main71430-06180-B0i199203-199408
MEDIUM GRAY,TRIM1#
main71430-06180-E0i199309-199408
OAK,TRIM4#
main71430-06180-J0i199203-199309
DARK BLUE,TRIM8#
main71430-06181-B1i199408-199607
MEDIUM GRAY,TRIM1#
main71430-06181-E2i199408-199607
OAK,TRIM4#
main71430-06200-B0i199203-199309
W(LEATHER SEAT)-*99,MEDIUM GRAY,TRIM1#
main71430-06200-J0i199203-199309
W(LEATHER SEAT)-*99,DARK BLUE,TRIM8#
main71430-06210-B0i199203-199309
W(LEATHER SEAT & SEAT HEATER)-*99,MEDIUM GRAY,TRIM1#
main71430-06210-J0i199203-199309
W(LEATHER SEAT & SEAT HEATER)-*99,DARK BLUE,TRIM8#
main71430-06211-B0i199309-199408
W(LEATHER SEAT & SEAT HEATER) OR W(LEATHER SEAT & POWER SEAT & SEAT HEATER)-*99,MEDIUM GRAY,TRIM1#; W(LEATHER SEAT & SEAT HEATER)-*99,MEDIUM GRAY,TRIM1#
main71430-06211-B2i199408-199607
W(LEATHER SEAT & SEAT HEATER) OR W(LEATHER SEAT & POWER SEAT & SEAT HEATER)-*99,MEDIUM GRAY,TRIM1#; W(LEATHER SEAT & SEAT HEATER)-*99,MEDIUM GRAY,TRIM1#
main71430-06211-E0i199309-199408
W(LEATHER SEAT & SEAT HEATER) OR W(LEATHER SEAT & POWER SEAT & SEAT HEATER)-*99,LIGHT OAK,TRIM4#; W(LEATHER SEAT & SEAT HEATER)-*99,LIGHT OAK,TRIM4#
main71430-06211-E2i199408-199607
W(LEATHER SEAT & SEAT HEATER) OR W(LEATHER SEAT & POWER SEAT & SEAT HEATER)-*99,OAK,TRIM4#; W(LEATHER SEAT & SEAT HEATER)-*99,OAK,TRIM4#
main71430-06220-B0i199203-199309
W(LEATHER SEAT)-*99,MEDIUM GRAY,TRIM1#
main71430-06220-E0i199309-199408
W(LEATHER SEAT)-*99,OAK,TRIM4#
main71430-06220-J0i199203-199309
W(LEATHER SEAT)-*99,DARK BLUE,TRIM8#
main71430-06221-B0i199309-199408
W(LEATHER SEAT & POWER SEAT)-*99,MEDIUM GRAY,TRIM1#
main71430-06221-B2i199408-199607
W(LEATHER SEAT & POWER SEAT)-*99,MEDIUM GRAY,TRIM1#
main71430-06221-E0i199309-199408
W(LEATHER SEAT & POWER SEAT)-*99,LIGHT OAK,TRIM4#
main71430-06221-E3i199408-199607
W(LEATHER SEAT & POWER SEAT)-*99,OAK,TRIM4#
71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
main71430-06010-B0i199203-199309
MEDIUM GRAY,TRIM1#
main71430-06010-J0i199203-199309
DARK BLUE,TRIM8#
main71430-06011-B1i199309-199408
MEDIUM GRAY,TRIM1#
main71430-06011-B3i199408-199508
MEDIUM GRAY,TRIM1#
main71430-06011-E1i199309-199408
MEDIUM OAK,TRIM4#
main71430-06011-E3i199408-199508
OAK,TRIM4#
main71430-06012-B4i199508-199607
MEDIUM GRAY,TRIM1#
main71430-06012-E4i199508-199607
MEDIUM OAK,TRIM4#
main71430-06130-B0i199203-199408
MEDIUM GRAY,TRIM1#
main71430-06130-E0i199309-199408
MEDIUM OAK,TRIM4#
main71430-06130-J0i199203-199309
DARK BLUE,TRIM8#
main71430-06131-B1i199408-199607
MEDIUM GRAY,TRIM1#
main71430-06131-E1i199408-199607
OAK,TRIM4#
main71430-06160-B0i199203-199408
MEDIUM GRAY,TRIM1#
main71430-06160-E0i199309-199408
OAK,TRIM4#
main71430-06160-J0i199203-199309
DARK BLUE,TRIM8#
main71430-06161-B1i199408-199607
MEDIUM GRAY,TRIM1#
main71430-06161-E2i199408-199607
OAK,TRIM4#
main71430-06200-B0i199203-199309
W(LEATHER SEAT)-*99,MEDIUM GRAY,TRIM1#
main71430-06200-J0i199203-199309
W(LEATHER SEAT)-*99,DARK BLUE,TRIM8#
main71430-06201-B0i199309-199408
W(LEATHER SEAT & POWER SEAT)-*99,MEDIUM GRAY,TRIM1#
main71430-06201-B2i199408-199607
W(LEATHER SEAT & POWER SEAT)-*99,MEDIUM GRAY,TRIM1#
main71430-06201-E0i199309-199408
W(LEATHER SEAT & POWER SEAT)-*99,LIGHT OAK,TRIM4#
main71430-06201-E3i199408-199607
W(LEATHER SEAT & POWER SEAT)-*99,OAK,TRIM4#
main71440-06110-B0i199309-199408
MEDIUM GRAY,TRIM1#
main71440-06110-E0i199309-199408
MEDIUM OAK,TRIM4#
main71440-06111-B1i199408-199607
MEDIUM GRAY,TRIM1#
main71440-06111-E1i199408-199607
OAK,TRIM4#
main71440-06120-B0i199203-199309
W(SEAT HEATER),MEDIUM GRAY,TRIM1#
main71440-06120-J0i199203-199309
W(SEAT HEATER),DARK BLUE,TRIM8#
main71440-06121-B1i199309-199408
W(SEAT HEATER),MEDIUM GRAY,TRIM1#
main71440-06121-B2i199408-199508
W(SEAT HEATER),MEDIUM GRAY,TRIM1#
main71440-06121-E0i199309-199408
W(SEAT HEATER),MEDIUM OAK,TRIM4#
main71440-06121-E1i199408-199508
W(SEAT HEATER),OAK,TRIM4#
main71440-06122-B3i199508-199607
W(SEAT HEATER),MEDIUM GRAY,TRIM1#
main71440-06122-E2i199508-199607
W(SEAT HEATER),MEDIUM OAK,TRIM4#
main71440-06160-B0i199203-199408
MEDIUM GRAY,TRIM1#
main71440-06160-E0i199309-199408
MEDIUM OAK,TRIM4#
main71440-06160-J0i199203-199309
DARK BLUE,TRIM8#
main71440-06161-B1i199408-199607
MEDIUM GRAY,TRIM1#
main71440-06161-E1i199408-199607
OAK,TRIM4#
main71440-06170-B0i199203-199309
W(SEAT HEATER),MEDIUM GRAY,TRIM1#
main71440-06170-E0i199309-199408
W(SEAT HEATER),MEDIUM OAK,TRIM4#
main71440-06170-J0i199203-199309
W(SEAT HEATER),DARK BLUE,TRIM8#
main71440-06171-B1i199408-199607
W(POWER SEAT & SEAT HEATER),MEDIUM GRAY,TRIM1#
main71440-06171-E1i199408-199607
W(POWER SEAT & SEAT HEATER),OAK,TRIM4#
main71440-06200-B0i199203-199309
W(LEATHER SEAT)-*99,MEDIUM GRAY,TRIM1#
main71440-06200-J0i199203-199309
W(LEATHER SEAT)-*99,DARK BLUE,TRIM8#
main71440-06210-B0i199203-199309
W(LEATHER SEAT & SEAT HEATER)-*99,MEDIUM GRAY,TRIM1#
main71440-06210-J0i199203-199309
W(LEATHER SEAT & SEAT HEATER)-*99,DARK BLUE,TRIM8#
main71440-06211-B0i199309-199408
W(LEATHER SEAT & SEAT HEATER) OR W(LEATHER SEAT & POWER SEAT & SEAT HEATER)-*99,MEDIUM GRAY,TRIM1#; W(LEATHER SEAT & SEAT HEATER)-*99,MEDIUM GRAY,TRIM1#
main71440-06211-B2i199408-199607
W(LEATHER SEAT & SEAT HEATER) OR W(LEATHER SEAT & POWER SEAT & SEAT HEATER)-*99,MEDIUM GRAY,TRIM1#; W(LEATHER SEAT & SEAT HEATER)-*99,MEDIUM GRAY,TRIM1#
main71440-06211-E0i199309-199408
W(LEATHER SEAT & SEAT HEATER) OR W(LEATHER SEAT & POWER SEAT & SEAT HEATER)-*99,LIGHT OAK,TRIM4#; W(LEATHER SEAT & SEAT HEATER)-*99,LIGHT OAK,TRIM4#
main71440-06211-E2i199408-199607
W(LEATHER SEAT & SEAT HEATER) OR W(LEATHER SEAT & POWER SEAT & SEAT HEATER)-*99,OAK,TRIM4#; W(LEATHER SEAT & SEAT HEATER)-*99,OAK,TRIM4#
main71440-06270-B0i199203-199309
W(SEAT HEATER),MEDIUM GRAY,TRIM1#
main71440-06270-J0i199203-199309
W(SEAT HEATER),DARK BLUE,TRIM8#
main71440-06271-B0i199309-199408
W(SEAT HEATER),MEDIUM GRAY,TRIM1#
main71440-06271-E0i199309-199408
W(SEAT HEATER),MEDIUM OAK,TRIM4#
main71440-06272-B1i199408-199607
W(SEAT HEATER),MEDIUM GRAY,TRIM1#
main71440-06272-E1i199408-199607
W(SEAT HEATER),OAK,TRIM4#
71505PAD SUB-ASSY, FRONT SEATBACK W/FRAME, RH
main71505-06010i199203-199309
W(LEATHER SEAT)-*99
main71505-06020i199402-199408
main71505-06030i199408-199607
main71505-06040i199203-199607
main71505-06050i199309-199607
71506PAD SUB-ASSY, FRONT SEATBACK W/FRAME, LH
main71505-06010i199309-199607
main71505-06030i199203-199309
main71505-06050i199309-199607
main71506-06010i199203-199607
main71506-06020i199309-199607
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71511-06010i199309-199607
W(POWER SEAT & SEAT HEATER)
main71511-06020i199309-199607
W(LEATHER SEAT & SEAT HEATER) OR W(LEATHER SEAT & POWER SEAT & SEAT HEATER)-*99; W(LEATHER SEAT & SEAT HEATER)-*99
main71511-06030i199203-199607
main71511-06050i199309-199607
W(LEATHER SEAT & POWER SEAT)-*99
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71511-06010i199203-199607
main71511-06020i199309-199607
W(LEATHER SEAT & POWER SEAT)-*99; W(LEATHER SEAT & SEAT HEATER)-*99
main71511-06030i199203-199607
main71512-06010i199309-199607
W(POWER SEAT)
main71512-06020i199309-199607
W(LEATHER SEAT & POWER SEAT &SEAT HEATER)-*99
71553BPAD, FRONT SEATBACK, B
main71553-33010i199203-199309
main71553-33020i199203-199309
W(LEATHER SEAT)-*99
main71553-AA010i199309-199402
main71554-33020i199309-199408
W(LEATHER SEAT & POWER SEAT)-*99
main71554-AA010i199309-199408
71553CPAD, FRONT SEATBACK, C
main71553-33010i199203-199309
main71553-33020i199309-199408
W(LEATHER SEAT & POWER SEAT)-*99
main71553-AA010i199309-199408
W(SEAT HEATER)
71554PAD, FRONT SEATBACK, C
main71553-33020i199309-199408
W(LEATHER SEAT & POWER SEAT)-*99
main71553-AA010i199309-199408
main71554-33010i199203-199309
W(LEATHER SEAT)-*99
main71554-33020i199203-199309
main71554-AA010i199402-199408
71554APAD, FRONT SEATBACK, CENTER
main71554-33010i199309-199408
W(LEATHER SEAT & POWER SEAT)-*99; W(POWER SEAT) OR W(LEATHER SEAT & POWER SEAT)-*99
main71554-33020i199203-199309
main71554-AA010i199309-199402
71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71610-06010i199203-199607
main71610-06020i199203-199607
main71610-06030i199309-199607
W(LEATHER SEAT & POWER SEAT)-*99
71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71620-06010i199203-199408
main71620-06020i199309-199607
W(LEATHER SEAT & SEAT HEATER)-*99
main71620-06030i199309-199607
W(POWER SEAT) OR W(LEATHER SEAT & POWER SEAT)
71705BOARD SUB-ASSY, FRONT SEATBACK, RH
main71705-32280-B0i199203-199408
MEDIUM GRAY,TRIM1#
main71705-32280-E0i199309-199408
OAK,TRIM4#
main71705-32280-J0i199203-199309
DARK BLUE,TRIM8#
main71705-33050-B0i199309-199408
W(POWER SEAT & SEAT HEATER),MEDIUM GRAY,TRIM1#
main71705-33050-E0i199309-199408
OAK,TRIM4#
main71705-33050-J0i199203-199309
DARK BLUE,TRIM8#
main71705-33051-B2i199408-199607
MEDIUM GRAY,TRIM1#; W(POWER SEAT & SEAT HEATER),MEDIUM GRAY,TRIM1#
main71705-33060-B0i199309-199607
W(LEATHER SEAT & POWER SEAT)-*99,MEDIUM GRAY,TRIM1#; W(LEATHER SEAT & SEAT HEATER) OR W(LEATHER SEAT & POWER SEAT & SEAT HEATER)-*99,MEDIUM GRAY,TRIM1#; W(LEATHER SEAT & SEAT HEATER)-*99,MEDIUM GRAY,TRIM1#
main71705-33060-E0i199309-199607
W(LEATHER SEAT & POWER SEAT)-*99,LIGHT OAK,TRIM4#
main71705-33060-J0i199203-199309
W(LEATHER SEAT)-*99,DARK BLUE,TRIM8#
main71705-33160-B1i199408-199607
MEDIUM GRAY,TRIM1#
main71705-33160-E1i199408-199607
OAK,TRIM4#
main71705-33170-E0i199408-199607
MEDIUM OAK,TRIM4#; W(POWER SEAT & SEAT HEATER),MEDIUM OAK,TRIM4#
71705DCLIP, FRONT SEATBACK BOARD
main71769-33010×2i199203-199607
71706BOARD SUB-ASSY, FRONT SEATBACK, LH
main71705-32280-B0i199203-199408
MEDIUM GRAY,TRIM1#
main71705-32280-E0i199309-199408
OAK,TRIM4#
main71705-32280-J0i199203-199309
DARK BLUE,TRIM8#
main71705-33050-B0i199203-199408
MEDIUM GRAY,TRIM1#
main71705-33050-E0i199309-199408
OAK,TRIM4#
main71705-33050-J0i199203-199309
DARK BLUE,TRIM8#
main71705-33051-B2i199408-199607
MEDIUM GRAY,TRIM1#; W(POWER SEAT & SEAT HEATER),MEDIUM GRAY,TRIM1#
main71705-33060-B0i199309-199607
W(LEATHER SEAT & POWER SEAT)-*99,MEDIUM GRAY,TRIM1#; W(LEATHER SEAT & SEAT HEATER) OR W(LEATHER SEAT & POWER SEAT & SEAT HEATER)-*99,MEDIUM GRAY,TRIM1#; W(LEATHER SEAT & SEAT HEATER)-*99,MEDIUM GRAY,TRIM1#
main71705-33060-E0i199408-199607
W(LEATHER SEAT & SEAT HEATER) OR W(LEATHER SEAT & POWER SEAT & SEAT HEATER)-*99,LIGHT OAK,TRIM4#; W(LEATHER SEAT & SEAT HEATER)-*99,LIGHT OAK,TRIM4#
main71705-33060-J0i199203-199309
W(LEATHER SEAT)-*99,DARK BLUE,TRIM8#
main71705-33160-B1i199408-199607
MEDIUM GRAY,TRIM1#
main71705-33160-E1i199408-199607
OAK,TRIM4#
main71705-33170-E0i199408-199607
MEDIUM OAK,TRIM4#; W(POWER SEAT & SEAT HEATER),MEDIUM OAK,TRIM4#
71706BCLIP, FRONT SEATBACK BOARD
main71769-33010×2i199203-199607
71791ARETAINER, FRONT SEATBACK POCKET
main71791-32030×2i199408-199607
71910AHEADREST ASSY, FRONT SEAT
main71910-06010-B0×2i199203-199309
MEDIUM GRAY,TRIM1#
main71910-06010-J0×2i199203-199309
DARK BLUE,TRIM8#
main71910-06011-B1×2i199309-199408
MEDIUM GRAY,TRIM1#
main71910-06011-E1×2i199309-199408
MEDIUM OAK,TRIM4#
main71910-06012-B1×2i199408-199508
MD.GRAY,TRIM1#
main71910-06012-E1×2i199408-199508
MD.OAK,TRIM4#
main71910-06013-B3×2i199508-199607
MEDIUM GRAY,TRIM1#
main71910-06013-E3×2i199508-199607
MEDIUM OAK,TRIM4#
main71910-06030-B0×2i199203-199408
MEDIUM GRAY,TRIM1#
main71910-06030-E0×2i199309-199408
OAK,TRIM4#; W(POWER SEAT & SEAT HEATER),OAK,TRIM4#
main71910-06030-J0×2i199203-199309
DARK BLUE,TRIM8#
main71910-06032-B1×2i199408-199607
MEDIUM GRAY,TRIM1#; W(POWER SEAT & SEAT HEATER),MEDIUM GRAY,TRIM1#
main71910-06032-E1×2i199408-199607
MEDIUM OAK,TRIM4#; W(POWER SEAT & SEAT HEATER),MEDIUM OAK,TRIM4#
main71910-06040-B0×2i199309-199408
W(LEATHER SEAT & POWER SEAT)-*99,MEDIUM GRAY,TRIM1#; W(LEATHER SEAT & SEAT HEATER) OR W(LEATHER SEAT & POWER SEAT & SEAT HEATER)-*99,MEDIUM GRAY,TRIM1#; W(LEATHER SEAT & SEAT HEATER)-*99,MEDIUM GRAY,TRIM1#
main71910-06040-E0×2i199309-199408
W(LEATHER SEAT & POWER SEAT & SEAT HEATER)-*99,OAK,TRIM4#; W(LEATHER SEAT & POWER SEAT)-*99,OAK,TRIM4#
main71910-06040-J0×2i199203-199309
W(LEATHER SEAT)-*99,DARK BLUE,TRIM8#
main71910-06041-B0×2i199408-199607
W(LEATHER SEAT & POWER SEAT)-*99,MEDIUM GRAY,TRIM1#; W(LEATHER SEAT & SEAT HEATER) OR W(LEATHER SEAT & POWER SEAT & SEAT HEATER)-*99,MEDIUM GRAY,TRIM1#; W(LEATHER SEAT & SEAT HEATER)-*99,MEDIUM GRAY,TRIM1#
main71910-06041-E0×2i199408-199607
W(LEATHER SEAT & POWER SEAT)-*99,LIGHT OAK,TRIM4#; W(LEATHER SEAT & SEAT HEATER) OR W(LEATHER SEAT & POWER SEAT & SEAT HEATER)-*99,LIGHT OAK,TRIM4#; W(LEATHER SEAT & SEAT HEATER)-*99,LIGHT OAK,TRIM4#
main71910-06050-B0×2i199203-199408
MEDIUM GRAY,TRIM1#
main71910-06050-E0×2i199309-199408
MEDIUM OAK,TRIM4#
main71910-06050-J0×2i199203-199309
DARK BLUE,TRIM8#
main71910-06052-B0×2i199408-199607
MD.GRAY,TRIM1#
main71910-06052-E0×2i199408-199607
MD.OAK,TRIM4#
71931SUPPORT, FRONT SEAT HEADREST
main71930-10070-B0×2i199210-199607
W(LOCK),MEDIUM GRAY,TRIM1#
main71930-10070-E1×2i199309-199607
W(LOCK),ROSEWOOD,TRIM4#
main71930-10070-J0i199203-199309
W(LOCK),W(SEAT HEATER),DARK BLUE,TRIM8#,LH
main71930-32010-B0×2i199203-199210
W(LOCK),MEDIUM GRAY,TRIM1#; W(LOCK),W(SEAT HEATER),MEDIUM GRAY,TRIM1#,RH
main71930-32010-J0×2i199203-199210
W(LOCK),DARK BLUE,TRIM8#; W(LOCK),W(SEAT HEATER),DARK BLUE,TRIM8#,RH
main71931-10020-B0×2i199210-199607
W/O(LOCK),MEDIUM GRAY,TRIM1#
main71931-10020-E1×2i199309-199607
W/O(LOCK),ROSEWOOD,TRIM4#
main71931-10020-J0×2i199210-199309
W/O(LOCK),DARK BLUE,TRIM8#
main71931-32010-B0×2i199203-199210
W/O(LOCK),MEDIUM GRAY,TRIM1#; W/O(LOCK),W(SEAT HEATER),MEDIUM GRAY,TRIM1#,RH
main71931-32010-J0i199203-199210
W/O(LOCK),DARK BLUE,TRIM8#; W/O(LOCK),W(SEAT HEATER),DARK BLUE,TRIM8#,RH
72750DADJUSTER ASSY, LUMBAR SUPPORT, RH
main72750-33010i199203-199402
72760DADJUSTER ASSY, LUMBAR SUPPORT, LH
main72760-33010i199203-199309
72791LEVER, LUMBAR SUPPORT
main72791-22020-B0i199402-199607
MEDIUM GRAY,TRIM1#
main72791-22020-E8i199402-199607
OAK,TRIM4#
main72791-22020-J0i199203-199309
DARK BLUE,TRIM8#
8513SEAT MOTOR & SEAT HEATER
→ Go to FIG 85-13
9008046007
main90080-46007
9016350006
main90163-50006
9046818071
main90468-18071
9052001274
main90520-01274
9165640614
main91656-40614

36 parts on this diagram · 5 diagrams in section

FRONT SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
