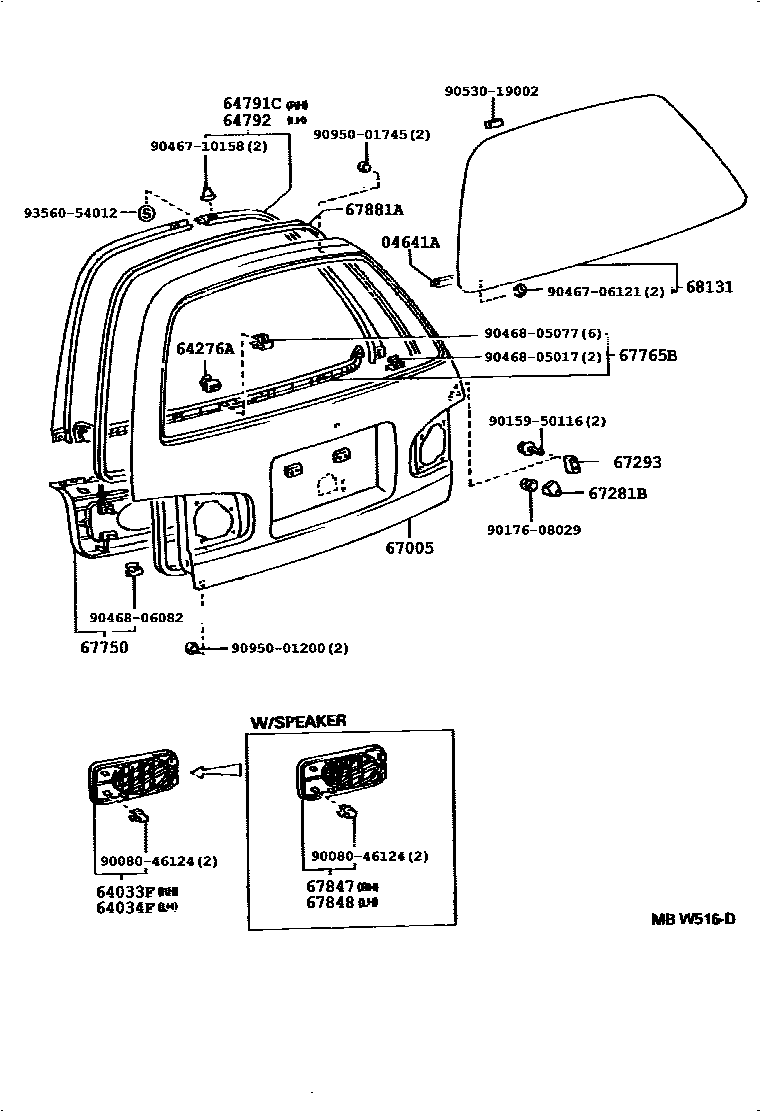

BACK DOOR PANEL & GLASS

04641ADAM KIT, BACK WINDOW GLASS ADHESIVE

main04562-12010iSXV10,VCV10..NAP199203-199607

64033FGRILLE SUB-ASSY, REAR SPEAKER, RH

main64033-06030-B0iSXV10,VCV10..NAP199203-199607

MEDIUM GRAY,TRIM1#

sub64033-06030

main64033-06030-E0iSXV10,VCV10..NAP199309-199607

OAK,TRIM4#

sub64033-06030

main64033-06030-J0iSXV10,VCV10..NAP199203-199309

DARK BLUE,TRIM8#

sub64033-06030

64034FGRILLE SUB-ASSY, REAR SPEAKER, LH

main64034-06030-B0iSXV10,VCV10..NAP199203-199607

MEDIUM GRAY,TRIM1#

sub64034-06030

main64034-06030-E0iSXV10,VCV10..NAP199309-199607

OAK,TRIM4#

sub64034-06030

main64034-06030-J0iSXV10,VCV10..NAP199203-199309

DARK BLUE,TRIM8#

sub64034-06030

64276ABRACKET, BACK PANEL TRIM, UPPER

main64276-33010iSXV10,VCV10..NAP199203-199607

64791CCOVER, BACK DOOR TRIM, RH

main64791-33030-B0iSXV10,VCV10..NAP199203-199607

MEDIUM GRAY,TRIM1#

main64791-33030-E0iSXV10,VCV10..NAP199309-199607

OAK,TRIM4#

main64791-33030-J0iSXV10,VCV10..NAP199203-199309

DARK BLUE,TRIM8#

64792COVER, BACK DOOR TRIM, LH

main64792-33010-B0iSXV10,VCV10..NAP199203-199607

MEDIUM GRAY,TRIM1#

main64792-33010-E0iSXV10,VCV10..NAP199309-199607

OAK,TRIM4#

main64792-33010-J0iSXV10,VCV10..NAP199203-199309

DARK BLUE,TRIM8#

67005PANEL SUB-ASSY, BACK DOOR

main67005-06020iSXV10,VCV10..NAP199203-199511

sub67005-06090

sub90950-01745

main67005-06090iSXV10,VCV10..NAP199511-199607

67281BSTOPPER, BACK DOOR, LOWER

main67281-06010iSXV10,VCV10..NAP199203-199607

67293CUSHION, BACK DOOR LOWER STOPPER

main67293-33010iSXV10,VCV10..NAP199203-199607

RH

main67294-33010iSXV10,VCV10..NAP199203-199607

LH

67750BOARD ASSY, BACK DOOR TRIM

main67750-06010-B0iSXV10..NAP..XL199203-199607

MEDIUM GRAY,TRIM1#

sub67750-06010

main67750-06010-E0iSXV10..NAP..XL199309-199607

OAK,TRIM4#

sub67750-06010

main67750-06010-J0iSXV10..NAP..XL199203-199309

DARK BLUE,TRIM8#

sub67750-06010

main67750-06020-B0iSXV10..NAP..XL199203-199607

W(3RD SEAT),MEDIUM GRAY,TRIM1#

sub67750-06020

main67750-06020-E0iSXV10..NAP..XL199309-199607

W(3RD SEAT),OAK,TRIM4#

sub67750-06020

main67750-06020-J0iSXV10..NAP..XL199203-199309

W(3RD SEAT),DARK BLUE,TRIM8#

sub67750-06020

main67750-06030-B0iSXV10,VCV10..NAP..(GL,GX)199203-199607

MEDIUM GRAY,TRIM1#

main67750-06030-E0iSXV10,VCV10..NAP..(GL,GX)199309-199607

OAK,TRIM4#

main67750-06030-J0iSXV10,VCV10..NAP..(GL,GX)199203-199309

DARK BLUE,TRIM8#

main67750-06040-B0iSXV10,VCV10..NAP..(GL,GX)199203-199607

W(3RD SEAT),MEDIUM GRAY,TRIM1#

sub67750-06040

main67750-06040-E0iSXV10,VCV10..NAP..(GL,GX)199309-199607

W(3RD SEAT),OAK,TRIM4#

sub67750-06040

main67750-06040-J0iSXV10,VCV10..NAP..(GL,GX)199203-199309

W(3RD SEAT),DARK BLUE,TRIM8#

sub67750-06040

67765BCOVER, BACK DOOR TRIM, UPPER

main67760-06010-B0iSXV10,VCV10..NAP199203-199607

MEDIUM GRAY,TRIM1#

sub67760-06010

main67760-06010-E0iSXV10,VCV10..NAP199309-199607

OAK,TRIM4#

sub67760-06010

main67760-06010-J0iSXV10,VCV10..NAP199203-199309

DARK BLUE,TRIM8#

sub67760-06010

67847COVER, BACK DOOR SERVICE HOLE, RH

main67807-06010-B0iSXV10..NAP..GL199203-199408

MEDIUM GRAY,TRIM1#

main67807-06010-J0iSXV10..NAP..GL199203-199309

DARK BLUE,TRIM8#

main67847-06020-B0iSXV10..NAP..XL199309-199408

MEDIUM GRAY,TRIM1#

sub67847-06020

main67847-06020-B0iSXV10..NAP..XL199209-199309

MEDIUM GRAY

sub67847-06020

main67847-06020-B1iSXV10..NAP..XL199203-199408

MEDIUM GRAY,TRIM1#

sub67847-06020

main67847-06020-E1iSXV10..NAP..XL199309-199408

OAK,TRIM4#

sub67847-06020

main67847-06020-J0iSXV10..NAP..XL199209-199309

DARK BLUE

sub67847-06020

main67847-06020-J1iSXV10..NAP..XL199203-199309

DARK BLUE,TRIM8#

sub67847-06020

67848COVER, BACK DOOR SERVICE HOLE, LH

main67808-06010-B0iSXV10..NAP..GL199203-199408

MEDIUM GRAY,TRIM1#

main67808-06010-J0iSXV10..NAP..GL199203-199309

DARK BLUE,TRIM8#

main67848-06020-B1iSXV10..NAP..XL199203-199408

MEDIUM GRAY,TRIM1#

sub67848-06020

main67848-06020-E0iSXV10..NAP..XL199309-199408

OAK,TRIM4#

sub67848-06020

main67848-06020-E1iSXV10..NAP..XL199309-199408

OAK,TRIM4#

sub67848-06020

main67848-06020-J0iSXV10..NAP..XL199209-199309

DARK BLUE

sub67848-06020

main67848-06020-J1iSXV10..NAP..XL199203-199309

DARK BLUE,TRIM8#

sub67848-06020

67881AWEATHERSTRIP, BACK DOOR

main67881-06010iSXV10,VCV10..NAP199203-199607

68131GLASS, BACK DOOR

main68131-06010iSXV10,VCV10..NAP199203-199607

*TT,T=3.5, GREEN

main68131-06020iSXV10,VCV10..NAP..LHD199203-199607

*TT,T=3.5, GREEN,*EHTT,T=3.5,W(HEAVY DUTY REAR WINDOW DEFOGGER),GREEN

9008046124

main90080-46124

9015950116

main90159-50116

9017608029

main90176-08029

9046706121

main90467-06121

9046710158

main90467-10158

9046805017

main90468-05017

9046805077

main90468-05077

9046806082

main90468-06082

9053019002

main90530-19002

9095001200

main90950-01200

9095001745

main90950-01745

9356054012

main93560-54012

27 parts on this diagram · 1 diagram in section
