INSTRUMENT PANEL & GLOVE COMPARTMENT

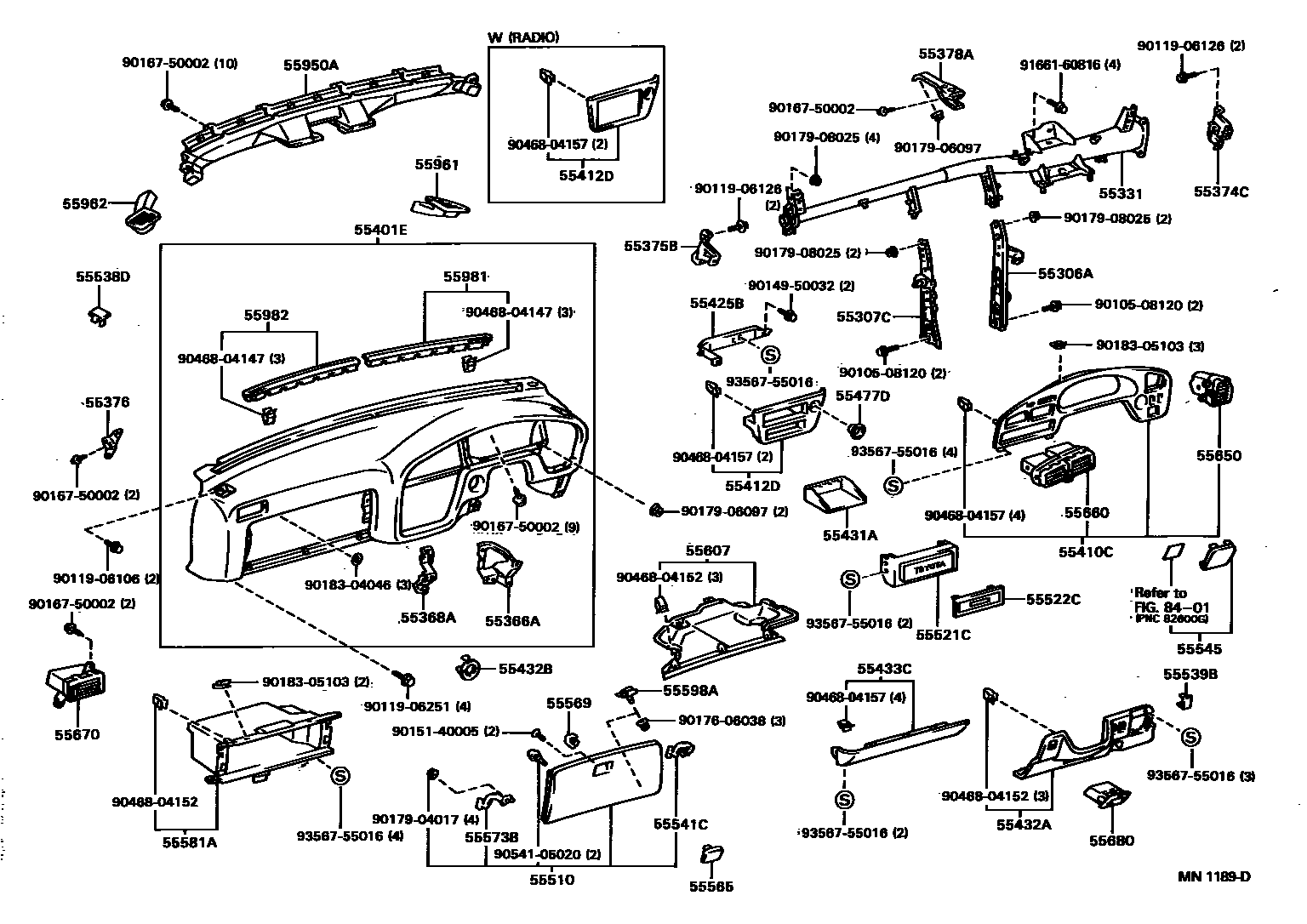

Parts diagram
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
main55306-06010i199203-199607
main55306-33020i199203-199607
55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
main55307-06010i199203-199607
main55307-33020i199203-199607
55331REINFORCEMENT, INSTRUMENT PANEL
main55330-06020i199203-199309
main55330-06021i199309-199607
main55330-33040i199203-199308
main55330-33041i199308-199607
55366ABRACKET, RADIO MOUNTING, NO.1
main55366-33010i199203-199607
main55366-33020i199203-199607
55368ABRACKET, RADIO MOUNTING, NO.2
main55368-06010i199203-199607
main55368-33020i199203-199607
55374CBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1
main55374-06010i199203-199607
main55374-33020i199203-199607
55375BBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2
main55375-06010i199203-199309
main55375-06020i199309-199607
main55375-33020i199203-199607
55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1
main55376-06010i199203-199607
main55376-33020i199203-199607
55378ABRACKET, GLOVE COMPARTMENT DOOR LOCK MOUNTING
main55308-06010i199203-199607
55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY
main55401-06010-B0i199203-199309
MEDIUM GRAY,TRIM1#
main55401-06010-J0i199203-199309
DARK BLUE,TRIM8#
main55401-06011-B0i199309-199607
MEDIUM GRAY,TRIM1#
main55401-06011-E0i199309-199607
OAK,TRIM4#
main55401-33020-B0i199203-199206
MEDIUM GRAY,TRIM1#
main55401-33020-J0i199203-199206
DARK BLUE,TRIM8#
main55401-33021-B0i199206-199607
MEDIUM GRAY,TRIM1#
main55401-33021-E0i199309-199607
OAK,TRIM4#
main55401-33021-J0i199206-199309
DARK BLUE,TRIM8#
55410CPANEL ASSY, INSTRUMENT CLUSTER FINISH
main55410-33020i199203-199402
main55410-33021i199402-199607
main55410-33030i199203-199312
main55410-33031i199312-199607
55412DPANEL, INSTRUMENT CLUSTER FINISH, CENTER
main55412-33020i199408-199607
main55412-33030i199203-199408
W/O(RADIO)
main55412-33050i199203-199408
W(RADIO)
main55412-33060i199408-199607
W/O(RADIO)
55425BREINFORCEMENT, INSTRUMENT CLUSTER FINISH PANEL
main55425-33010i199203-199607
55431APANEL, INSTRUMENT PANEL FINISH
main55431-33010i199203-199607
55432APANEL, INSTRUMENT PANEL FINISH, LOWER RH
main55045-33010-B0i199203-199209
MEDIUM GRAY,TRIM1#
main55045-33010-J0i199203-199209
DARK BLUE,TRIM8#
main55045-33011-B0i199209-199607
MEDIUM GRAY,TRIM1#
main55045-33011-E0i199309-199607
OAK,TRIM4#
main55045-33011-J0i199209-199309
DARK BLUE,TRIM8#
main55303-06010-B0i199203-199607
MEDIUM GRAY,TRIM1#
main55303-06010-E0i199309-199607
OAK,TRIM4#
main55303-06010-J0i199203-199309
DARK BLUE,TRIM8#
55432BPANEL, INSTRUMENT PANEL FINISH, LOWER
main55480-06010i199203-199607
main55480-33030i199203-199607
55433CPANEL, INSTRUMENT PANEL FINISH, LOWER LH
main55046-33010-E0i199309-199607
OAK,TRIM4#
main55046-33010-S4i199203-199607
MEDIUM GRAY,TRIM1#
main55046-33010-W3i199203-199309
DARK BLUE,TRIM8#
main55303-33020-B0i199203-199607
MEDIUM GRAY,TRIM1#
main55303-33020-E0i199309-199607
OAK,TRIM4#
main55303-33020-J0i199203-199309
DARK BLUE,TRIM8#
55477DCOVER, CIGARETTE LIGHTER HOLE
main55477-06010i199203-199607
55510DOOR ASSY, GLOVE COMPARTMENT
main55550-06010-B0i199203-199607
MEDIUM GRAY,TRIM1#
main55550-06010-E0i199309-199607
OAK,TRIM4#
main55550-06010-J0i199203-199309
DARK BLUE,TRIM8#
main55550-33020-B0i199203-199607
MEDIUM GRAY,TRIM1#
main55550-33020-E0i199309-199607
OAK,TRIM4#
main55550-33020-J0i199203-199309
DARK BLUE,TRIM8#
55521CCOVER, STEREO OPENING
main55022-17010i199203-199607
55522CCOVER, RADIO RECEIVER OPENING
main55522-20060i199203-199607
55538DCOVER, SUNSHINE SENSOR HOLE
main55538-33020i199309-199607
55539COVER, SPARE SWITCH HOLE
main55548-33010i199203-199607
55539BCOVER, SPARE SWITCH HOLE, NO.2
main55539-20080-B0i199203-199309
MEDIUM GRAY,TRIM1#
main55539-20080-E0i199309-199607
OAK,TRIM4#
main55539-20080-J0i199203-199309
DARK BLUE,TRIM8#
main55539-33040-B0i199309-199607
MEDIUM GRAY,TRIM1#
main55539-33040-E0i199309-199607
OAK,TRIM4#
55541CARM, GLOVE COMPARTMENT HINGE, RH
main55541-33010i199203-199607
55545COVER, FUSE BOX OPENING
main55458-33020-S4i199203-199309
MEDIUM GRAY,TRIM1#
main55458-33020-W3i199203-199309
DARK BLUE,TRIM8#
main55458-33030-S4i199203-199309
MEDIUM GRAY,TRIM1#
main55458-33030-W3i199203-199309
DARK BLUE,TRIM8#
main55458-33031-E0i199309-199607
OAK,TRIM4#
main55458-33031-S4i199309-199607
MEDIUM GRAY,TRIM1#
main55458-33050-B0i199309-199408
MEDIUM GRAY,TRIM1#
main55458-33050-E0i199309-199408
OAK,TRIM4#
main55458-33060-B0i199408-199607
MD.GRAY,TRIM1#
main55458-33060-E0i199408-199607
OAK,TRIM4#
55565HANDLE, GLOVE COMPARTMENT DOOR LOCK
main55565-22020-B0i199203-199607
MEDIUM GRAY,TRIM1#
main55565-22020-E1i199309-199607
OAK,TRIM4#
main55565-22020-J0i199203-199309
DARK BLUE,TRIM8#
55569COVER, GLOVE COMPARTMENT DOOR LOCK
main55569-22030-B0i199203-199607
MEDIUM GRAY,TRIM1#
main55569-22030-E1i199309-199607
OAK,TRIM4#
main55569-22030-J0i199203-199309
DARK BLUE,TRIM8#
55573BARM, GLOVE COMPARTMENT DOOR CHECK, LH
main55542-33010i199203-199607
55581ACOMPARTMENT, GLOVE
main55581-06010i199309-199607
main55581-06020i199203-199309
main55581-33020i199203-199607
55598ABRACKET, GLOVE COMPARTMENT DOOR HINGE
main55598-33010×3i199203-199607
55607COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2
main55607-06010i199203-199309
main55607-06020i199309-199607
main55607-33020i199203-199607
55650REGISTER ASSY, INSTRUMENT PANEL, NO.1
main55650-33010i199203-199607
main55650-33020i199203-199607
55660REGISTER ASSY, INSTRUMENT PANEL, NO.2
main55660-33020i199203-199607
main55660-33030i199203-199607
55670REGISTER ASSY, INSTRUMENT PANEL, NO.3
main55670-06010-B0i199203-199401
MEDIUM GRAY,TRIM1#
main55670-06010-E0i199309-199401
OAK,TRIM4#
main55670-06010-J0i199203-199309
DARK BLUE,TRIM8#
main55670-06011-B0i199401-199607
MEDIUM GRAY,TRIM1#
main55670-06011-E0i199401-199607
OAK,TRIM4#
main55670-33020-B0i199203-199312
MEDIUM GRAY,TRIM1#
main55670-33020-E0i199309-199312
OAK,TRIM4#
main55670-33020-J0i199203-199309
DARK BLUE,TRIM8#
main55670-33021-B0i199312-199607
MEDIUM GRAY,TRIM1#
main55670-33021-E0i199312-199607
OAK,TRIM4#
55680REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1
main55680-06010-B0i199209-199309
MEDIUM GRAY,TRIM1#
main55680-06010-C0i199309-199607
BLACK,TRIM1#,4#
main55680-06010-J0i199209-199309
DARK BLUE,TRIM8#
main55680-33010-C0i199309-199607
BLACK,TRIM1#,4#
main55680-33010-S4i199203-199209
MEDIUM GRAY,TRIM1#
main55680-33010-W3i199209-199309
DARK BLUE,TRIM8#
55950ANOZZLE ASSY, DEFROSTER
main55950-06010i199203-199607
main55950-33010i199203-199210
main55950-33020i199203-199607
55961NOZZLE, SIDE DEFROSTER, NO.1
main55961-06010-B0i199203-199607
MEDIUM GRAY,TRIM1#
main55961-06010-E0i199309-199607
OAK,TRIM4#
main55961-06010-J0i199203-199309
DARK BLUE,TRIM8#
main55961-33020-B0i199203-199607
MEDIUM GRAY,TRIM1#
main55961-33020-E0i199309-199607
OAK,TRIM4#
main55961-33020-J0i199203-199309
DARK BLUE,TRIM8#
55962NOZZLE, SIDE DEFROSTER, NO.2
main55962-06010-B0i199203-199607
MEDIUM GRAY,TRIM1#
main55962-06010-E0i199309-199607
OAK,TRIM4#
main55962-06010-J0i199203-199309
DARK BLUE,TRIM8#
main55962-33020-B0i199203-199607
MEDIUM GRAY,TRIM1#
main55962-33020-E0i199309-199607
OAK,TRIM4#
main55962-33020-J0i199203-199309
DARK BLUE,TRIM8#
55981GARNISH, DEFROSTER NOZZLE, NO.1
main55981-06010i199203-199607
main55981-33010i199203-199607
55982GARNISH, DEFROSTER NOZZLE, NO.2
main55982-06010i199203-199607
main55982-33010i199203-199607
8401SWITCH & RELAY & COMPUTER
→ Go to FIG 84-01
9010508120
main90105-08120
9011906106
main90119-06106
9011906126
main90119-06126
9011906251
main90119-06251
9014950032
main90149-50032
9015140005
main90151-40005
9016750002
main90167-50002
9017606038
main90176-06038
9017904017
main90179-04017
9017906097
main90179-06097
9017908025
main90179-08025
9018304046
main90183-04046
9018305103
main90183-05103
9046804147
main90468-04147
9046804152
main90468-04152
9046804157
main90468-04157
9054105020
main90541-05020
9166160816
main91661-60816
9356755016
main93567-55016

61 parts on this diagram · 2 diagrams in section
