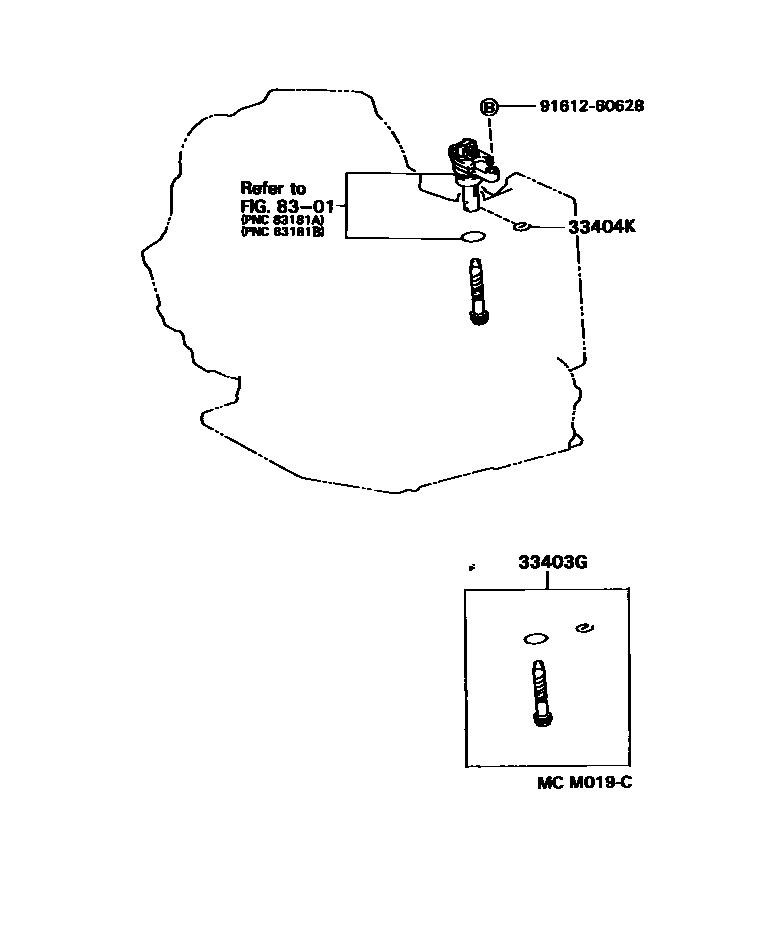

SPEEDOMETER DRIVEN GEAR (ATM)

0001 1 0002 1

33403GGEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33403-39275iSXV10..NAP..ATM199203-199607

N=22,MARK 22:27

main33403-39285iVCV10..NAP..ATM199203-199607

N=24,MARK 24:30

33404KCLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iSXV10,VCV10..NAP..ATM199203-199607

8301

9161260628

main91612-60628

4 parts on this diagram · 2 diagrams in section
