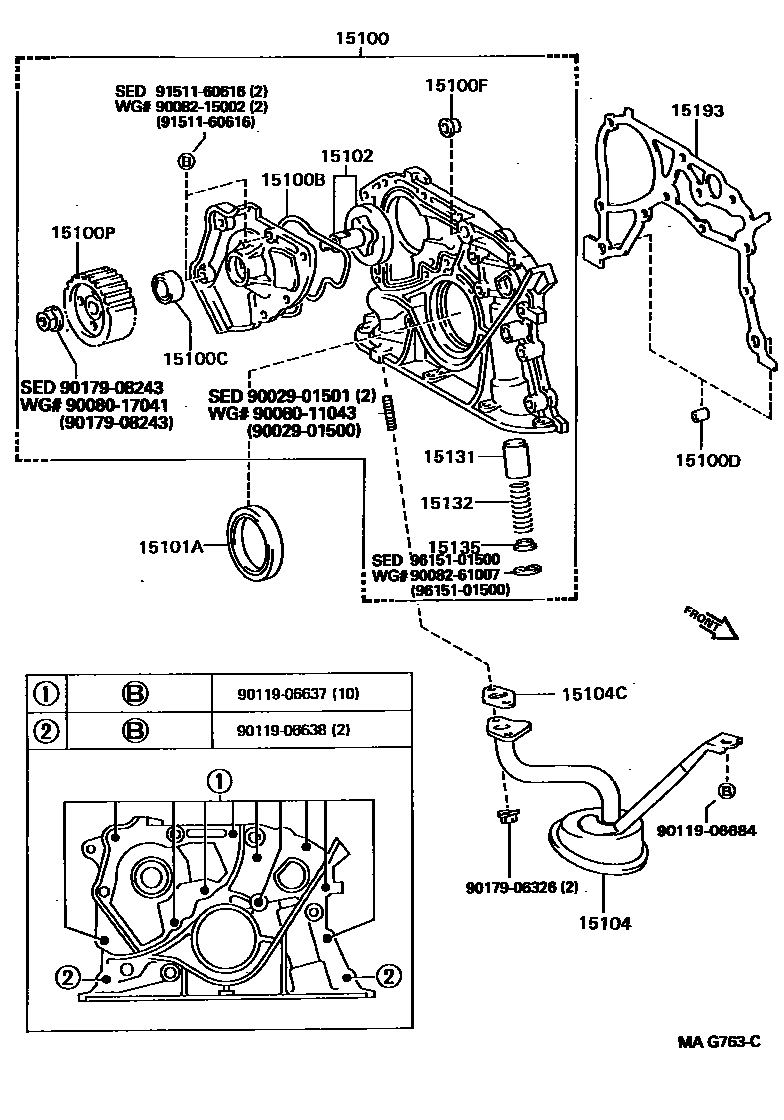

ENGINE OIL PUMP

0001 1 0002 1

15100PUMP ASSY, OIL

main15100-03020i5SFE..SXV10..NAP199203-199508

main15100-62030i3VZFE..VCV10..NAP199203-199607

main15100-74020i5SFE..SXV10..NAP199203-199508

main15100-74040i5SFE..SXV10..NAP199508-199607

15100BRING, O(FOR OIL PUMP)

main15188-03010i5SFE..SXV10..NAP199203-199508

main15188-63010i5SFE..SXV10..NAP199203-199304

main15188-88382i5SFE..SXV10..NAP199304-199607

15100CSEAL(FOR OIL PUMP)

main15165-70010i5SFE..SXV10..NAP199203-199304

main15165-74020i5SFE..SXV10..NAP199304-199607

main90080-31003i5SFE..SXV10..NAP199203-199508

main90311-40013i3VZFE..VCV10..NAP199203-199607

15100DPIN(FOR OIL PUMP SET)

main90253-09001×2i5SFE..SXV10..NAP199203-199607

15100FBUSH (FOR OIL PUMP)

main90029-38302i5SFE..SXV10..NAP199203-199607

main90080-38016i5SFE..SXV10..NAP199203-199508

15100PPULLEY, OIL PUMP DRIVE SHAFT

main13524-03020i5SFE..SXV10..NAP199408-199508

main13524-74020i5SFE..SXV10..NAP199408-199607

15101BODY SUB-ASSY, OIL PUMP

main15101-62030i3VZFE..VCV10..NAP199203-199607

15101ASEAL(FOR CRANKSHAFT)

main90080-31022i5SFE..SXV10..NAP199309-199607

main90311-42026i5SFE..SXV10..NAP199203-199607

15102ROTOR SET, OIL PUMP

main15102-03020i5SFE..SXV10..NAP199203-199508

main15102-74020i5SFE..SXV10..NAP199203-199607

main15103-62030i3VZFE..VCV10..NAP199203-199607

15104STRAINER SUB-ASSY, OIL

main15104-03030i5SFE..SXV10..NAP199203-199402

main15104-03031i5SFE..SXV10..NAP199402-199607

main15104-62030i3VZFE..VCV10..NAP199203-199607

main15104-74060i5SFE..SXV10..NAP199203-199607

15104CGASKET(FOR OIL STRAINER)

main15147-62020i3VZFE..VCV10..NAP199203-199607

main15149-03020i5SFE..SXV10..NAP199408-199607

main15149-74020i5SFE..SXV10..NAP199203-199309

main15149-74030i5SFE..SXV10..NAP199309-199607

15131VALVE, OIL PUMP RELIEF

main15131-03021i5SFE..SXV10..NAP199203-199508

main15131-24010i3VZFE..VCV10..NAP199203-199607

main15131-63011i5SFE..SXV10..NAP199203-199607

15132SPRING, OIL PUMP RELIEF VALVE

main15132-03020i5SFE..SXV10..NAP199203-199508

main15132-62030i3VZFE..VCV10..NAP199203-199607

main15132-88380i5SFE..SXV10..NAP199203-199607

15135RETAINER, OIL PUMP RELIEF VALVE

main15135-03010i5SFE..SXV10..NAP199203-199508

main15135-15010i5SFE..SXV10..NAP199203-199607

15193GASKET, OIL PUMP

main15197-03020i5SFE..SXV10..NAP199408-199508

main15197-03040i5SFE..SXV10..NAP199508-199607

main15197-63021i5SFE..SXV10..NAP199203-199309

main15197-74030i5SFE..SXV10..NAP199309-199508

main15197-74040i5SFE..SXV10..NAP199508-199607

9002901500

main90029-01500

9002901501

main90029-01501

9008011043

main90080-11043

9008017041

main90080-17041

9008215002

main90082-15002

9008261007

main90082-61007

9011906637

main90119-06637

9011906638

main90119-06638

9011906684

main90119-06684

9017906326

main90179-06326

9017908243

main90179-08243

9151160616

main91511-60616

9615101500

main96151-01500

28 parts on this diagram · 2 diagrams in section
