VENTILATION HOSE

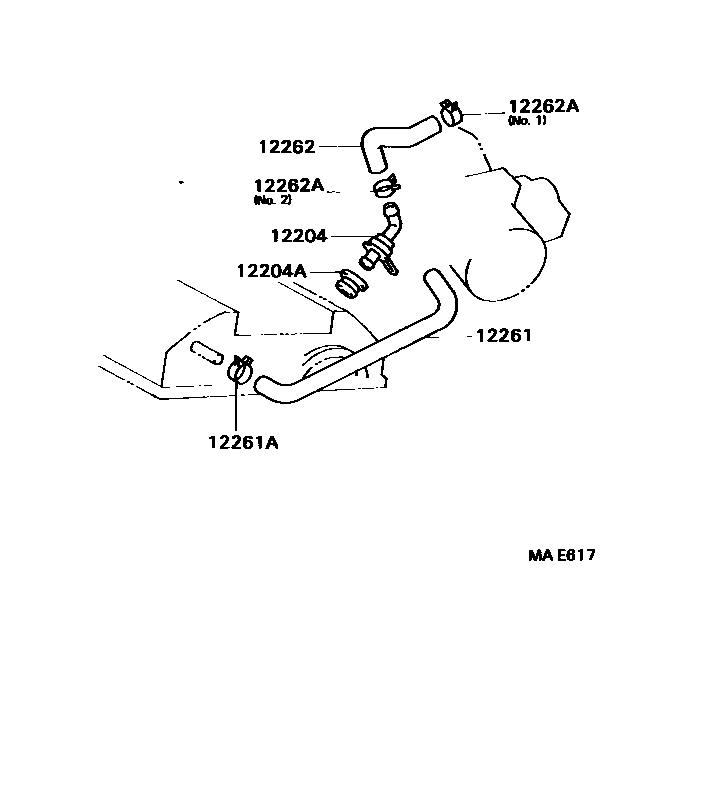

Parts diagram
12204VALVE SUB-ASSY, VENTILATION
main12204-62010i199203-199607
main12204-74020i199203-199607
12204AGROMMET(FOR VENTILATION SYSTEM)
main90480-18001i199203-199607
12261HOSE, VENTILATION
main12261-03030i199203-199607
main12261-62030i199203-199607
main12261-74020i199203-199607
12261ACLIP OR CLAMP(FOR VENTILATION HOSE)
main90467-14017i199203-199607
main90467-15016i199203-199607
sub96135-51400
12262HOSE, VENTILATION, NO.2
main12262-03020i199203-199607
main12262-07010i199203-199607
main12262-74050i199203-199607
12262ACLIP(FOR VENTILATION HOSE NO.2)
main90467-13103i199203-199607
NO.1
main90467-15016i199203-199607
NO.2
sub96135-51400
main90467-17011i199203-199607
sub96134-51700

6 parts on this diagram · 2 diagrams in section
