INVERTER COOLING

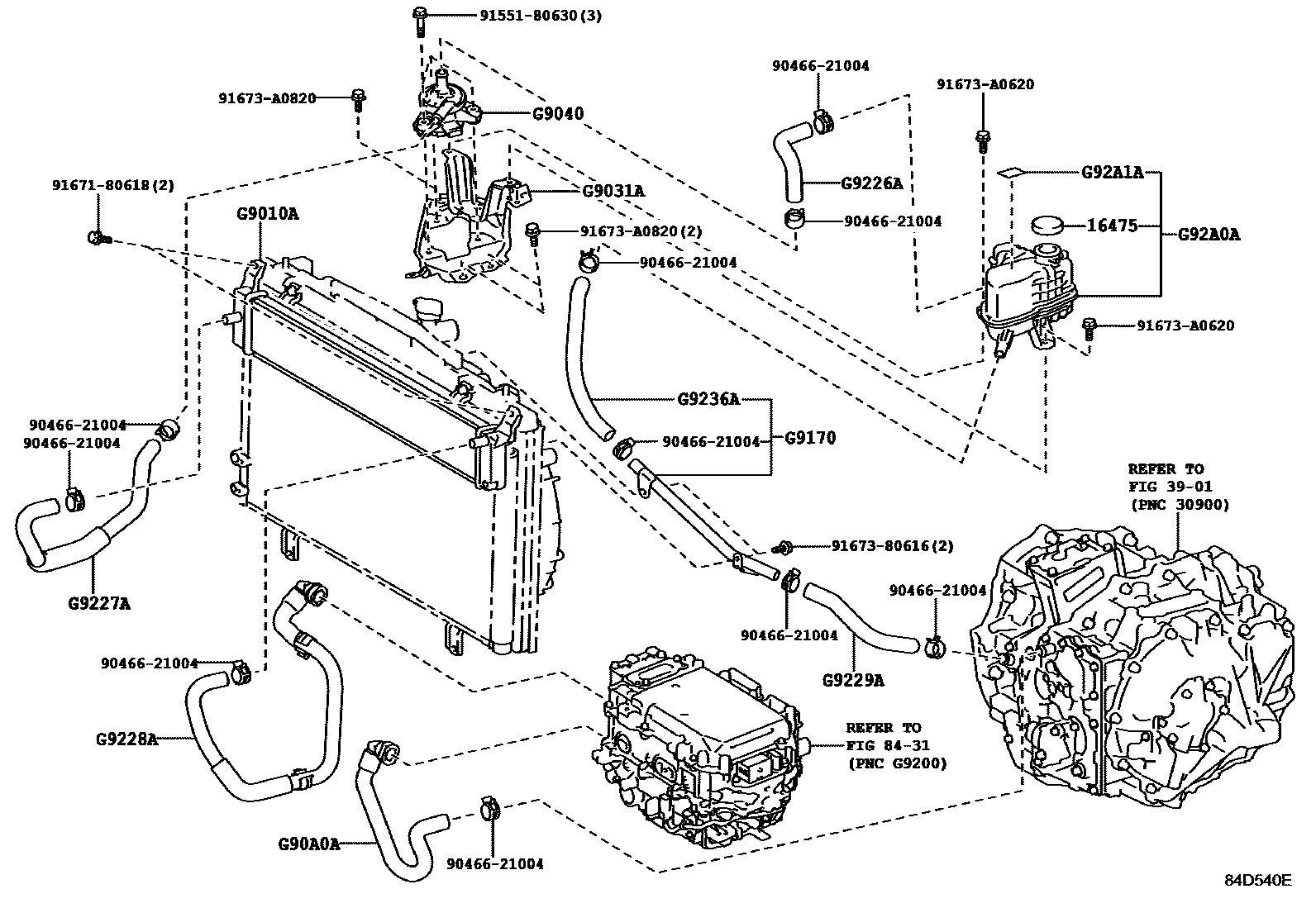

Parts diagram

16475CAP, RESERVE TANK

main16475-37010i201206-201410

main16475-37011i201410

3901TRANSAXLE ASSY(HEV OR BEV OR FCEV)

→ Go to FIG 39-01

8431HEV INVERTER

→ Go to FIG 84-31

G9010ARADIATOR ASSY

mainG901033060i201206-201507

G9031ABRACKET SUB-ASSY, HV WATER PUMP

mainG903133030i201206

G9040INVERTER WATER PUMP ASSY(W/MOTOR)

mainG904033030i201206

G90A0AHOSE ASSY, INVERTER COOLING, NO.1

mainG90A033010i201206

G9170PIPE ASSY, INVERTER COOLING NO.1

mainG917033010i201206

G9226AHOSE, INVERTER COOLING, NO.2

mainG922633010i201206

G9227AHOSE, INVERTER COOLING, NO.3

mainG922733010i201206

G9228AHOSE, INVERTER COOLING, NO.4

mainG90D033010i201206

G9229AHOSE, INVERTER COOLING, NO.5

mainG922933010i201206

G9236AHOSE, INVERTER COOLING, NO.6

mainG923633010i201206

G92A0ATANK ASSY, INVERTER RESERVE

mainG92A033010i201206-201409

mainG92A033011i201410

G92A1ALABEL, HYBRID COOLANT SYSTEM INFORMATION

mainG92A176010i201206

9046621004

main90466-21004

9155180630

main91551-80630

9167180618

main91671-80618

9167380616

main91673-80616

91673A0620

main91673-A0620

91673A0820

main91673-A0820

21 parts on this diagram · 1 diagram in section
