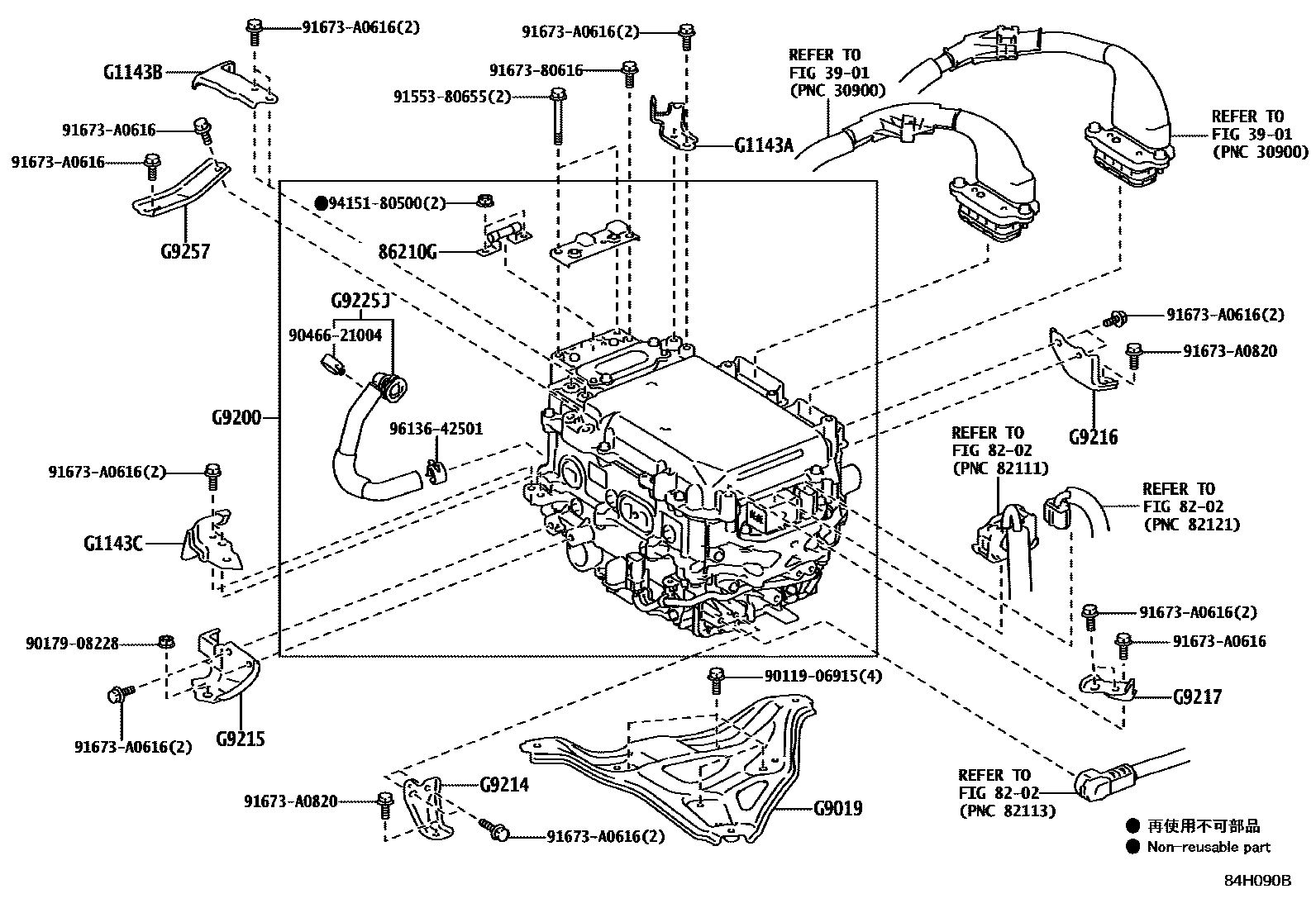

HEV INVERTER

3901TRANSAXLE ASSY(HEV OR BEV OR FCEV)

→ Go to FIG 39-01

8202WIRING & CLAMP

→ Go to FIG 82-02

86210GFUSE, HIGH VOLTAGE

main90982-11050iAVV60201206-201507

G1143ABRACKET, MOTOR CABLE, NO.1

mainG114333010iAVV60201206

G1143BBRACKET, MOTOR CABLE, NO.2

mainG114333020iAVV60201206

G1143CBRACKET, MOTOR CABLE, NO.3

mainG114333030iAVV60201206

G9019BRACKET SUB-ASSY, INVERTER TRAY

mainG901906010iAVV60201206

G9200INVERTER ASSY, W/CONVERTER

mainG92A033020iAVV60201206-201310

mainG92A033021iAVV60201311-201507

G9214BRACKET, INVERTER, NO.1

mainG921433020iAVV60201206

G9215BRACKET, INVERTER, NO.2

mainG901533011iAVV60201206

G9216BRACKET, INVERTER, NO.3

mainG921633020iAVV60201206

G9217BRACKET, INVERTER, NO.4

mainG921733050iAVV60201206

G9225JHOSE, INVERTER COOLING, NO.1

mainG922533060iAVV60201206

G9257BRACKET, INVERTER, NO.5

mainG925733020iAVV60201206

9011906915

main90119-06915

9017908228

main90179-08228

9046621004

main90466-21004

9155380655

main91553-80655

9167380616

main91673-80616

91673A0616

main91673-A0616

91673A0820

main91673-A0820

9415180500

main94151-80500

9613642501

main96136-42501

23 parts on this diagram · 1 diagram in section
