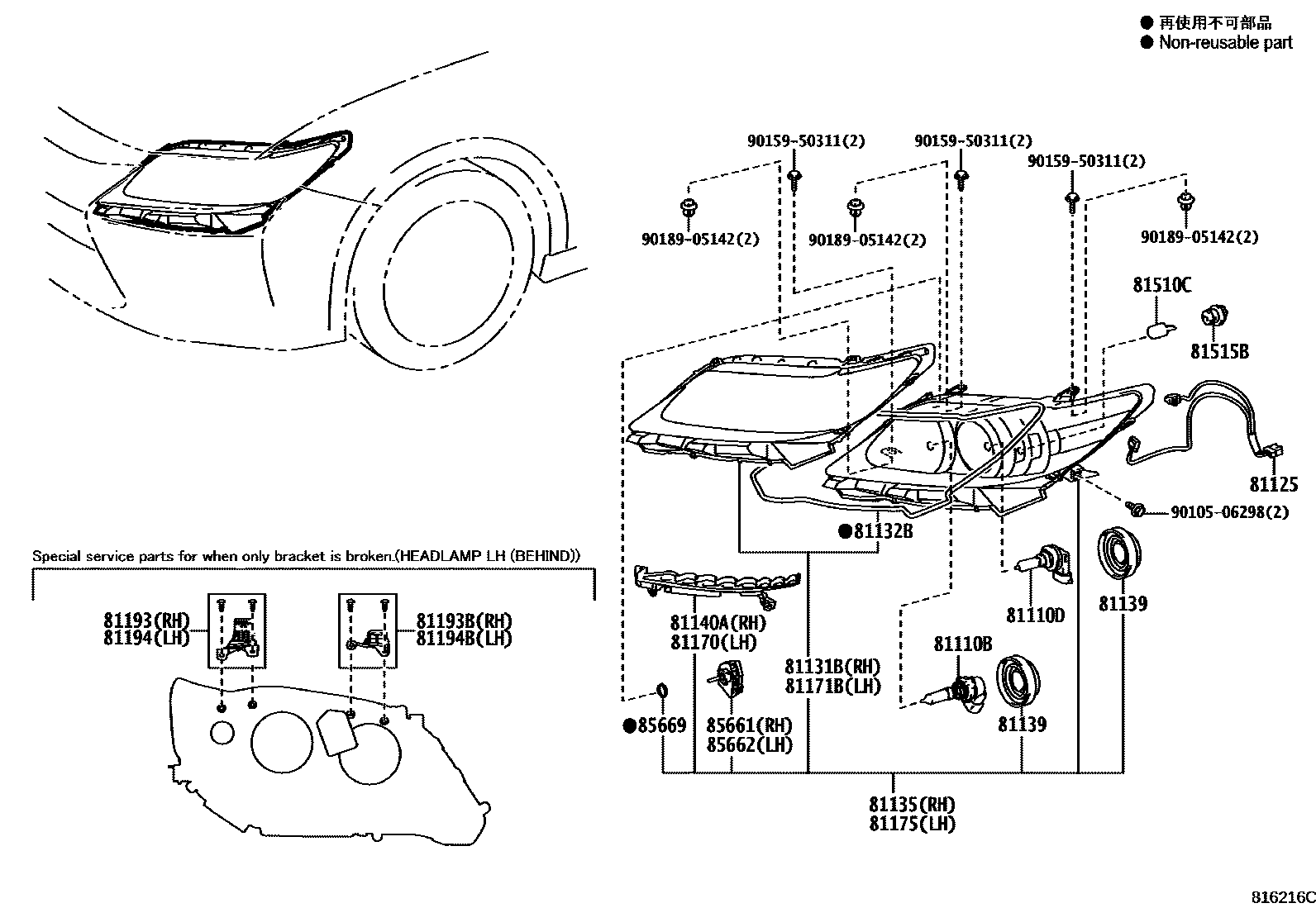

HEADLAMP
81110BBULB(FOR HEADLAMP, NO.1)
12V65W(SAE),60W(ECE)
12V 65W,HALOGEN
81110DBULB(FOR HEADLAMP, NO.2)
12V 55W,HALOGEN
81125CORD, HEADLAMP
81131BHEAD LAMP LENS, RH
HEAD LAMP-DISCHARGE & *AHB & *DRL; HEAD LAMP-DISCHARGE & *DRL
C PACKAGE
81132BGASKET, HEADLAMP LENS
81135UNIT ASSY, HEADLAMP, RH
C PACKAGE
C PACKAGE
HEAD LAMP-DISCHARGE & *AHB & *DRL; HEAD LAMP-DISCHARGE & *DRL
81139COVER, HEADLAMP SOCKET
HEAD LAMP-DISCHARGE & *AHB & *DRL; HEAD LAMP-DISCHARGE & *DRL
81140AUNIT ASSY, HEADLAMP DAYTIME RUNNING LIGHT, RH
81170UNIT ASSY, HEADLAMP DAYTIME RUNNING LIGHT, LH
81171BHEAD LAMP LENS, LH
C PACKAGE
HEAD LAMP-DISCHARGE & *AHB & *DRL; HEAD LAMP-DISCHARGE & *DRL
81175UNIT ASSY, HEADLAMP, LH
C PACKAGE
C PACKAGE
HEAD LAMP-DISCHARGE & *AHB & *DRL; HEAD LAMP-DISCHARGE & *DRL
81193RETAINER, HEADLAMP PROTECTOR, UPPER RH
81193BRETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2
81194RETAINER, HEADLAMP PROTECTOR, UPPER LH
81194BRETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2
81510CBULB (FOR FRONT TURN SIGNAL LAMP)
12V 21W,AMBER
81515BSOCKET, FRONT TURN SIGNAL LAMP
85661MOTOR, HEADLAMP LEVELING, RH
HEAD LAMP-DISCHARGE & *AHB & *DRL; HEAD LAMP-DISCHARGE & *DRL
85662MOTOR, HEADLAMP LEVELING, LH
HEAD LAMP-DISCHARGE & *AHB & *DRL; HEAD LAMP-DISCHARGE & *DRL
85669PACKING, HEADLAMP LEVELING MOTOR BASE
9010506298
main90105-06298
9015950311
main90159-50311
9018905142
main90189-05142
23 parts on this diagram · 4 diagrams in section
