SEAT BELT & CHILD RESTRAINT SEAT
73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
ECRU,TRIM0#,41,5#; ECRU,TRIM0#,5#
LT.GRAY,TRIM1#,2#; LT.GRAY,TRIM1#,2#,3#
MOON STONE,TRIM1#,2#; MOON STONE,TRIM1#,2#,40
73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
ECRU,TRIM0#
LT.GRAY,TRIM1#,2#; LT.GRAY,TRIM1#,2#,3#
MOON STONE,TRIM1#,2#; MOON STONE,TRIM1#,2#,40
73119PLATE, SEAT BELT WEBBING CLIP
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73210BELT ASSY, FRONT SEAT OUTER, RH
ECRU,TRIM00
IVORY,TRIM0#; IVORY,TRIM01
BLACK,TRIM1#,2#
IVORY,TRIM0#
BLACK,TRIM1#,2#
IVORY,TRIM0#
BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,3#
IVORY,TRIM0#
NOBLE BROWN,TRIM41,5#; NOBLE BROWN,TRIM5#
BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,40
UKRAINE SPEC&H PACKAGE&PRE-COLLISION SYSTEM-WITH,IVORY,TRIM0#; UKRAINE SPEC&PRE-COLLISION SYSTEM-WITH,IVORY,TRIM0#
UKRAINE SPEC&H PACKAGE&PRE-COLLISION SYSTEM-WITH,BLACK,TRIM1#,2#; UKRAINE SPEC&PRE-COLLISION SYSTEM-WITH,BLACK,TRIM1#,2#
73219STOPPER, TONGUE PLATE
BLACK
GRAY
BEIGE
73220BELT ASSY, FRONT SEAT OUTER, LH
ECRU,TRIM00
IVORY,TRIM0#; IVORY,TRIM01
BLACK,TRIM1#,2#
IVORY,TRIM0#
BLACK,TRIM1#,2#
IVORY,TRIM0#
BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,3#
IVORY,TRIM0#
NOBLE BROWN,TRIM41,5#; NOBLE BROWN,TRIM5#
BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,40
UKRAINE SPEC&H PACKAGE&PRE-COLLISION SYSTEM-WITH,IVORY,TRIM0#; UKRAINE SPEC&PRE-COLLISION SYSTEM-WITH,IVORY,TRIM0#
UKRAINE SPEC&H PACKAGE&PRE-COLLISION SYSTEM-WITH,BLACK,TRIM1#,2#; UKRAINE SPEC&PRE-COLLISION SYSTEM-WITH,BLACK,TRIM1#,2#
73223BCOVER, FRONT SEAT BELT RETRACTOR, RH
73224BCOVER, FRONT SEAT BELT RETRACTOR, LH
73230BELT ASSY, FRONT SEAT INNER, RH
ECRU,TRIM00
IVORY,TRIM0#; IVORY,TRIM01
BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,3#
BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,40,41
NOBLE BROWN,TRIM0#,41,5#; NOBLE BROWN,TRIM0#,5#
73240BELT ASSY, FRONT SEAT INNER, LH
ECRU,TRIM00
IVORY,TRIM0#; IVORY,TRIM01
BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,3#
IVORY,TRIM0#
BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,3#
BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,40,41
NOBLE BROWN,TRIM0#,41,5#; NOBLE BROWN,TRIM0#,5#
7321475010PLATE, FRONT SEAT BELT ANCHOR
main73214-75010
9010510523
main90105-10523
9010511053
main90105-11053
9017811002
main90178-11002
9017911010
main90179-11010
9155380612
main91553-80612

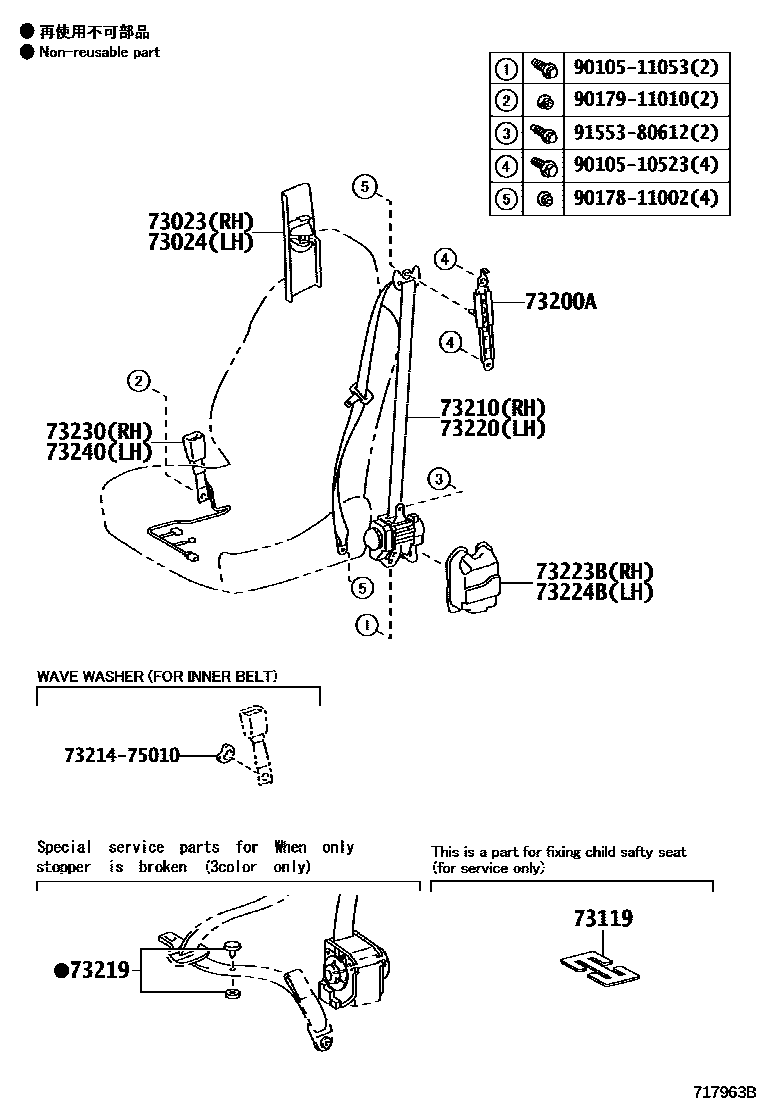

17 parts on this diagram · 2 diagrams in section
