REAR SEAT & SEAT TRACK

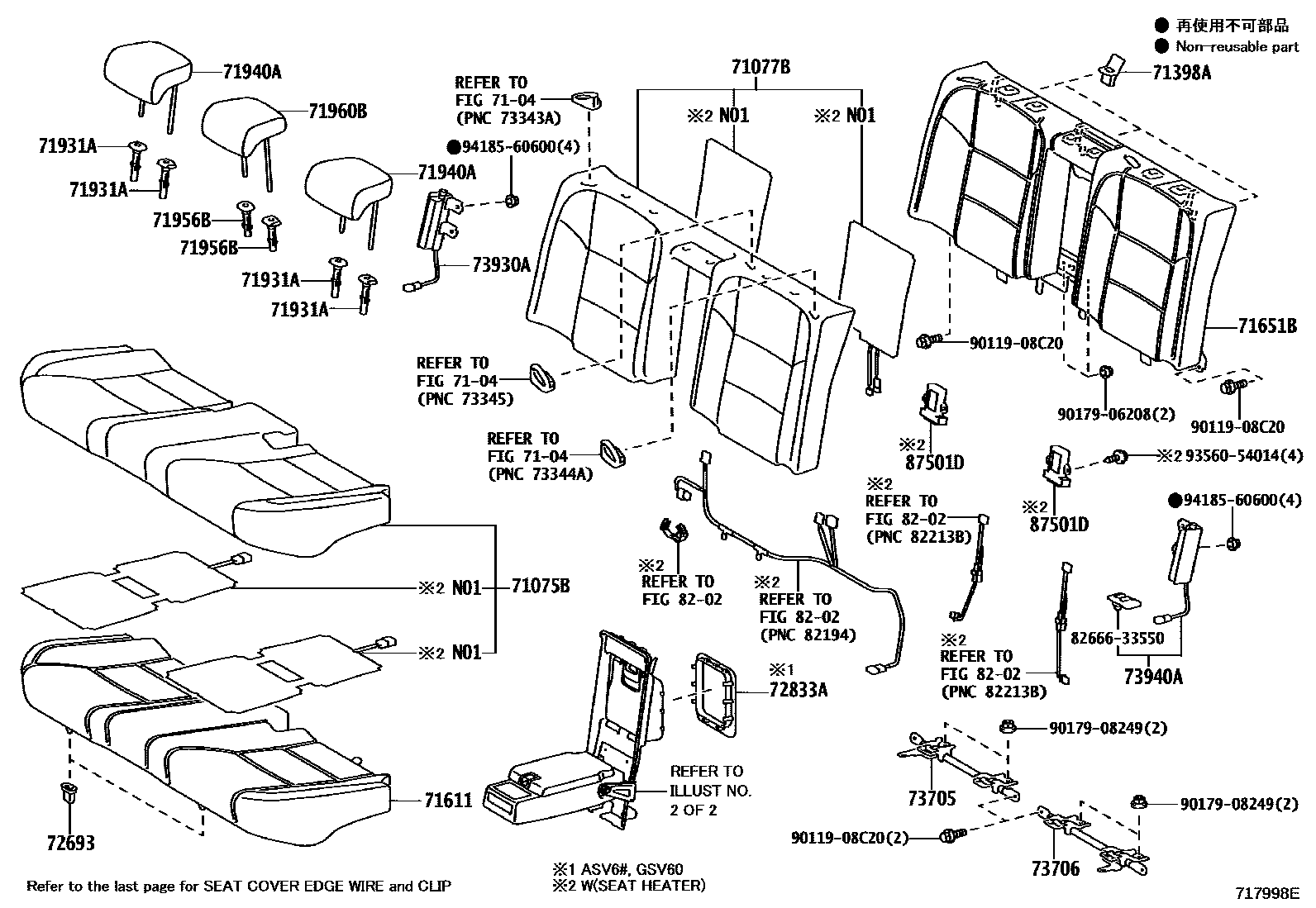

Parts diagram
7104SEAT BELT & CHILD RESTRAINT SEAT
→ Go to FIG 71-04
71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)
main71075-33C50-A8i201308-201408
QUOLE,TRIM0#
main71075-33C50-B8i201308-201408
LT.GRAY,TRIM1#
main71075-33C50-C7i201308-201408
BLACK,TRIM2#
main71075-33C60-A0supersedes 71075-33C50-A0i201206-201308
G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP)),IVORY,TRIM0#; G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP)),IVORY,TRIM0#; IVORY,TRIM0#
main71075-33C60-A3i201308-201507
G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP)),IVORY,TRIM0#; G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP)),IVORY,TRIM0#; IVORY,TRIM0#
main71075-33C60-B2supersedes 71075-33C50-B3i201206-201308
G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP)),LT.GRAY,TRIM1#; G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP)),LT.GRAY,TRIM1#; LT.GRAY,TRIM1#
main71075-33C60-B3i201308-201507
G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP)),LT.GRAY,TRIM1#; G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP)),LT.GRAY,TRIM1#; LT.GRAY,TRIM1#
main71075-33C60-C0supersedes 71075-33C50-C0i201206-201308
BLACK,TRIM2#; G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP)),BLACK,TRIM2#; G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP)),BLACK,TRIM2#
main71075-33C60-C2i201308-201507
BLACK,TRIM2#; G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP)),BLACK,TRIM2#; G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP)),BLACK,TRIM2#
main71075-33D80-A1i201408-201507
IVORY,TRIM0#
main71075-33D80-B1i201408-201507
LT.GRAY,TRIM1#
main71075-33D80-C1i201408-201507
BLACK,TRIM2#
main71075-33D80-C2i201408-201507
BLACK/BLACK,TRIM3#
main71075-33K40-E0i201708
NOBLE BROWN,TRIM4#
main71075-33K90-A0supersedes 71075-33K40-A0i201711
C PACKAGE,IVORY,TRIM0#; IVORY,TRIM0#
main71075-33K90-B0supersedes 71075-33K40-B0i201711
C PACKAGE,MOON STONE,TRIM1#; MOON STONE,TRIM1#
main71075-33K90-C0supersedes 71075-33K40-C0i201711
BLACK,TRIM2#; C PACKAGE,BLACK,TRIM2#
main71075-33K90-F0supersedes 71075-33K40-F0i201711
C PACKAGE,TOPAZ BROWM,TRIM5#; TOPAZ BROWM,TRIM5#
main71075-33C70-A1i201206-201308
H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION),IVORY,TRIM0#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION),IVORY,TRIM0#
main71075-33C70-B2i201206-201308
H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION),LT.GRAY,TRIM1#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION),LT.GRAY,TRIM1#
main71075-33C70-C0i201206-201308
H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION),BLACK,TRIM2#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION),BLACK,TRIM2#
main71075-33C80-A0supersedes 71075-33C50-A0i201206-201308
G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),IVORY,TRIM0#; SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),IVORY,TRIM0#; SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),IVORY,TRIM0#
main71075-33C80-A1i201308-201507
DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),IVORY,TRIM0#; G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),IVORY,TRIM0#; G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),IVORY,TRIM0#; SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),IVORY,TRIM0#; SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),IVORY,TRIM0#; SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),IVORY,TRIM0#
main71075-33C80-B1i201206-201308
G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),LT.GRAY,TRIM1#; SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),LT.GRAY,TRIM1#; SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),LT.GRAY,TRIM1#
main71075-33C80-B2i201308-201507
DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),LT.GRAY,TRIM1#; G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),LT.GRAY,TRIM1#; G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),LT.GRAY,TRIM1#; SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),LT.GRAY,TRIM1#; SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),LT.GRAY,TRIM1#; SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),LT.GRAY,TRIM1#
main71075-33C80-C0supersedes 71075-33C50-C0i201206-201308
G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),BLACK,TRIM2#; SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),BLACK,TRIM2#; SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),BLACK,TRIM2#
main71075-33C80-C1i201308-201507
DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),BLACK,TRIM2#; G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),BLACK,TRIM2#; G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),BLACK,TRIM2#; SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),BLACK,TRIM2#; SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),BLACK,TRIM2#; SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),BLACK,TRIM2#
main71075-33C90-A1i201206-201308
H PACKAGE&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),IVORY,TRIM01; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),IVORY,TRIM0#
main71075-33C90-A2i201206-201308
H PACKAGE&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),ECRU,TRIM00
main71075-33C90-B2i201206-201308
H PACKAGE&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),LT.GRAY,TRIM1#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),LT.GRAY,TRIM1#
main71075-33C90-C0i201206-201308
H PACKAGE&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),BLACK,TRIM2#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),BLACK,TRIM2#
main71075-33D90-A2i201308-201507
H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION),IVORY,TRIM0#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION),IVORY,TRIM0#
main71075-33D90-B1i201308-201507
H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION),LT.GRAY,TRIM1#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION),LT.GRAY,TRIM1#
main71075-33D90-C1i201308-201507
H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION),BLACK,TRIM2#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION),BLACK,TRIM2#
main71075-33E00-A1i201308-201507
H PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),IVORY,TRIM0#; H PACKAGE&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),IVORY,TRIM0#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),IVORY,TRIM0#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),IVORY,TRIM0#
main71075-33E00-B1i201308-201507
H PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),LT.GRAY,TRIM1#; H PACKAGE&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),LT.GRAY,TRIM1#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),LT.GRAY,TRIM1#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),LT.GRAY,TRIM1#
main71075-33E00-C1i201308-201507
H PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),BLACK,TRIM2#; H PACKAGE&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),BLACK,TRIM2#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),BLACK,TRIM2#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),BLACK,TRIM2#
main71075-33E80-A3supersedes 71075-33G50-A0i201507-201708
C PACKAGE,IVORY,TRIM0#; IVORY,TRIM0#
main71075-33E80-B3supersedes 71075-33G50-B0i201507-201708
C PACKAGE,MOON STONE,TRIM1#; MOON STONE,TRIM1#
main71075-33E80-C3supersedes 71075-33G50-C0i201507-201708
BLACK,TRIM2#; C PACKAGE,BLACK,TRIM2#
main71075-33E80-F4supersedes 71075-33G50-F0i201507-201708
C PACKAGE,TOPAZ BROWM,TRIM5#; TOPAZ BROWM,TRIM5#
main71075-33E90-A3supersedes 71075-33E80-A3i201507-201708
AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,IVORY,TRIM0#; C PACKAGE&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,IVORY,TRIM0#
main71075-33E90-B3supersedes 71075-33E80-B3i201507-201708
AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,MOON STONE,TRIM1#; C PACKAGE&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,MOON STONE,TRIM1#
main71075-33E90-C3supersedes 71075-33G50-C0i201507-201708
AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,BLACK,TRIM2#; C PACKAGE&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,BLACK,TRIM2#
main71075-33E90-F4supersedes 71075-33E80-F4i201507-201708
AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,TOPAZ BROWM,TRIM5#; C PACKAGE&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,TOPAZ BROWM,TRIM5#
main71075-33F30-A3supersedes 71075-33E80-A3i201507-201708
D PACKAGE&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,IVORY,TRIM0#
main71075-33F30-B3supersedes 71075-33E80-B3i201507-201708
D PACKAGE&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,MOON STONE,TRIM1#
main71075-33F30-C3supersedes 71075-33E80-C3i201507-201708
D PACKAGE&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,BLACK,TRIM2#
main71075-33F30-F3supersedes 71075-33E80-F4i201507-201708
D PACKAGE&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,TOPAZ BROWN,TRIM5#
main71075-33L00-A0supersedes 71075-33K90-A0i201708
AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,IVORY,TRIM0#; C PACKAGE&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,IVORY,TRIM0#
main71075-33L00-B0supersedes 71075-33K40-B0i201708
AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,MOON STONE,TRIM1#; C PACKAGE&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,MOON STONE,TRIM1#
main71075-33L00-C0supersedes 71075-33K90-C0i201708
AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,BLACK,TRIM2#; C PACKAGE&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,BLACK,TRIM2#
main71075-33L00-F0supersedes 71075-33K90-F0i201708
AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,TOPAZ BROWM,TRIM5#; C PACKAGE&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,TOPAZ BROWM,TRIM5#
main71075-33L30-A0supersedes 71075-33K90-A0i201708
D PACKAGE&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,IVORY,TRIM0#
main71075-33L30-B0supersedes 71075-33K90-B0i201708
D PACKAGE&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,MOON STONE,TRIM1#
main71075-33L30-C0supersedes 71075-33K90-C0i201708
D PACKAGE&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,BLACK,TRIM2#
main71075-33L30-F0supersedes 71075-33K90-F0i201708
D PACKAGE&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,TOPAZ BROWN,TRIM5#
71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)
main71077-33C30-A1i201408-201507
IVORY,TRIM0#
main71077-33C30-B1i201408-201507
LT.GRAY,TRIM1#
main71077-33C30-C1i201408-201507
BLACK,TRIM2#
main71077-33C30-C2i201408-201507
BLACK/BLACK,TRIM3#
main71077-33E70-A3i201206-201308
IVORY,TRIM0#
main71077-33E70-A8i201308-201408
QUOLE,TRIM0#
main71077-33E70-B6i201206-201308
LT.GRAY,TRIM1#
main71077-33E70-C3i201206-201308
BLACK,TRIM2#
main71077-33E70-C7i201308-201408
BLACK,TRIM2#
main71077-33E70-P0i201308-201408
LT.GRAY,TRIM1#
main71077-33E80-A4i201206-201507
G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP)),IVORY,TRIM0#; G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP)),IVORY,TRIM0#; IVORY,TRIM0#
main71077-33E80-B4i201206-201507
G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP)),LT.GRAY,TRIM1#; G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP)),LT.GRAY,TRIM1#; LT.GRAY,TRIM1#
main71077-33E80-C3i201206-201507
BLACK,TRIM2#; G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP)),BLACK,TRIM2#; G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP)),BLACK,TRIM2#
main71077-33L80-E1i201708
NOBLE BROWN,TRIM4#
main71077-33E90-A3i201206-201308
H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION),IVORY,TRIM0#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION),IVORY,TRIM0#
main71077-33E90-B3i201206-201308
H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION),LT.GRAY,TRIM1#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION),LT.GRAY,TRIM1#
main71077-33E90-C1i201206-201308
H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION),BLACK,TRIM2#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION),BLACK,TRIM2#
main71077-33F00-A5i201308-201507
DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),IVORY,TRIM0#; G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),IVORY,TRIM0#; SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),IVORY,TRIM0#
main71077-33F00-B4i201206-201507
G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),LT.GRAY,TRIM1#; SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),LT.GRAY,TRIM1#; SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),LT.GRAY,TRIM1#
main71077-33F00-C3supersedes 71077-33J80-C3i201206-201507
G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),BLACK,TRIM2#; SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),BLACK,TRIM2#; SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),BLACK,TRIM2#
main71077-33F10-A3i201206-201308
H PACKAGE&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),IVORY,TRIM01; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),IVORY,TRIM0#
main71077-33F10-A4i201206-201308
H PACKAGE&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),CRIOLLO,TRIM00
main71077-33F10-B3i201206-201308
H PACKAGE&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),LT.GRAY,TRIM1#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),LT.GRAY,TRIM1#
main71077-33F10-C1i201206-201308
H PACKAGE&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),BLACK,TRIM2#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),BLACK,TRIM2#
main71077-33G10-A0i201308-201507
H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION),IVORY,TRIM0#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION),IVORY,TRIM0#
main71077-33G10-B0i201308-201507
H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION),LT.GRAY,TRIM1#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION),LT.GRAY,TRIM1#
main71077-33G10-C0i201308-201507
H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION),BLACK,TRIM2#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION),BLACK,TRIM2#
main71077-33G30-A0i201308-201507
H PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),IVORY,TRIM0#; H PACKAGE&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),IVORY,TRIM0#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),IVORY,TRIM0#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),IVORY,TRIM0#
main71077-33G30-B0i201308-201507
H PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),LT.GRAY,TRIM1#; H PACKAGE&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),LT.GRAY,TRIM1#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),LT.GRAY,TRIM1#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),LT.GRAY,TRIM1#
main71077-33G30-C0i201308-201507
H PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),BLACK,TRIM2#; H PACKAGE&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),BLACK,TRIM2#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),BLACK,TRIM2#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),BLACK,TRIM2#
main71077-33G70-A0i201308-201507
BRAZIL SPEC&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP)),IVORY,TRIM0#; BRAZIL SPEC&SEAT HEATER-WITHOUT(WIND(*DRP)),IVORY,TRIM0#; CENTRAL & SOUTH AMERICA SPEC&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP)),IVORY,TRIM0#; CENTRAL & SOUTH AMERICA SPEC&SEAT HEATER-WITHOUT(WIND(*DRP)),IVORY,TRIM0#; CHILE SPEC&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP)),IVORY,TRIM0#; CHILE SPEC&SEAT HEATER-WITHOUT(WIND(*DRP)),IVORY,TRIM0#; CURACAO SPEC&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP)),IVORY,TRIM0#; CURACAO SPEC&SEAT HEATER-WITHOUT(WIND(*DRP)),IVORY,TRIM0#; DOMINICAN REPUBLIC SPEC&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP)),IVORY,TRIM0#; DOMINICAN REPUBLIC SPEC&SEAT HEATER-WITHOUT(WIND(*DRP)),IVORY,TRIM0#; GUATEMALA SPEC&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP)),IVORY,TRIM0#; GUATEMALA SPEC&SEAT HEATER-WITHOUT(WIND(*DRP)),IVORY,TRIM0#; PERU SPEC&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP)),IVORY,TRIM0#; PERU SPEC&SEAT HEATER-WITHOUT(WIND(*DRP)),IVORY,TRIM0#
main71077-33G70-B0i201308-201507
BRAZIL SPEC&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP)),LT. GRAY,TRIM1#; BRAZIL SPEC&SEAT HEATER-WITHOUT(WIND(*DRP)),LT. GRAY,TRIM1#; CENTRAL & SOUTH AMERICA SPEC&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP)),LT. GRAY,TRIM1#; CENTRAL & SOUTH AMERICA SPEC&SEAT HEATER-WITHOUT(WIND(*DRP)),LT. GRAY,TRIM1#; CHILE SPEC&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP)),LT. GRAY,TRIM1#; CHILE SPEC&SEAT HEATER-WITHOUT(WIND(*DRP)),LT. GRAY,TRIM1#; CURACAO SPEC&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP)),LT. GRAY,TRIM1#; CURACAO SPEC&SEAT HEATER-WITHOUT(WIND(*DRP)),LT. GRAY,TRIM1#; DOMINICAN REPUBLIC SPEC&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP)),LT. GRAY,TRIM1#; DOMINICAN REPUBLIC SPEC&SEAT HEATER-WITHOUT(WIND(*DRP)),LT. GRAY,TRIM1#; GUATEMALA SPEC&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP)),LT. GRAY,TRIM1#; GUATEMALA SPEC&SEAT HEATER-WITHOUT(WIND(*DRP)),LT. GRAY,TRIM1#; PERU SPEC&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP)),LT. GRAY,TRIM1#; PERU SPEC&SEAT HEATER-WITHOUT(WIND(*DRP)),LT. GRAY,TRIM1#
main71077-33G70-C0i201308-201507
BRAZIL SPEC&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP)),BLACK,TRIM2#; BRAZIL SPEC&SEAT HEATER-WITHOUT(WIND(*DRP)),BLACK,TRIM2#; CENTRAL & SOUTH AMERICA SPEC&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP)),BLACK,TRIM2#; CENTRAL & SOUTH AMERICA SPEC&SEAT HEATER-WITHOUT(WIND(*DRP)),BLACK,TRIM2#; CHILE SPEC&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP)),BLACK,TRIM2#; CHILE SPEC&SEAT HEATER-WITHOUT(WIND(*DRP)),BLACK,TRIM2#; CURACAO SPEC&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP)),BLACK,TRIM2#; CURACAO SPEC&SEAT HEATER-WITHOUT(WIND(*DRP)),BLACK,TRIM2#; DOMINICAN REPUBLIC SPEC&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP)),BLACK,TRIM2#; DOMINICAN REPUBLIC SPEC&SEAT HEATER-WITHOUT(WIND(*DRP)),BLACK,TRIM2#; GUATEMALA SPEC&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP)),BLACK,TRIM2#; GUATEMALA SPEC&SEAT HEATER-WITHOUT(WIND(*DRP)),BLACK,TRIM2#; PERU SPEC&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP)),BLACK,TRIM2#; PERU SPEC&SEAT HEATER-WITHOUT(WIND(*DRP)),BLACK,TRIM2#
main71077-33J50-A3supersedes 71077-33L80-A1i201711
C PACKAGE,IVORY,TRIM0#; IVORY,TRIM0#
main71077-33J50-B3supersedes 71077-33L80-B1i201711
C PACKAGE,MOON STONE,TRIM1#; MOON STONE,TRIM1#
main71077-33J50-C4supersedes 71077-33L80-C1i201711
BLACK,TRIM2#; C PACKAGE,BLACK,TRIM2#
main71077-33J50-F5supersedes 71077-33L80-F1i201711
C PACKAGE,TOPAZ BROWM,TRIM5#; TOPAZ BROWM,TRIM5#
main71077-33J60-A2supersedes 71077-33L80-A1i201711
AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,IVORY,TRIM0#; C PACKAGE&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,IVORY,TRIM0#
main71077-33J60-B2supersedes 71077-33L80-B1i201711
AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,MOON STONE,TRIM1#; C PACKAGE&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,MOON STONE,TRIM1#
main71077-33J60-C3supersedes 71077-33J80-C3i201711
AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,BLACK,TRIM2#; C PACKAGE&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,BLACK,TRIM2#
main71077-33J60-F4supersedes 71077-33L80-F1i201711
AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,TOPAZ BROWM,TRIM5#; C PACKAGE&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,TOPAZ BROWM,TRIM5#
main71077-33J80-A2supersedes 71077-33L80-A1i201507-201710
C PACKAGE,IVORY,TRIM0#; IVORY,TRIM0#
main71077-33J80-B2supersedes 71077-33L80-B1i201507-201710
C PACKAGE,MOON STONE,TRIM1#; MOON STONE,TRIM1#
main71077-33J80-C3supersedes 71077-33L80-C1i201507-201710
BLACK,TRIM2#; C PACKAGE,BLACK,TRIM2#
main71077-33J80-F4supersedes 71077-33L80-F1i201507-201710
C PACKAGE,TOPAZ BROWN,TRIM5#; TOPAZ BROWN,TRIM5#
main71077-33J90-A2supersedes 71077-33L80-A1i201507-201711
AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,IVORY,TRIM0#; C PACKAGE&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,IVORY,TRIM0#
main71077-33J90-B2supersedes 71077-33L80-B1i201507-201711
AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,MOON STONE,TRIM1#; C PACKAGE&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,MOON STONE,TRIM1#
main71077-33J90-C3supersedes 71077-33L80-C1i201507-201711
AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,BLACK,TRIM2#; C PACKAGE&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,BLACK,TRIM2#
main71077-33J90-F4supersedes 71077-33L80-F1i201507-201711
AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,TOPAZ BROWM,TRIM5#; C PACKAGE&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,TOPAZ BROWM,TRIM5#
main71077-33K10-A2supersedes 71077-33J80-A2i201507
D PACKAGE&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,IVORY,TRIM0#
main71077-33K10-B2supersedes 71077-33J80-B2i201507
D PACKAGE&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,MOON STONE,TRIM1#
main71077-33K10-C3supersedes 71077-33J80-C3i201507
D PACKAGE&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,BLACK,TRIM2#
main71077-33K10-F3supersedes 71077-33J80-F4i201507
D PACKAGE&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,TOPAZ BROWN,TRIM5#
71398AHOLDER, REAR SEATBACK
main71398-33010-C0×3i201206-201507
BLACK
main71398-33010-C1×3i201703
BLACK
71611PAD, REAR SEAT CUSHION
main71503-33140i201206-201507
main71503-33170supersedes 71503-33140i201711
C PACKAGE
71651BPAD, REAR SEATBACK(FOR BENCH TYPE)
main71507-33090i201206-201507
71931ASUPPORT, REAR SEAT HEADREST
main71930-44020-21×2supersedes 71931-47010-C8i201710
W(LOCK),BLACK,TRIM2#
main71930-44020-A4×2supersedes 71931-47010-A8i201206-201507
W(LOCK),IVORY,TRIM0#
main71930-44020-B8×2i201206-201507
W(LOCK),LT.GRAY,TRIM10
main71930-44020-C0×2i201507-201710
W(LOCK),BLACK,TRIM10,11,12,13,2#; W(LOCK),BLACK,TRIM2#
main71930-44020-F7×2supersedes 71931-47010-F1i201507
W(LOCK),TOPAZ BROWN,TRIM5#
main71930-44020-L1×2i201708
W(LOCK),NOBLE BROWN,TRIM4#
main71930-44020-P3×2supersedes 71931-47010-S0i201507-201710
W(LOCK),MOON STONE,TRIM11,12,13
main71931-47010-A8×2i201507
W/O(LOCK),IVORY,TRIM0#
main71931-47010-C0×2i201206-201507
W/O(LOCK),BLACK,TRIM10,2#; W/O(LOCK),BLACK,TRIM10,2#,3#
main71931-47010-C8×2i201710
W/O(LOCK),BLACK,TRIM2#
main71931-47010-F1×2i201507
W/O(LOCK),TOPAZ BROWN,TRIM5#
main71931-47010-L5×2i201708
W/O(LOCK),NOBLE BROWN,TRIM4#
main71931-47010-P3×2i201206-201507
W/O(LOCK),LT.GRAY,TRIM10
main71931-47010-S0×2i201507
W/O(LOCK),MOON STONE,TRIM1#
main71930-44020-A3×2i201206-201308
W(LOCK),H PACKAGE&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),ECRU,TRIM00
main71931-47010-A1×2i201206-201308
W/O(LOCK),H PACKAGE&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),ECRU,TRIM00
71940AHEADREST ASSY, REAR SEAT
main71940-33C50-21×2i201410-201507
BLACK/BLACK,TRIM3#
main71940-33C50-B7×2i201206-201308
BLACK/LT.GRAY,TRIM2#
main71940-33C50-C7×2i201206-201308
LT.GRAY/BLACK,TRIM1#
main71940-33C50-E6×2i201206-201308
IVORY/LT.BROWN,TRIM0#
main71940-33C60-B5×2supersedes 71940-33C50-P0i201206-201507
BLACK,TRIM2#; G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP)),BLACK,TRIM2#; G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),BLACK,TRIM2#; G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP)),BLACK,TRIM2#
main71940-33C60-C5×2supersedes 71940-33C50-20i201206-201507
G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP)),LT.GRAY,TRIM1#; G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),LT.GRAY,TRIM1#; G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP)),LT.GRAY,TRIM1#; LT.GRAY,TRIM1#
main71940-33C60-E2×2supersedes 71940-33C50-E9i201206-201507
G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP)),IVORY,TRIM0#; G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),IVORY,TRIM0#; G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP)),IVORY,TRIM0#; IVORY,TRIM0#
main71940-33F60-A0×2i201608-201708
IVORY,TRIM0#
main71940-33F60-B0×2i201608-201708
MOON STONE,TRIM1#
main71940-33F60-C0×2i201608-201708
BLACK,TRIM2#
main71940-33F60-F0×2i201608-201708
TOPAZ BROWN,TRIM5#
main71940-33G80-A0×2i201708
IVORY,TRIM0#
main71940-33G80-B0×2i201708
MOON STONE,TRIM1#
main71940-33G80-C0×2i201708
BLACK,TRIM2#
main71940-33G80-E0×2i201708
NOBLE BROWN,TRIM4#
main71940-33G80-F0×2i201708
TOPAZ BROWN,TRIM5#
main71940-33B70-B0×2i201308-201507
H PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),BLACK,TRIM2#; H PACKAGE&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),BLACK,TRIM2#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),BLACK,TRIM2#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION),BLACK,TRIM2#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),BLACK,TRIM2#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION),BLACK,TRIM2#
main71940-33B70-C0×2i201308-201507
H PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),LT.GRAY,TRIM1#; H PACKAGE&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),LT.GRAY,TRIM1#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),LT.GRAY,TRIM1#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION),LT.GRAY,TRIM1#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),LT.GRAY,TRIM1#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION),LT.GRAY,TRIM1#
main71940-33B70-E1×2i201308-201507
H PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),IVORY,TRIM0#; H PACKAGE&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),IVORY,TRIM0#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),IVORY,TRIM0#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION),IVORY,TRIM0#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),IVORY,TRIM0#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION),IVORY,TRIM0#
main71940-33D10-B3×2i201206-201308
H PACKAGE&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),BLACK,TRIM2#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION),BLACK,TRIM2#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),BLACK,TRIM2#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION),BLACK,TRIM2#
main71940-33D10-C3×2i201206-201308
H PACKAGE&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),LT.GRAY,TRIM1#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION),LT.GRAY,TRIM1#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),LT.GRAY,TRIM1#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION),LT.GRAY,TRIM1#
main71940-33D10-E5×2i201206-201308
H PACKAGE&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),IVORY,TRIM0#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION),IVORY,TRIM0#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),IVORY,TRIM0#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION),IVORY,TRIM0#
main71940-33E30-A2×2supersedes 71940-33E20-A2i201507-201608
C PACKAGE&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,IVORY,TRIM0#; C PACKAGE,IVORY,TRIM0#; IVORY,TRIM0#
main71940-33E30-B3×2supersedes 71940-33E20-B4i201507-201608
C PACKAGE&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,MOON STONE,TRIM1#; C PACKAGE,MOON STONE,TRIM1#; MOON STONE,TRIM1#
main71940-33E30-C3×2supersedes 71940-33E20-C5i201507-201608
BLACK,TRIM2#; C PACKAGE&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,BLACK,TRIM2#; C PACKAGE,BLACK,TRIM2#
main71940-33E30-F2×2supersedes 71940-33E20-F1i201507-201608
C PACKAGE&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,TOPAZ BROWN,TRIM5#; C PACKAGE,TOPAZ BROWN,TRIM5#; TOPAZ BROWN,TRIM5#
main71940-33E40-A2×2supersedes 71940-33E30-A2i201507-201608
D PACKAGE&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,IVORY,TRIM0#
main71940-33E40-B3×2supersedes 71940-33E30-B3i201507-201608
D PACKAGE&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,MOON STONE,TRIM1#
main71940-33E40-C3×2supersedes 71940-33E30-C3i201507-201608
D PACKAGE&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,BLACK,TRIM2#
main71940-33E40-F1×2supersedes 71940-33E30-F2i201507-201608
D PACKAGE&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,TOPAZ BROWN,TRIM5#
main71940-33F70-A0×2i201711
C PACKAGE,IVORY,TRIM0#; IVORY,TRIM0#
main71940-33F70-B0×2i201608-201710
C PACKAGE,MOON STONE,TRIM1#; MOON STONE,TRIM1#
main71940-33F70-C0×2i201608
C PACKAGE&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,BLACK,TRIM2#
main71940-33F70-F0×2i201710-201711
AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,TOPAZ BROWN,TRIM5#
main71940-33F80-A0×2supersedes 71940-33F70-A0i201608
D PACKAGE&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,IVORY,TRIM0#
main71940-33F80-B0×2supersedes 71940-33F70-B0i201608
D PACKAGE&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,MOON STONE,TRIM1#
main71940-33F80-C0×2supersedes 71940-33F70-C0i201608
D PACKAGE&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,BLACK,TRIM2#
main71940-33F80-F0×2supersedes 71940-33F70-F0i201608
D PACKAGE&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,TOPAZ BROWN,TRIM5#
71956BSUPPORT, REAR SEAT HEADREST
main71956-47010-A3supersedes 71970-47010-A3i201206-201507
W/O(LOCK),IVORY,TRIM0#
main71956-47010-C0supersedes 71970-47010-C0i201206-201507
W/O(LOCK),BLACK,TRIM10,2#; W/O(LOCK),BLACK,TRIM10,2#,3#
main71956-47010-E5i201708
W/O(LOCK),NOBLE BROWN,TRIM4#
main71956-47010-F0supersedes 71970-47010-F0i201507
W/O(LOCK),TOPAZ BROWN,TRIM5#
main71956-47010-P2i201206-201507
W/O(LOCK),LT.GRAY,TRIM10
main71956-47010-P5supersedes 71970-47010-P3i201507
W/O(LOCK),MOON STONE,TRIM1#
main71970-47010-A3i201206-201507
W(LOCK),IVORY,TRIM0#
main71970-47010-C0i201206-201507
W(LOCK),BLACK,TRIM10,2#; W(LOCK),BLACK,TRIM10,2#,3#
main71970-47010-E4i201708
W(LOCK),NOBLE BROWN,TRIM4#
main71970-47010-F0i201507
W(LOCK),TOPAZ BROWN,TRIM5#
main71970-47010-P2i201206-201507
W(LOCK),LT.GRAY,TRIM10
main71970-47010-P3i201711
W(LOCK),MOON STONE,TRIM11,12,13
main71956-47010-A2i201206-201308
W/O(LOCK),H PACKAGE&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),ECRU,TRIM00
main71970-47010-A2i201206-201308
W(LOCK),H PACKAGE&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),ECRU,TRIM00
71960BHEADREST ASSY, REAR SEAT, CENTER
main71960-33140-21i201410-201507
BLACK/BLACK,TRIM3#
main71960-33140-B7i201206-201308
BLACK/LT.GRAY,TRIM2#
main71960-33140-C7i201206-201308
LT.GRAY/BLACK,TRIM1#
main71960-33140-E6i201206-201308
IVORY/LT.BROWN,TRIM0#
main71960-33150-B5supersedes 71960-33140-P0i201206-201507
BLACK,TRIM2#; G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP)),BLACK,TRIM2#; G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),BLACK,TRIM2#; G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP)),BLACK,TRIM2#
main71960-33150-C5supersedes 71960-33140-20i201206-201507
G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP)),LT.GRAY,TRIM1#; G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),LT.GRAY,TRIM1#; G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP)),LT.GRAY,TRIM1#; LT.GRAY,TRIM1#
main71960-33150-E2supersedes 71960-33140-E9i201206-201507
G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP)),IVORY,TRIM0#; G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),IVORY,TRIM0#; G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP)),IVORY,TRIM0#; IVORY,TRIM0#
main71960-33290-A0i201608-201708
IVORY,TRIM0#
main71960-33290-B0i201608-201708
MOON STONE,TRIM1#
main71960-33290-C0i201608-201708
BLACK,TRIM2#
main71960-33290-F0i201608-201708
TOPAZ BROWN,TRIM5#
main71960-33360-A0i201708
IVORY,TRIM0#
main71960-33360-B0i201708
MOON STONE,TRIM1#
main71960-33360-C0i201708
BLACK,TRIM2#
main71960-33360-E0i201708
NOBLE BROWN,TRIM4#
main71960-33360-F0i201708
TOPAZ BROWN,TRIM5#
main71960-33110-B0i201308-201507
H PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),BLACK,TRIM2#; H PACKAGE&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),BLACK,TRIM2#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),BLACK,TRIM2#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION),BLACK,TRIM2#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),BLACK,TRIM2#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION),BLACK,TRIM2#
main71960-33110-C0i201308-201507
H PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),LT.GRAY,TRIM1#; H PACKAGE&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),LT.GRAY,TRIM1#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),LT.GRAY,TRIM1#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION),LT.GRAY,TRIM1#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),LT.GRAY,TRIM1#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION),LT.GRAY,TRIM1#
main71960-33110-E1i201308-201507
H PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),IVORY,TRIM0#; H PACKAGE&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),IVORY,TRIM0#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),IVORY,TRIM0#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION),IVORY,TRIM0#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),IVORY,TRIM0#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION),IVORY,TRIM0#
main71960-33160-B4i201206-201308
H PACKAGE&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),BLACK,TRIM2#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION),BLACK,TRIM2#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),BLACK,TRIM2#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION),BLACK,TRIM2#
main71960-33160-C3i201206-201308
H PACKAGE&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),LT.GRAY,TRIM1#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION),LT.GRAY,TRIM1#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),LT.GRAY,TRIM1#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION),LT.GRAY,TRIM1#
main71960-33160-E5i201206-201308
H PACKAGE&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),IVORY,TRIM0#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION),IVORY,TRIM0#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),IVORY,TRIM0#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION),IVORY,TRIM0#
main71960-33240-A2supersedes 71960-33230-A2i201507-201608
C PACKAGE&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,IVORY,TRIM0#; C PACKAGE,IVORY,TRIM0#; IVORY,TRIM0#
main71960-33240-B3supersedes 71960-33230-B4i201507-201608
C PACKAGE&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,MOON STONE,TRIM1#; C PACKAGE,MOON STONE,TRIM1#; MOON STONE,TRIM1#
main71960-33240-C3supersedes 71960-33230-C5i201507-201608
BLACK,TRIM2#; C PACKAGE&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,BLACK,TRIM2#; C PACKAGE,BLACK,TRIM2#
main71960-33240-F2supersedes 71960-33230-F1i201507-201608
C PACKAGE&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,TOPAZ BROWN,TRIM5#; C PACKAGE,TOPAZ BROWN,TRIM5#; TOPAZ BROWN,TRIM5#
main71960-33250-A2supersedes 71960-33240-A2i201507-201608
D PACKAGE&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,IVORY,TRIM0#
main71960-33250-B3supersedes 71960-33240-B3i201507-201608
D PACKAGE&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,MOON STONE,TRIM1#
main71960-33250-C3supersedes 71960-33240-C3i201507-201608
D PACKAGE&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,BLACK,TRIM2#
main71960-33250-F1supersedes 71960-33240-F2i201507-201608
D PACKAGE&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,TOPAZ BROWN,TRIM5#
main71960-33300-A0i201710-201711
AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,IVORY,TRIM0#
main71960-33300-B0i201608
C PACKAGE&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,MOON STONE,TRIM1#
main71960-33300-C0i201608-201710
BLACK,TRIM2#; C PACKAGE,BLACK,TRIM2#
main71960-33300-F0i201711
C PACKAGE,TOPAZ BROWN,TRIM5#; TOPAZ BROWN,TRIM5#
main71960-33310-A0supersedes 71960-33300-A0i201608
D PACKAGE&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,IVORY,TRIM0#
main71960-33310-B0supersedes 71960-33300-B0i201608
D PACKAGE&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,MOON STONE,TRIM1#
main71960-33310-C0supersedes 71960-33300-C0i201608
D PACKAGE&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,BLACK,TRIM2#
main71960-33310-F0supersedes 71960-33300-F0i201608
D PACKAGE&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,TOPAZ BROWN,TRIM5#
72693HOOK, REAR SEAT CUSHION LOCK
main72693-12080×2i201206-201507
72833APLATE, SEAT CENTER ARMREST, INNER
main72831-33070i201206-201507
73705BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH
main73705-33080i201507-201608
main73705-33150i201608
73706BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH
main73706-33080i201206-201507
main73706-33150i201608
73930AAIRBAG ASSY, REAR SEAT, RH
main73930-33040i201206-201507
73940AAIRBAG ASSY, REAR SEAT, LH
main73940-33040i201206-201507
8202WIRING & CLAMP
→ Go to FIG 82-02
87501DCONTROL SUB-ASSY, SEAT HEATER
main87501-33030×2i201206-201507
G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)); H PACKAGE&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)); H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)); SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)); SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP))
main87501-33050×2i201507
AIR CONDITIONER-3ZONE INDEPENDENT CONTROL; C PACKAGE&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL; D PACKAGE&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL
8266633550HOLDER, CONNECTOR
main82666-33550
9011908C20
main90119-08C20
9017906208
main90179-06208
9017908249
main90179-08249
9356054014
main93560-54014
9418560600
main94185-60600

24 parts on this diagram · 3 diagrams in section

REAR SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
