FRONT SEAT & SEAT TRACK

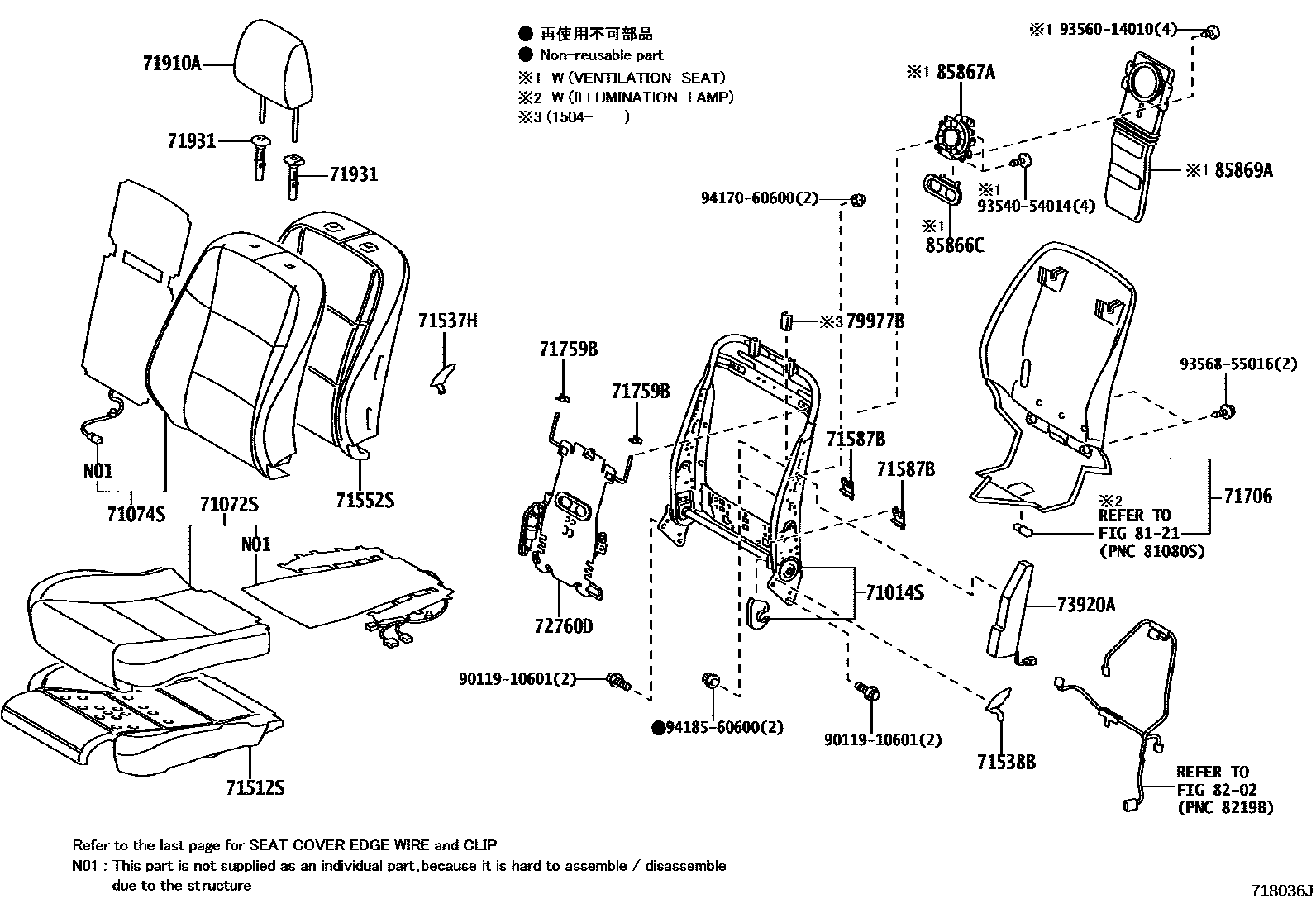

Parts diagram
71014SFRAME SUB-ASSY, FRONT SEATBACK, LH
main71014-33100supersedes 71014-33120i201206-201408
main71014-33130supersedes 71014-33120i201408-201507
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-33K50-A1i201206-201308
IVORY,TRIM0#
main71072-33K50-A3i201308-201408
QUOLE,TRIM0#
main71072-33K50-B3i201206-201308
LT.GRAY,TRIM1#
main71072-33K50-B4i201308-201408
LT.GRAY,TRIM1#
main71072-33K50-C1i201206-201308
BLACK,TRIM2#
main71072-33K50-C3i201308-201408
BLACK,TRIM2#
main71072-33K90-A3i201206-201507
G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP)),IVORY,TRIM0#; G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),IVORY,TRIM0#; G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP)),IVORY,TRIM0#; IVORY,TRIM0#
main71072-33K90-B3i201206-201507
G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP)),LT.GRAY,TRIM1#; G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),LT.GRAY,TRIM1#; G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP)),LT.GRAY,TRIM1#; LT.GRAY,TRIM1#
main71072-33K90-C2i201206-201507
BLACK,TRIM2#; G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP)),BLACK,TRIM2#; G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),BLACK,TRIM2#; G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP)),BLACK,TRIM2#
main71072-33L80-A1i201408-201507
IVORY,TRIM0#
main71072-33L80-B1i201408-201507
LT.GRAY,TRIM1#
main71072-33L80-C1i201408-201507
BLACK,TRIM2#
main71072-33L80-C2i201408-201507
BLACK/BLACK,TRIM3#
main71072-33R40-E0i201708
NOBLE BROWN,TRIM4#
main71072-33L00-A3i201206-201308
H PACKAGE&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),IVORY,TRIM01; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION),IVORY,TRIM0#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),IVORY,TRIM0#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION),IVORY,TRIM0#
main71072-33L00-A4i201206-201308
H PACKAGE&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),CRIOLLO,TRIM00
main71072-33L00-B3i201206-201308
H PACKAGE&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),LT.GRAY,TRIM1#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION),LT.GRAY,TRIM1#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),LT.GRAY,TRIM1#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION),LT.GRAY,TRIM1#
main71072-33L00-C1i201206-201308
H PACKAGE&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),BLACK,TRIM2#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION),BLACK,TRIM2#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),BLACK,TRIM2#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION),BLACK,TRIM2#
main71072-33L10-A1i201206-201308
BRAZIL SPEC,IVORY,TRIM0#
main71072-33L10-B2i201206-201308
BRAZIL SPEC,LT.GRAY,TRIM1#
main71072-33L10-C1i201206-201308
BRAZIL SPEC,BLACK,TRIM2#
main71072-33M00-A0i201308-201507
BRAZIL SPEC&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP)),IVORY,TRIM0#; BRAZIL SPEC&SEAT HEATER-WITHOUT(WIND(*DRP)),IVORY,TRIM0#; CENTRAL & SOUTH AMERICA SPEC&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP)),IVORY,TRIM0#; CENTRAL & SOUTH AMERICA SPEC&SEAT HEATER-WITHOUT(WIND(*DRP)),IVORY,TRIM0#; CHILE SPEC&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP)),IVORY,TRIM0#; CHILE SPEC&SEAT HEATER-WITHOUT(WIND(*DRP)),IVORY,TRIM0#; CURACAO SPEC&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP)),IVORY,TRIM0#; CURACAO SPEC&SEAT HEATER-WITHOUT(WIND(*DRP)),IVORY,TRIM0#; DOMINICAN REPUBLIC SPEC&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP)),IVORY,TRIM0#; DOMINICAN REPUBLIC SPEC&SEAT HEATER-WITHOUT(WIND(*DRP)),IVORY,TRIM0#; GUATEMALA SPEC&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP)),IVORY,TRIM0#; GUATEMALA SPEC&SEAT HEATER-WITHOUT(WIND(*DRP)),IVORY,TRIM0#; PERU SPEC&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP)),IVORY,TRIM0#; PERU SPEC&SEAT HEATER-WITHOUT(WIND(*DRP)),IVORY,TRIM0#
main71072-33M00-B0i201308-201507
BRAZIL SPEC&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP)),LT. GRAY,TRIM1#; BRAZIL SPEC&SEAT HEATER-WITHOUT(WIND(*DRP)),LT. GRAY,TRIM1#; CENTRAL & SOUTH AMERICA SPEC&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP)),LT. GRAY,TRIM1#; CENTRAL & SOUTH AMERICA SPEC&SEAT HEATER-WITHOUT(WIND(*DRP)),LT. GRAY,TRIM1#; CHILE SPEC&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP)),LT. GRAY,TRIM1#; CHILE SPEC&SEAT HEATER-WITHOUT(WIND(*DRP)),LT. GRAY,TRIM1#; CURACAO SPEC&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP)),LT. GRAY,TRIM1#; CURACAO SPEC&SEAT HEATER-WITHOUT(WIND(*DRP)),LT. GRAY,TRIM1#; DOMINICAN REPUBLIC SPEC&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP)),LT. GRAY,TRIM1#; DOMINICAN REPUBLIC SPEC&SEAT HEATER-WITHOUT(WIND(*DRP)),LT. GRAY,TRIM1#; GUATEMALA SPEC&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP)),LT. GRAY,TRIM1#; GUATEMALA SPEC&SEAT HEATER-WITHOUT(WIND(*DRP)),LT. GRAY,TRIM1#; PERU SPEC&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP)),LT. GRAY,TRIM1#; PERU SPEC&SEAT HEATER-WITHOUT(WIND(*DRP)),LT. GRAY,TRIM1#
main71072-33M00-C0i201308-201507
BRAZIL SPEC&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP)),BLACK,TRIM2#; BRAZIL SPEC&SEAT HEATER-WITHOUT(WIND(*DRP)),BLACK,TRIM2#; CENTRAL & SOUTH AMERICA SPEC&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP)),BLACK,TRIM2#; CENTRAL & SOUTH AMERICA SPEC&SEAT HEATER-WITHOUT(WIND(*DRP)),BLACK,TRIM2#; CHILE SPEC&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP)),BLACK,TRIM2#; CHILE SPEC&SEAT HEATER-WITHOUT(WIND(*DRP)),BLACK,TRIM2#; CURACAO SPEC&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP)),BLACK,TRIM2#; CURACAO SPEC&SEAT HEATER-WITHOUT(WIND(*DRP)),BLACK,TRIM2#; DOMINICAN REPUBLIC SPEC&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP)),BLACK,TRIM2#; DOMINICAN REPUBLIC SPEC&SEAT HEATER-WITHOUT(WIND(*DRP)),BLACK,TRIM2#; GUATEMALA SPEC&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP)),BLACK,TRIM2#; GUATEMALA SPEC&SEAT HEATER-WITHOUT(WIND(*DRP)),BLACK,TRIM2#; PERU SPEC&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP)),BLACK,TRIM2#; PERU SPEC&SEAT HEATER-WITHOUT(WIND(*DRP)),BLACK,TRIM2#
main71072-33M70-A0i201308-201507
H PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),IVORY,TRIM0#; H PACKAGE&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),IVORY,TRIM0#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),IVORY,TRIM0#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION),IVORY,TRIM0#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),IVORY,TRIM0#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION),IVORY,TRIM0#
main71072-33M70-B0i201308-201507
H PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),LT.GRAY,TRIM1#; H PACKAGE&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),LT.GRAY,TRIM1#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),LT.GRAY,TRIM1#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION),LT.GRAY,TRIM1#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),LT.GRAY,TRIM1#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION),LT.GRAY,TRIM1#
main71072-33M70-C0i201308-201507
H PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),BLACK,TRIM2#; H PACKAGE&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),BLACK,TRIM2#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),BLACK,TRIM2#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION),BLACK,TRIM2#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),BLACK,TRIM2#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION),BLACK,TRIM2#
main71072-33P10-A3supersedes 71072-33R40-A2i201711
C PACKAGE,IVORY,TRIM0#; IVORY,TRIM0#
main71072-33P10-B3i201710-201711
AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,MOON STONE,TRIM1#
main71072-33P10-C4supersedes 71072-33R40-C2i201507-201710
BLACK,TRIM2#; C PACKAGE,BLACK,TRIM2#
main71072-33P10-F3supersedes 71072-33R40-F2i201711
C PACKAGE,TOPAZ BROWM,TRIM5#; TOPAZ BROWM,TRIM5#
main71072-33P50-A3supersedes 71072-33P10-A3i201507
D PACKAGE&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,IVORY,TRIM0#
main71072-33P50-B3supersedes 71072-33P10-B3i201507
D PACKAGE&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,MOON STONE,TRIM1#
main71072-33P50-C4supersedes 71072-33P10-C4i201507
D PACKAGE&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,BLACK,TRIM2#
main71072-33P50-F3supersedes 71072-33P10-F3i201507
D PACKAGE&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,TOPAZ BROWN,TRIM5#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71074-33M70-A3i201206-201308
IVORY,TRIM0#
main71074-33M70-A5i201308-201408
QUOLE,TRIM0#
main71074-33M70-B5i201206-201308
LT.GRAY,TRIM1#
main71074-33M70-B6i201308-201408
LT.GRAY,TRIM1#
main71074-33M70-C3i201206-201308
BLACK,TRIM2#
main71074-33M70-C5i201308-201408
BLACK,TRIM2#
main71074-33M90-A4i201206-201507
G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP)),IVORY,TRIM0#; G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),IVORY,TRIM0#; G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP)),IVORY,TRIM0#; IVORY,TRIM0#
main71074-33M90-B4i201206-201507
G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP)),LT.GRAY,TRIM1#; G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),LT.GRAY,TRIM1#; G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP)),LT.GRAY,TRIM1#; LT.GRAY,TRIM1#
main71074-33M90-C3i201206-201507
BLACK,TRIM2#; G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP)),BLACK,TRIM2#; G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),BLACK,TRIM2#; G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP)),BLACK,TRIM2#
main71074-33N40-A1i201408-201507
IVORY,TRIM0#
main71074-33N40-B1i201408-201507
LT.GRAY,TRIM1#
main71074-33N40-C1i201408-201507
BLACK,TRIM2#
main71074-33N40-C2i201408-201507
BLACK/BLACK,TRIM3#
main71074-33R70-E0i201708
NOBLE BROWN,TRIM4#
main71074-33M80-A2i201308-201507
BRAZIL SPEC&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP)),IVORY,TRIM0#; BRAZIL SPEC&SEAT HEATER-WITHOUT(WIND(*DRP)),IVORY,TRIM0#; CENTRAL & SOUTH AMERICA SPEC&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP)),IVORY,TRIM0#; CENTRAL & SOUTH AMERICA SPEC&SEAT HEATER-WITHOUT(WIND(*DRP)),IVORY,TRIM0#; CHILE SPEC&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP)),IVORY,TRIM0#; CHILE SPEC&SEAT HEATER-WITHOUT(WIND(*DRP)),IVORY,TRIM0#; CURACAO SPEC&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP)),IVORY,TRIM0#; CURACAO SPEC&SEAT HEATER-WITHOUT(WIND(*DRP)),IVORY,TRIM0#; DOMINICAN REPUBLIC SPEC&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP)),IVORY,TRIM0#; DOMINICAN REPUBLIC SPEC&SEAT HEATER-WITHOUT(WIND(*DRP)),IVORY,TRIM0#; GUATEMALA SPEC&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP)),IVORY,TRIM0#; GUATEMALA SPEC&SEAT HEATER-WITHOUT(WIND(*DRP)),IVORY,TRIM0#; PERU SPEC&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP)),IVORY,TRIM0#; PERU SPEC&SEAT HEATER-WITHOUT(WIND(*DRP)),IVORY,TRIM0#
main71074-33M80-B3i201308-201507
BRAZIL SPEC&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP)),LT.GRAY,TRIM1#; BRAZIL SPEC&SEAT HEATER-WITHOUT(WIND(*DRP)),LT.GRAY,TRIM1#; CENTRAL & SOUTH AMERICA SPEC&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP)),LT.GRAY,TRIM1#; CENTRAL & SOUTH AMERICA SPEC&SEAT HEATER-WITHOUT(WIND(*DRP)),LT.GRAY,TRIM1#; CHILE SPEC&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP)),LT.GRAY,TRIM1#; CHILE SPEC&SEAT HEATER-WITHOUT(WIND(*DRP)),LT.GRAY,TRIM1#; CURACAO SPEC&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP)),LT.GRAY,TRIM1#; CURACAO SPEC&SEAT HEATER-WITHOUT(WIND(*DRP)),LT.GRAY,TRIM1#; DOMINICAN REPUBLIC SPEC&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP)),LT.GRAY,TRIM1#; DOMINICAN REPUBLIC SPEC&SEAT HEATER-WITHOUT(WIND(*DRP)),LT.GRAY,TRIM1#; GUATEMALA SPEC&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP)),LT.GRAY,TRIM1#; GUATEMALA SPEC&SEAT HEATER-WITHOUT(WIND(*DRP)),LT.GRAY,TRIM1#; PERU SPEC&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP)),LT.GRAY,TRIM1#; PERU SPEC&SEAT HEATER-WITHOUT(WIND(*DRP)),LT.GRAY,TRIM1#
main71074-33M80-C2i201308-201507
BRAZIL SPEC&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP)),BLACK,TRIM2#; BRAZIL SPEC&SEAT HEATER-WITHOUT(WIND(*DRP)),BLACK,TRIM2#; CENTRAL & SOUTH AMERICA SPEC&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP)),BLACK,TRIM2#; CENTRAL & SOUTH AMERICA SPEC&SEAT HEATER-WITHOUT(WIND(*DRP)),BLACK,TRIM2#; CHILE SPEC&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP)),BLACK,TRIM2#; CHILE SPEC&SEAT HEATER-WITHOUT(WIND(*DRP)),BLACK,TRIM2#; CURACAO SPEC&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP)),BLACK,TRIM2#; CURACAO SPEC&SEAT HEATER-WITHOUT(WIND(*DRP)),BLACK,TRIM2#; DOMINICAN REPUBLIC SPEC&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP)),BLACK,TRIM2#; DOMINICAN REPUBLIC SPEC&SEAT HEATER-WITHOUT(WIND(*DRP)),BLACK,TRIM2#; GUATEMALA SPEC&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP)),BLACK,TRIM2#; GUATEMALA SPEC&SEAT HEATER-WITHOUT(WIND(*DRP)),BLACK,TRIM2#; PERU SPEC&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP)),BLACK,TRIM2#; PERU SPEC&SEAT HEATER-WITHOUT(WIND(*DRP)),BLACK,TRIM2#
main71074-33N00-A4i201206-201308
H PACKAGE&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),IVORY,TRIM01; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION),IVORY,TRIM0#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),IVORY,TRIM0#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION),IVORY,TRIM0#
main71074-33N00-A5i201206-201308
H PACKAGE&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),CRIOLLO,TRIM00
main71074-33N00-B4i201206-201308
H PACKAGE&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),LT.GRAY,TRIM1#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION),LT.GRAY,TRIM1#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),LT.GRAY,TRIM1#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION),LT.GRAY,TRIM1#
main71074-33N00-C2i201206-201308
H PACKAGE&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),BLACK,TRIM2#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION),BLACK,TRIM2#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),BLACK,TRIM2#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION),BLACK,TRIM2#
main71074-33N60-A0i201308-201507
H PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),IVORY,TRIM0#; H PACKAGE&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),IVORY,TRIM0#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),IVORY,TRIM0#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION),IVORY,TRIM0#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),IVORY,TRIM0#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION),IVORY,TRIM0#
main71074-33N60-B0i201308-201507
H PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),LT.GRAY,TRIM1#; H PACKAGE&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),LT.GRAY,TRIM1#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),LT.GRAY,TRIM1#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION),LT.GRAY,TRIM1#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),LT.GRAY,TRIM1#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION),LT.GRAY,TRIM1#
main71074-33N60-C0i201308-201507
H PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),BLACK,TRIM2#; H PACKAGE&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),BLACK,TRIM2#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),BLACK,TRIM2#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION),BLACK,TRIM2#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),BLACK,TRIM2#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION),BLACK,TRIM2#
main71074-33P70-A3supersedes 71074-33R70-A1i201507-201710
C PACKAGE,IVORY,TRIM0#; IVORY,TRIM0#
main71074-33P70-B3supersedes 71074-33R70-B1i201507-201710
C PACKAGE,MOON STONE,TRIM1#; MOON STONE,TRIM1#
main71074-33P70-C4supersedes 71074-33R70-C1i201711
BLACK,TRIM2#; C PACKAGE,BLACK,TRIM2#
main71074-33P70-F5supersedes 71074-33R70-F1i201507-201710
C PACKAGE,TOPAZ BROWM,TRIM5#; TOPAZ BROWM,TRIM5#
main71074-33P90-A2supersedes 71074-33P70-A3i201507
D PACKAGE&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,IVORY,TRIM0#
main71074-33P90-B2supersedes 71074-33P70-B3i201507
D PACKAGE&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,MOON STONE,TRIM1#
main71074-33P90-C3supersedes 71074-33P70-C4i201507
D PACKAGE&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,BLACK,TRIM2#
main71074-33P90-F3supersedes 71074-33P70-F5i201507
D PACKAGE&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,TOPAZ BROWN,TRIM5#
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71512-33380i201206-201311
G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP)); G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)); G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP))
main71512-33381supersedes 71512-33350i201312-201507
G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)); G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP)); G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)); G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP))
main71512-33360i201308-201311
BRAZIL SPEC&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP)); BRAZIL SPEC&SEAT HEATER-WITHOUT(WIND(*DRP)); CENTRAL & SOUTH AMERICA SPEC&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP)); CENTRAL & SOUTH AMERICA SPEC&SEAT HEATER-WITHOUT(WIND(*DRP)); CHILE SPEC&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP)); CHILE SPEC&SEAT HEATER-WITHOUT(WIND(*DRP)); CURACAO SPEC&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP)); CURACAO SPEC&SEAT HEATER-WITHOUT(WIND(*DRP)); DOMINICAN REPUBLIC SPEC&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP)); DOMINICAN REPUBLIC SPEC&SEAT HEATER-WITHOUT(WIND(*DRP)); GUATEMALA SPEC&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP)); GUATEMALA SPEC&SEAT HEATER-WITHOUT(WIND(*DRP)); PERU SPEC&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP)); PERU SPEC&SEAT HEATER-WITHOUT(WIND(*DRP))
main71512-33361supersedes 71512-33381i201312-201507
BRAZIL SPEC&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP)); BRAZIL SPEC&SEAT HEATER-WITHOUT(WIND(*DRP)); CENTRAL & SOUTH AMERICA SPEC&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP)); CENTRAL & SOUTH AMERICA SPEC&SEAT HEATER-WITHOUT(WIND(*DRP)); CHILE SPEC&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP)); CHILE SPEC&SEAT HEATER-WITHOUT(WIND(*DRP)); CURACAO SPEC&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP)); CURACAO SPEC&SEAT HEATER-WITHOUT(WIND(*DRP)); DOMINICAN REPUBLIC SPEC&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP)); DOMINICAN REPUBLIC SPEC&SEAT HEATER-WITHOUT(WIND(*DRP)); GUATEMALA SPEC&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP)); GUATEMALA SPEC&SEAT HEATER-WITHOUT(WIND(*DRP)); PERU SPEC&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITHOUT(WIND(*DRP)); PERU SPEC&SEAT HEATER-WITHOUT(WIND(*DRP))
71537HPROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT)
main71537-33020-A0i201206-201308
IVORY,TRIM01
main71537-33020-C0i201206-201507
BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,3#
main71537-33020-E0i201206-201308
ORCHID BROWN,TRIM00
main71537-33020-E1i201507
NOBLE BROWN,TRIM0#,4#,5#
71538BPROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT)
main71538-33010-A0i201206-201507
IVORY,TRIM0#
main71538-33010-C0i201206-201507
BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,3#
main71538-33010-E0i201206-201308
ORCHID BROWN,TRIM00
main71538-33010-E1i201507
NOBLE BROWN,TRIM0#,4#,5#
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71552-33250supersedes 71552-33410i201206-201507
G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP)); G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)); G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP))
main71552-33410supersedes 71552-33240i201711
C PACKAGE; C PACKAGE&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL
71587BPROTECTOR, FRONT SEATBACK EDGE
main71587-52030×4i201206-201507
71706BOARD SUB-ASSY, FRONT SEATBACK, LH
main71705-33440-C0i201206-201507
BLACK,TRIM1#,2#,3#
main71705-33440-E1i201507
NOBLE BROWN,TRIM0#,4#,5#
main71705-33520-A0supersedes 71705-33440-A0i201206-201507
G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP)),IVORY,TRIM0#; G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),IVORY,TRIM0#; G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP)),IVORY,TRIM0#; IVORY,TRIM0#
main71705-33520-C0supersedes 71705-33440-C0i201206-201507
BLACK,TRIM1#,2#; G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP)),BLACK,TRIM1#,2#; G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),BLACK,TRIM1#,2#; G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP)),BLACK,TRIM1#,2#
main71705-33520-E0i201206-201308
ORCHID BROWN,TRIM00
main71705-33510-A0i201206-201308
BRAZIL SPEC,IVORY,TRIM0#
main71705-33510-C0i201206-201308
BRAZIL SPEC,BLACK,TRIM1#,2#
main71705-33520-E1i201710-201711
AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,NOBLE BROWN,TRIM0#,5#; D PACKAGE&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,NOBLE BROWN,TRIM0#,5#
71759BHOOK, FRONT SEATBACK
main71759-47010×4i201206-201401
main71759-47011×4i201401-201507
71910AHEADREST ASSY, FRONT SEAT
main71910-33760-B3×2i201206-201308
BLACK/SYNTHETIC LEATHER,TRIM2#
main71910-33760-C5×2i201206-201308
LT.GRAY/SYNTHETIC LEATHER,TRIM1#
main71910-33760-C7×2i201410-201507
BLACK/BLACK,TRIM3#
main71910-33760-E5×2i201206-201308
IVORY/SYNTHTIC LEATHER,TRIM0#
main71910-33770-B3×2supersedes 71910-33760-B6i201206-201507
BLACK,TRIM2#; G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP)),BLACK,TRIM2#; G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),BLACK,TRIM2#; G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP)),BLACK,TRIM2#
main71910-33770-C3×2supersedes 71910-33760-C6i201206-201507
G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP)),LT.GRAY,TRIM1#; G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),LT.GRAY,TRIM1#; G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP)),LT.GRAY,TRIM1#; LT.GRAY,TRIM1#
main71910-33770-E4×2supersedes 71910-33760-E8i201206-201507
G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP)),IVORY,TRIM0#; G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),IVORY,TRIM0#; G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP)),IVORY,TRIM0#; IVORY,TRIM0#
main71910-33C50-E0×2i201708
NOBLE BROWN,TRIM4#
main71910-33780-B1×2i201206-201308
H PACKAGE&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),BLACK,TRIM2#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION),BLACK,TRIM2#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),BLACK,TRIM2#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION),BLACK,TRIM2#
main71910-33780-C2×2i201206-201308
H PACKAGE&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),LT.GRAY,TRIM1#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION),LT.GRAY,TRIM1#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),LT.GRAY,TRIM1#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION),LT.GRAY,TRIM1#
main71910-33780-E4×2i201206-201308
H PACKAGE&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),IVORY,TRIM0#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION),IVORY,TRIM0#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),IVORY,TRIM0#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION),IVORY,TRIM0#
main71910-33860-B0×2i201308-201507
H PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),BLACK,TRIM2#; H PACKAGE&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),BLACK,TRIM2#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),BLACK,TRIM2#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION),BLACK,TRIM2#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),BLACK,TRIM2#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION),BLACK,TRIM2#
main71910-33860-C0×2i201308-201507
H PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),LT.GRAY,TRIM1#; H PACKAGE&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),LT.GRAY,TRIM1#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),LT.GRAY,TRIM1#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION),LT.GRAY,TRIM1#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),LT.GRAY,TRIM1#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION),LT.GRAY,TRIM1#
main71910-33860-E1×2i201308-201507
H PACKAGE&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),IVORY,TRIM0#; H PACKAGE&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),IVORY,TRIM0#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),IVORY,TRIM0#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION),IVORY,TRIM0#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),IVORY,TRIM0#; H PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION),IVORY,TRIM0#
main71910-33B40-A1×2supersedes 71910-33A40-A1i201507-201608
C PACKAGE&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,IVORY,TRIM0#; C PACKAGE,IVORY,TRIM0#; IVORY,TRIM0#
main71910-33B40-B1×2supersedes 71910-33A40-B3i201507-201608
C PACKAGE&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,MOON STONE,TRIM1#; C PACKAGE,MOON STONE,TRIM1#; MOON STONE,TRIM1#
main71910-33B40-C1×2supersedes 71910-33A40-C4i201507-201608
BLACK,TRIM2#; C PACKAGE&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,BLACK,TRIM2#; C PACKAGE,BLACK,TRIM2#
main71910-33B40-F1×2supersedes 71910-33A40-F0i201507-201608
C PACKAGE&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,TOPAZ BROWN,TRIM5#; C PACKAGE,TOPAZ BROWN,TRIM5#; TOPAZ BROWN,TRIM5#
main71910-33B50-A1×2supersedes 71910-33B40-A1i201507-201608
D PACKAGE&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,IVORY,TRIM0#
main71910-33B50-B1×2supersedes 71910-33B40-B1i201507-201608
D PACKAGE&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,MOON STONE,TRIM1#
main71910-33B50-C1×2supersedes 71910-33B40-C1i201507-201608
D PACKAGE&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,BLACK,TRIM2#
main71910-33B50-F0×2supersedes 71910-33B40-F1i201507-201608
D PACKAGE&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,TOPAZ BROWN,TRIM5#
main71910-33C60-A0×2supersedes 71910-33C50-A0i201608
C PACKAGE&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,IVORY,TRIM0#
main71910-33C60-B0×2i201711
C PACKAGE,MOON STONE,TRIM1#; MOON STONE,TRIM1#
main71910-33C60-C0×2i201710-201711
AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,BLACK,TRIM2#
main71910-33C60-F0×2i201711
C PACKAGE,TOPAZ BROWN,TRIM5#; TOPAZ BROWN,TRIM5#
main71910-33C70-A0×2supersedes 71910-33C60-A0i201608
D PACKAGE&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,IVORY,TRIM0#
main71910-33C70-B0×2supersedes 71910-33C60-B0i201608
D PACKAGE&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,MOON STONE,TRIM1#
main71910-33C70-C0×2supersedes 71910-33C60-C0i201608
D PACKAGE&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,BLACK,TRIM2#
main71910-33C70-F0×2supersedes 71910-33C60-F0i201608
D PACKAGE&AIR CONDITIONER-3ZONE INDEPENDENT CONTROL,TOPAZ BROWN,TRIM5#
71931SUPPORT, FRONT SEAT HEADREST
main71930-47020-A4×2i201206-201507
W(LOCK),IVORY,TRIM0#
main71930-47020-B1×2i201206-201507
W(LOCK),LT.GRAY,TRIM10
main71930-47020-C0×2i201206-201507
W(LOCK),BLACK,TRIM10,2#; W(LOCK),BLACK,TRIM10,2#,3#
main71930-47020-C4×2i201710
W(LOCK),BLACK,TRIM2#
main71930-47020-F0×2i201507
W(LOCK),TOPAZ BROWN,TRIM5#
main71930-47020-L1×2i201708
W(LOCK),NOBLE BROWN,TRIM4#
main71930-47020-P2×2i201507-201710
W(LOCK),MOON STONE,TRIM11,12,13
main71931-47020-A4×2i201206-201507
W/O(LOCK),IVORY,TRIM0#
main71931-47020-B1×2i201206-201507
W/O(LOCK),LT.GRAY,TRIM10
main71931-47020-C0×2i201206-201507
W/O(LOCK),BLACK,TRIM10,2#; W/O(LOCK),BLACK,TRIM10,2#,3#
main71931-47020-C4×2i201710
W/O(LOCK),BLACK,TRIM2#
main71931-47020-F0×2i201507
W/O(LOCK),TOPAZ BROWN,TRIM5#
main71931-47020-L1×2i201708
W/O(LOCK),NOBLE BROWN,TRIM4#
main71931-47020-P2×2i201507-201710
W/O(LOCK),MOON STONE,TRIM11,12,13
main71930-47020-A2×2i201206-201308
W(LOCK),H PACKAGE&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),ECRU,TRIM00
main71931-47020-A2×2i201206-201308
W/O(LOCK),H PACKAGE&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)),ECRU,TRIM00
72760DADJUSTER ASSY, LUMBAR SUPPORT, LH
main72706-33010supersedes 72760-33120i201502-201507
G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)); G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP)); G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)); G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP))
main72760-33110supersedes 72760-33120i201206-201502
G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP)); G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)); G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP))
73920AAIRBAG ASSY, FRONT SEAT, LH
main73920-33050i201206-201507
79977BFELT, SEATBACK FRAME
main79977-33020×2i201504-201507
8121INTERIOR LAMP
→ Go to FIG 81-21
8202WIRING & CLAMP
→ Go to FIG 82-02
85866DUCT, SEAT CUSHION CLIMATE CONTROL, RH
main85866-30030i201206-201507
G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP)); G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)); G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP))
85866CDUCT, SEATBACK CLIMATE CONTROL, LH
main85866-33020i201206-201507
G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP)); G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)); G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP))
85867BLOWER, SEATBACK CLIMATE CONTROL, RH
main85867-33020i201206-201507
G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP)); G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)); G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP))
85867ABLOWER, SEATBACK CLIMATE CONTROL, LH
main85867-33020i201206-201507
G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP)); G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)); G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP))
85869COVER, SEATBACK CLIMATE CONTROL, RH
main85869-33020i201206-201507
G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP)); G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)); G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP))
85869ACOVER, SEATBACK CLIMATE CONTROL, LH
main85869-33020i201206-201507
G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BAMBOO & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP)); G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP & *RES) & WIND(*DRP)); G PACKAGE&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-WOOD(BIRDSEYE MAPLE & ILLUMINATION)&SEAT HEATER-WITH(HEATER(*DRP) & WIND(*DRP))
9011910601
main90119-10601
9354054014
main93540-54014
9356014010
main93560-14010
9356855016
main93568-55016
9417060600
main94170-60600
9418560600
main94185-60600

29 parts on this diagram · 7 diagrams in section

FRONT SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
