LOCK CYLINDER SET

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-33370iASV60,AVV60,GSV60201206-201507

69055ACYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK

main69055-33490iASV60,AVV60,GSV60201206-201608

main69055-33491iASV6#,GSV60201608

69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-50160iASV60,AVV60,GSV60201206-201507

69503CYLINDER SET, LOCK

main69005-33D20iASV60,AVV60,GSV60201206-201608

main69005-33D21iASV6#,GSV60201608

69503AKEY, BLANK

main69515-30380iASV60,AVV60,GSV60201206-201507

MASTER KEY,W(*68)

69503BKEY, CUT

main69515-30370iASV60,AVV60,GSV60201206-201507

MASTER KEY,W(*68)

8424

89072BHOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)

89745ABATTERY, TRANSMITTER

main89745-50020iASV60,AVV60,GSV60201206-201507

CR2032

89751BCOVER, TRANSMITTER HOUSING

main89751-30290iASV60,GSV60201206-201507

main89751-30300iAVV60201206-201507

main89751-48290iASV6#,GSV60201507

8975BCOVER, TRANSMITTER BATTERY HOUSING

main8975B-33010iASV60,AVV60,GSV60201206-201507

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main89904-30B50iASV60,GSV60201206-201507

main89904-30B60iAVV60201206-201507

main89904-30J40iASV6#,GSV60201507

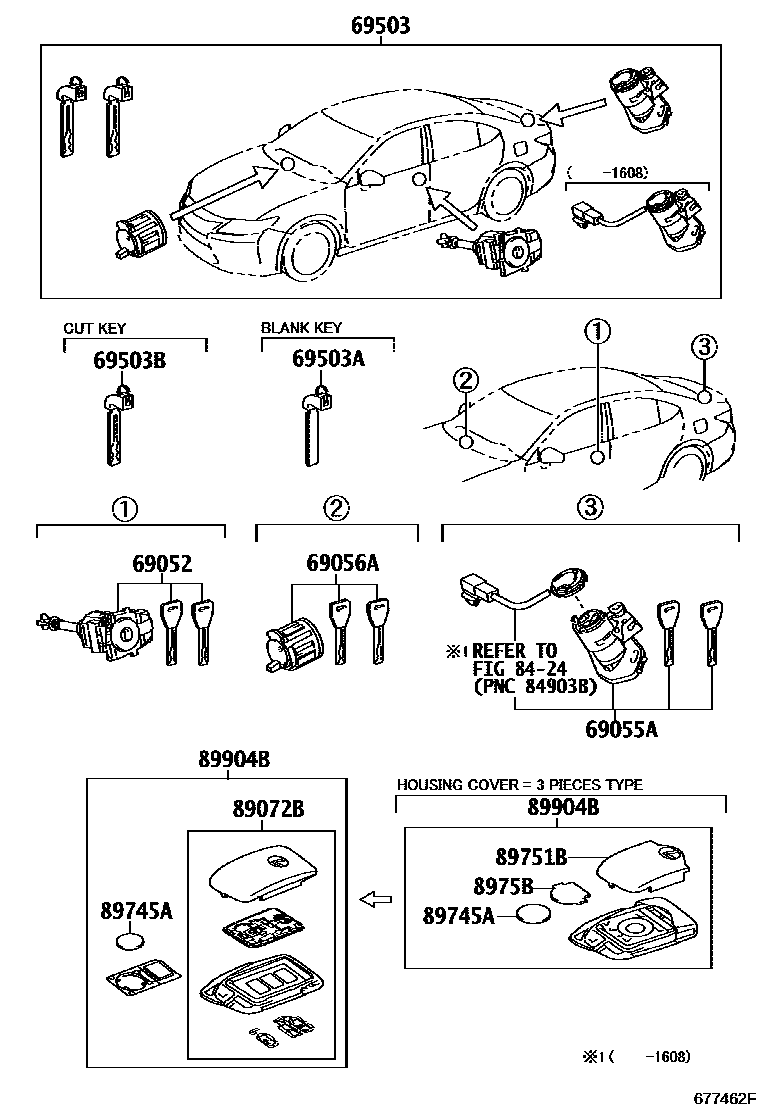

12 parts on this diagram · 1 diagram in section
