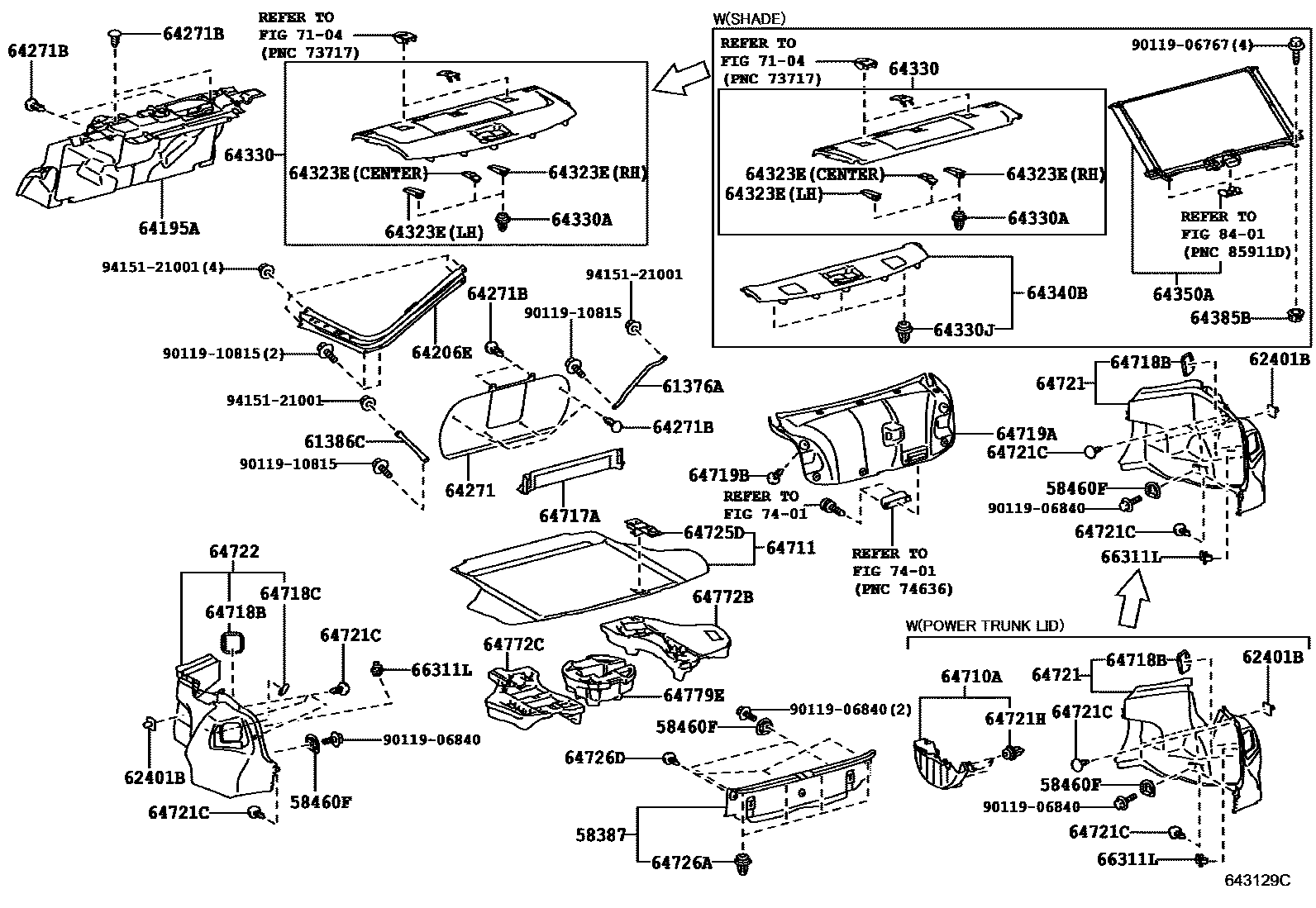

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

0001 1 0002 1 0003 1

58387PLATE, REAR FLOOR FINISH

main58387-33130-C0iAVV60,GSV60201206-201507

BLACK,TRIM0#,1#,2#

sub58387-33150

main58387-33130-C0iAVV60,GSV60201206-201507

BLACK,TRIM0#,1#,2#,3#

sub58387-33150

main58387-33130-C0iASV6#,GSV60201507-201512

BLACK,TRIM0#,1#,2#,5#

sub58387-33150

main58387-33150-C0iGSV60201601

BLACK,TRIM0#,1#,2#,5#

main58387-33150-C0iGSV60201601

BLACK,TRIM0#,1#,2#,4#,5#

58460FSTRIKER ASSY, LUGGAGE HOLD BELT

main58460-33020iASV60,AVV60,GSV60201206-201507

61376ABRACE, REAR WHEEL, UPPER FRONT RH

main61376-33010iASV6#,GSV60201206-201507

61386CBRACE, REAR WHEEL, UPPER FRONT LH

main61386-33010iASV60,GSV60201206-201507

62401BFASTENER, HOOK

main90530-25010iASV60,AVV60,GSV60201206-201507

64195AINSULATOR, ROOM PARTITION PANEL

main64195-33040iASV60,GSV60201206-201507

main64195-33070iAVV60201206-201507

64206EPANEL SUB-ASSY, ROOM PARTITION

main64206-33010iASV6#,GSV60201206-201507

64271BOARD, ROOM PARTITION, NO.1

main64271-33110-C1iGSV60201206-201507

BLACK,TRIM0#,1#,2#

sub64271-33130

main64271-33110-C1iGSV60201206-201507

BLACK,TRIM0#,1#,2#,3#

sub64271-33130

main64271-33110-C1iASV6#,GSV60201507-201512

BLACK,TRIM0#,1#,2#,5#

sub64271-33130

main64271-33130-C0iASV6#201601

BLACK,TRIM0#,1#,2#,5#

main64271-33130-C0iGSV60201601

BLACK,TRIM0#,1#,2#,4#,5#

64271BCLIP(FOR ROOM PARTITION BOARD)

main90467-08186-C0iAVV60201206-201610

BLACK

sub90467-08186

main90467-08186-C3iASV6#,GSV60201610

BLACK

sub90467-08186

64323ECLAMP, PACKAGE TRAY TRIM

main64323-33060iASV60,AVV60,GSV60201206-201507

CENTER

main64323-33070iASV60,AVV60201206-201507

RH & LH

main64323-33080iASV6#201507

C PACKAGE&AUDIO-EMVN & DVD & *MAR & 15SPEAKER & DAB,RH & LH

main64323-33080iASV6#201507

C PACKAGE&AUDIO-EMVN & DVD & 8SPEAKER & DAB,RH & LH

main64323-33080iGSV60201206-201507

RH & LH

main64323-33080iGSV60201507

C PACKAGE&AUDIO-*DA & CD & 8SPEAKER & DAB,RH & LH

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-33710-C0iAVV60201206-201507

BLACK,TRIM0#,1#,2#

sub64330-33A60

main64330-33710-C0iAVV60201206-201507

BLACK,TRIM0#,1#,2#,3#

sub64330-33A60

main64330-33720-C0iGSV60201206-201507

BLACK,TRIM01,1#,2#

sub64330-33A70

main64330-33720-E0iGSV60201206-201507

ORCHID BROWN,TRIM00

sub64330-33A70

main64330-33730-C0iASV6#201507-201512

BLACK,TRIM1#,2#

sub64330-33A60

main64330-33730-E0iASV6#201507-201512

NOBLE BROWN,TRIM0#,5#

sub64330-33A60

main64330-33790-C0iASV6#201507-201512

C PACKAGE&AUDIO-*DA & CD & 8SPEAKER & DAB,BLACK,TRIM1#,2#

sub64330-33A70

main64330-33790-C0iGSV60201507-201512

BLACK,TRIM1#,2#

sub64330-33A70

main64330-33790-C0iGSV60201507-201512

C PACKAGE&AUDIO-EMVN & DVD & 8SPEAKER & DAB,BLACK,TRIM1#,2#

sub64330-33A70

main64330-33790-E0iGSV60201507-201512

C PACKAGE&AUDIO-*DA & CD & 8SPEAKER & DAB,NOBLE BROWN,TRIM0#,5#

sub64330-33A70

main64330-33790-E0iGSV60201507-201512

NOBLE BROWN,TRIM0#,5#

sub64330-33A70

main64330-33790-E0iGSV60201507-201512

C PACKAGE&AUDIO-EMVN & DVD & 8SPEAKER & DAB,NOBLE BROWN,TRIM0#,5#

sub64330-33A70

main64330-33A60-C0iASV6#201601

BLACK,TRIM1#,2#,40

main64330-33A60-E0iASV6#201601

NOBLE BROWN,TRIM0#,41,5#

main64330-33A70-C0iGSV60201601

BLACK,TRIM1#,2#

main64330-33A70-C0iGSV60201601

C PACKAGE&AUDIO-*DA & CD & 8SPEAKER & DAB,BLACK,TRIM1#,2#

main64330-33A70-C0iGSV60201601

C PACKAGE&AUDIO-EMVN & DVD & 8SPEAKER & DAB,BLACK,TRIM1#,2#

main64330-33A70-E0iGSV60201601

NOBLE BROWN,TRIM0#,5#

main64330-33A70-E0iGSV60201601

C PACKAGE&AUDIO-*DA & CD & 8SPEAKER & DAB,NOBLE BROWN,TRIM0#,5#

main64330-33A70-E0iGSV60201601

C PACKAGE&AUDIO-EMVN & DVD & 8SPEAKER & DAB,NOBLE BROWN,TRIM0#,5#

64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-10161iASV60,AVV60,GSV60201206-201507

64330JCLIP(FOR PACKAGE TRAY TRIM PANEL)

main63395-12150iGSV60201206-201507

main63395-12150iGSV60201507

C PACKAGE&AUDIO-*DA & CD & 8SPEAKER & DAB

main63395-12150iGSV60201507

C PACKAGE&AUDIO-EMVN & DVD & 8SPEAKER & DAB

main63395-12150iGSV60201507

C PACKAGE&AUDIO-EMVN & DVD & *MAR & 15SPEAKER & DAB

64340BPANEL ASSY, PACKAGE TRAY TRIM, NO.2

main64340-33050-C0iASV6#201507-201512

BLACK,TRIM1#,2#

sub64340-33080

main64340-33050-C0iGSV60201206-201507

BLACK,TRIM01,1#,2#

sub64340-33080

main64340-33050-C0iGSV60201507-201512

C PACKAGE&AUDIO-*DA & CD & 8SPEAKER & DAB,BLACK,TRIM1#,2#

sub64340-33080

main64340-33050-C0iGSV60201507-201512

C PACKAGE&AUDIO-EMVN & DVD & 8SPEAKER & DAB,BLACK,TRIM1#,2#

sub64340-33080

main64340-33050-E0iGSV60201206-201507

ORCHID BROWN,TRIM00

sub64340-33080

main64340-33050-E1iGSV60201507-201512

C PACKAGE&AUDIO-*DA & CD & 8SPEAKER & DAB,NOBLE BROWN,TRIM0#,5#

sub64340-33080

main64340-33050-E1iGSV60201507-201512

C PACKAGE&AUDIO-EMVN & DVD & 8SPEAKER & DAB,NOBLE BROWN,TRIM0#,5#

sub64340-33080

main64340-33050-E1iASV6#201507-201512

NOBLE BROWN,TRIM0#,5#

sub64340-33080

main64340-33080-C0iGSV60201601

BLACK,TRIM1#,2#

main64340-33080-C0iGSV60201601

C PACKAGE&AUDIO-*DA & CD & 8SPEAKER & DAB,BLACK,TRIM1#,2#

main64340-33080-C0iGSV60201601

C PACKAGE&AUDIO-EMVN & DVD & 8SPEAKER & DAB,BLACK,TRIM1#,2#

main64340-33080-E0iASV6#201601

C PACKAGE&AUDIO-EMVN & DVD & 8SPEAKER & DAB,NOBLE BROWN,TRIM0#,5#

main64340-33080-E0iGSV60201601

NOBLE BROWN,TRIM0#,5#

main64340-33080-E0iGSV60201601

C PACKAGE&AUDIO-*DA & CD & 8SPEAKER & DAB,NOBLE BROWN,TRIM0#,5#

64350ASHADE ASSY, REAR WINDOW

main64350-33050-C0iGSV60201601-201607

BLACK,TRIM0#,1#,2#,5#

sub64350-33051

main64350-33050-C0iASV6#201601-201607

C PACKAGE&AUDIO-EMVN & DVD & *MAR & 15SPEAKER & DAB,BLACK,TRIM0#,1#,2#,5#

sub64350-33051

main64350-33050-C0iASV6#201601-201607

C PACKAGE&AUDIO-EMVN & DVD & 8SPEAKER & DAB,BLACK,TRIM0#,1#,2#,5#

sub64350-33051

main64350-33050-C0iASV6#201601-201607

C PACKAGE&AUDIO-*DA & CD & 8SPEAKER & DAB,BLACK,TRIM0#,1#,2#,5#

sub64350-33051

main64350-33051-C0iASV60201608

C PACKAGE&AUDIO-EMVN & DVD & 8SPEAKER & DAB,BLACK,TRIM0#,1#,2#,5#

main64350-33051-C0iGSV60201608

BLACK,TRIM0#,1#,2#,5#

main64350-33051-C0iGSV60201608

C PACKAGE&AUDIO-*DA & CD & 8SPEAKER & DAB,BLACK,TRIM0#,1#,2#,5#

main64350-33051-C0iGSV60201608

C PACKAGE&AUDIO-EMVN & DVD & *MAR & 15SPEAKER & DAB,BLACK,TRIM0#,1#,2#,5#

main64350-33051-C0iGSV60201608

C PACKAGE&AUDIO-*DA & DVD & 8SPEAKER,BLACK,TRIM0#,1#,2#,5#

main64350-33080-C0iGSV60201507-201512

C PACKAGE&AUDIO-EMVN & DVD & 8SPEAKER & DAB,BLACK,TRIM0#,1#,2#,5#

sub64350-33050

main64350-33080-C0iASV6#201507-201512

C PACKAGE&AUDIO-EMVN & DVD & *MAR & 15SPEAKER & DAB,BLACK,TRIM0#,1#,2#,5#

sub64350-33050

main64350-33080-C0iGSV60201507-201512

BLACK,TRIM0#,1#,2#,5#

sub64350-33050

main64350-33080-C0iGSV60201507-201512

C PACKAGE&AUDIO-*DA & CD & 8SPEAKER & DAB,BLACK,TRIM0#,1#,2#,5#

sub64350-33050

main64350-33080-C0iGSV60201206-201507

BLACK,TRIM0#,1#,2#

sub64350-33050

64385BCLIP

main90467-06121iASV6#201507

C PACKAGE&AUDIO-EMVN & DVD & 8SPEAKER & DAB

main90467-06121iGSV60201206-201507

main90467-06121iGSV60201507

C PACKAGE&AUDIO-*DA & CD & 8SPEAKER & DAB

main90467-06121iGSV60201507

C PACKAGE&AUDIO-EMVN & DVD & *MAR & 15SPEAKER & DAB

64710ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, RH

64711MAT, LUGGAGE COMPARTMENT FLOOR

main64711-33240-C0iASV6#,GSV60201507-201512

BLACK,TRIM0#,1#,2#,5#

sub64711-33270

main64711-33240-C0iASV60201206-201507

BLACK,TRIM0#,1#,2#

sub64711-33270

main64711-33240-C0iASV60201206-201507

BLACK,TRIM0#,1#,2#,3#

sub64711-33270

main64711-33260-C0iAVV60201206-201507

BLACK,TRIM0#,1#,2#

sub64711-33280

main64711-33270-C0iGSV60201601

BLACK,TRIM0#,1#,2#,5#

main64711-33270-C0iGSV60201601

BLACK,TRIM0#,1#,2#,4#,5#

64717COVER, LUGGAGE COMPARTMENT TRIM, REAR RH

main64718-33050-C0iAVV60201206-201507

BLACK,TRIM0#,1#,2#

64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT

main64717-33130-C0iASV60201206-201507

BLACK,TRIM0#,1#,2#,3#

sub64717-33180

main64717-33130-C0iASV60201206-201507

BLACK,TRIM0#,1#,2#

sub64717-33180

main64717-33130-C0iASV6#,GSV60201507-201512

BLACK,TRIM0#,1#,2#,5#

sub64717-33180

main64717-33180-C0iGSV60201601

BLACK,TRIM0#,1#,2#,5#

main64717-33180-C0iGSV60201601

BLACK,TRIM0#,1#,2#,4#,5#

64718BCOVER, LUGGAGE TRIM SERVICE HOLE

main64718-33010iASV60,AVV60,GSV60201206-201507

64718CCOVER, LUGGAGE TRIM SERVICE HOLE

main64718-22020-C0iAVV60,GSV60201206-201507

BLACK,TRIM0#,1#,2#,3#

sub64718-22020

main64718-22020-C0iAVV60,GSV60201206-201507

BLACK,TRIM0#,1#,2#

sub64718-22020

main64718-22020-C0iGSV60201507-201601

BLACK,TRIM0#,1#,2#,5#

sub64718-22020

main64718-22020-C0iASV6#201601

BLACK,TRIM0#,1#,2#,4#,5#

sub64718-22020

64719ACOVER, LUGGAGE COMPARTMENT DOOR

main64719-33130-C0iASV60201206-201507

BLACK,TRIM0#,1#,2#,3#

sub64719-33250

main64719-33130-C0iASV60201206-201507

BLACK,TRIM0#,1#,2#

sub64719-33250

main64719-33220-C0iASV6#,GSV60201507-201512

BLACK,TRIM0#,1#,2#,5#

sub64719-33240

main64719-33240-C0iASV6#201601

BLACK,TRIM0#,1#,2#,5#

main64719-33240-C0iGSV60201601

BLACK,TRIM0#,1#,2#,4#,5#

64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)

main90467-08186-C0iASV60201206-201507

BLACK,TRIM0#,1#,2#

sub90467-08186

main90467-08186-C0iAVV60,GSV60201206-201507

BLACK,TRIM0#,1#,2#,3#

sub90467-08186

main90467-08186-C0iASV6#,GSV60201507-201610

BLACK,TRIM0#,1#,2#,5#

sub90467-08186

main90467-08186-C3iGSV60201610

BLACK,TRIM0#,1#,2#,5#

sub90467-08186

main90467-08186-C3iGSV60201610

BLACK,TRIM0#,1#,2#,4#,5#

sub90467-08186

64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH

main64721-33150-C0iASV6#,GSV60201507-201512

BLACK,TRIM0#,1#,2#,5#

sub64721-33220

main64721-33150-C0iGSV60201206-201507

BLACK,TRIM0#,1#,2#,3#

sub64721-33220

main64721-33150-C0iASV60201206-201507

BLACK,TRIM0#,1#,2#

sub64721-33220

main64721-33160-C0iAVV60201206-201507

BLACK,TRIM0#,1#,2#

sub64721-33230

main64721-33220-C0iASV6#201601

BLACK,TRIM0#,1#,2#,4#,5#

main64721-33220-C0iGSV60201601

BLACK,TRIM0#,1#,2#,5#

64721CCLIP(LUGGAGE COMPARTMENT)

main90467-08186-C0iAVV60,GSV60201206-201507

EASY CLOSER DOOR-WITH(DOOR & TRUNK) & POWER TRUNK LID,BLACK,TRIM0#,1#,2#

sub90467-08186

main90467-08186-C0iAVV60,GSV60201206-201507

BLACK,TRIM0#,1#,2#

sub90467-08186

main90467-08186-C0iASV60201206-201507

BLACK,TRIM0#,1#,2#,3#

sub90467-08186

main90467-08186-C0iASV6#,GSV60201507-201610

AUTO & EASY CLOSER DOOR-WITH,BLACK,TRIM0#,1#,2#,5#

sub90467-08186

main90467-08186-C0iASV6#,GSV60201507-201610

BLACK,TRIM0#,1#,2#,5#

sub90467-08186

main90467-08186-C3iASV6#201610

AUTO & EASY CLOSER DOOR-WITH,BLACK,TRIM0#,1#,2#,5#

sub90467-08186

main90467-08186-C3iASV6#,GSV60201610

BLACK,TRIM0#,1#,2#,5#

sub90467-08186

main90467-08186-C3iASV6#,GSV60201610

BLACK,TRIM0#,1#,2#,4#,5#

sub90467-08186

64721HCLIP(LUGGAGE COMPARTMENT)

64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH

main64722-33170-C0iASV6#,GSV60201507-201512

BLACK,TRIM0#,1#,2#,5#

sub64722-33210

main64722-33170-C0iGSV60201206-201507

BLACK,TRIM0#,1#,2#,3#

sub64722-33210

main64722-33170-C0iASV60201206-201507

BLACK,TRIM0#,1#,2#

sub64722-33210

main64722-33180-C0iAVV60201206-201507

BLACK,TRIM0#,1#,2#

sub64722-33220

main64722-33210-C0iGSV60201601

BLACK,TRIM0#,1#,2#,5#

main64722-33210-C0iGSV60201601

BLACK,TRIM0#,1#,2#,4#,5#

64725DHOOK, LUGGAGE COMPARTMENT TRIM, NO.1

main64725-30080-C0iASV60,AVV60,GSV60201206-201507

BLACK

64726ACLIP, LUGGAGE TRIM, REAR

main90467-10161iASV6#,GSV60201206-201507

64726DCLIP, LUGGAGE TRIM, REAR

main90467-08186-C0iAVV60,GSV60201206-201507

BLACK,TRIM0#,1#,2#,3#

sub90467-08186

main90467-08186-C0iAVV60,GSV60201206-201507

BLACK,TRIM0#,1#,2#

sub90467-08186

main90467-08186-C0iASV6#,GSV60201507-201610

BLACK,TRIM0#,1#,2#,5#

sub90467-08186

main90467-08186-C3iGSV60201610

BLACK,TRIM0#,1#,2#,5#

sub90467-08186

main90467-08186-C3iGSV60201610

BLACK,TRIM0#,1#,2#,4#,5#

sub90467-08186

64772BPAD, SPARE WHEEL COVER

main64772-33130iASV60,GSV60201206-201606

sub64772-33131

main64772-33131iASV6#,GSV60201607

main64772-33140iAVV60201206-201507

sub64772-33141

64772CPAD, SPARE WHEEL COVER

main64773-33120iASV6#,GSV60201206-201606

sub64773-33121

main64773-33121iASV6#,GSV60201607

64779ETRAY, SPARE WHEEL COVER

main64779-33090iASV60,AVV60,GSV60201206-201606

sub64779-33091

main64779-33091iASV6#,GSV60201607

66311LHOOK,ROPE

main66311-30010-C0iAVV60,GSV60201206-201507

BLACK,TRIM0#,1#,2#

main66311-30010-C0iASV60201206-201507

BLACK,TRIM0#,1#,2#,3#

main66311-30010-C0iASV6#,GSV60201507-201610

BLACK,TRIM0#,1#,2#,5#

main66311-30010-C1iGSV60201610

BLACK,TRIM0#,1#,2#,5#

main66311-30010-C1iASV6#201610

BLACK,TRIM0#,1#,2#,4#,5#

7104

7401

8401

9011906767

main90119-06767

9011906840

main90119-06840

9011910815

main90119-10815

9415121001

main94151-21001

42 parts on this diagram · 3 diagrams in section
