2822A0
›

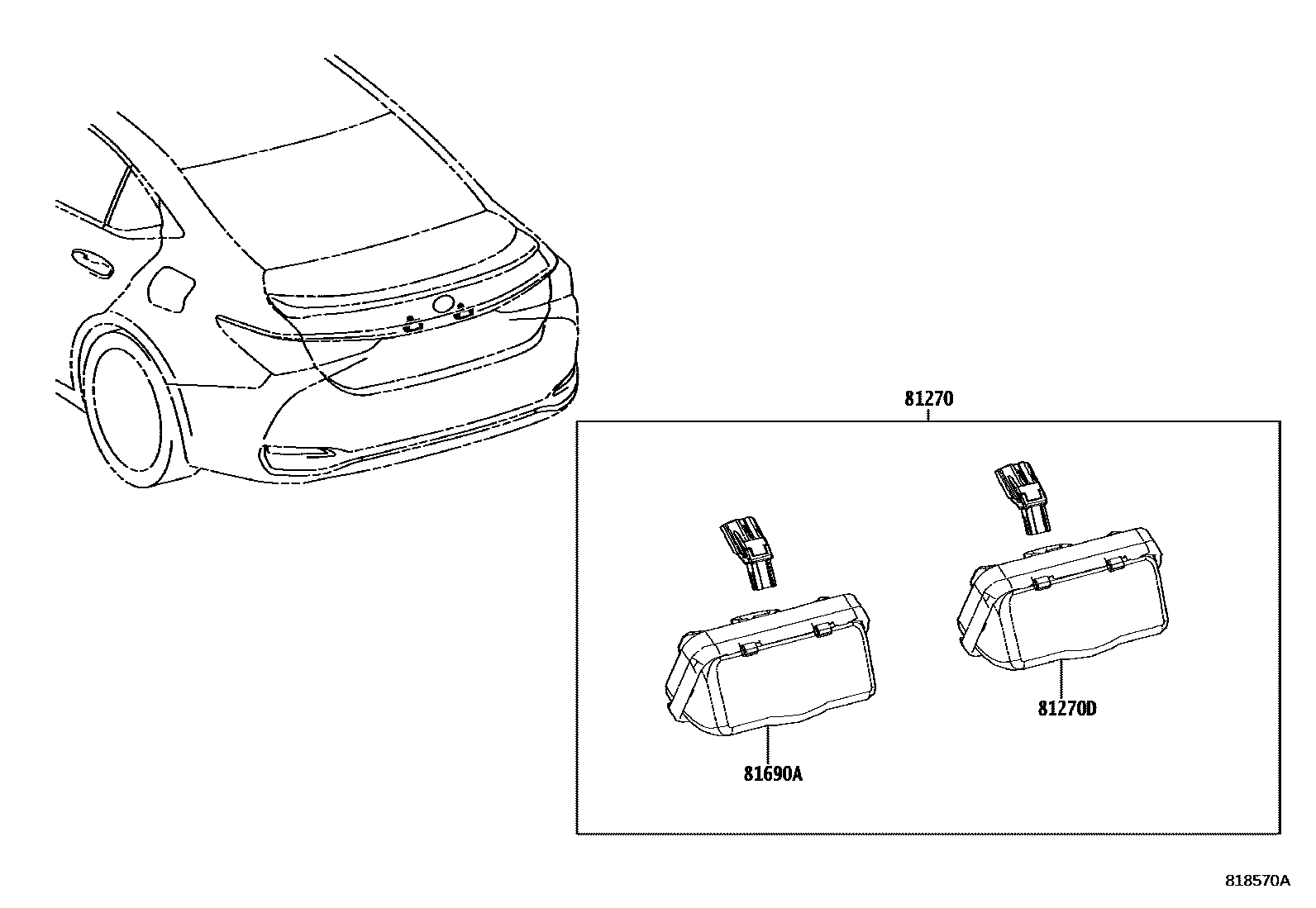

REAR LICENSE PLATE LAMP
REAR LICENSE PLATE LAMP
81270
LAMP ASSY, LICENSE PLATE
main
81204-33060
i
AXZH10,MXZA10..CHI
202411
main
81204-47010
i
MXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10
201806-202411
81270D
LAMP ASSY, LICENSE PLATE, RH
main
81270-33110
i
MXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10
201806-202110
81690A
LAMP ASSY, LICENSE PLATE, LH
main
81270-33110
i
MXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10
201806-202110
3 parts on this diagram · 1 diagram in section
