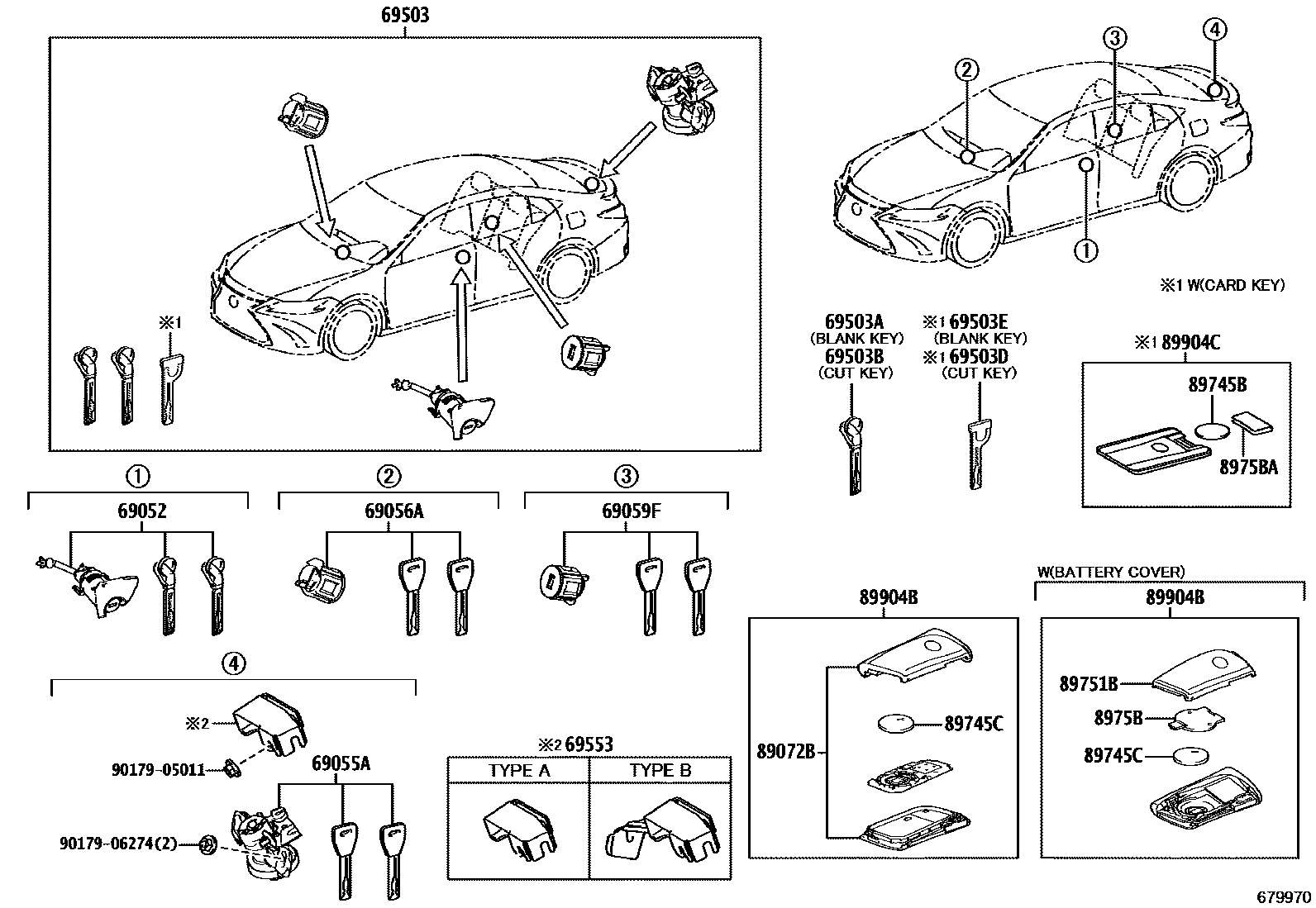

LOCK CYLINDER SET

0001 1 0002 1

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-33460iAXZA10,AXZH10,GSZ10,MXZA10..LHD201806-202108

69055ACYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK

main69055-33540iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10201806-202110

69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-50160iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10201806-202110

69059FCYLINDER & KEY SET, REAR SEAT ARMREST LOCK

main69056-50160iAXZA10,AXZH10,GSZ10,MXZA10201806-202110

69503CYLINDER SET, LOCK

main69005-33E60iASZ10,AXZA10,AXZH10,GSZ10,MXZA10..LHD201806-202108

main69005-33E70iAXZA10,AXZH10..RHD201806-202110

69503AKEY, BLANK

main69515-33150iAXZA10,AXZH10,GSZ10,MXZA10201806-202110

MASTER KEY,W(*68)

69503BKEY, CUT

main69515-33140iAXZA10,AXZH10,GSZ10,MXZA10201806-202110

MASTER KEY,W(*68)

69503DKEY, CUT(CARD KEY)

69503EKEY, BLANK(CARD KEY)

69553PROTECTOR, LUGGAGE COMPARTMENT KEY CYLINDER

main69553-30010iASZ10,AXZA10,GSZ10..EUR201806-202108

TYPE A:REFER ILLUST.

main69553-30010iASZ10,AXZA10,GSZ10..EUR201806-202108

UKRAINE SPEC,TYPE A:REFER ILLUST.

main69553-30010iASZ10,AXZA10,GSZ10..EUR201806-202108

AZERBAIJAN SPEC,TYPE A:REFER ILLUST.

main69553-30010iASZ10,AXZA10,GSZ10..EUR201806-202108

BELARUS SPEC,TYPE A:REFER ILLUST.

main69553-30010iASZ10,AXZA10,GSZ10..EUR201806-202108

KAZAKHSTAN SPEC,TYPE A:REFER ILLUST.

main69553-30010iASZ10,AXZA10,GSZ10..EUR201806-202108

MOLDOVA SPEC,TYPE A:REFER ILLUST.

main69553-30010iASZ10,AXZA10,GSZ10..EUR201806-202108

GEORGIA SPEC,TYPE A:REFER ILLUST.

main69553-30010iASZ10,AXZA10,GSZ10..EUR201806-202108

KYRGYZ SPEC,TYPE A:REFER ILLUST.

main69553-30021iAXZH10..RHD..(EUR,IND);ASZ10,AXZA10,GSZ10..EUR201806-202110

TYPE B:REFER ILLUST.

main69553-30021iAXZH10..LHD..EUR202108

FINLAND, NORWAY, SWEDEN, DENMARK SPEC,TYPE B:REFER ILLUST.

main69553-30021iAXZH10..RHD..(EUR,IND);AXZA10,GSZ10,MXZA10..EUR202108

SOUTH AFRICA SPEC,TYPE B:REFER ILLUST.

main69553-30021iAXZH10..RHD..(EUR,IND);AXZA10,GSZ10,MXZA10..EUR202108

SLOVAKIA, HUNGARY, CZECH SPEC,TYPE B:REFER ILLUST.

main69553-30021iAXZH10..RHD..(EUR,IND);AXZA10,GSZ10,MXZA10..EUR202108

POLAND SPEC,TYPE B:REFER ILLUST.

89072BHOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)

main00000-00000iAXZA10,AXZH10..ARL202108

MALAYSIA SPEC,NOT APPLICABLE

main00000-00000iAXZA10,AXZH10..ARL202108-202402

INDONESIA SPEC,NOT APPLICABLE

main00000-00000iAXZA10,AXZH10..ARL202108

BRUNEI SPEC,NOT APPLICABLE

main00000-00000iAXZA10,AXZH10..ARL202108

SOUTH AFRICA SPEC,NOT APPLICABLE

main00000-00000iAXZA10,AXZH10..ARL202108

THAILAND SPEC,NOT APPLICABLE

main00000-00000iAXZH10..GEN202108-202402

NOT APPLICABLE

main00000-00000iAXZH10..GEN202108-202402

SINGAPORE SPEC,NOT APPLICABLE

main89072-33D50iAXZH10..ARL201807-202108

BRAZIL SPEC

main89072-33D60iAXZA10..CHI201806-202108

main89072-33D70iAXZH10..ARL,GEN202108-202208

TAIWAN SPEC&SMART KEY(CARD TYPE)-WITH

main89072-33D70iAXZH10..GEN201807-202108

TAIWAN SPEC

main89072-33D70iAXZH10..ARL,GEN202108-202208

TAIWAN SPEC&SMART KEY(CARD TYPE)-WITHOUT

main89072-33E00iAXZA10,MXZA10..CHI201806-202402

main89072-33E10iAXZH10..CHI201807-202208

main89072-33G30iAXZH10,MXZA10..CHI202402

89745BBATTERY, TRANSMITTER(CARD KEY)

89745CBATTERY, TRANSMITTER

main89745-45010iAXZA10..EUR201806-202008

CR2032,CHILE SPEC

sub89745-50020

main89745-45010iAXZH10..ARL,CHI,GEN;ASZ10,AXZA10,MXZA10..CHI,GEN201806-202008

CR2032

sub89745-50020

main89745-47010iAXZH10..GEN201806-202008

CR2032,SINGAPORE SPEC

sub89745-50020

main89745-47010iAXZH10..GEN201806-202008

CR2032,INDONESIA SPEC

sub89745-50020

main89745-47010iAXZH10..GEN201806-202008

CR2032,BRUNEI SPEC

sub89745-50020

main89745-47010iAXZH10..GEN201806-202008

CR2032

sub89745-50020

main89745-47010iAXZH10..EUR,IND;ASZ10,AXZA10,GSZ10..ARL,EUR,GCC201806-202008

CR2032,MALAYSIA SPEC

sub89745-50020

main89745-50020iAXZH10..LHD..EUR201907-202402

CR2032

main89745-50020iMXZA10..CHI;AXZH10..CHI,EUR202402

CR2032,PERU SPEC

main89745-50020iMXZA10..CHI;AXZH10..CHI,EUR202402

CR2032,VIETNAM SPEC

main89745-50020iMXZA10..CHI;AXZH10..CHI,EUR202402

CR2032,ARGENTINA SPEC

main89745-50020iMXZA10..CHI;AXZH10..CHI,EUR202402

CR2032,UKRAINE SPEC

main89745-50020iMXZA10..CHI;AXZH10..CHI,EUR202402

CR2032,AZERBAIJAN SPEC

main89745-50020iMXZA10..CHI;AXZH10..CHI,EUR202402

CR2032,MOLDOVA SPEC

main89745-50020iMXZA10..CHI;AXZH10..CHI,EUR202402

CR2032,GEORGIA SPEC

main89745-50020iMXZA10..CHI;AXZH10..CHI,EUR202402

CR2032,MOROCCO SPEC

89751BCOVER, TRANSMITTER HOUSING

main00000-00000iAXZH10..LHD..EUR202108

CHILE SPEC,NOT APPLICABLE

main00000-00000iAXZH10..LHD..EUR202108

BRAZIL SPEC,NOT APPLICABLE

main00000-00000iAXZH10..LHD..EUR202108-202402

NOT APPLICABLE

main89751-33220iAXZA10..GEN201806-202108

BRUNEI SPEC

main89751-33220iAXZH10..GEN202208

THAILAND SPEC

main89751-33220iAXZA10..GEN201806-202108

MALAYSIA SPEC

main89751-33220iAXZA10..GEN201806-202108

SINGAPORE SPEC

main89751-33220iAXZA10,GSZ10,MXZA10..EUR,GCC202108

SOUTH AFRICA SPEC

main89751-33220iAXZH10..EUR,GCC202208

INDONESIA SPEC

main89751-33220iAXZH10..IND202210

main89751-33230iAXZH10..GEN202108-202208

SOUTH AFRICA SPEC

main89751-33230iAXZH10..GEN202108-202208

SINGAPORE SPEC

main89751-33230iAXZH10..GEN202108-202208

INDONESIA SPEC

main89751-33230iAXZH10..GEN202108-202208

BRUNEI SPEC

main89751-33230iAXZH10..GEN202108-202208

THAILAND SPEC

main89751-33230iAXZH10..EUR,GCC,IND201807-202210

8975BCOVER, TRANSMITTER BATTERY HOUSING

main00000-00000iAXZH10..ARL,GEN;AXZA10..ARL,CHI,GEN202108

CHILE SPEC,NOT APPLICABLE

main00000-00000iAXZH10..LHD..EUR202108

BRAZIL SPEC,NOT APPLICABLE

main00000-00000iAXZH10,MXZA10..CHI202108-202402

NOT APPLICABLE

main8975B-33040iAXZA10,AXZH10..GEN202108

THAILAND SPEC

main8975B-33040iAXZH10..EUR,GCC,IND;ASZ10,AXZA10,GSZ10..ARL,EUR,GCC201806-202110

main8975B-33040iAXZA10,AXZH10,GSZ10,MXZA10..EUR,GCC,IND202108

MALAYSIA SPEC

main8975B-33040iAXZA10,AXZH10,GSZ10,MXZA10..EUR,GCC,IND202108

SINGAPORE SPEC

main8975B-33040iAXZA10,AXZH10,GSZ10,MXZA10..EUR,GCC,IND202108

INDONESIA SPEC

main8975B-33040iAXZA10,AXZH10,GSZ10,MXZA10..EUR,GCC,IND202108

BRUNEI SPEC

main8975B-33040iAXZA10,AXZH10,GSZ10,MXZA10..EUR,GCC,IND202108

SOUTH AFRICA SPEC

8975BACOVER, TRANSMITTER BATTERY HOUSING(CARD KEY)

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main8990H-33020iAXZH10..ARL201807-202008

BRAZIL SPEC

main8990H-33030iASZ10..CHI201907-202007

main8990H-33050iAXZA10..GEN201806-202008

EGYPT SPEC

main8990H-33050iGSZ10..GCC201806-202008

MALAYSIA SPEC

main8990H-33060iAXZH10..GEN201807-202008

MALAYSIA SPEC

main8990H-33060iAXZH10..GCC201807-202008

EGYPT SPEC

main8990H-33070iAXZA10..GEN201806-202008

ARUBA SPEC

sub8990H-33071

main8990H-33070iAXZA10..GEN201806-202008

COSTA RICA, PANAMA SPEC

sub8990H-33071

main8990H-33070iAXZA10..GEN201806-202008

CURACAO SPEC

sub8990H-33071

main8990H-33070iAXZA10..GEN201806-202008

DOMINICAN REPUBLIC SPEC

sub8990H-33071

main8990H-33070iAXZA10..GEN201806-202008

GUATEMALA SPEC

sub8990H-33071

main8990H-33070iAXZA10..GEN201806-202008

PERU SPEC

sub8990H-33071

main8990H-33070iAXZA10..GEN201806-202008

BRUNEI SPEC

sub8990H-33071

main8990H-33070iAXZA10..GEN201806-202008

INDONESIA SPEC

sub8990H-33071

main8990H-33070iAXZA10,GSZ10..ARL,GCC201806-202008

NICARAGUA SPEC

sub8990H-33071

main8990H-33070iAXZA10,GSZ10..ARL,GCC201806-202008

SINGAPORE SPEC

sub8990H-33071

main8990H-33080iAXZH10..GEN201807-201906

SOUTH AFRICA SPEC

sub8990H-33081

main8990H-33080iAXZH10..GCC201807-201906

SINGAPORE SPEC

sub8990H-33081

main8990H-33080iAXZH10..GCC201807-201906

INDONESIA SPEC

sub8990H-33081

main8990H-33080iAXZH10..GCC201807-201906

BRUNEI SPEC

sub8990H-33081

main8990H-33080iAXZH10..GCC201807-201906

THAILAND SPEC

sub8990H-33081

main8990H-33081iAXZH10..GEN201907-202008

INDONESIA SPEC

sub8990H-33082

main8990H-33081iAXZH10..LHD..EUR201907-202008

THAILAND SPEC

sub8990H-33082

main8990H-33081iAXZH10..LHD..EUR201907-202008

VIETNAM SPEC

sub8990H-33082

main8990H-33081iAXZH10..LHD..EUR201907-202008

ARGENTINA SPEC

sub8990H-33082

main8990H-33081iAXZH10..GEN201907-202008

SINGAPORE SPEC

sub8990H-33082

main8990H-33081iAXZH10..GEN201907-202008

BRUNEI SPEC

sub8990H-33082

main8990H-33081iAXZH10..LHD..EUR201907-202008

SOUTH AFRICA SPEC

sub8990H-33082

main8990H-33100iAXZH10..IND202001-202008

main8990H-33110iAXZA10,MXZA10..CHI201806-202008

main8990H-33120iAXZH10..CHI201807-202008

main8990H-33130iAXZA10..GEN201806-202008

main8990H-33140iAXZH10..GEN201807-202008

main8990H-33170iAXZH10..IND202208

main8990H-33370iAXZH10..ARL202008-202108

BRAZIL SPEC

main8990H-33370iAXZH10..ARL202008-202108

CHILE SPEC

main8990H-33380iAXZA10..CHI202402

main8990H-33400iAXZA10,GSZ10,MXZA10..EUR202008-202207

MALAYSIA SPEC

sub8990H-33401

main8990H-33400iGSZ10..GCC202008-202207

EGYPT SPEC

sub8990H-33401

main8990H-33401iAXZH10,GSZ10..GCC202208

EGYPT SPEC

main8990H-33401iAXZH10,GSZ10..GCC202208

MALAYSIA SPEC

main8990H-33401iAXZH10..EUR202208-202402

main8990H-33410iAXZH10..EUR202008-202208

EGYPT SPEC

sub8990H-33411

main8990H-33420iAXZA10..GEN202008-202108

COSTA RICA, PANAMA SPEC

sub8990H-33421

main8990H-33420iAXZA10..GEN202008-202108

NICARAGUA SPEC

sub8990H-33421

main8990H-33420iAXZA10..GEN202008-202207

SINGAPORE SPEC

sub8990H-33421

main8990H-33420iAXZA10..GEN202008-202207

BRUNEI SPEC

sub8990H-33421

main8990H-33420iAXZA10..GEN202008-202207

VIETNAM SPEC

sub8990H-33421

main8990H-33420iAXZA10..GEN202008-202207

PANAMA SPEC

sub8990H-33421

main8990H-33420iAXZA10..GEN202008-202207

PERU SPEC

sub8990H-33421

main8990H-33420iAXZA10..GEN202008-202108

GUATEMALA SPEC

sub8990H-33421

main8990H-33420iAXZA10..GEN202008-202108

DOMINICAN REPUBLIC SPEC

sub8990H-33421

main8990H-33420iAXZA10..GEN202008-202108

CURACAO SPEC

sub8990H-33421

main8990H-33420iAXZA10..GEN202008-202108

ARUBA SPEC

sub8990H-33421

main8990H-33420iAXZA10,GSZ10..GCC202108-202207

SOUTH AFRICA SPEC

sub8990H-33421

main8990H-33421iAXZA10,AXZH10..GEN202208

THAILAND SPEC

main8990H-33421iAXZA10,AXZH10..ARL202208

PERU SPEC

main8990H-33421iAXZA10,AXZH10..ARL202208

VIETNAM SPEC

main8990H-33421iAXZA10,AXZH10..ARL202208

ARGENTINA SPEC

main8990H-33421iAXZA10,AXZH10..ARL202208

SINGAPORE SPEC

main8990H-33421iAXZA10,AXZH10..ARL202208

BRUNEI SPEC

main8990H-33421iAXZA10,AXZH10..ARL202208

SOUTH AFRICA SPEC

main8990H-33430iAXZH10..ARL202008-202208

BRUNEI SPEC

main8990H-33430iAXZH10..ARL202008-202208

SOUTH AFRICA SPEC

main8990H-33430iAXZH10..ARL202008-202208

THAILAND SPEC

main8990H-33430iAXZH10..GEN202008-202208

PERU SPEC

main8990H-33430iAXZH10..GEN202008-202208

VIETNAM SPEC

main8990H-33430iAXZH10..GEN202008-202208

ARGENTINA SPEC

main8990H-33430iAXZH10..GEN202008-202208

SINGAPORE SPEC

main8990H-33450iAXZH10..IND202008-202208

main8990H-33460iAXZA10,MXZA10..CHI202008-202402

main8990H-33470iAXZH10..CHI202008-202208

main8990H-33480iAXZA10..RHD202008-202108

main8990H-33490iAXZH10..ARL,GEN202008-202208

main8990H-33550iAXZH10..EUR202402-202408

sub8990H-33551

main8990H-33551iAXZH10..EUR202409

main8990H-33570iAXZH10,MXZA10..CHI202402-202502

89904CTRANSMITTER SUB-ASSY, ELECTRICAL KEY(CARD KEY)

9017905011

main90179-05011

9017906274

main90179-06274

20 parts on this diagram · 2 diagrams in section
