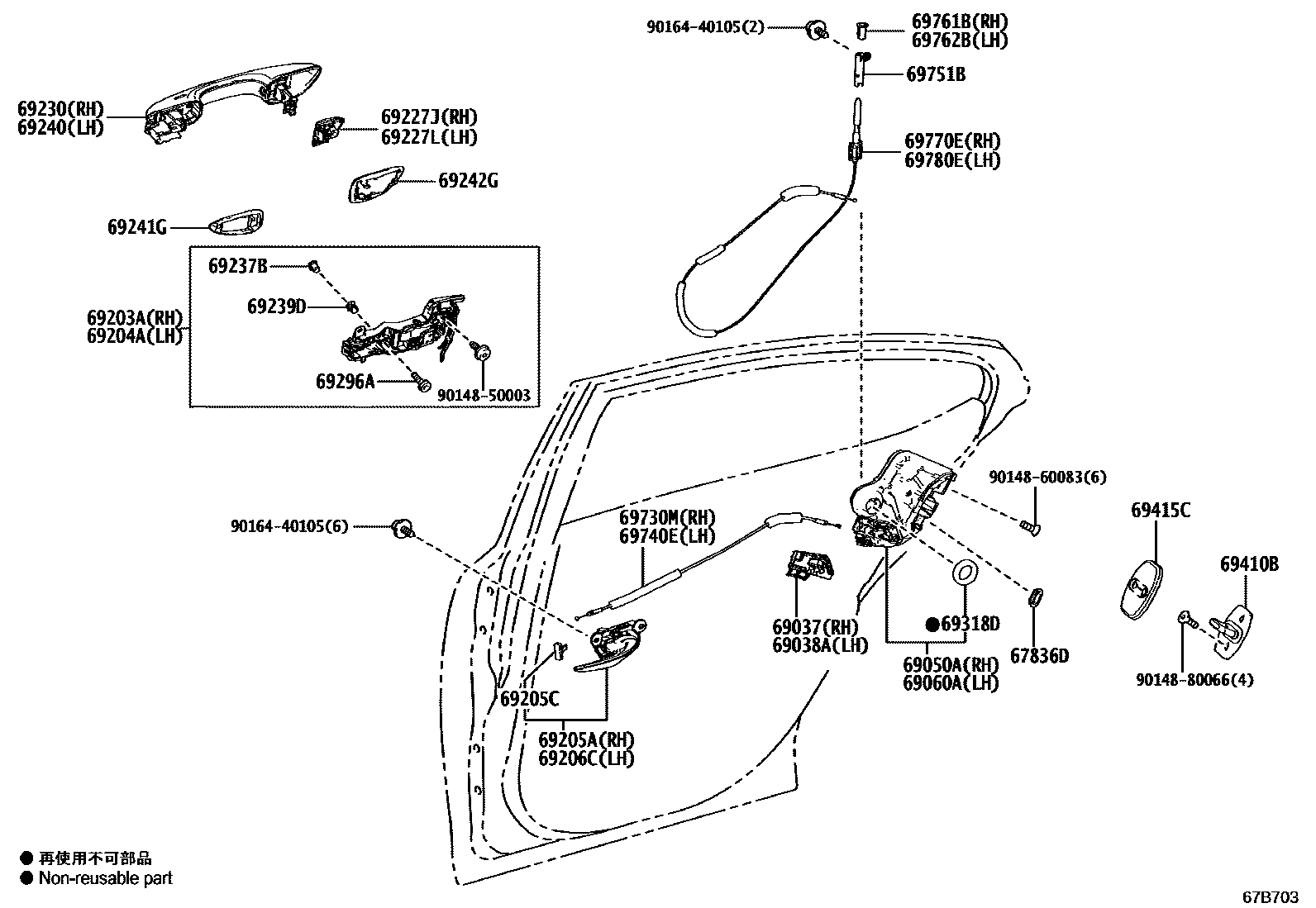

REAR DOOR LOCK & HANDLE

67836DCOVER, REAR DOOR LOCK CHILD PROTECTION

main67836-33030iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10201806-202110

69037COVER SUB-ASSY, REAR DOOR LOCK, RH

main69037-30010iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10201806-202110

69038ACOVER SUB-ASSY, REAR DOOR LOCK, LH

main69038-30010iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10201806-202110

69050ALOCK ASSY, REAR DOOR W/MOTOR, RH

main69050-33140iASZ10,AXZA10,AXZH10,GSZ10,MXZA10..ARL,CHI,GCC,GEN,IND201806-202110

main69050-48080iAXZA10,AXZH10,GSZ10,MXZA10..EUR201806-202108

69060ALOCK ASSY, REAR DOOR W/MOTOR, LH

main69060-33140iASZ10,AXZA10,AXZH10,GSZ10,MXZA10..ARL,CHI,GCC,GEN,IND201806-202110

main69060-48080iASZ10,AXZA10,AXZH10,GSZ10..EUR201806-202108

69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH

main69203-33080iASZ10,AXZA10,AXZH10,GSZ10201806-201809

sub69203-33081

main69203-33081iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10201809-202110

69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH

main69204-33080iASZ10,AXZA10,AXZH10,GSZ10201806-201809

sub69204-33081

main69204-33081iAXZA10,AXZH10,GSZ10,MXZA10201809-202110

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69270-50030iAXZA10,AXZH10,GSZ10,MXZA10201806-202110

69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)

main69275-30070iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10201808-202110

main90541-07050iASZ10,AXZA10,GSZ10201806-201808

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69280-50030iAXZA10,AXZH10,GSZ10,MXZA10201806-202110

69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH

main69227-50060iAXZA10,AXZH10,GSZ10,MXZA10201806-202110

BLACK

69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH

main69228-50040iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10201806-202110

BLACK

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69210-33170-A0iGSZ10;AXZH10..EUR;AXZA10..CHI201806-201808

WHITE NOVA GF.,083

sub69210-33171

main69210-33170-A1iASZ10,AXZA10,AXZH10,GSZ10201806-201808

SONIC QUARTZ,085

sub69210-33171

main69210-33170-B0iASZ10,AXZA10,AXZH10,GSZ10201806-201808

MERCURY GRAY MC.,1H9

sub69210-33171

main69210-33170-B1iASZ10,AXZA10,AXZH10,GSZ10201806-201808

PLATINUM SILVER ME.,1J4

sub69210-33171

main69210-33170-B2iASZ10,AXZA10,AXZH10,GSZ10201806-201808

SONIC TITANIUM,1J7

sub69210-33171

main69210-33170-C0iASZ10,AXZA10,AXZH10,GSZ10201806-201808

BLACK,212

sub69210-33171

main69210-33170-C1iASZ10,AXZA10,AXZH10,GSZ10201806-201808

GRAPHITE BLACK GF.,223

sub69210-33171

main69210-33170-D0iASZ10,AXZA10,AXZH10,GSZ10201806-201808

RED MC.CS.,3R1

sub69210-33171

main69210-33170-E0iASZ10,AXZA10,AXZH10,GSZ10201806-201808

ICE ECRU M.M.,4X8

sub69210-33171

main69210-33170-G0iASZ10,AXZA10,AXZH10,GSZ10201806-201808

SUNLIGHT GREEN M.M.,6X0

sub69210-33171

main69210-33170-J0iGSZ10;AXZH10..EUR;AXZA10..CHI201806-201808

HEAT BLUE CONTRAST LAYERI,8X1

sub69210-33171

main69210-33170-J1iASZ10,AXZA10,AXZH10,GSZ10201806-201808

DEEP BLUE MC.,8X5

sub69210-33171

main69210-33171-A0iGSZ10;AXZH10..ARL,EUR;AXZA10..CHI,EUR,GEN201809-202108

WHITE NOVA GF.,083

main69210-33171-A1iAXZA10,AXZH10,GSZ10,MXZA10201809-202110

SONIC QUARTZ,085

main69210-33171-B0iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10201809-202110

MERCURY GRAY MC.,1H9

main69210-33171-B1iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10201809-202110

PLATINUM SILVER ME.,1J4

main69210-33171-B2iAXZA10,AXZH10,GSZ10,MXZA10201809-202110

SONIC TITANIUM,1J7

main69210-33171-B3iAXZA10,AXZH10,GSZ10,MXZA10202108

SONIC CHROME,1L1

main69210-33171-B4iAXZA10,AXZH10,GSZ10,MXZA10202108

SONIC IRIDIUM,1L2

main69210-33171-C0iAXZA10,AXZH10,GSZ10,MXZA10201809-202210

BLACK,212

main69210-33171-C1iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10201809-202110

GRAPHITE BLACK GF.,223

main69210-33171-D0iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10201809-202110

RED MC.CS.,3R1

main69210-33171-E0iAXZA10,AXZH10,GSZ10,MXZA10201809-202110

ICE ECRU M.M.,4X8

main69210-33171-G0iAXZA10,AXZH10,GSZ10,MXZA10201809-202110

SUNLIGHT GREEN M.M.,6X0

main69210-33171-J0iGSZ10;AXZH10..ARL,EUR;AXZA10..CHI,EUR,GEN201809-202108

HEAT BLUE CONTRAST LAYERI,8X1

main69210-33171-J1iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10201809-202110

DEEP BLUE MC.,8X5

69237BNUT, REAR DOOR HANDLE

main69237-62010iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10201806-202110

sub69237-0E010

69239DBUSH, REAR DOOR HANDLE

main69239-47010iAXZA10,AXZH10,GSZ10,MXZA10201806-202110

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69220-33080-A0iGSZ10;AXZH10..EUR;AXZA10..CHI201806-201808

WHITE NOVA GF.,083

sub69220-33081

main69220-33080-A1iASZ10,AXZA10,AXZH10,GSZ10201806-201808

SONIC QUARTZ,085

sub69220-33081

main69220-33080-B0iASZ10,AXZA10,AXZH10,GSZ10201806-201808

MERCURY GRAY MC.,1H9

sub69220-33081

main69220-33080-B1iASZ10,AXZA10,AXZH10,GSZ10201806-201808

PLATINUM SILVER ME.,1J4

sub69220-33081

main69220-33080-B2iASZ10,AXZA10,AXZH10,GSZ10201806-201808

SONIC TITANIUM,1J7

sub69220-33081

main69220-33080-C0iASZ10,AXZA10,AXZH10,GSZ10201806-201808

BLACK,212

sub69220-33081

main69220-33080-C1iASZ10,AXZA10,AXZH10,GSZ10201806-201808

GRAPHITE BLACK GF.,223

sub69220-33081

main69220-33080-D0iASZ10,AXZA10,AXZH10,GSZ10201806-201808

RED MC.CS.,3R1

sub69220-33081

main69220-33080-E0iASZ10,AXZA10,AXZH10,GSZ10201806-201808

ICE ECRU M.M.,4X8

sub69220-33081

main69220-33080-G0iASZ10,AXZA10,AXZH10,GSZ10201806-201808

SUNLIGHT GREEN M.M.,6X0

sub69220-33081

main69220-33080-J0iGSZ10;AXZH10..EUR;AXZA10..CHI201806-201808

HEAT BLUE CONTRAST LAYERI,8X1

sub69220-33081

main69220-33080-J1iASZ10,AXZA10,AXZH10,GSZ10201806-201808

DEEP BLUE MC.,8X5

sub69220-33081

main69220-33081-A0iGSZ10;AXZH10..ARL,EUR;AXZA10..CHI,EUR,GEN201809-202108

WHITE NOVA GF.,083

main69220-33081-A1iAXZA10,AXZH10,GSZ10,MXZA10201809-202110

SONIC QUARTZ,085

main69220-33081-B0iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10201809-202110

MERCURY GRAY MC.,1H9

main69220-33081-B1iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10201809-202110

PLATINUM SILVER ME.,1J4

main69220-33081-B2iAXZA10,AXZH10,GSZ10,MXZA10201809-202110

SONIC TITANIUM,1J7

main69220-33081-B3iAXZA10,AXZH10,GSZ10,MXZA10202108

SONIC CHROME,1L1

main69220-33081-B4iAXZA10,AXZH10,GSZ10,MXZA10202108

SONIC IRIDIUM,1L2

main69220-33081-C0iAXZA10,AXZH10,GSZ10,MXZA10201809-202210

BLACK,212

main69220-33081-C1iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10201809-202110

GRAPHITE BLACK GF.,223

main69220-33081-D0iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10201809-202110

RED MC.CS.,3R1

main69220-33081-E0iAXZA10,AXZH10,GSZ10,MXZA10201809-202110

ICE ECRU M.M.,4X8

main69220-33081-G0iAXZA10,AXZH10,GSZ10,MXZA10201809-202110

SUNLIGHT GREEN M.M.,6X0

main69220-33081-J0iGSZ10;AXZH10..ARL,EUR;AXZA10..CHI,EUR,GEN201809-202108

HEAT BLUE CONTRAST LAYERI,8X1

main69220-33081-J1iAXZA10,AXZH10,GSZ10,MXZA10201809-202110

DEEP BLUE MC.,8X5

69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT

main69241-33040iAXZA10,AXZH10,GSZ10,MXZA10201806-202110

RH

main69242-33050iAXZA10,AXZH10,GSZ10,MXZA10201806-202110

LH

69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR

main69241-33050iAXZA10,AXZH10,GSZ10,MXZA10201806-202110

RH

main69242-33060iAXZA10,AXZH10,GSZ10,MXZA10201806-202110

LH

69296ASCREW, DOOR INSIDE HANDLE

main69296-30010iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10201806-202203

main90148-50006iAXZA10,AXZH10,GSZ10,MXZA10202204

69318DSEAL, DOOR LOCK WIRING HARNESS

main69318-51010iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10201806-202110

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-33030iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10201806-202110

69415CCOVER, DOOR LOCK STRIKER, REAR

main69415-60020iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10201806-202110

69730MCABLE, REAR DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)

main69730-33130iAXZA10,AXZH10,GSZ10,MXZA10201806-202110

69740ECABLE, REAR DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)

main69730-33130iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10201806-202110

69751BHOLDER, DOOR LOCKING(FOR REAR DOOR)

main69751-33020iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10201806-202110

RH

main69752-33010iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10201806-202110

LH

69761BBEZEL, REAR DOOR LOCK CONTROL KNOB, RH

main69761-33020-C0iAXZH10..EUR;AXZA10,GSZ10,MXZA10..ARL,EUR202108

BLACK,TRIM0#,2#,4#,6#,7#

main69761-33020-C0iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10201806-202110

BLACK,TRIM1#,2#,5#,6#

main69761-33020-C0iAXZH10..EUR;AXZA10,GSZ10,MXZA10..ARL,EUR202108

BLACK,TRIM0#,2#,3#,4#,6#,7#

main69761-33020-C0iAXZH10..IND202110

BLACK,TRIM2#,4#,6#,7#

69762BBEZEL, REAR DOOR LOCK CONTROL KNOB, LH

main69762-33020-C0iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10201806-202110

BLACK,TRIM1#,2#,5#,6#

main69762-33020-C0iAXZH10..EUR;AXZA10,GSZ10,MXZA10..ARL,EUR202108

BLACK,TRIM0#,2#,4#,6#,7#

main69762-33020-C0iAXZH10..EUR;AXZA10,GSZ10,MXZA10..ARL,EUR202108

BLACK,TRIM0#,2#,3#,4#,6#,7#

main69762-33020-C0iAXZH10..IND202110

BLACK,TRIM2#,4#,6#,7#

69770ECABLE, REAR DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)

main69770-33090iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10201806-202110

69780ECABLE, REAR DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)

main69770-33090iMXZA10..CHI;ASZ10,AXZA10,AXZH10,GSZ10201806-202110

9014850003

main90148-50003

9014860083

main90148-60083

9014880066

main90148-80066

9016440105

main90164-40105

33 parts on this diagram · 1 diagram in section
