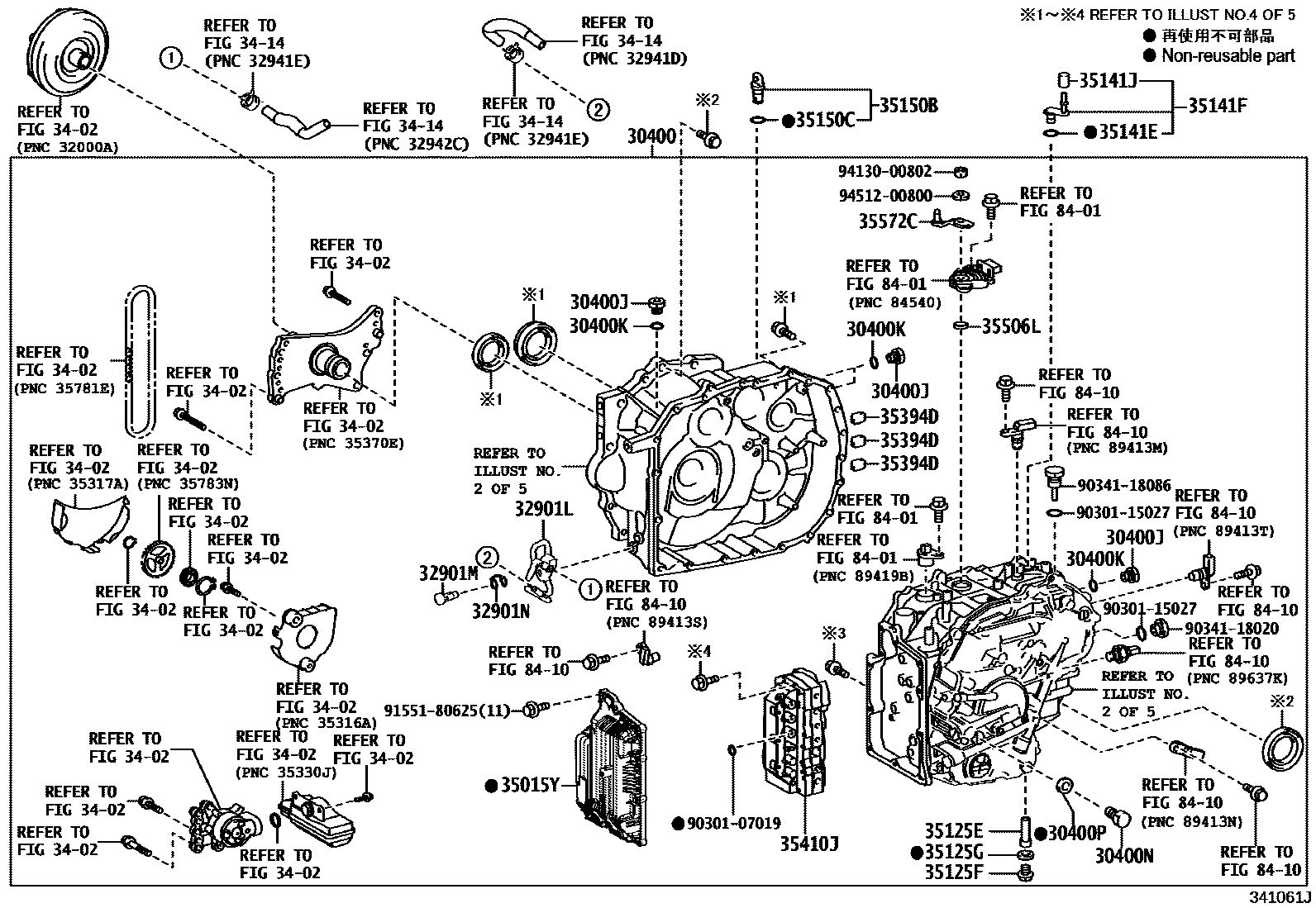

TRANSAXLE ASSY(CVT)

0001 1K120 0003 1K120,W/O(CHINA VEHICLE TYPE(C0004 1K121 0005 1K120 0007 1K120,W/O(CHINA VEHICLE TYPE(C0008 1K121 0009 1K120,K121 0010 1K120 0012 1K120,W/O(CHINA VEHICLE TYPE(C0013 1K121 0014 1K120,K121

30400TRANSAXLE ASSY, CONTINUOUSLY VARIABLE

main30400-33010supersedes 30400-33020iMXZA10201907-202108

K120

30400JPLUG, TRANSAXLE HOLE

main90341-08001×4iMXZA10201907-202108

30400KGASKET, TRANSAXLE HOLE PLUG

main90301-06196×4iMXZA10201907-202108

30400NPLUG, REFILL(CVT)

main90341-18077iMXZA10201907-202108

30400PGASKET, REFILL PLUG(CVT)

main90430-18008iMXZA10201907-202108

32901LELBOW SUB-ASSY, OIL COOLER

main32901-42010iMXZA10201907-202108

32901MBOLT, UNION(FOR OIL COOLER)

main90401-14019×2iMXZA10201907-202108

32901NGASKET(FOR OIL COOLER UNION)

main90430-14017×2iMXZA10201907-202108

3402TORQUE CONVERTER, FRONT OIL PUMP(CVT)

→ Go to FIG 34-02

3414OIL COOLER & TUBE(CVT)

→ Go to FIG 34-14

35015YCOVER SUB-ASSY, TRANSAXLE SIDE

main35015-33010supersedes 35015-42020iMXZA10201907-202108

35125ETUBE, OVERFLOW(CVT)

main35125-12500iMXZA10202108

35125FPLUG, OVERFLOW(CVT)

main90341-18016iMXZA10201907-202108

35125GGASKET, OVERFLOW PLUG(CVT)

main90430-18008iMXZA10201907-202108

35141ERING, O(FOR BREATHER PLUG)

main90301-09173iMXZA10201907-202108

35141FPLUG, BREATHER, NO.1(CVT)

main90930-03240iMXZA10201907-202108

35141JPLUG, BREATHER, NO.2(CVT)

main90930-03243iMXZA10201907-202108

35150BPLUG ASSY, TRANSMISSION CASE

main35150-48010iMXZA10201907-202108

35150CRING, O (FOR TRANSMISSION CASE PLUG)

main90301-09173iMXZA10201907-202108

35394DMAGNET, OIL CLEANER(CVT)

main35394-48010×3iMXZA10201907-202108

35410JBODY ASSY, TRANSMISSION VALVE

main35410-12A30iMXZA10201907-202006

main35410-K0010iMXZA10..EUR202108

35506LSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002iMXZA10201907-202108

35572CLEVER, TRANSMISSION CONTROL SHAFT

main35572-12190iMXZA10201907-202108

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

→ Go to FIG 84-10

9030107019

main90301-07019

9030115027

main90301-15027

9034118020

main90341-18020

9034118086

main90341-18086

9155180625

main91551-80625

9413000802

main94130-00802

9451200800

main94512-00800

32 parts on this diagram · 11 diagrams in section
