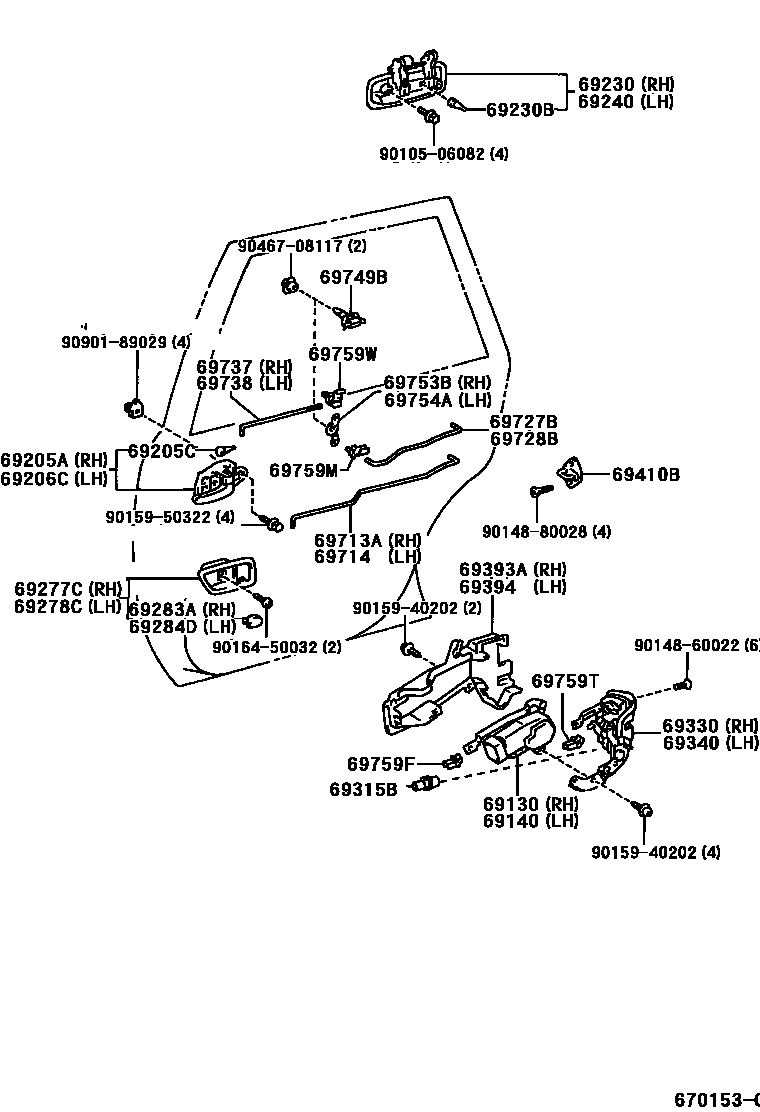

REAR DOOR LOCK & HANDLE
69130ACTUATOR ASSY, REAR DOOR LOCK, RH
69140ACTUATOR ASSY, REAR DOOR LOCK, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
SUPER WHITE 2,040
GRAY M.M.,1B2
DK.GRAY M.M.,1C6
SLVER ME.,1C8
BLACK,202
RED MM,3K4
MAGENTA MC.,3L3
DK.RED MC.,3N6
BEIGE ME.,4M9
DK.GREEN M.M.,6P2
GREEN MC.,6R1
DK.BLUE M.M.,8L3
BLUE M.M.,8N4
BLUE M.M.,8N7
GRAYISH PURPLE M.M.,930
LT.PURPLE ME.OP.,931
69230BCUSHION(FOR REAR DOOR OUTSIDE HANDLE)
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
SUPER WHITE 2,040
GRAY M.M.,1B2
DK.GRAY M.M.,1C6
SLVER ME.,1C8
BLACK,202
RED MM,3K4
MAGENTA MC.,3L3
DK.RED MC.,3N6
BEIGE ME.,4M9
DK.GREEN M.M.,6P2
GREEN MC.,6R1
DK.BLUE M.M.,8L3
BLUE M.M.,8N4
BLUE M.M.,8N7
GRAYISH PURPLE M.M.,930
LT.PURPLE ME.OP.,931
69277CBEZEL, REAR DOOR INSIDE HANDLE, RH
69278CBEZEL, REAR DOOR INSIDE HANDLE, LH
69283APLUG, REAR DOOR INSIDE HANDLE BEZEL, RH
BLUE GRAY,TRIM1#
MD. OAK,TRIM4#
SAGE,TRIM6#
69284DPLUG, REAR DOOR INSIDE HANDLE BEZEL, LH
69315BRETAINER, REAR DOOR LOCK SOLENOID
69330LOCK ASSY, REAR DOOR, RH
69340LOCK ASSY, REAR DOOR, LH
69393ACOVER, REAR DOOR LOCK, OUTER RH
69394COVER, REAR DOOR LOCK, OUTER LH
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69713ALINK, REAR DOOR LOCK REMOTE CONTROL, RH
69714LINK, REAR DOOR LOCK REMOTE CONTROL, LH
69727BLINK, REAR DOOR INSIDE LOCKING, NO.2 RH
69728BLINK, REAR DOOR INSIDE LOCKING, NO.2 LH
69737LINK, REAR DOOR INSIDE LOCKING, RH
69738LINK, REAR DOOR INSIDE LOCKING, LH
69749BCLAMP, REAR DOOR LOCK LINK
69753BBELLCRANK, REAR DOOR LOCK CONTROL, RH
69754ABELLCRANK, REAR DOOR LOCK CONTROL, LH
69759FSNAP, REAR DOOR LOCK CONTROL LINK
RH
LH
69759MSNAP, DOOR LOCK CONTROL LINK
69759TSNAP, REAR DOOR INSIDE HANDLE
GREEN
GRAY
69759WSNAP, REAR DOOR LOCK CONTROL LINK
9010506082
main90105-06082
9014860022
main90148-60022
9014880028
main90148-80028
9015940202
main90159-40202
9015950322
main90159-50322
9016450032
main90164-50032
9046708117
main90467-08117
9090189029
main90901-89029
39 parts on this diagram · 1 diagram in section
