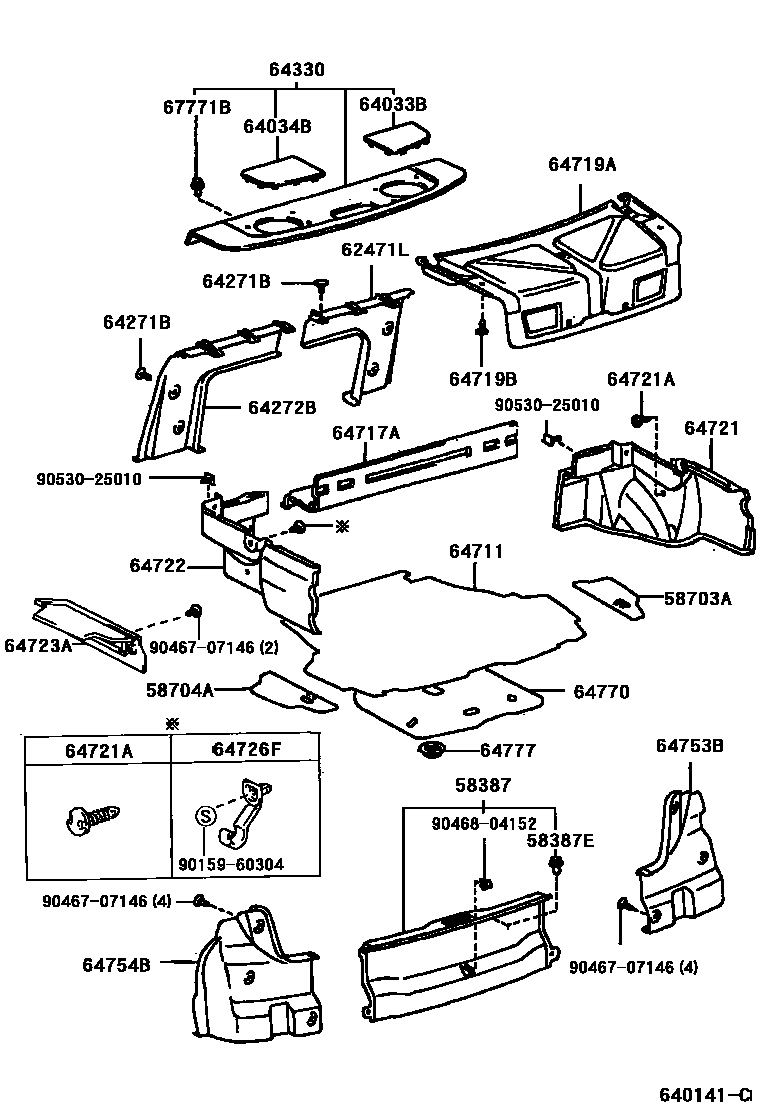

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
58387PLATE, REAR FLOOR FINISH
BLACK,TRIM1#,4#,6#
58387ECLIP(FOR REAR FLOOR FINISH PLATE)
58703ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH
58704ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH
62471LBOARD, ROOM PARTITION, RH
64033BGRILLE SUB-ASSY, REAR SPEAKER, RH
BLUISH GRAY,TRIM1#
OAK,TRIM4#
DK.SAGE,TRIM6#
64034BGRILLE SUB-ASSY, REAR SPEAKER, LH
BLUISH GRAY,TRIM1#
OAK,TRIM4#
DK.SAGE,TRIM6#
64271BCLIP(FOR ROOM PARTITION BOARD)
64272BBOARD, ROOM PARTITION, LH
64330PANEL ASSY, PACKAGE TRAY TRIM
BLUISH GRAY,TRIM1#
OAK,TRIM4#
DARK SAGE,TRIM6#
64711MAT, LUGGAGE COMPARTMENT FLOOR
BLACK,TRIM1#,4#
CHINA SPEC,BLACK,TRIM1#,4#,6#
BLACK,TRIM1#,4#,6#
BLACK,TRIM1#,4#,6#,(J)
BLACK,TRIM1#,4#,6#
BLACK,TRIM1#,4#,6#,(L)
64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT
BLACK,TRIM1#,4#,6#
64719ACOVER, LUGGAGE COMPARTMENT DOOR
BLACK,TRIM1#,4#,6#
64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)
64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
BLACK,TRIM1#,4#,6#
BLACK,TRIM1#,4#,6#
64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH
BLACK,TRIM1#,4#,6#
BLACK,TRIM1#,4#,6#
64723ACOVER, LUGGAGE COMPARTMENT TRIM, INNER LOWER
BLACK,TRIM1#,4#
BLACK,TRIM1#,4#,6#
64726FHOOK, LUGGAGE COMPARTMENT TRIM, NO.2
64753BPLATE, REAR FLOOR FINISH SIDE, RH
64754BPLATE, REAR FLOOR FINISH SIDE, LH
BLACK,TRIM1#,4#,6#
64770COVER ASSY, SPARE WHEEL
64777CLAMP, SPARE WHEEL COVER
67771BRETAINER, PACKAGE TRAY TRIM
9015960304
main90159-60304
9046707146
main90467-07146
9046804152
main90468-04152
9053025010
main90530-25010
28 parts on this diagram · 1 diagram in section
