ENGINE OVERHAUL GASKET KIT

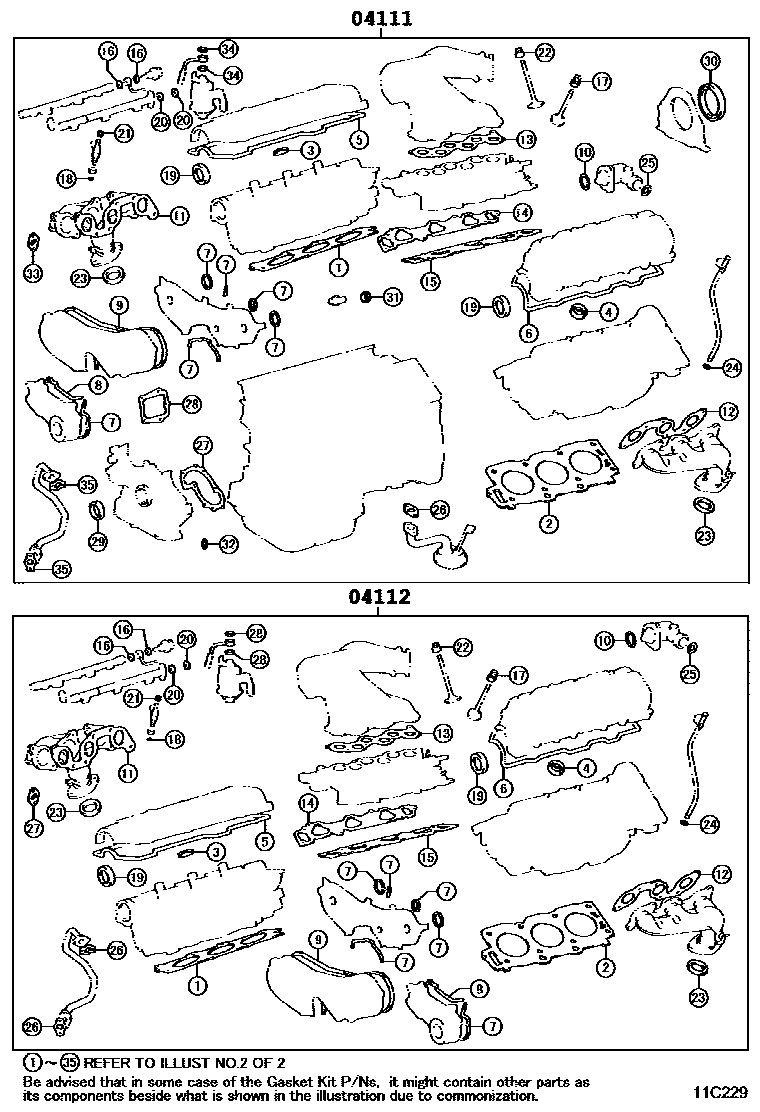

Parts diagram
04111GASKET KIT, ENGINE OVERHAUL
main04111-20040i199608-199710
sub04111-20041
main04111-20041i199710-200001
main04111-20042i200001
sub04111-20043
main04111-74640i199608-199612
sub04111-74642
main04111-74641i199612
04112GASKET KIT, ENGINE VALVE GRIND
main04112-20030i199608-199710
sub04112-20031
main04112-20031i199710-200001
main04112-20032i200001
sub04112-20033
main04112-74580i199608-199612
sub04112-74582
main04112-74581i199612

2 parts on this diagram · 6 diagrams in section
