PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

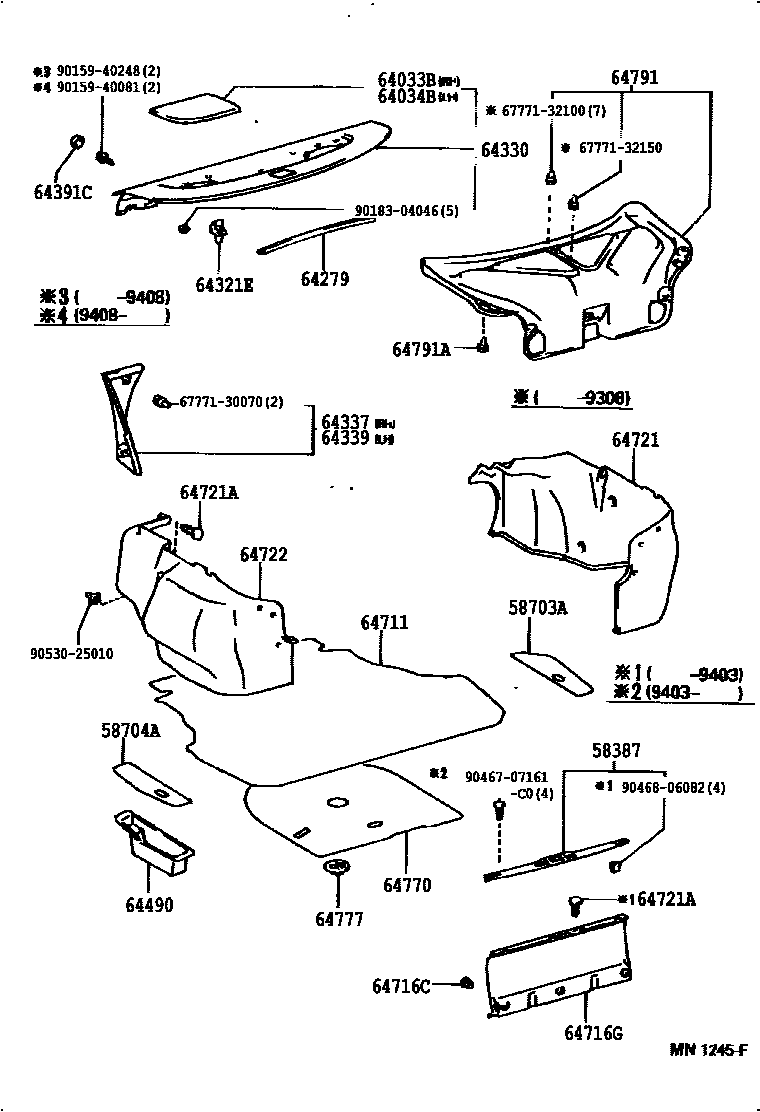

Parts diagram
58387PLATE, REAR FLOOR FINISH
main58387-33010-01i199106-199308
BLACK,TRIM1#,8#,9#
sub58387-33011
sub90467-07161
main58387-33010-01i199308-199403
BLACK,TRIM1#,4#,9#
sub58387-33011
sub90467-07161
main58387-33011-22i199408-199608
BLACK,TRIM1#,4#,9#
sub58387-33011
main58387-33011-C0i199403-199408
BLACK,TRIM1#,4#,9#
sub58387-33011
58703ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH
main58703-33010i199106-199608
58704ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH
main58704-32050i199106-199608
64033BGRILLE SUB-ASSY, REAR SPEAKER, RH
main64033-33020-02i199106-199408
TAUPE,TRIM9#
sub64033-33020
main64033-33020-03i199106-199408
MEDIUM GRAY,TRIM1#
sub64033-33020
main64033-33020-04i199106-199308
DARK BLUE,TRIM8#
sub64033-33020
main64033-33020-E0i199308-199408
OAK,TRIM4#
sub64033-33020
main64033-33040-B0i199408-199608
MD.GRAY,TRIM1#
sub64033-33040
main64033-33040-E0i199408-199608
OAK,TRIM4#
sub64033-33040
main64033-33040-K0i199408-199608
TAUPE,TRIM9#
sub64033-33040
64034BGRILLE SUB-ASSY, REAR SPEAKER, LH
main64034-33010-02i199106-199408
TAUPE,TRIM9#
sub64034-33010
main64034-33010-03i199106-199408
MEDIUM GRAY,TRIM1#
sub64034-33010
main64034-33010-04i199106-199308
DARK BLUE,TRIM8#
sub64034-33010
main64034-33010-E0i199308-199408
OAK,TRIM4#
sub64034-33010
main64034-33040-B0i199408-199608
MD.GRAY,TRIM1#
sub64034-33040
main64034-33040-E0i199408-199608
OAK,TRIM4#
sub64034-33040
main64034-33040-K0i199408-199608
TAUPE,TRIM9#
sub64034-33040
64279PROTECTOR, ROOM PARTITION
main64279-33010-C0i199106-199304
BLACK,TRIM1#,8#,9#
sub64279-33011
main64279-33011-C0i199304-199307
BLACK,TRIM1#,9#
sub64279-33012
main64279-33011-C0i199304-199307
BLACK,TRIM1#,8#,9#
sub64279-33012
main64279-33012-C0i199308-199408
BLACK,TRIM1#,4#,9#
sub64279-33012
main64279-33012-C0i199307-199308
BLACK,TRIM1#,8#,9#
sub64279-33012
main64279-33012-C1i199408-199608
BLACK,TRIM1#,4#,9#
sub64279-33012
64321EBRACKET, PACKAGE TRAY TRIM
main64321-32010i199106-199608
64330PANEL ASSY, PACKAGE TRAY TRIM
main64330-33030-02i199106-199402
TAUPE,TRIM9#
sub64330-33030
main64330-33030-02i199402-199408
W(REAR SEAT),TAUPE,TRIM9#
sub64330-33030
main64330-33030-03i199402-199408
W(REAR SEAT),MEDIUM GRAY,TRIM1#
sub64330-33030
main64330-33030-03i199106-199402
MEDIUM GRAY,TRIM1#
sub64330-33030
main64330-33030-04i199106-199308
DARK BLUE,TRIM8#
sub64330-33030
main64330-33030-E0i199402-199408
W(REAR SEAT),OAK,TRIM4#
sub64330-33030
main64330-33030-E0i199308-199402
OAK,TRIM4#
sub64330-33030
main64330-33040-02i199106-199208
W(SPEAKER),TAUPE,TRIM9#
sub64330-33041
main64330-33040-02i199106-199208
TAUPE,TRIM9#
sub64330-33041
main64330-33040-03i199106-199208
W(SPEAKER),MEDIUM GRAY,TRIM1#
sub64330-33041
main64330-33040-03i199106-199208
MEDIUM GRAY,TRIM1#
sub64330-33041
main64330-33040-04i199106-199208
W(SPEAKER),DARK BLUE,TRIM8#
sub64330-33041
main64330-33040-04i199106-199208
DARK BLUE,TRIM8#
sub64330-33041
main64330-33041-E0i199308-199408
OAK,TRIM4#
main64330-33041-E0i199308-199402
W(SPEAKER),OAK,TRIM4#
main64330-33041-E0i199308-199402
W(REAR SPEAKER),OAK,TRIM4#
main64330-33041-K0i199208-199402
W(REAR SPEAKER),TAUPE,TRIM9#
main64330-33041-K0i199208-199408
TAUPE,TRIM9#
main64330-33041-K0i199308-199402
W(SPEAKER),TAUPE,TRIM9#
main64330-33041-S0i199208-199402
W(REAR SPEAKER),MEDIUM GRAY,TRIM1#
main64330-33041-S0i199208-199408
MEDIUM GRAY,TRIM1#
main64330-33041-S0i199308-199402
W(SPEAKER),MEDIUM GRAY,TRIM1#
main64330-33041-W0i199208-199308
W(REAR SPEAKER),DARK BLUE,TRIM8#
main64330-33041-W0i199208-199308
DARK BLUE,TRIM8#
main64330-33042-E0i199408-199608
OAK,TRIM4#
main64330-33042-K0i199408-199608
TAUPE,TRIM9#
main64330-33042-S0i199408-199608
MEDIUM GRAY,TRIM1#
main64330-33050-B0i199106-199208
W(SPEAKER & CENTER STOP LAMP),MEDIUM GRAY,TRIM1#
sub64330-33051
main64330-33050-J0i199106-199208
W(SPEAKER & CENTER STOP LAMP),DARK BLUE,TRIM8#
sub64330-33051
main64330-33050-K0i199106-199208
W(SPEAKER & CENTER STOP LAMP),TAUPE,TRIM9#
sub64330-33051
main64330-33051-B0i199208-199308
W(REAR SPEAKER & *HSL),MEDIUM GRAY,TRIM1#
main64330-33051-J0i199208-199308
W(REAR SPEAKER & *HSL),DARK BLUE,TRIM8#
main64330-33051-K0i199208-199308
W(REAR SPEAKER & *HSL),TAUPE,TRIM9#
64337GARNISH, PACKAGE TRAY TRIM, RH
main64337-33010-02i199211-199308
W(SPEAKER & CENTER STOP LAMP),TAUPE,TRIM9#
main64337-33010-02i199106-199308
TAUPE,TRIM9#
main64337-33010-03i199211-199308
W(SPEAKER & CENTER STOP LAMP),MEDIUM GRAY,TRIM1#
main64337-33010-03i199106-199308
MEDIUM GRAY,TRIM1#
main64337-33010-04i199106-199308
DARK BLUE,TRIM8#
main64337-33010-C0i199308-199408
OFF BLACK,TRIM1#,4#,9#
main64337-33011-C1i199408-199608
BLACK,TRIM1#,4#,9#
64339GARNISH, PACKAGE TRAY TRIM, LH
main64339-33010-02i199106-199308
TAUPE,TRIM9#
main64339-33010-02i199211-199308
W(SPEAKER & CENTER STOP LAMP),TAUPE,TRIM9#
main64339-33010-03i199211-199308
W(SPEAKER & CENTER STOP LAMP),MEDIUM GRAY,TRIM1#
main64339-33010-03i199106-199308
MEDIUM GRAY,TRIM1#
main64339-33010-04i199106-199308
DARK BLUE,TRIM8#
main64339-33010-C0i199308-199408
OFF BLACK,TRIM1#,4#,9#
main64339-33011-C1i199408-199608
BLACK,TRIM1#,4#,9#
64391CCAP
main90339-10005-02i199106-199109
TAUPE,TRIM9#
sub90339-10005
main90339-10005-13i199106-199408
MEDIUM GRAY,TRIM1#
sub90339-10005
main90339-10005-14i199106-199109
DARK BLUE,TRIM8#
sub90339-10005
main90339-10005-E0i199308-199408
OAK,TRIM4#
sub90339-10005
main90339-10005-J3i199109-199308
DARK BLUE,TRIM8#
sub90339-10005
main90339-10005-K1i199109-199408
TAUPE,TRIM9#
sub90339-10005
64490TRAY ASSY, LUGGAGE COMPARTMENT SIDE
main64490-32010-C0i199106-199308
BLACK,TRIM1#,9#
sub64490-32010
main64490-32010-C0i199308-199608
BLACK,TRIM1#,4#,9#
sub64490-32010
64711MAT, LUGGAGE COMPARTMENT FLOOR
main64711-06020-C1i199308-199501
OFF BLACK,TRIM1#,4#,9#
main64711-06020-C1i199204-199308
OFF BLACK,TRIM1#,8#,9#
main64711-06021-C1i199501-199608
BLACK,TRIM1#,4#,9#
main64711-33010-01i199106-199308
OFF BLACK,TRIM1#,8#,9#
sub64711-33010
sub64711-33011
main64711-33010-01i199308-199408
OFF BLACK,TRIM1#,4#,9#
sub64711-33010
sub64711-33011
main64711-33010-20i199408-199501
BLACK,TRIM1#,4#,9#
sub64711-33010
sub64711-33011
main64711-33011-20i199501-199608
BLACK,TRIM1#,4#,9#
main64711-33020-20i199106-199308
OFF BLACK,TRIM1#,8#,9#
sub64711-33021
main64711-33020-20i199308-199501
OFF BLACK,TRIM1#,4#,9#
sub64711-33021
main64711-33021-20i199501-199608
BLACK,TRIM1#,4#,9#
64716CCLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
main90467-05085-01i199106-199308
BLACK,TRIM1#,8#,9#
sub90467-05085
main90467-05085-01i199308-199408
BLACK,TRIM1#,4#,9#
sub90467-05085
main90467-05085-C2i199408-199608
BLACK,TRIM1#,4#,9#
sub90467-05085
64716GCOVER, LUGGAGE COMPARTMENT TRIM, REAR
main64716-06010-C1i199308-199608
OFF BLACK,TRIM1#,4#,9#
main64716-06010-C1i199204-199308
OFF BLACK,TRIM1#,8#,9#
main64716-33010-01i199308-199408
OFF BLACK,TRIM1#,4#,9#
sub64716-33010
main64716-33010-01i199106-199308
OFF BLACK,TRIM1#,8#,9#
sub64716-33010
main64716-33010-C0i199408-199608
BLACK,TRIM1#,4#,9#
sub64716-33010
64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
main64721-33010-01i199308-199408
OFF BLACK,TRIM1#,4#,9#
sub64721-33010
main64721-33010-01i199106-199308
OFF BLACK,TRIM1#,8#,9#
sub64721-33010
main64721-33010-C0i199408-199608
BLACK,TRIM1#,4#,9#
sub64721-33010
64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
main90467-07042-C0i199308-199608
BLACK,TRIM1#,4#,9#
sub90467-07042
sub90467-06175
main90467-07042-C0i199106-199308
BLACK,TRIM1#,8#,9#
sub90467-07042
sub90467-06175
64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH
main64722-33010-01i199308-199408
OFF BLACK,TRIM1#,4#,9#
sub64722-33010
main64722-33010-01i199106-199308
OFF BLACK,TRIM1#,8#,9#
sub64722-33010
main64722-33010-C0i199408-199608
BLACK,TRIM1#,4#,9#
sub64722-33010
64770COVER ASSY, SPARE WHEEL
main64770-06020i199204-199408
main64770-33011i199408-199608
main64770-33020i199106-199408
sub64770-33011
64777CLAMP, SPARE WHEEL COVER
main64777-32030i199106-199608
64791COVER, BACK DOOR TRIM
main64791-33010-01i199106-199308
OFF BLACK,TRIM1#,8#,9#
sub64791-33060
sub90467-08076
main64791-33060-C0i199308-199608
OFF BLACK,TRIM1#,4#,9#
64791ACLIP(FOR BACK DOOR TRIM)
main90467-07059-22i199308-199608
BLACK,TRIM1#,4#,9#,TYPE A
sub90467-07059
main90467-07059-22i199106-199308
BLACK,TRIM1#,8#,9#
sub90467-07059
main90467-08076-C0i199308-199608
BLACK,TRIM1#,4#,9#,TYPE B
sub90467-08076
6777130070WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-30070
6777132100WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-32100
6777132150WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-32150
9015940081
main90159-40081
9015940248
main90159-40248
9018304046
main90183-04046
9046707161C0
main90467-07161C0
9046806082
main90468-06082
9053025010
main90530-25010

31 parts on this diagram · 1 diagram in section
