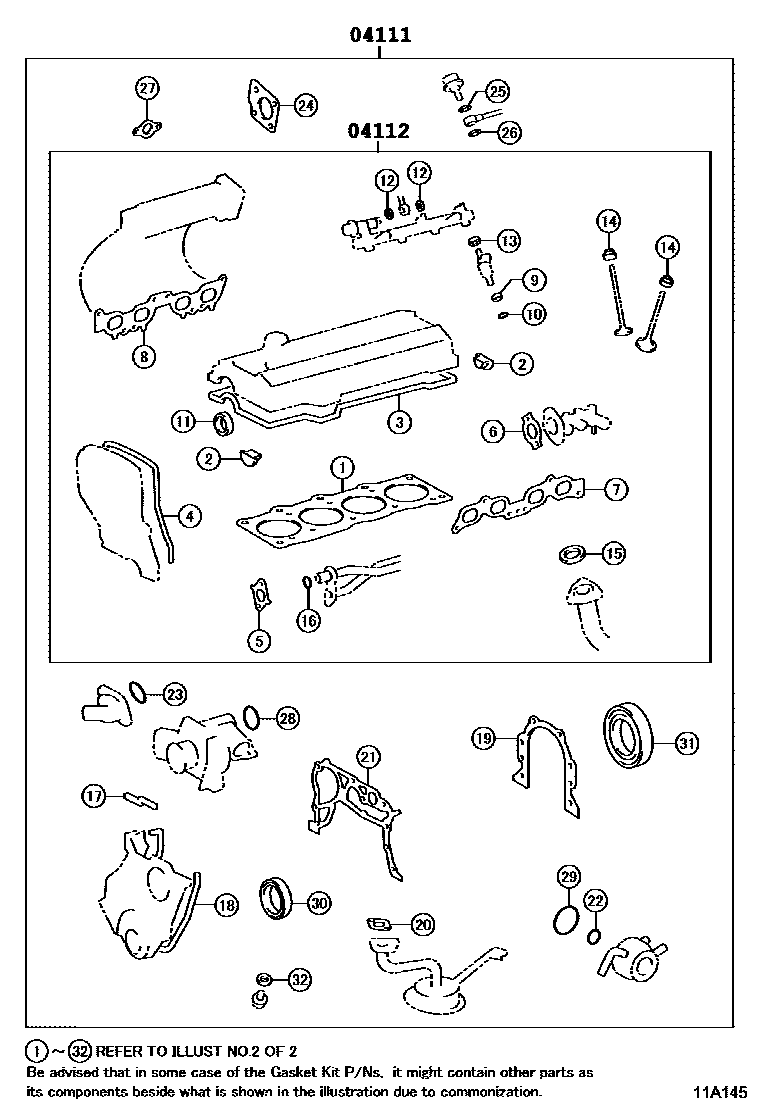

ENGINE OVERHAUL GASKET KIT

0001 1 0002 1 0003 1

04111GASKET KIT, ENGINE OVERHAUL

main04111-62050i3VZFE..VCV10..JPP199106-199608

main04111-74300i5SFE..SXV10..JPP199106-199508

sub04111-74303

main04111-74620i5SFE..SXV10..JPP199508-199608

sub04111-74622

04112GASKET KIT, ENGINE VALVE GRIND

main04112-62040i3VZFE..VCV10..JPP199106-199608

main04112-74290i5SFE..SXV10..JPP199106-199508

sub04112-74292

main04112-74580i5SFE..SXV10..JPP199508-199608

sub04112-74582

2 parts on this diagram · 3 diagrams in section
