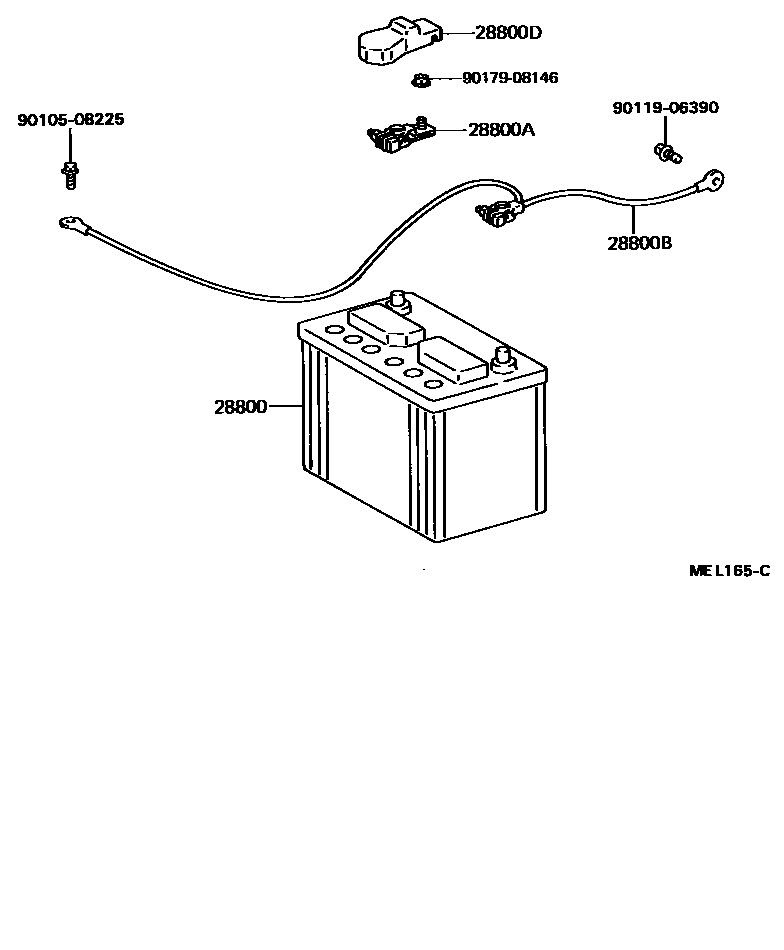

BATTERY & BATTERY CABLE

28800BATTERY

main28800-31021i3SFE..SV2#199008-199106

32C24L

main28800-42030i2VZFE..VZV21; 3SFE..SV2#..LHD; 3SFE..SV2#..RHD198808-199106

55D23L; 55D23L,COLD SPEC

main28800-64130i2CT..CV20198808-199106

80D26L

main28800-64180i2CT..CV20..LHD; 2CT..CV20..RHD198808-199106

95D31L,COLD SPEC

28800ATERMINAL, BATTERY POSITIVE

main90982-05040i2CT,3SFE,2VZFE..CV20,SV2#,VZV21198808-199106

28800BCABLE, BATTERY TO GROUND

main82123-32051i3SFE..SV2#198808-199106

main82123-32061i2CT..CV20198808-199106

main82123-32100i2VZFE..VZV21198808-199106

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-16010i2CT,3SFE,2VZFE..CV20,SV2#,VZV21198808-199106

9010508225

main90105-08225

9011906390

main90119-06390

9017908146

main90179-08146

7 parts on this diagram · 1 diagram in section
