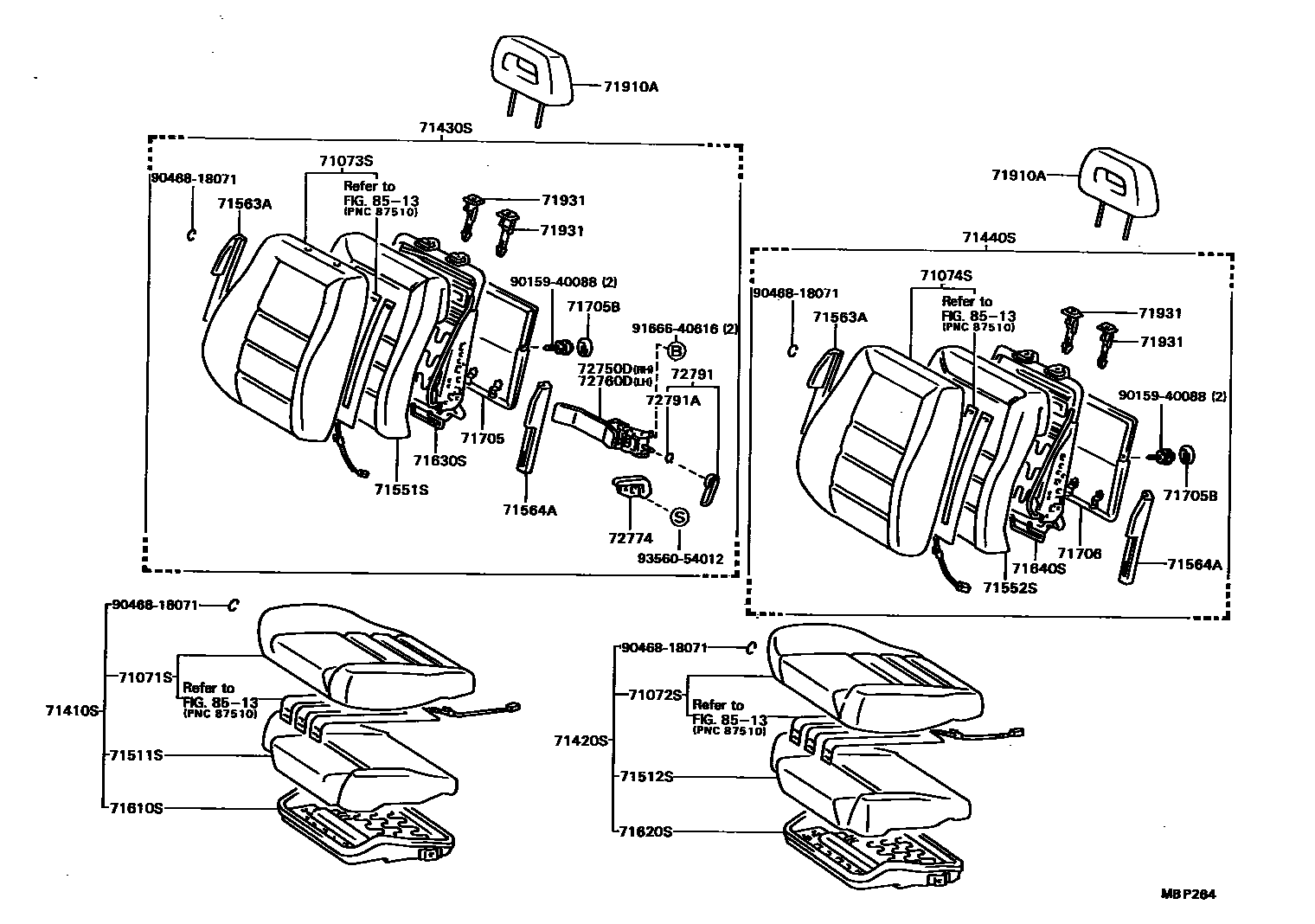

FRONT SEAT & SEAT TRACK

0001 1 0002 1 0003 1 0004 1

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-32570-03iSV21,VZV21..SED..LHD..(GLI,GXI)199008-199106

LEATHER PACKAGE,MEDIUM GRAY,TRIM1#

main71071-32590-03iSV21,VZV21..SED..LHD..(GLI,GXI)198908-199005

LEATHER PACKAGE & W(SEAT HEATER),MEDIUM GRAY,TRIM1#

main71071-32591-03iSV21,VZV21..SED..LHD..(GLI,GXI)199005-199008

LEATHER PACKAGE & W(SEAT HEATER),MEDIUM GRAY,TRIM1#

main71071-32661-03iCV20,SV21..LHD..(XL,XLI)199008-199106

MEDIUM GAY,TRIM1#

main71071-32661-04iCV20,SV21..LHD..(XL,XLI)199008-199106

DARK BLUE,TRIM8#

main71071-32661-06iCV20,SV21..LHD..(XL,XLI)199008-199106

BROWN,TRIM4#

main71071-32760-03iVZV21..LHD198808-199106

MEDIUM GRAY,TRIM1#

main71071-32760-04iVZV21..LHD198808-199106

DARK BLUE,TRIM8#

main71071-32760-06iVZV21..LHD198808-199106

BROWN,TRIM4#

main71071-32770-03iCV20,SV2#..RHD..(GL,GLI)198808-199106

MEDIUM GRAY,TRIM1#

main71071-32770-04iCV20,SV2#..RHD..(GL,GLI)198808-199106

DARK BLUE,TRIM8#

main71071-32780-03iCV20,SV2#..LHD..(GL,GLI)198808-199106

W(SEAT HEATER),MEDIUM GRAY,TRIM1#

main71071-32780-04iCV20,SV2#..LHD..(GL,GLI)198808-199106

W(SEAT HEATER),DARK BLUE,TRIM8#

main71071-32780-06iCV20,SV2#..LHD..(GL,GLI)198808-199106

W(SEAT HEATER),BROWN,TRIM4#

main71071-32790-03iCV20,SV2#..LHD..(GL,GLI)198808-199106

MEDIUM GRAY,TRIM1#

main71071-32790-04iCV20,SV2#..LHD..(GL,GLI)198808-199106

DARK BLUE,TRIM8#

main71071-32790-06iCV20,SV2#..LHD..(GL,GLI)198808-199106

BROWN,TRIM4#

main71071-32800-03×2iCV20,SV21..SED..(XL,XLI); CV20,SV21..WG..LHD..(XL,XLI)198808-199008

MEDIUM GRAY,TRIM1#

main71071-32800-04×2iCV20,SV21..SED..(XL,XLI); CV20,SV21..WG..LHD..(XL,XLI)198808-199008

DARK BLUE,TRIM8#

main71071-32800-06iCV20,SV21..SED..(XL,XLI); CV20,SV21..WG..LHD..(XL,XLI)198808-199008

BROWN,TRIM4#

main71071-32810-03iVZV21..RHD198808-199106

MEDIUM GRAY,TRIM1#

main71071-32810-04iVZV21..RHD198808-199106

DARK BLUE,TRIM8#

main71071-32840-03iCV20,SV21..LHD..(XL,XLI)198808-199008

W(SEAT HEATER),MEDIUM GRAY,TRIM1#

main71071-32840-04iCV20,SV21..LHD..(XL,XLI)198808-199008

W(SEAT HEATER),DARK BLUE,TRIM8#

main71071-32840-06iCV20,SV21..LHD..(XL,XLI)198808-199008

W(SEAT HEATER),BROWN,TRIM4#

main71071-32841-03iCV20,SV21..LHD..(XL,XLI)199008-199106

W(SEAT HEATER),MEDIUM GRAY,TRIM1#

main71071-32841-04iCV20,SV21..LHD..(XL,XLI)199008-199106

W(SEAT HEATER),DARK BLUE,TRIM8#

main71071-32841-06iCV20,SV21..LHD..(XL,XLI)199008-199106

W(SEAT HEATER),BROWN,TRIM4#

main71071-32850-03iVZV21..LHD198808-199106

W(SEAT HEATER),MEDIUM GRAY,TRIM1#

main71071-32850-04iVZV21..LHD198808-199106

W(SEAT HEATER),DARK BLUE,TRIM8#

main71071-32850-06iVZV21..LHD198808-199106

W(SEAT HEATER),BROWN,TRIM4#

main71071-32860-03iCV20..RHD..XL198808-199008

MEDIUM GRAY,TRIM1#

main71071-32860-04iCV20..RHD..XL198808-199008

DARK BLUE,TRIM8#

main71071-32861-03iCV20..RHD..XL199008-199106

MEDIUM GRAY,TRIM1#

main71071-32861-04iCV20..RHD..XL199008-199106

DARK BLUE,TRIM8#

main71071-3H150-03iVZV21..RHD199008-199106

LEATHER PACKAGE,MEDIUM GRAY,TRIM1#

main71071-3H151-03iVZV21..RHD199005-199008

LEATHER PACKAGE,MEDIUM GRAY,TRIM1#

main71071-3H190-03iSV21,VZV21..SED..LHD..(GLI,GXI)199005-199008

LEATHER PACKAGE,MEDIUM GRAY,TRIM1#

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-32570-03iSV21,VZV21..SED..LHD..(GLI,GXI)198908-199005

LEATHER PACKAGE & W(SEAT HEATER),MEDIUM GRAY,TRIM1#

main71072-32571-03iSV21,VZV21..SED..LHD..(GLI,GXI)199005-199008

LEATHER PACKAGE & W(SEAT HEATER),MEDIUM GRAY,TRIM1#

main71072-32631-03iCV20,SV21..LHD..(XL,XLI)199008-199106

MEDIUM GRAY,TRIM1#

main71072-32631-04iCV20,SV21..LHD..(XL,XLI)199008-199106

DARK BLUE,TRIM8#

main71072-32631-06iCV20,SV21..LHD..(XL,XLI)199008-199106

BROWN,TRIM4#

main71072-32730-03iVZV21..LHD198808-199106

MEDIUM GRAY,TRIM1#

main71072-32730-04iVZV21..LHD198808-199106

DARK BLUE,TRIM8#

main71072-32730-06iVZV21..LHD198808-199106

BROWN,TRIM4#

main71072-32740-03iCV20,SV2#..RHD..(GL,GLI)198808-199106

MEDIUM GRAY,TRIM1#

main71072-32740-04iCV20,SV2#..RHD..(GL,GLI)198808-199106

DARK BLUE,TRIM8#

main71072-32750-03iCV20,SV2#..LHD..(GL,GLI)198808-199106

W(SEAT HEATER),MEDIUM GRAY,TRIM1#

main71072-32750-04iCV20,SV2#..LHD..(GL,GLI)198808-199106

W(SEAT HEATER),DARK BLUE,TRIM8#

main71072-32750-06iCV20,SV2#..LHD..(GL,GLI)198808-199106

W(SEAT HEATER),BROWN,TRIM4#

main71072-32760-03iCV20,SV2#..LHD..(GL,GLI)198808-199106

MEDIUM GRAY,TRIM1#

main71072-32760-04iCV20,SV2#..LHD..(GL,GLI)198808-199106

DARK BLUE,TRIM8#

main71072-32760-06iCV20,SV2#..LHD..(GL,GLI)198808-199106

BROWN,TRIM4#

main71072-32770-03×2iCV20,SV21..SED..(XL,XLI); CV20,SV21..WG..LHD..(XL,XLI)198808-199008

MEDIUM GRAY,TRIM1#

main71072-32770-04iCV20,SV21..SED..(XL,XLI); CV20,SV21..WG..LHD..(XL,XLI)198808-199008

DARK BLUE,TRIM8#

main71072-32770-06×2iCV20,SV21..SED..(XL,XLI); CV20,SV21..WG..LHD..(XL,XLI)198808-199008

BROWN,TRIM4#

main71072-32780-03iVZV21..RHD198808-199106

MEDIUM GRAY,TRIM1#

main71072-32780-04iVZV21..RHD198808-199106

DARK BLUE,TRIM8#

main71072-32810-03×2iCV20,SV21..SED..(XL,XLI); CV20,SV21..WG..LHD..(XL,XLI)198808-199008

W(SEAT HEATER),MEDIUM GRAY,TRIM1#

main71072-32810-04×2iCV20,SV21..SED..(XL,XLI); CV20,SV21..WG..LHD..(XL,XLI)198808-199008

W(SEAT HEATER),DARK BLUE,TRIM8#

main71072-32810-06iCV20,SV21..SED..(XL,XLI); CV20,SV21..WG..LHD..(XL,XLI)198808-199008

W(SEAT HEATER),BROWN,TRIM4#

main71072-32811-03iCV20,SV21..LHD..(XL,XLI)199008-199106

W(SEAT HEATER),MEDIUM GRAY,TRIM1#

main71072-32811-04iCV20,SV21..LHD..(XL,XLI)199008-199106

W(SEAT HEATER),DARK BLUE,TRIM8#

main71072-32811-06iCV20,SV21..LHD..(XL,XLI)199008-199106

W(SEAT HEATER),BROWN,TRIM4#

main71072-32820-03iVZV21..LHD198808-199106

W(SEAT HEATER),MEDIUM GRAY,TRIM1#

main71072-32820-04iVZV21..LHD198808-199106

W(SEAT HEATER),DARK BLUE,TRIM8#

main71072-32820-06iVZV21..LHD198808-199106

W(SEAT HEATER),BROWN,TRIM4#

main71072-32830-03iCV20..RHD..XL198808-199008

MEDIUM GRAY,TRIM1#

main71072-32830-04iCV20..RHD..XL198808-199008

DARK BLUE,TRIM8#

main71072-32831-03iCV20..RHD..XL199008-199106

MEDIUM GRAY,TRIM1#

main71072-32831-04iCV20..RHD..XL199008-199106

DARK BLUE,TRIM8#

main71072-3H100-03iSV21,VZV21..SED..LHD..(GLI,GXI)199008-199106

LEATHER PACKAGE,MEDIUM GRAY,TRIM1#

main71072-3H160-03iVZV21..RHD198912-199005

LEATHER PACKAGE,MEDIUM GRAY,TRIM1#

main71072-3H161-03iVZV21..RHD199005-199008

LEATHER PACKAGE,MEDIUM GRAY,TRIM1#

main71072-3H190-03iSV21,VZV21..SED..LHD..(GLI,GXI)199005-199008

LEATHER PACKAGE,MEDIUM GRAY,TRIM1#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-32461-03iCV20..RHD..XL;CV20,SV21..SED..(XL,XLI)199008-199106

MEDIUM GRAY,TRIM1#

main71073-32461-04iCV20..RHD..XL;CV20,SV21..SED..(XL,XLI)199008-199106

DARK BLUE,TRIM8#

main71073-32461-06iCV20,SV21..SED..(XL,XLI)199008-199106

BROWN,TRIM4#

main71073-32480-03iVZV21..SED;SV21..SED..LHD..GLI198912-199005

LEATHER PACKAGE,MEDIUM GRAY,TRIM1#

main71073-32610-03iVZV21198808-199106

MEDIUM GRAY,TRIM1#

main71073-32610-04iVZV21198808-199106

DARK BLUE,TRIM8#

main71073-32610-06iVZV21..LHD198808-199106

BROWN,TRIM4#

main71073-32620-03iCV20,SV2#..GL,GLI198808-199106

MEDIUM GRAY,TRIM1#

main71073-32620-04iCV20,SV2#..GL,GLI198808-199106

DARK BLUE,TRIM8#

main71073-32620-06iCV20,SV2#..LHD..(GL,GLI)198808-199106

BROWN,TRIM4#

main71073-32630-03iCV20,SV2#..LHD..(GL,GLI)198808-199106

W(SEAT HEATER),MEDIUM GRAY,TRIM1#

main71073-32630-04iCV20,SV2#..LHD..(GL,GLI)198808-199106

W(SEAT HEATER),DARK BLUE,TRIM8#

main71073-32630-06iCV20,SV2#..LHD..(GL,GLI)198808-199106

W(SEAT HEATER),BROWN,TRIM4#

main71073-32640-03iCV20,SV21..XL,XLI198808-199008

MEDIUM GRAY,TRIM1#

main71073-32640-04iCV20,SV21..XL,XLI198808-199008

DARK BLUE,TRIM8#

main71073-32640-06iCV20,SV21..LHD..(XL,XLI)198808-199008

BROWN,TRIM4#

main71073-32650-03iCV20,SV21..SED..(XL,XLI); CV20,SV21..WG..LHD..(XL,XLI)198808-199008

W(SEAT HEATER),MEDIUM GRAY,TRIM1#

main71073-32650-04×2iCV20,SV21..SED..(XL,XLI); CV20,SV21..WG..LHD..(XL,XLI)198808-199008

W(SEAT HEATER),DARK BLUE,TRIM8#

main71073-32650-06iCV20,SV21..SED..(XL,XLI); CV20,SV21..WG..LHD..(XL,XLI)198808-199008

W(SEAT HEATER),BROWN,TRIM4#

main71073-32651-03iCV20,SV21..SED..(XL,XLI); CV20,SV21..WG..LHD..(XL,XLI)199008-199106

MEDIUM GRAY,TRIM1#; W(SEAT HEATER),MEDIUM GRAY,TRIM1#

main71073-32651-04iCV20,SV21..SED..(XL,XLI); CV20,SV21..WG..LHD..(XL,XLI)199008-199106

DARK BLUE,TRIM8#; W(SEAT HEATER),DARK BLUE,TRIM8#

main71073-32651-06iCV20,SV21..SED..(XL,XLI); CV20,SV21..WG..LHD..(XL,XLI)199008-199106

BROWN,TRIM4#; W(SEAT HEATER),BROWN,TRIM4#

main71073-32660-03iVZV21..LHD198808-199106

W(SEAT HEATER),MEDIUM GRAY,TRIM1#

main71073-32660-04iVZV21..LHD198808-199106

W(SEAT HEATER),DARK BLUE,TRIM8#

main71073-32660-06iVZV21..LHD198808-199106

W(SEAT HEATER),BROWN,TRIM4#

main71073-32760-03iSV21,VZV21..SED..LHD..(GLI,GXI)198908-199005

LEATHER PACKAGE & W(SEAT HEATER),MEDIUM GRAY,TRIM1#

main71073-32761-03iSV21,VZV21..SED..LHD..(GLI,GXI)199005-199008

LEATHER PACKAGE & W(SEAT HEATER),MEDIUM GRAY,TRIM1#

main71073-32870-03iVZV21..SED;SV21..SED..LHD..GLI199005-199008

LEATHER PACKAGE,MEDIUM GRAY,TRIM1#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71073-32610-03iVZV21198808-199106

MEDIUM GRAY,TRIM1#

main71073-32610-04iVZV21198808-199106

DARK BLUE,TRIM8#

main71073-32610-06iVZV21..LHD198808-199106

BROWN,TRIM4#

main71073-32620-03iCV20,SV2#..GL,GLI198808-199106

MEDIUM GRAY,TRIM1#

main71073-32620-04iCV20,SV2#..GL,GLI198808-199106

DARK BLUE,TRIM8#

main71073-32620-06iCV20,SV2#..LHD..(GL,GLI)198808-199106

BROWN,TRIM4#

main71073-32640-03iCV20,SV21..XL,XLI198808-199008

MEDIUM GRAY,TRIM1#

main71073-32640-04iCV20,SV21..XL,XLI198808-199008

DARK BLUE,TRIM8#

main71073-32640-06iCV20,SV21..LHD..(XL,XLI)198808-199008

BROWN,TRIM4#

main71074-32250-03iVZV21..SED;SV21..SED..LHD..GLI199008-199106

LEATHER PACKAGE,MEDIUM GRAY,TRIM1#

main71074-32271-03iCV20,SV21..SED..(XL,XLI); CV20..RHD..XL199008-199106

MEDIUM GRAY,TRIM1#

main71074-32271-04iCV20,SV21..SED..(XL,XLI); CV20..RHD..XL199008-199106

DARK BLUE,TRIM8#

main71074-32271-06iCV20,SV21..SED..(XL,XLI)199008-199106

BROWN,TRIM4#

main71074-32380-03iCV20,SV2#..LHD..(GL,GLI)198808-199106

W(SEAT HEATER),MEDIUM GRAY,TRIM1#

main71074-32380-04iCV20,SV2#..LHD..(GL,GLI)198808-199106

W(SEAT HEATER),DARK BLUE,TRIM8#

main71074-32380-06iCV20,SV2#..LHD..(GL,GLI)198808-199106

W(SEAT HEATER),BROWN,TRIM4#

main71074-32390-03iCV20,SV21..LHD..(XL,XLI)198808-199008

W(SEAT HEATER),MEDIUM GRAY,TRIM1#

main71074-32390-04iCV20,SV21..LHD..(XL,XLI)198808-199008

W(SEAT HEATER),DARK BLUE,TRIM8#

main71074-32390-06iCV20,SV21..LHD..(XL,XLI)198808-199008

W(SEAT HEATER),BROWN,TRIM4#

main71074-32391-03iCV20,SV21..LHD..(XL,XLI)199008-199106

W(SEAT HEATER),MEDIUM GRAY,TRIM1#

main71074-32391-04iCV20,SV21..LHD..(XL,XLI)199008-199106

W(SEAT HEATER),DARK BLUE,TRIM8#

main71074-32391-06iCV20,SV21..LHD..(XL,XLI)199008-199106

W(SEAT HEATER),BROWN,TRIM4#

main71074-32400-03iVZV21..LHD198808-199106

W(SEAT HEATER),MEDIUM GRAY,TRIM1#

main71074-32400-04iVZV21..LHD198808-199106

W(SEAT HEATER),DARK BLUE,TRIM8#

main71074-32400-06iVZV21..LHD198808-199106

W(SEAT HEATER),BROWN,TRIM4#

main71074-32460-03iSV21,VZV21..SED..LHD..(GLI,GXI)199008-199106

LEATHER PACKAGE & W(SEAT HEATER),MEDIUM GRAY,TRIM1#

main71074-32461-03iSV21,VZV21..SED..LHD..(GLI,GXI)199005-199008

LEATHER PACKAGE & W(SEAT HEATER),MEDIUM GRAY,TRIM1#

main71074-32540-03iVZV21..SED;SV21..SED..LHD..GLI199005-199008

LEATHER PACKAGE,MEDIUM GRAY,TRIM1#

71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71410-32410-03iSV21,VZV21..SED..LHD..(GLI,GXI)198908-199005

***,LEATHER PACKAGE & W(SEAT HEATER),MEDIUM GRAY,TRIM1#

main71410-32411-03iSV21,VZV21..SED..LHD..(GLI,GXI)199005-199008

***,LEATHER PACKAGE & W(SEAT HEATER),MEDIUM GRAY,TRIM1#

main71410-32560-03iSV21,VZV21..SED..LHD..(GLI,GXI)198908-199005

***,LEATHER PACKAGE,MEDIUM GRAY,TRIM1#

main71410-32651-03iCV20,SV21..LHD..(XL,XLI)199008-199106

***,MEDIUM GRAY,TRIM1#

main71410-32651-04iCV20,SV21..LHD..(XL,XLI)199008-199106

***,DARK BLUE,TRIM8#

main71410-32651-06iCV20,SV21..LHD..(XL,XLI)199008-199106

***,BROWN,TRIM4#

main71410-32750-03iVZV21..LHD198808-199106

***,MEDIUM GRAY,TRIM1#

main71410-32750-04iVZV21..LHD198808-199106

***,DARK BLUE,TRIM8#

main71410-32750-06iVZV21..LHD198808-199106

***,BROWN,TRIM4#

main71410-32760-03iCV20,SV2#..RHD..(GL,GLI)198808-199106

***,MEDIUM GRAY,TRIM1#

main71410-32760-04iCV20,SV2#..RHD..(GL,GLI)198808-199106

***,DARK BLUE,TRIM8#

main71410-32770-03iCV20,SV2#..LHD..(GL,GLI)198808-199106

***,W(SEAT HEATER),MEDIUM GRAY,TRIM1#

main71410-32770-04iCV20,SV2#..LHD..(GL,GLI)198808-199106

***,W(SEAT HEATER),DARK BLUE,TRIM8#

main71410-32770-06iCV20,SV2#..LHD..(GL,GLI)198808-199106

***,W(SEAT HEATER),BROWN,TRIM4#

main71410-32780-03iCV20,SV2#..LHD..(GL,GLI)198808-199106

***,MEDIUM GRAY,TRIM1#

main71410-32780-04iCV20,SV2#..LHD..(GL,GLI)198808-199106

***,DARK BLUE,TRIM8#

main71410-32780-06iCV20,SV2#..LHD..(GL,GLI)198808-199106

***,BROWN,TRIM4#

main71410-32790-03iCV20,SV21..LHD..(XL,XLI)198808-199008

***,MEDIUM GRAY,TRIM1#

main71410-32790-04iCV20,SV21..LHD..(XL,XLI)198808-199008

***,DARK BLUE,TRIM8#

main71410-32790-06iCV20,SV21..LHD..(XL,XLI)198808-199008

***,BROWN,TRIM4#

main71410-32800-03iVZV21..RHD198808-199106

***,MEDIUM GRAY,TRIM1#

main71410-32800-04iVZV21..RHD198808-199106

***,DARK BLUE,TRIM8#

main71410-32830-03iCV20,SV21..LHD..(XL,XLI)198808-199008

***,W(SEAT HEATER),MEDIUM GRAY,TRIM1#

main71410-32830-04iCV20,SV21..LHD..(XL,XLI)198808-199008

***,W(SEAT HEATER),DARK BLUE,TRIM8#

main71410-32830-06iCV20,SV21..LHD..(XL,XLI)198808-199008

***,W(SEAT HEATER),BROWN,TRIM4#

main71410-32831-03iCV20,SV21..LHD..(XL,XLI)199008-199106

***,W(SEAT HEATER),MEDIUM GRAY,TRIM1#

main71410-32831-04iCV20,SV21..LHD..(XL,XLI)199008-199106

***,W(SEAT HEATER),DARK BLUE,TRIM8#

main71410-32831-06iCV20,SV21..LHD..(XL,XLI)199008-199106

***,W(SEAT HEATER),BROWN,TRIM4#

main71410-32840-03iVZV21..LHD198808-199106

***,W(SEAT HEATER),MEDIUM GRAY,TRIM1#

main71410-32840-04iVZV21..LHD198808-199106

***,W(SEAT HEATER),DARK BLUE,TRIM8#

main71410-32840-06iVZV21..LHD198808-199106

***,W(SEAT HEATER),BROWN,TRIM4#

main71410-32850-03iCV20..RHD..XL198808-199008

***,MEDIUM GRAY,TRIM1#

main71410-32850-04iCV20..RHD..XL198808-199008

***,DARK BLUE,TRIM8#

main71410-32851-03iCV20..RHD..XL199008-199106

***,MEDIUM GRAY,TRIM1#

main71410-32851-04iCV20..RHD..XL199008-199106

***,DARK BLUE,TRIM8#

main71410-3H040-03iVZV21..RHD199008-199106

***,LEATHER PACKAGE,MEDIUM GRAY,TRIM1#

main71410-3H041-03iVZV21..RHD199005-199008

***,LEATHER PACKAGE,MEDIUM GRAY,TRIM1#

main71410-3H080-03iSV21,VZV21..SED..LHD..(GLI,GXI)199005-199008

***,LEATHER PACKAGE,MEDIUM GRAY,TRIM1#

71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

main71420-32540-03iSV21,VZV21..SED..LHD..(GLI,GXI)199008-199106

***,LEATHER PACKAGE & W(SEAT HEATER),MEDIUM GRAY,TRIM1#

main71420-32541-03iSV21,VZV21..SED..LHD..(GLI,GXI)199005-199008

***,LEATHER PACKAGE & W(SEAT HEATER),MEDIUM GRAY,TRIM1#

main71420-32611-03iCV20,SV21..LHD..(XL,XLI)199008-199106

***,MEDIUM GRAY,TRIM1#

main71420-32611-04iCV20,SV21..LHD..(XL,XLI)199008-199106

***,DARK BLUE,TRIM8#

main71420-32611-06iCV20,SV21..LHD..(XL,XLI)199008-199106

***,BROWN,TRIM4#

main71420-32710-03iVZV21..LHD198808-199106

***,MEDIUM GRAY,TRIM1#

main71420-32710-04iVZV21..LHD198808-199106

***,DARK BLUE,TRIM8#

main71420-32710-06iVZV21..LHD198808-199106

***,BROWN,TRIM4#

main71420-32720-03iCV20,SV2#..RHD..(GL,GLI)198808-199106

***,MEDIUM GRAY,TRIM1#

main71420-32720-04iCV20,SV2#..RHD..(GL,GLI)198808-199106

***,DARK BLUE,TRIM8#

main71420-32730-03iCV20,SV2#..LHD..(GL,GLI)198808-199106

***,W(SEAT HEATER),MEDIUM GRAY,TRIM1#

main71420-32730-04iCV20,SV2#..LHD..(GL,GLI)198808-199106

***,W(SEAT HEATER),DARK BLUE,TRIM8#

main71420-32730-06iCV20,SV2#..LHD..(GL,GLI)198808-199106

***,W(SEAT HEATER),BROWN,TRIM4#

main71420-32740-03iCV20,SV2#..LHD..(GL,GLI)198808-199106

***,MEDIUM GRAY,TRIM1#

main71420-32740-04iCV20,SV2#..LHD..(GL,GLI)198808-199106

***,DARK BLUE,TRIM8#

main71420-32740-06iCV20,SV2#..LHD..(GL,GLI)198808-199106

***,BROWN,TRIM4#

main71420-32750-03iCV20,SV21..LHD..(XL,XLI)198808-199008

***,MEDIUM GRAY,TRIM1#

main71420-32750-04iCV20,SV21..LHD..(XL,XLI)198808-199008

***,DARK BLUE,TRIM8#

main71420-32750-06iCV20,SV21..LHD..(XL,XLI)198808-199008

***,BROWN,TRIM4#

main71420-32760-03iVZV21..RHD198808-199106

***,MEDIUM GRAY,TRIM1#

main71420-32760-04iVZV21..RHD198808-199106

***,DARK BLUE,TRIM8#

main71420-32790-03iCV20,SV21..LHD..(XL,XLI)198808-199008

***,W(SEAT HEATER),MEDIUM GRAY,TRIM1#

main71420-32790-04iCV20,SV21..LHD..(XL,XLI)198808-199008

***,W(SEAT HEATER),DARK BLUE,TRIM8#

main71420-32790-06iCV20,SV21..LHD..(XL,XLI)198808-199008

***,W(SEAT HEATER),BROWN,TRIM4#

main71420-32791-03iCV20,SV21..LHD..(XL,XLI)199008-199106

***,W(SEAT HEATER),MEDIUM GRAY,TRIM1#

main71420-32791-04iCV20,SV21..LHD..(XL,XLI)199008-199106

***,W(SEAT HEATER),DARK BLUE,TRIM8#

main71420-32791-06iCV20,SV21..LHD..(XL,XLI)199008-199106

***,W(SEAT HEATER),BROWN,TRIM4#

main71420-32800-03iVZV21..LHD198808-199106

***,W(SEAT HEATER),MEDIUM GRAY,TRIM1#

main71420-32800-04iVZV21..LHD198808-199106

***,W(SEAT HEATER),DARK BLUE,TRIM8#

main71420-32800-06iVZV21..LHD198808-199106

***,W(SEAT HEATER),BROWN,TRIM4#

main71420-32810-03iCV20..RHD..XL198808-199008

***,MEDIUM GRAY,TRIM1#

main71420-32810-04iCV20..RHD..XL198808-199008

***,DARK BLUE,TRIM8#

main71420-32811-03iCV20..RHD..XL199008-199106

***,MEDIUM GRAY,TRIM1#

main71420-32811-04iCV20..RHD..XL199008-199106

***,DARK BLUE,TRIM8#

main71420-32870-03iSV21,VZV21..SED..LHD..(GLI,GXI)198908-199005

***,LEATHER PACKAGE,MEDIUM GRAY,TRIM1#

main71420-3H040-03iVZV21..RHD199008-199106

***,LEATHER PACKAGE,MEDIUM GRAY,TRIM1#

main71420-3H041-03iVZV21..RHD199005-199008

***,LEATHER PACKAGE,MEDIUM GRAY,TRIM1#

main71420-3H070-03iSV21,VZV21..SED..LHD..(GLI,GXI)199005-199008

***,LEATHER PACKAGE,MEDIUM GRAY,TRIM1#

71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71430-32360-03iSV21,VZV21..SED..LHD..(GLI,GXI)198908-198912

***,LEATHER PACKAGE,MEDIUM GRAY,TRIM1#

main71430-32481-03iCV20,SV21..XL,XLI199008-199106

***,MEDIUM GRAY,TRIM1#

main71430-32481-04iCV20,SV21..XL,XLI199008-199106

***,DARK BLUE,TRIM8#

main71430-32481-06iCV20,SV21..LHD..(XL,XLI)199008-199106

***,BROWN,TRIM4#

main71430-32530-03iSV21,VZV21..SED..LHD..(GLI,GXI)199008-199106

***,LEATHER PACKAGE & W(SEAT HEATER),MSEDIUM GRAY,TRIM1#

main71430-32531-03iSV21,VZV21..SED..LHD..(GLI,GXI)199005-199008

***,LEATHER PACKAGE & W(SEAT HEATER),MEDIUM GRAY,TRIM1#

main71430-32620-03iVZV21..LHD198808-199106

***,MEDIUM GRAY,TRIM1#

main71430-32620-04iVZV21..LHD198808-199106

***,DARK BLUE,TRIM8#

main71430-32620-06iVZV21..LHD198808-199106

***,BROWN,TRIM4#

main71430-32630-03iCV20,SV2#..RHD..(GL,GLI)198808-199106

***,MEDIUM GRAY,TRIM1#

main71430-32630-04iCV20,SV2#..RHD..(GL,GLI)198808-199106

***,DARK BLUE,TRIM8#

main71430-32640-03iCV20,SV2#..LHD..(GL,GLI)198808-199106

***,W(SEAT HEATER),MEDIUM GRAY,TRIM1#

main71430-32640-04iCV20,SV2#..LHD..(GL,GLI)198808-199106

***,W(SEAT HEATER),DARK BLUE,TRIM8#

main71430-32640-06iCV20,SV2#..LHD..(GL,GLI)198808-199106

***,W(SEAT HEATER),BROWN,TRIM4#

main71430-32650-03iCV20,SV2#..LHD..(GL,GLI)198808-199106

***,MEDIUM GRAY,TRIM1#

main71430-32650-04iCV20,SV2#..LHD..(GL,GLI)198808-199106

***,DARK BLUE,TRIM8#

main71430-32650-06iCV20,SV2#..LHD..(GL,GLI)198808-199106

***,BROWN,TRIM4#

main71430-32660-03iCV20,SV21..XL,XLI198808-199008

***,MEDIUM GRAY,TRIM1#

main71430-32660-04iCV20,SV21..XL,XLI198808-199008

***,DARK BLUE,TRIM8#

main71430-32660-06iCV20,SV21..LHD..(XL,XLI)198808-199008

***,BROWN,TRIM4#

main71430-32670-03iVZV21..RHD198808-199106

***,MEDIUM GRAY,TRIM1#

main71430-32670-04iVZV21..RHD198808-199106

***,DARK BLUE,TRIM8#

main71430-32680-03iCV20,SV21..LHD..(XL,XLI)198808-199008

***,W(SEAT HEATER),MEDIUM GRAY,TRIM1#

main71430-32680-04iCV20,SV21..LHD..(XL,XLI)198808-199008

***,W(SEAT HEATER),DARK BLUE,TRIM8#

main71430-32680-06iCV20,SV21..LHD..(XL,XLI)198808-199008

***,W(SEAT HEATER),BROWN,TRIM4#

main71430-32681-03iCV20,SV21..LHD..(XL,XLI)199008-199106

***,W(SEAT HEATER),MEDIUM GRAY,TRIM1#

main71430-32681-04iCV20,SV21..LHD..(XL,XLI)199008-199106

***,W(SEAT HEATER),DARK BLUE,TRIM8#

main71430-32681-06iCV20,SV21..LHD..(XL,XLI)199008-199106

***,W(SEAT HEATER),BROWN,TRIM4#

main71430-32690-03iVZV21..LHD198808-199106

***,W(SEAT HEATER),MEDIUM GRAY,TRIM1#

main71430-32690-04iVZV21..LHD198808-199106

***,W(SEAT HEATER),DARK BLUE,TRIM8#

main71430-32690-06iVZV21..LHD198808-199106

***,W(SEAT HEATER),BROWN,TRIM4#

main71430-32780-03iSV21,VZV21..SED..LHD..(GLI,GXI)199008-199106

***,LEATHER PACKAGE,MEDIUM GRAY,TRIM1#

main71430-32781-03iSV21,VZV21..SED..LHD..(GLI,GXI)199005-199008

***,LEATHER PACKAGE,MEDIUM GRAY,TRIM1#

main71430-32790-03iVZV21..RHD199008-199106

***,LEATHER PACKAGE,MEDIUM GRAY,TRIM1#

main71430-32791-03iVZV21..RHD199005-199008

***,LEATHER PACKAGE,MEDIUM GRAY,TRIM1#

71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

main71430-32650-03iCV20,SV2#..RHD..(GL,GLI)198808-199106

***,MEDIUM GRAY,TRIM1#

main71430-32650-04iCV20,SV2#..RHD..(GL,GLI)198808-199106

***,DARK BLUE,TRIM8#

main71430-32660-03iCV20,SV21..XL,XLI198808-199008

***,MEDIUM GRAY,TRIM1#

main71430-32660-04iCV20,SV21..XL,XLI198808-199008

***,DARK BLUE,TRIM8#

main71430-32660-06iCV20,SV21..LHD..(XL,XLI)198808-199008

***,BROWN,TRIM4#

main71440-32280-03iSV21,VZV21..SED..LHD..(GLI,GXI)198908-198912

***,LEATHER PACKAGE,MEDIUM GRAY,TRIM1#

main71440-32381-03iCV20,SV21..XL,XLI199008-199106

***,MEDIUM GRAY,TRIM1#

main71440-32381-04iCV20,SV21..XL,XLI199008-199106

***,DARK BLUE,TRIM8#

main71440-32381-06iCV20,SV21..LHD..(XL,XLI)199008-199106

***,BROWN,TRIM4#

main71440-32410-03iSV21,VZV21..SED..LHD..(GLI,GXI)199008-199106

***,LEATHER PACKAGE & W(SEAT HEATER),MEDIUM GRAY,TRIM1#

main71440-32411-03iSV21,VZV21..SED..LHD..(GLI,GXI)199005-199008

***,LEATHER PACKAGE & W(SEAT HEATER),MEDIUM GRAY,TRIM1#

main71440-32500-03iVZV21..LHD198808-199106

***,MEDIUM GRAY,TRIM1#

main71440-32500-04iVZV21..LHD198808-199106

***,DARK BLUE,TRIM8#

main71440-32500-06iVZV21..LHD198808-199106

***,BROWN,TRIM4#

main71440-32510-03iCV20,SV2#..LHD..(GL,GLI)198808-199106

***,W(SEAT HEATER),MEDIUM GRAY,TRIM1#

main71440-32510-04iCV20,SV2#..LHD..(GL,GLI)198808-199106

***,W(SEAT HEATER),DARK BLUE,TRIM8#

main71440-32510-06iCV20,SV2#..LHD..(GL,GLI)198808-199106

***,W(SEAT HEATER),BROWN,TRIM4#

main71440-32520-03iCV20,SV2#..LHD..(GL,GLI)198808-199106

***,MEDIUM GRAY,TRIM1#

main71440-32520-04iCV20,SV2#..LHD..(GL,GLI)198808-199106

***,DARK BLUE,TRIM8#

main71440-32520-06iCV20,SV2#..LHD..(GL,GLI)198808-199106

***,BROWN,TRIM4#

main71440-32530-03iCV20,SV21..LHD..(XL,XLI)198808-199008

***,W(SEAT HEATER),MEDIUM GRAY,TRIM1#

main71440-32530-04iCV20,SV21..LHD..(XL,XLI)198808-199008

***,W(SEAT HEATER),DARK BLUE,TRIM8#

main71440-32530-06iCV20,SV21..LHD..(XL,XLI)198808-199008

***,W(SEAT HEATER),BROWN,TRIM4#

main71440-32531-03iCV20,SV21..LHD..(XL,XLI)199008-199106

***,W(SEAT HEATER),MEDIUM GRAY,TRIM1#

main71440-32531-04iCV20,SV21..LHD..(XL,XLI)199008-199106

***,W(SEAT HEATER),DARK BLUE,TRIM8#

main71440-32531-06iCV20,SV21..SED..(XL,XLI); CV20,SV21..WG..LHD..(XL,XLI)199008-199106

***,W(SEAT HEATER),BROWN,TRIM4#; ***,W(SEAT HEATER),BROWN,TRIM8#

main71440-32540-03iVZV21..LHD198808-199106

***,W(SEAT HEATER),MEDIUM GRAY,TRIM1#

main71440-32540-04iVZV21..LHD198808-199106

***,W(SEAT HEATER),DARK BLUE,TRIM8#

main71440-32540-06iVZV21..LHD198808-199106

***,W(SEAT HEATER),BROWN,TRIM4#

main71440-32550-03iVZV21..RHD198808-199106

***,MEDIUM GRAY,TRIM1#

main71440-32550-04iVZV21..RHD198808-199106

***,DARK BLUE,TRIM8#

main71440-32650-03iSV21,VZV21..SED..LHD..(GLI,GXI)199008-199106

***,LEATHER PACKAGE,MEDIUM GRAY,TRIM1#

main71440-32651-03iSV21,VZV21..SED..LHD..(GLI,GXI)199005-199008

***,LEATHER PACKAGE,MEDIUM GRAY,TRIM1#

main71440-32660-03iVZV21..RHD198912-199005

***,LEATHER PACKAGE,MEDIUM GRAY,TRIM1#

main71440-32661-03iVZV21..RHD199005-199008

***,LEATHER PACKAGE,MEDIUM GRAY,TRIM1#

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-32100iCV20,SV2#,VZV21..GL,GLI,GXI198808-199106

main71511-32130iSV21,VZV21..SED..LHD..(GLI,GXI)198908-198912

LEATHER PACKAGE

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71511-32100iCV20,SV2#,VZV21..GL,GLI,GXI198808-199106

main71511-32130iVZV21..SED;SV21..SED..LHD..GLI198912-199106

LEATHER PACKAGE

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-32100iCV20,SV21..XL,XLI198808-199106

main71551-32110iCV20,SV2#,VZV21..GL,GLI,GXI198808-199106

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71551-32100iCV20,SV21..XL,XLI198808-199106

main71551-32110iCV20,SV2#,VZV21..GL,GLI,GXI198808-199106

71563APAD, FRONT SEATBACK SIDE, RH

main71563-32030×2iCV20,SV21..XL,XLI198808-199106

main71563-32040×2iCV20,SV2#,VZV21..GL,GLI,GXI198808-199106

71564APAD, FRONT SEATBACK SIDE, LH

main71564-32030×2iSV21,VZV21..SED..LHD..(GLI,GXI)198908-198912

LEATHER PACKAGE

main71564-32040×2iCV20,SV2#,VZV21..GL,GLI,GXI198808-199106

71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71610-32030iCV20,SV2#,VZV21..LHD198808-199106

main71610-32040iCV20,SV2#,VZV21..RHD198808-199106

71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71610-32030iCV20,SV2#,VZV21..RHD198808-199106

main71610-32050iCV20,SV2#,VZV21..LHD198808-199106

71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71630-32130iCV20,SV2#,VZV21..RHD..(GL,GLI,GXI)198808-199106

main71630-32140iCV20..XL;CV20,SV2#,VZV21..LHD..(GL,GLI,GXI,XLI)198808-199106

71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71630-32130iCV20,SV2#,VZV21..LHD..(GL,GLI,GXI)198808-199106

main71630-32140iCV20,SV2#,VZV21..RHD;CV20,SV21..LHD..(XL,XLI)198808-199106

71705BOARD SUB-ASSY, FRONT SEATBACK, RH

main71705-32140-03iSV21,VZV21..SED..LHD..(GLI,GXI)198908-198912

LEATHER PACKAGE,MEDIUM GRAY,TRIM1#

main71705-32220-03iCV20,SV2#..GL,GLI198808-199106

MEDIUM GRAY,TRIM1#

main71705-32220-04iCV20,SV2#..GL,GLI198808-199106

DARK BLUE,TRIM8#

main71705-32220-06iCV20,SV2#..LHD..(GL,GLI)198808-199106

BROWN,TRIM4#

main71705-32230-03iVZV21198808-199106

MEDIUM GRAY,TRIM1#

main71705-32230-04iVZV21198808-199106

DARK BLUE,TRIM8#

main71705-32230-06iVZV21..LHD198808-199106

BROWN,TRIM4#

71705BCAP(FOR FRONT SEATBACK BOARD)

main90339-10001-B2×4iCV20,SV2#,VZV21..GL,GLI,GXI198808-199106

MEDIUM GRAY,TRIM1#

main90339-10001-E0×4iCV20,SV2#,VZV21..LHD..(GL,GLI,GXI)198808-199106

BROWN,TRIM4#

main90339-10001-J1×4iCV20,SV2#,VZV21..GL,GLI,GXI198808-199008

DARK BLUE,TRIM8#

71706BOARD SUB-ASSY, FRONT SEATBACK, LH

main71705-32140-03iSV21,VZV21..SED..LHD..(GLI,GXI)198908-198912

LEATHER PACKAGE,MEDIUM GRAY,TRIM1#

main71705-32220-03iCV20,SV2#..GL,GLI198808-199106

MEDIUM GRAY,TRIM1#

main71705-32220-04iCV20,SV2#..GL,GLI198808-199106

DARK BLUE,TRIM8#

main71705-32220-06iCV20,SV2#..LHD..(GL,GLI)198808-199106

BROWN,TRIM4#

main71705-32230-03iVZV21198808-199106

MEDIUM GRAY,TRIM1#

main71705-32230-04iVZV21198808-199106

DARK BLUE,TRIM8#

main71705-32230-06iVZV21..LHD198808-199106

BROWN,TRIM4#

71910AHEADREST ASSY, FRONT SEAT

main71910-32300-03×4iCV20,SV21..XL,XLI198808-199008

MEDIUM GRAY,TRIM1#

main71910-32300-04×4iCV20,SV21..XL,XLI198808-199008

DARK BLUE,TRIM8#

main71910-32300-06×4iCV20,SV21..LHD..(XL,XLI)198808-199008

BROWN,TRIM4#

main71910-32350-03×2iVZV21198808-199106

MEDIUM GRAY,TRIM1#

main71910-32350-04×2iVZV21198808-199106

DARK BLUE,TRIM8#

main71910-32350-06×2iVZV21..LHD198808-199106

BROWN,TRIM4#

main71910-32380-03×2iCV20,SV2#..GL,GLI198808-199106

MEDIUM GRAY,TRIM1#

main71910-32380-04×2iCV20,SV2#..GL,GLI198808-199106

DARK BLUE,TRIM8#

main71910-32380-06×2iCV20,SV2#..LHD..(GL,GLI)198808-199106

BROWN,TRIM4#

main71910-32450-03×2iVZV21..SED;SV21..SED..LHD..GLI198912-199005

LEATHER PACKAGE,MEDIUM GRAY,TRIM1#

main71910-32451-03×2iVZV21..SED;SV21..SED..LHD..GLI199005-199008

LEATHER PACKAGE,MEDIUM GRAY,TRIM1#

main71910-32550-03×2iCV20,SV21..XL,XLI199008-199106

MEDIUM GRAY,TRIM1#

main71910-32550-04×2iCV20,SV21..XL,XLI199008-199106

DARK BLUE,TRIM8#

main71910-32550-06×2iCV20,SV21..LHD..(XL,XLI)199008-199106

BROWN,TRIM4#

71931SUPPORT, FRONT SEAT HEADREST

main71930-10060-B0×2iCV20,SV2#,VZV21198808-199106

W(LOCK),MEDIUM GRAY,TRIM1#

main71930-10060-E0×2iCV20,SV2#,VZV21..LHD198808-199106

W(LOCK),BROWN,TRIM4#

main71930-10060-J0×2iCV20,SV2#,VZV21198808-199106

W(LOCK),DARK BLUE,TRIM8#

main71931-10010-B0×2iCV20,SV2#,VZV21198808-199106

W/O(LOCK),MEDIUM GRAY,TRIM1#

main71931-10010-E0×2iCV20,SV2#,VZV21..LHD198808-199106

W/O(LOCK),BROWN,TRIM4#

main71931-10010-J0×2iCV20,SV2#,VZV21198808-199106

W/O(LOCK),DARK BLUE,TRIM8#

72750DADJUSTER ASSY, LUMBAR SUPPORT, RH

main72750-32030iCV20,SV2#,VZV21..RHD..(GL,GLI,GXI)198808-199106

72760DADJUSTER ASSY, LUMBAR SUPPORT, LH

main72760-32020iCV20,SV2#,VZV21..LHD..(GL,GLI,GXI)198808-199106

72774PROTECTOR, LUMBAR SUPPORT SPRING

main72774-32010iCV20,SV2#,VZV21..RHD..(GL,GLI,GXI)198808-199106

main72775-32010iCV20,SV2#,VZV21..LHD..(GL,GLI,GXI)198808-199106

72791LEVER, LUMBAR SUPPORT

main72791-22020-B0iCV20,SV2#,VZV21..GL,GLI,GXI198808-199106

MEDIUM GRAY,TRIM1#

main72791-22020-E0iCV20,SV2#,VZV21..LHD..(GL,GLI,GXI)198808-199106

BROWN,TRIM4#

main72791-22020-J0iCV20,SV2#,VZV21..GL,GLI,GXI198808-199106

DARK BLUE,TRIM8#

72791ARING, SHAFT SNAP(FOR LUMBER SUPPORT LEVER)

main90520-01002iCV20,SV2#,VZV21..GL,GLI,GXI198808-199106

8513SEAT MOTOR & SEAT HEATER

→ Go to FIG 85-13

9015940088

main90159-40088

9046818071

main90468-18071

9166640616

main91666-40616

9356054012

main93560-54012

33 parts on this diagram · 4 diagrams in section
