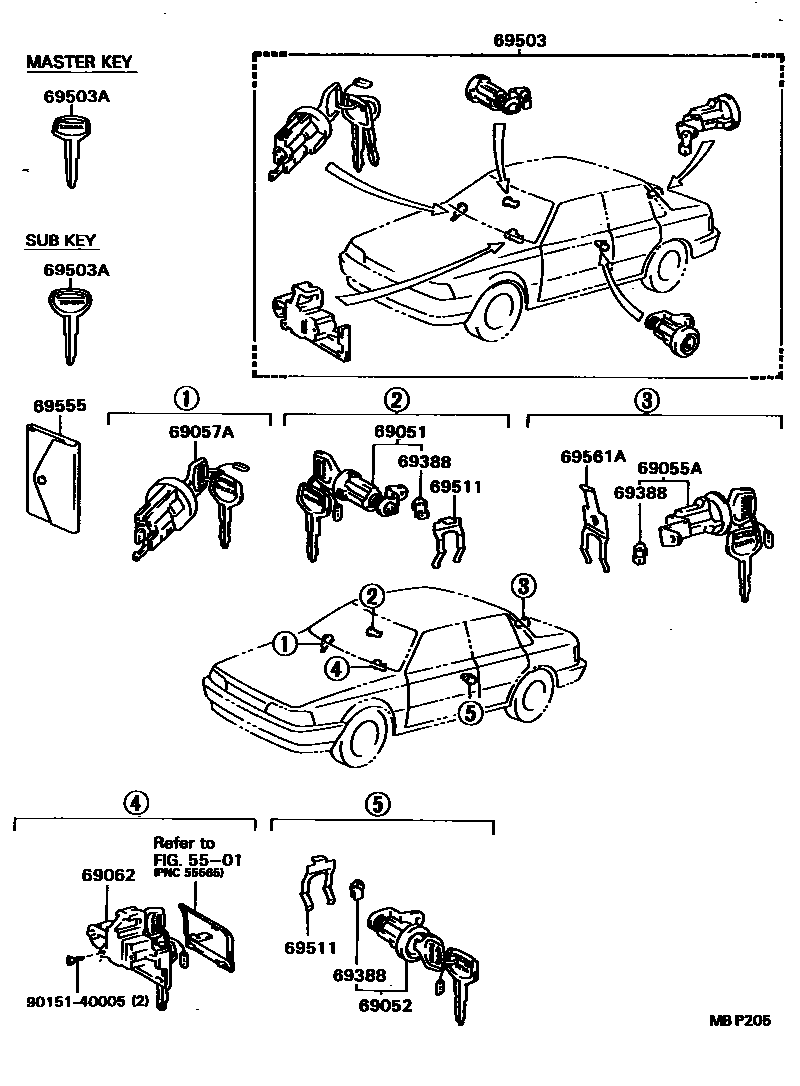

LOCK CYLINDER SET

0001 1 0002 1

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-32090iCV20,SV2#,VZV21198808-199106

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-32090iCV20,SV2#,VZV21198808-199106

69055ACYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK

main69055-32160iCV20,SV2#,VZV21..SED198808-199106

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-32090iCV20,SV2#,VZV21..RHD198808-199106

main69057-32100iCV20,SV2#,VZV21..LHD198808-199106

69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-32080iCV20,SV2#,VZV21198808-199106

69388SNAP, ROD(FOR DOOR LOCK)

main69759-20080iCV20,SV21,VZV21..WG198808-199106

LUGGAGE DOOR

main69759-24080iCV20,SV2#,VZV21..SED198808-199106

LUGGAGE DOOR

main69759-32070iCV20,SV2#,VZV21198808-199106

FRONT DOOR,RH

main69759-32080iCV20,SV2#,VZV21198808-199106

FRONT DOOR,LH

69503CYLINDER SET, LOCK

main69005-32260iCV20,SV2#,VZV21..SED..LHD198808-199106

main69005-32270iCV20,SV2#,VZV21..SED..RHD198808-199106

main69005-32290iCV20,SV21,VZV21..WG..LHD198808-199106

main69005-32340iCV20,SV21..WG..RHD198808-199106

69503AKEY, BLANK

main90999-00119iCV20,SV2#,VZV21198808-199106

MASTER KEY,W(*68)

main90999-00120iCV20,SV21..WG..LHD198808-199001

MASTER KEY,W(*69)

main90999-00121iCV20,SV2#,VZV21198808-199106

SUB KEY,W(*68)

main90999-00122iCV20,SV21..WG..LHD198808-199001

SUB KEY,W(*69)

69511RETAINER, FRONT DOOR LOCK CYLINDER

main69511-32020×2iCV20,SV2#,VZV21198808-199106

69555COVER, KEY

main69555-20010iCV20,SV2#,VZV21198808-199106

69561ARETAINER, LUGGAGE COMPARTMENT LOCK CYLINDER

main69561-32020iCV20,SV2#,VZV21..SED198808-199106

9015140005

main90151-40005

13 parts on this diagram · 2 diagrams in section
