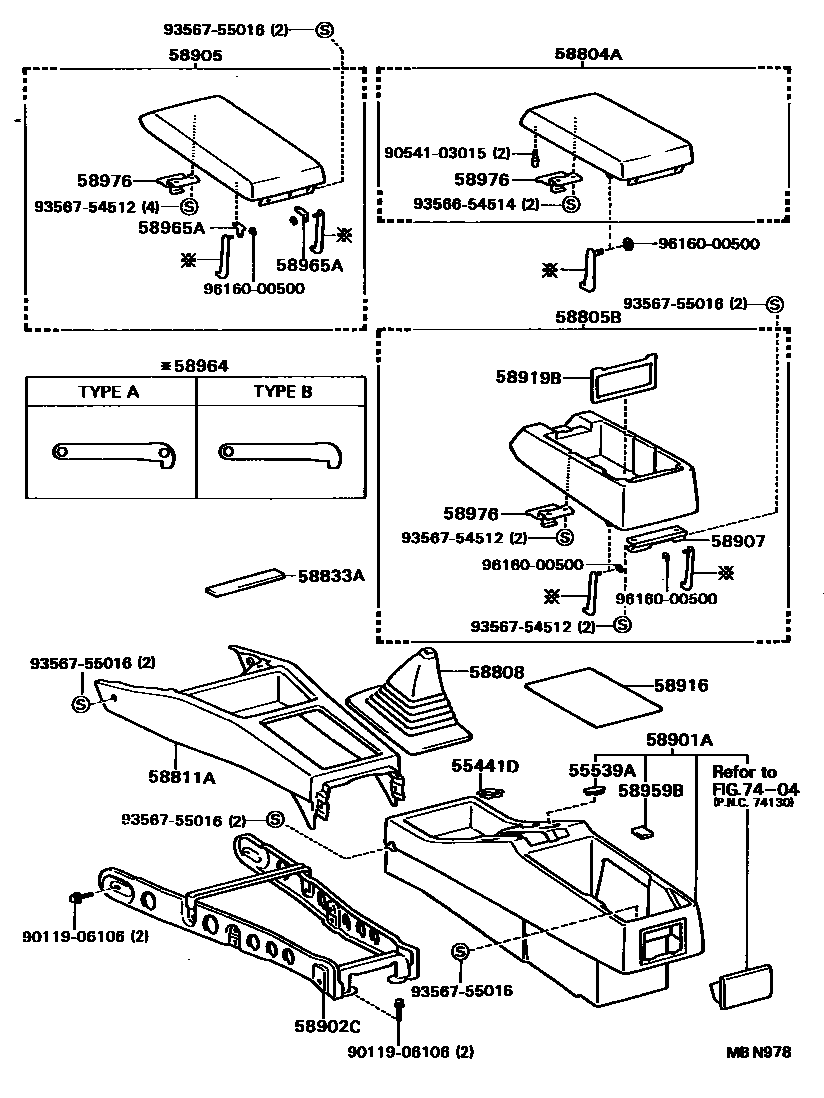

CONSOLE BOX & BRACKET

55441DBOX, INSTRUMENT PANEL COIN

main55539-20020-B0iCV20,SV2#,VZV21198808-198906

MEDIUM GRAY,TRIM1#

sub55539-20020

main55539-20020-E0iCV20,SV2#,VZV21..LHD198808-198906

BROWN,TRIM4#

sub55539-20020

main55539-20020-J0iCV20,SV2#,VZV21198808-198906

DARK BLUE,TRIM8#

sub55539-20020

main55539-32030-03iCV20,SV2#,VZV21198906-199106

MEDIUM GARY,TRIM1#

sub55539-32030

main55539-32030-04iCV20,SV2#,VZV21198906-199106

DARK BLUE,TRIM8#

sub55539-32030

main55539-32030-06iCV20,SV2#,VZV21..LHD198906-199106

BROWN,TRIM4#

sub55539-32030

55539ACOVER, SPARE SWITCH HOLE

main55539-20030-13iCV20,SV2#,VZV21198808-199106

MEDIUM GRAY,TRIM1#

sub55539-32010

sub55539-20030

main55539-20030-14iCV20,SV2#,VZV21198808-199106

DARK BLUE,TRIM8#

sub55539-32010

sub55539-20030

main55539-20030-36iCV20,SV2#,VZV21..LHD198808-199106

BROWN,TRIM4#

sub55539-32010

sub55539-20030

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-32030-03iCV20,SV2#,VZV21..GL,GLI,GXI198808-199106

MEDIUM GRAY,TRIM1#

sub58804-32030

main58804-32030-04iCV20,SV2#,VZV21..GL,GLI,GXI198808-199106

DARK BLUE,TRIM8#

sub58804-32030

main58804-32030-06iCV20,SV2#,VZV21..LHD..(GL,GLI,GXI)198808-199106

BROWN,TRIM4#

sub58804-32030

58805BPANEL SUB-ASSY, CONSOLE, LOWER

main58805-32021-03iCV20,SV2#,VZV21..GL,GLI,GXI198808-199106

MEDIUM GRAY,TRIM1#

main58805-32021-04iCV20,SV2#,VZV21..GL,GLI,GXI198808-199106

DARK BLUE,TRIM8#

main58805-32021-06iCV20,SV2#,VZV21..LHD..(GL,GLI,GXI)198808-199106

BROWN,TRIM4#

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-32020iSV21..SED..5F..XLI..EUR198808-199008

main58808-32020-01iCV20,SV2#..RHD..5F198908-199106

BLACK,TRIM1#,8#

sub58808-32020

main58808-32020-01iCV20,SV2#..RHD..5F198908-199106

BLACK,TRIM1#,4#,8#

sub58808-32020

58811ABOX, CONSOLE, FRONT

main58811-32050-03iCV20,SV2#,VZV21198808-199106

MEDIUM GRAY,TRIM1#

main58811-32050-04iCV20,SV2#,VZV21198808-199106

DARK BLUE,TRIM8#

main58811-32050-06iCV20,SV2#,VZV21..LHD198808-199106

BROWN,TRIM4#

58833ACOVER, CONSOLE, UPPER

main58833-32010iCV20,SV2#,VZV21198808-199106

58901ABOX SUB-ASSY, CONSOLE, REAR

main58901-32012-03iCV20,SV21,VZV21198808-199106

MEDIUM GRAY,TRIM1#

main58901-32012-04iCV20,SV21,VZV21198808-199106

DARK BLUE,TRIM8#

main58901-32012-06iCV20,SV21,VZV21..LHD198808-199106

BROWN,TRIM4#

main58901-32042-03iSV25198808-199106

MEDIUM GRAY,TRIM1#

main58901-32042-04iSV25198808-199106

DARK BLUE,TRIM8#

main58901-32042-06iSV25..LHD198808-199106

BROWN,TRIM4#

58902CBRACKET SUB-ASSY, CONSOLE BOX MOUNTING

main58902-32011iCV20,SV2#,VZV21198808-199106

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-32081-03iCV20,SV21..XL,XLI198808-199106

MEDIUM GRAY,TRIM1#

main58905-32081-04iCV20,SV21..XL,XLI198808-199106

DARK BLUE,TRIM8#

main58905-32081-06iCV20,SV21..LHD..(XL,XLI)198808-199106

BROWN,TRIM4#

58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58907-89101iCV20,SV2#,VZV21..GL,GLI,GXI198808-199106

58916MAT, BOX BOTTOM

main58916-32040iCV20,SV21,VZV21198808-199106

main58916-32070iSV25198808-199106

58919BPLATE, CONSOLE BOX

main58919-32010iCV20,SV2#,VZV21..GL,GLI,GXI198808-199106

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main58959-16010iCV20,SV2#,VZV21198808-199106

58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1

main58964-30040iCV20,SV2#,VZV21..GL,GLI,GXI198808-199106

TYPE A

main58964-32040iCV20,SV2#,VZV21198808-199106

TYPE B

58965ASTOPPER, CONSOLE COMPARTMENT DOOR, NO.2

main58965-12010iCV20,SV21..XL,XLI198808-199106

LH

main58965-20020iCV20,SV21..XL,XLI198808-199106

RH

58976STRIKER, CONSOLE COMPARTMENT DOOR LOCK

main58908-32020iCV20,SV2#,VZV21..GL,GLI,GXI199008-199106

sub58908-12080

main58976-22020iCV20,SV21..XL,XLI198808-199008

7404

9011906106

main90119-06106

9054103015

main90541-03015

9356654514

main93566-54514

9356754512

main93567-54512

9356755016

main93567-55016

9616000500

main96160-00500

24 parts on this diagram · 1 diagram in section
