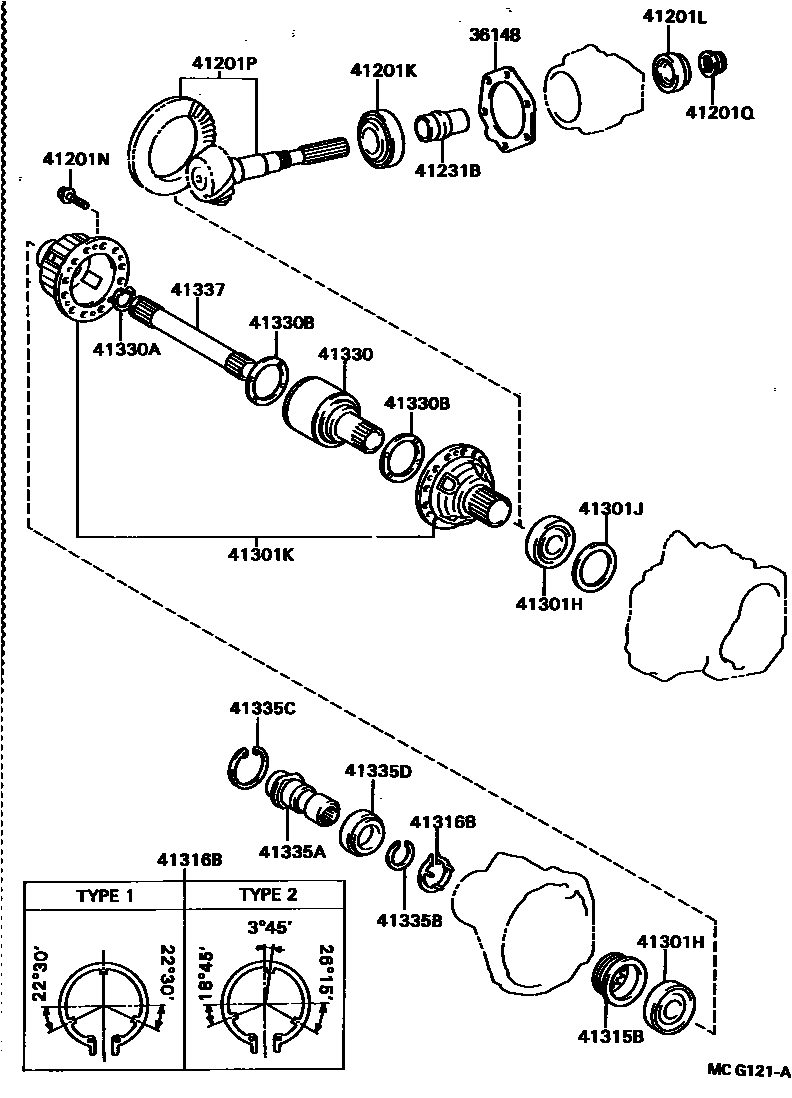

TRANSFER GEAR
36148SHIM, PINION BEARING CAGE
41201LBEARING (FOR TRANSFER DRIVEN PINION REAR)
W(*66)
41201NBOLT (FOR TRANSFER GEAR )
41201QNUT (FOR TRANSFER GEAR)
41231BSPACER, TRANSFER PINION BEARING
W(*66)
41301HBEARING(FOR RING GEAR MOUNTING CASE)
RH
LH
W(*66),LH
41301JWASHER, PLATE(FOR RING GEAR MOUNTING CASE)
T=2.13,MARK 01,W(*66)
T=2.16,MARK 02,W(*66)
T=2.19,MARK 03,W(*66)
T=2.22,MARK 04,W(*66)
T=2.25,MARK 05,W(*66)
T=2.28,MARK 06,W(*66)
T=2.31,MARK 07,W(*66)
T=2.34,MARK 08,W(*66)
T=2.37,MARK 09,W(*66)
T=2.40,MARK 10,W(*66)
T=2.43,MARK 11,W(*66)
T=2.46,MARK 12,W(*66)
T=2.49,MARK 13,W(*66)
T=2.52,MARK 14,W(*66)
T=2.55,MARK 15,W(*66)
T=2.58,MARK 16,W(*66)
T=2.61,MARK 17,W(*66)
T=2.64,MARK 18,W(*66)
T=2.67,MARK 19,W(*66)
T=2.70,MARK 20,W(*66)
T=2.73,MARK 21,W(*66)
T=2.76,MARK 22,W(*66)
T=2.79,MARK 23,W(*66)
T=2.82,MARK 24,W(*66)
T=2.13,MARK 01
T=2.16,MARK 02
T=2.19,MARK 03
T=2.22,MARK 04
T=2.25,MARK 05
T=2.28,MARK 06
T=2.31,MARK 07
T=2.34,MARK 08
T=2.37,MARK 09
T=2.40,MARK 10
T=2.43,MARK 11
T=2.46,MARK 12
T=2.49,MARK 13
T=2.52,MARK 14
T=2.55,MARK 15
T=2.58,MARK 16
T=2.61,MARK 17
T=2.64,MARK 18
T=2.67,MARK 19
T=2.70,MARK 20
T=2.73,MARK 21
T=2.76,MARK 22
T=2.79,MARK 23
T=2.82,MARK 24
41301KCASE SUB-ASSY, CENTER DIFFERENTIAL RING GEAR MOUNTING
41315BNUT, BEARING ADJUSTING
W(*66)
41316BPLATE, ADJUSTING NUT LOCK
TYPE 2
41330COUPLING ASSY, CENTER DIFFERENTIAL CONTROL
sub41330-20011
41330ARING, HOLE SNAP (FOR DIFFERENTIAL INTERMEDIATE SHAFT)
41330BWASHER (FOR CENTER DIFFERENTIAL CONTROL COUPLING)
41335AHOLDER, DIFFERENTIAL SIDE GEAR SHAFT
41335BRING, SHAFT SNAP (FOR SIDE GEAR SHAFT HOLDER)
41335CRING, HOLE SNAP (FOR SIDE GEAR SHAFT HOLDER)
sub90521-76005
41337SHAFT, DIFFERENTIAL SIDE GEAR INTERMEDIATE, NO.2
20 parts on this diagram · 2 diagrams in section
