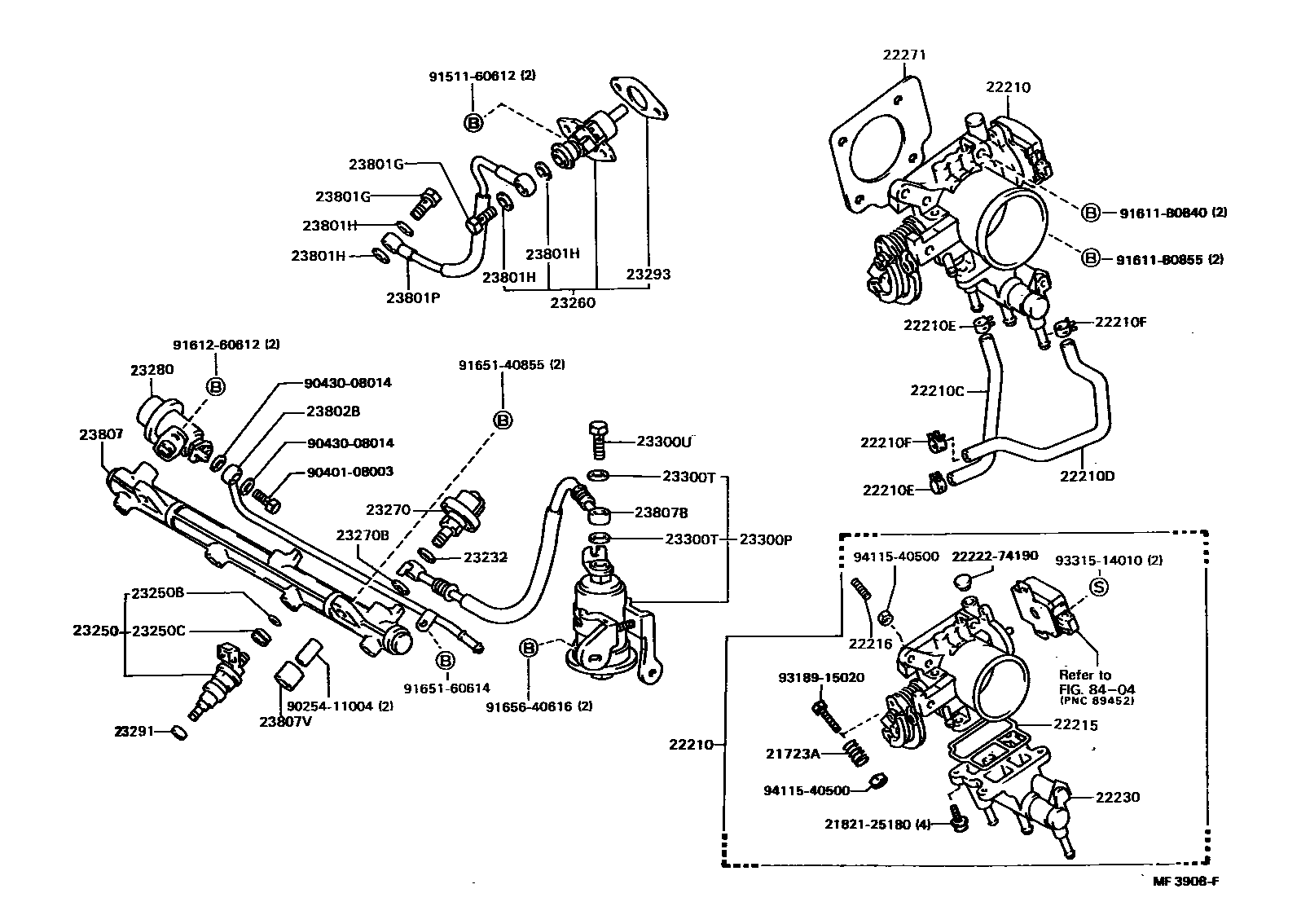

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1

21723ASPRING, IDLE ADJUST

main21723-38010i3SFE..SV21..5F198808-199106

22210BODY ASSY, THROTTLE

main22210-62020i2VZFE..VZV21..5F198808-198908

main22210-62030i2VZFE..VZV21..4FC198808-198908

main22210-62050i2VZFE..VZV21..5F198908-199106

main22210-62060i2VZFE..VZV21..4FC198908-199106

sub22210-62100

main22210-74220i3SFE..SV21..4FC..G198808-199004

main22210-74230i3SFE..SV21..5F..EUR198808-199106

main22210-74240i3SFE..SV25..EUR;3SFE..SV21..4FC..EUR198808-199106

main22210-74250i3SFE..SV21..5F..G198808-199004

main22210-74251i3SFE..SV21..5F..G199004-199106

main22210-74270i3SFE..SV25..G198808-199001

main22210-74510i3SFE..SV25..G199001-199106

main22210-74520i3SFE..SV21..4FC..G199004-199106

22210CHOSE, WATER BY-PASS, NO.1

main16282-74030i3SFE..SV2#198808-198911

sub16283-74010

main16283-74010i3SFE..SV2#198911-199106

22210DHOSE, WATER BY-PASS, NO.2

main16282-74020i3SFE..SV2#198808-198911

sub16282-74050

main16282-74050i3SFE..SV2#198911-199106

22210ECLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1)

main90467-13050i3SFE..SV2#198808-199106

sub96135-51300

22210FCLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2)

main90467-13050i3SFE..SV2#198808-199106

sub96135-51300

22215GASKET, THROTTLE BODY COVER

main22215-74190i3SFE..SV2#..EUR198808-199106

main22215-74210i3SFE..SV21..5F..G198808-199106

22216SCREW, DASH POT ADJUSTING

main22216-62050i2VZFE..VZV21..5F198908-199106

main22216-74010i2VZFE..VZV21..4FC198808-199106

22230VALVE ASSY, AUXILIARY AIR

main22230-74051i3SFE..SV2#..EUR198808-199106

22271GASKET, THROTTLE BODY

main22271-62020i2VZFE..VZV21198808-199106

sub22271-62030

main22271-74020i3SFE..SV2#198808-199009

sub22271-74021

main22271-74021i3SFE..SV2#198907-199106

sub22271-74022

23232GASKET(FOR FUEL PUMP HOSE)

main23232-28010i3SFE..SV2#198808-199106

sub23232-41081

main23232-41081i3SFE..SV2#199010-199106

23250INJECTOR ASSY, FUEL

main23209-62020i2VZFE..VZV21198808-199106

main23209-74060i3SFE..SV2#198808-199106

23250BRING, O(FOR FUEL INJECTOR)

main90301-07001i3SFE..SV2#198808-199106

23250CGROMMET(FOR FUEL INJECTOR)

main90480-13005i2VZFE..VZV21198808-199106

23260INJECTOR ASSY, COLD START FUEL

main23260-69035i2VZFE..VZV21198808-199106

main23260-79105i3SFE..SV2#198808-199106

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23207-74010i3SFE..SV2#198808-199106

sub23207-46010

main23270-62010i2VZFE..VZV21198808-199106

sub23270-62011

23270BGASKET(FOR PULSATION DAMPER HOSE)

main23232-41081i3SFE..SV2#199010-199106

main90430-12005i3SFE..SV2#198808-199010

23280REGULATOR ASSY, FUEL PRESSURE

main23280-62020i2VZFE..VZV21198808-199106

main23280-74031i3SFE..SV2#198808-199101

main23280-74100i3SFE..SV2#199101-199106

23291INSULATOR, INJECTOR VIBRATION

main23291-41010i2VZFE..VZV21198808-199106

23293GASKET, COLD START INJECTOR

main23293-62020i2VZFE..VZV21198808-199106

main23293-74010i3SFE..SV2#198808-198907

sub23293-42010

23300PFILTER, FUEL(FOR EFI)

main23030-79025i3SFE..SV2#198808-199106

23300TGASKET(FOR FUEL FILTER)

main90430-12005i2VZFE..VZV21198808-199106

23300UBOLT, UNION(FOR FUEL FILTER)

main90401-12097i3SFE..SV2#198808-199106

23801GBOLT, UNION(FOR FUEL PIPE)

main90401-08003i3SFE..SV2#198808-198909

main90401-08004i3SFE..SV2#198909-199106

23801HGASKET(FOR FUEL PIPE)

main90430-08009i3SFE..SV2#198808-199010

sub90430-08014

main90430-08014i3SFE..SV2#199010-199106

23801PPIPE SUB-ASSY, FUEL, NO.1

main23801-74021i3SFE..SV2#198808-199106

23802BPIPE SUB-ASSY, FUEL, NO.2

main23802-74021i3SFE..SV2#198808-199106

sub23802-74022

main23812-62010i2VZFE..VZV21198808-199106

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-74030i3SFE..SV2#198808-199106

main23814-62021i2VZFE..VZV21198808-199106

23807BHOSE, FUEL DELIVERY PIPE

main23271-74100i3SFE..SV2#198808-198903

main23271-74101i3SFE..SV2#198903-199106

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main90560-11020i3SFE..SV2#198808-199106

main90561-08020i2VZFE..VZV21198808-199106

8404

2182125180SCREW, 2ND THROTTLE VALVE SET

main21821-25180

2222274190GASKET, INTAKE AIR CONTROL VALVE, NO.2

main22222-74190

9025411004

main90254-11004

9040108003

main90401-08003

9043008014

main90430-08014

9151160612

main91511-60612

91611B0840

main91611-B0840

91611B0855

main91611-B0855

9161260612

main91612-60612

9165140855

main91651-40855

9165160614

main91651-60614

9165640616

main91656-40616

9318915020

main93189-15020

9331514010

main93315-14010

9411540500

main94115-40500

46 parts on this diagram · 4 diagrams in section
