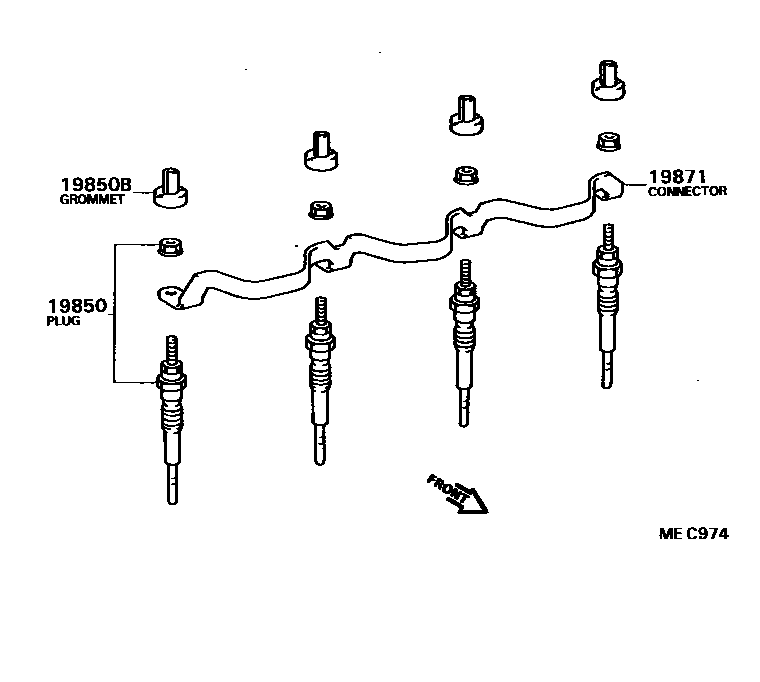

IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1 0003 1

19850PLUG ASSY, GLOW

main19850-64020i2CT..CV20198808-199106

*BV-GV=12V-11V

19850BGROMMET, SCREW(FOR GLOW PLUG)

main90189-04024i2CT..CV20198808-199106

19871CONNECTOR, GLOW PLUG NO.1

main19871-64021i2CT..CV20198808-199006

sub19871-64022

main19871-64022i2CT..CV20199006-199106

sub19871-64023

3 parts on this diagram · 3 diagrams in section
