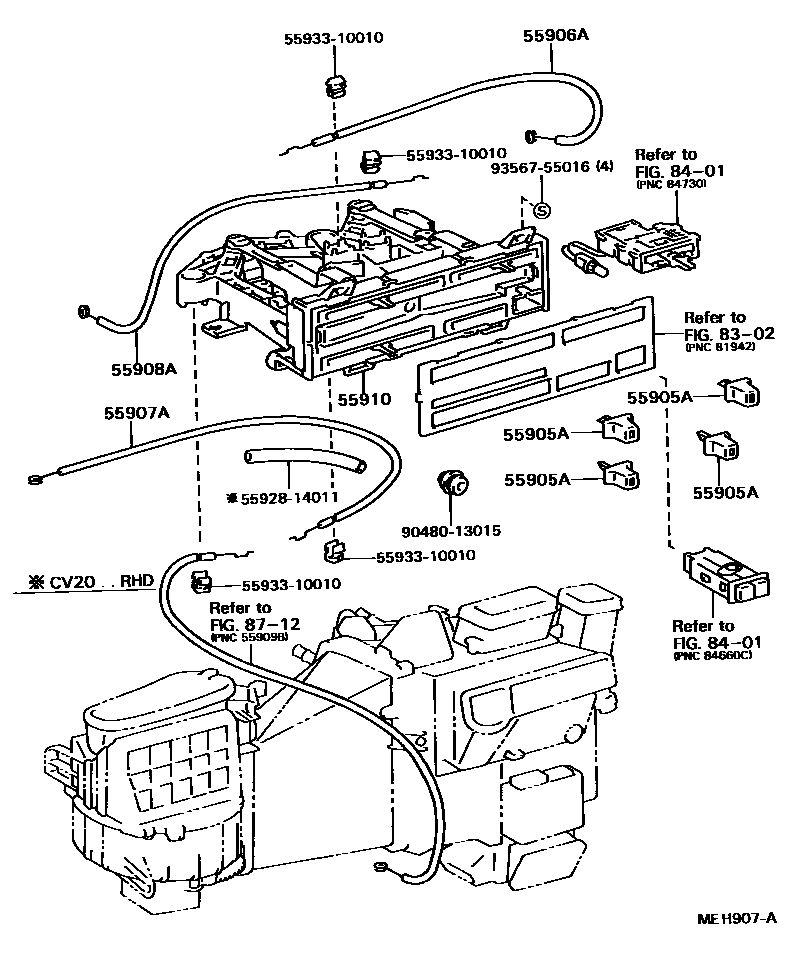

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1LEVER HEATER 0002 1PUSH HEATER 0003 1 0004 1

55905AKNOB, HEATER CONTROL

main55905-32010iSV21..WG..5F..GLI..FRG198807-198807

FINLAND WHITE PACKAGE,FACE

main55905-32010iSV21..WG..5F..GLI..FRG198807-198807

MIAMI,FACE

main55905-32010iVZV21198610-198808

FACE

main55905-32020iVZV21198610-198808

BI-LEVEL

main55905-32020iSV21..WG..5F..GLI..FRG198807-198807

MIAMI,BI-LEVEL

main55905-32020iSV21..WG..5F..GLI..FRG198807-198807

FINLAND WHITE PACKAGE,BI-LEVEL

main55905-32030iSV21..LHD..5F..GLI..EUG198807-198807

FINLAND WHITE PACKAGE,FOOT

main55905-32030iSV21..WG..5F..GLI..FRG198807-198807

MIAMI,FOOT

main55905-32030iSV21..SED..RHD..4FC198610-198808

FOOT

main55905-32040iVZV21198610-198808

FOOT/DEF

main55905-32040iSV21..WG..5F..GLI..FRG198807-198807

MIAMI,FOOT/DEF

main55905-32040iSV21..WG..5F..GLI..FRG198807-198807

FINLAND WHITE PACKAGE,FOOT/DEF

main55905-32050iSV21..WG..5F..GLI..FRG198807-198807

FINLAND WHITE PACKAGE,DEF

main55905-32050iSV21..WG..5F..GLI..FRG198807-198807

MIAMI,DEF

main55905-32050iSV21..SED..RHD..4FC198610-198808

DEF

main55905-32060iSV21..WG..5F..GLI..FRG198807-198807

FINLAND WHITE PACKAGE,MODE AUTO

main55905-32060iSV21..LHD..5F..GLI..EUG198807-198807

MIAMI,MODE AUTO

main55905-32060iVZV21198802-198808

MODE AUTO

main55905-32070iVZV21198610-198808

FAN OFF

main55905-32070iSV21..LHD..5F..GLI..EUG198807-198807

FINLAND WHITE PACKAGE,FAN OFF

main55905-32070iSV21..LHD..5F..GLI..EUG198807-198807

MIAMI,FAN OFF

main55905-32080iVZV21198610-198808

FAN LO

main55905-32080iSV21..WG..5F..GLI..FRG198807-198807

MIAMI,FAN LO

main55905-32080iSV21..WG..5F..GLI..FRG198807-198807

FINLAND WHITE PACKAGE,FAN LO

main55905-32090iVZV21198610-198808

FAN M1

main55905-32090iSV21..LHD..5F..GLI..EUG198807-198807

FINLAND WHITE PACKAGE,FAN M1

main55905-32090iSV21..LHD..5F..GLI..EUG198807-198807

MIAMI,FAN M1

main55905-32100iSV21..SED..RHD..4FC198610-198808

FAN M2

main55905-32100iSV21..WG..5F..GLI..FRG198807-198807

MIAMI,FAN M2

main55905-32100iSV21..WG..5F..GLI..FRG198807-198807

FINLAND WHITE PACKAGE,FAN M2

main55905-32110iSV21..WG..5F..GLI..FRG198807-198807

MIAMI,FAN HI

main55905-32110iSV21..SED..RHD..4FC198610-198808

FAN HI

main55905-32110iSV21..LHD..5F..GLI..EUG198807-198807

FINLAND WHITE PACKAGE,FAN HI

main55905-32120iVZV21198610-198808

RECIRCU

main55905-32120iSV21..WG..5F..GLI..FRG198807-198807

MIAMI,RECIRCU

main55905-32120iSV21..LHD..5F..GLI..EUG198807-198807

FINLAND WHITE PACKAGE,RECIRCU

main55905-32130iVZV21198610-198808

A/C

main55905-32140iSV21..SED..RHD..4FC198610-198808

ECON

main55905-32150iSV21..SED..RHD..4FC198610-198808

TEMP

main55905-32150iSV21..WG..5F..GLI..FRG198807-198807

MIAMI,TEMP

main55905-32150iSV21..LHD..5F..GLI..EUG198807-198807

FINLAND WHITE PACKAGE,TEMP

main55905-32170iSV21..SED..RHD..4FC198610-198808

MODE AUTO

main55905-32190iCV20,SV2#198610-198808

LEVER TYPE

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-32050iCV20,SV21..RHD198610-198808

main55906-32070iCV20,SV2#..LHD198610-198808

55907ACABLE SUB-ASSY, WATER VALVE CONTROL

main55907-32030iCV20,SV21..RHD198610-198808

main55907-32050iCV20,SV2#..LHD198610-198808

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-32050iCV20,SV21..RHD198610-198808

main55908-32070iCV20,SV2#..LHD198610-198808

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-32060iCV20,SV21,25..RHD198610-198808

main55910-32070iCV20,SV2#..LHD198610-198808

8302INDICATOR

→ Go to FIG 83-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8712HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

→ Go to FIG 87-12

5592814011PROTECTOR, HEATER CONTROL

main55928-14011

5593310010GUIDE, LEVER, NO.2

main55933-10010

9048013015

main90480-13015

9356755016

main93567-55016

12 parts on this diagram · 4 diagrams in section
