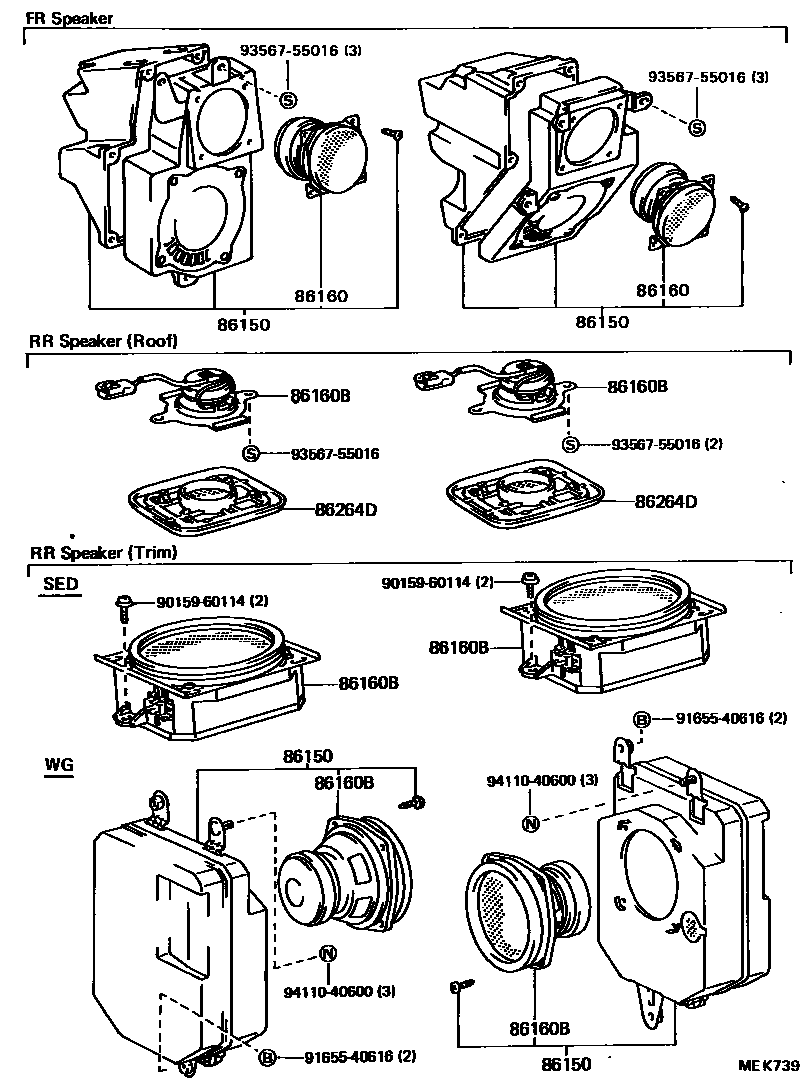

SPEAKER

86150SPEAKER ASSY, W/BOX, NO.1

main86150-32060iCV20,SV2#,VZV21..LHD198610-198808

FR,RH

main86150-32070iCV20,SV2#..LHD198610-198808

FR,LH

main86150-32080iCV20,SV21..RHD198610-198710

FF,RH

main86150-32080iCV20,SV21,25..RHD198710-198808

FR,RH

main86150-32090iCV20,SV21..RHD198610-198710

FF,LH

main86150-32090iCV20,SV21,25..RHD198710-198808

FR,LH

main86150-32120iCV20,SV2#..WG198610-198808

RR,RH

main86150-32130iCV20,SV2#..WG198610-198808

RR,LH

86160SPEAKER ASSY, FRONT NO.1

main86160-32120iSV25198610-198808

main86160-32130iCV20,SV2#,VZV21198710-198808

W(BOX SPEAKER)

main86160-32130iCV20,SV2#198610-198710

W/BOX SPEAKER

86160BSPEAKER ASSY, REAR

main86160-32100iCV20,SV2#,VZV21..SED198610-198808

main86160-32150iCV20,SV20,21..WG198610-198808

SIDE

main86160-32160iCV20,SV2#..WG198610-198808

ROOF

86264DGRILLE, SPEAKER, ROOF

main86269-32020-02iCV20,SV21..WG..RHD198710-198808

MAROON,TRIM3#

main86269-32020-03iCV20,SV20,21..WG198710-198808

LIGHT GRAY,TRIM1#,8#

main86269-32020-03iCV20,SV2#..WG198610-198710

GRAY,LIGHT GRAY,TRIM1#,8#

main86269-32020-05iCV20,SV2#..WG198610-198710

BEIGE,LIGHT BEIGE,TRIM3#,4#

main86269-32020-05iCV20,SV20,21..WG198710-198808

LIGHT BEIGE,TRIM4#

9015960114

main90159-60114

9165540616

main91655-40616

9356755016

main93567-55016

9411040600

main94110-40600

8 parts on this diagram · 1 diagram in section
