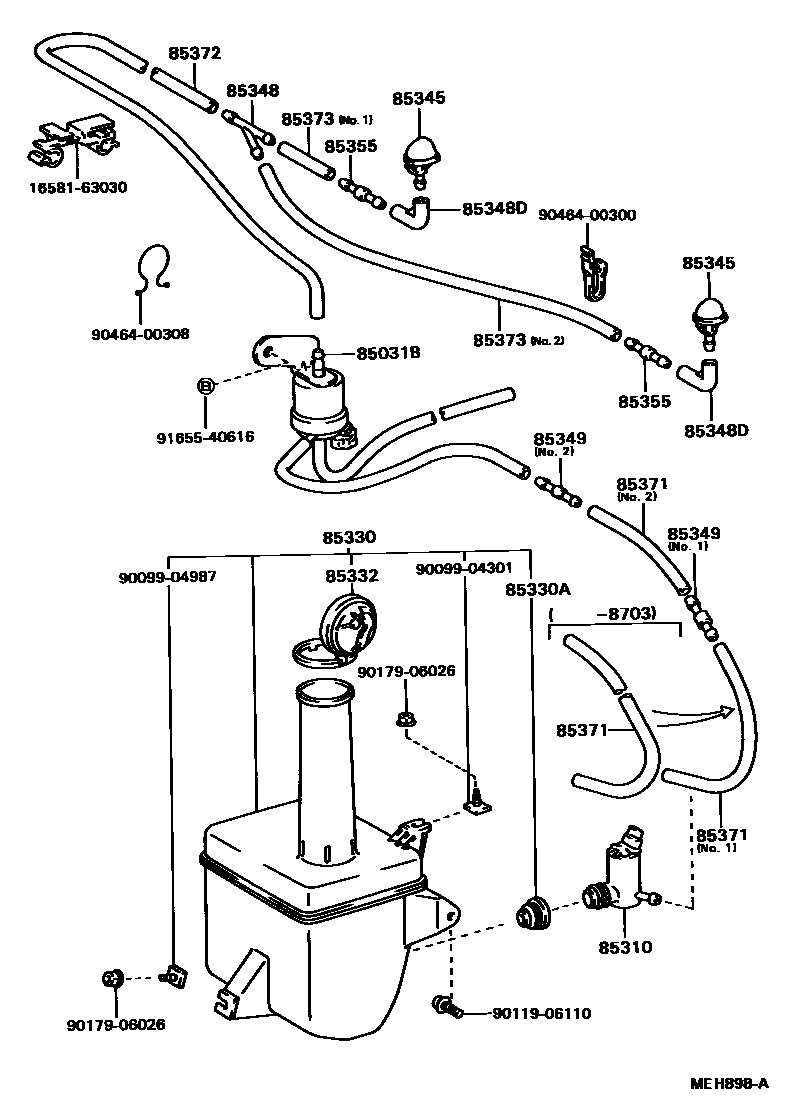

WINDSHIELD WASHER
85031BVALVE SUB-ASSY, WASHER
sub85031-32011
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
sub85330-60140
85330JAR ASSY, WINDSHIELD WASHER
W(HEADLAMP CLEANER)
W/*HC
85330ABUSH, WINDSHIELD WASHER JAR
85332CAP, WINDSHIELD WASHER JAR
85345NOZZLE, WINDSHIELD WASHER
RH
LH
LH
RH
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85349JOINT, WINDSHIELD WASHER HOSE, NO.1
NO.1
NO.2
85355VALVE, WINDSHIELD WASHER HOSE
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
NO.1,*H,L=990
L=1000(*H,L=990),NO.1
*H,L=170
L=600(*H,L=125),NO.2
L=1000,NO.2
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
L=1450(*H,L=615)
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
L=1450(*H,L=30),NO.1,NO.2
1658163030CLAMP, HOSE(FOR WATER HOSE)
main16581-63030
9009904301
main90099-04301
9009904987
main90099-04987
9011906110
main90119-06110
9017906026
main90179-06026
9046400300
main90464-00300
9046400308
main90464-00308
9165540616
main91655-40616
21 parts on this diagram · 2 diagrams in section
