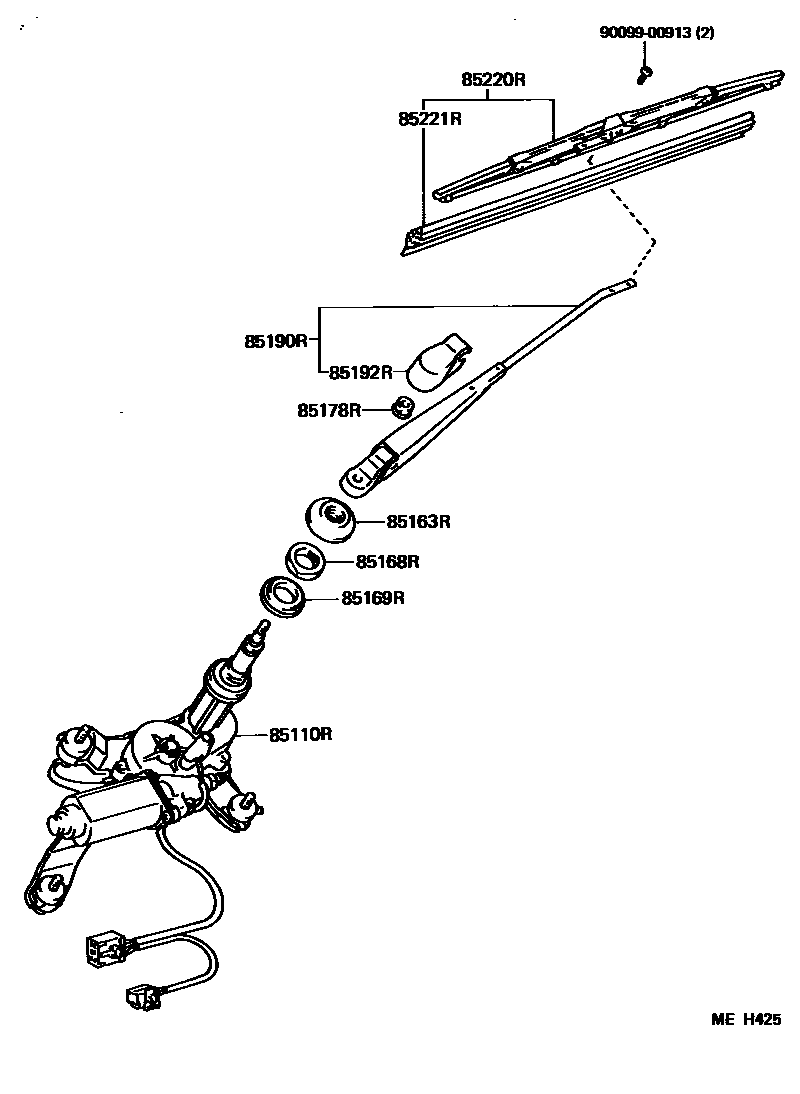

REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85110-32260iCV20,SV2#..WG198610-198808

85163RPACKING, REAR WIPER PIVOT, NO.1

main85134-32260iCV20,SV2#..WG198610-198808

85168RNUT, REAR WIPER LINK PIVOT, NO.1

main90099-05157iCV20,SV2#..WG198610-198808

85169RWASHER, REAR WIPER LINK PIVOT, NO.1

main85179-32260iCV20,SV2#..WG198610-198808

sub85179-16150

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iCV20,SV2#..WG198610-198808

85190RARM ASSY, REAR WIPER

main85190-32300iCV20,SV2#..WG198610-198808

85192RCOVER, REAR WIPER ARM

main85192-14020iCV20,SV2#..WG198610-198808

sub85192-13060

85220RBLADE ASSY, REAR WIPER

main85220-12600iCV20,SV2#..WG198610-198808

sub85220-12601

85221RBLADE, REAR WIPER

main85221-91C01iCV20,SV2#..WG198610-198808

sub85214-12H90

9009900913

main90099-00913

10 parts on this diagram · 1 diagram in section
