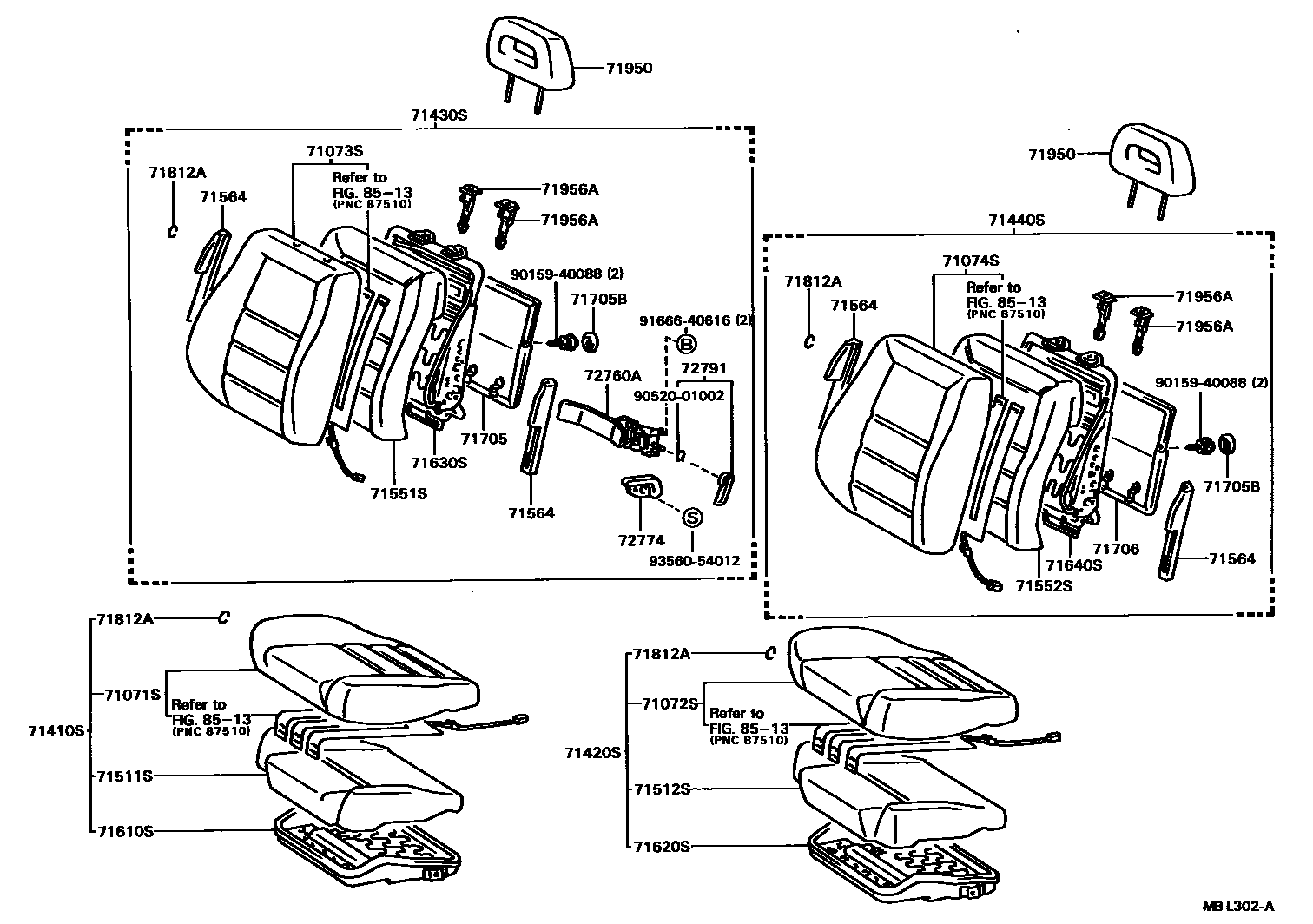

FRONT SEAT & SEAT TRACK

0001 1 0002 1

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-32420-03iCV20,SV2#..LHD..(XL,XLI)198610-198710

GRAY,MEDIUM GRAY,TRIM1#

main71071-32420-04iCV20,SV20,21..LHD..(XL,XLI)198710-198808

DARK BLUE,TRIM8#

main71071-32420-05iCV20,SV2#..LHD..(XL,XLI)198610-198710

BEIGE,DARK BEIGE,TRIM4#

main71071-32430-02iCV20,SV21,25..RHD..(GL,GLI)198710-198808

MAROON,TRIM3#

main71071-32430-04iCV20,SV21,25..RHD..(GL,GLI)198710-198808

DARK BLUE,TRIM8#

main71071-32430-05iCV20,SV21..RHD..(GL,GLI)198610-198710

BEIGE,DARK BEIGE,TRIM4#

main71071-32470-03iCV20,SV20,21..SED..(XL,XLI); CV20,SV20,21..WG..LHD..(XL,XLI)198710-198808

W(SEAT HEATER),MEDIUM GRAY,TRIM1#

main71071-32470-04iCV20,SV20,21..SED..(XL,XLI); CV20,SV20,21..WG..LHD..(XL,XLI)198710-198808

W(SEAT HEATER),DARK BLUE,TRIM8#

main71071-32470-05iCV20,SV20,21..SED..(XL,XLI); CV20,SV20,21..WG..LHD..(XL,XLI)198710-198808

W(SEAT HEATER),DARK BEIGE,TRIM4#

main71071-32480-03iCV20,SV21..LHD..(GL,GLI)198610-198708

W/*SH,GRAY,MEDIUM GRAY,TRIM1#

main71071-32480-04iCV20,SV21..LHD..(GL,GLI)198610-198708

W/*SH,BLUE,DARK BLUE,TRIM8#

main71071-32480-05iCV20,SV21..LHD..(GL,GLI)198610-198708

W/*SH,BEIGE,DARK BEIGE,TRIM4#

main71071-32500-03iCV20,SV21,25..LHD..(GL,GLI)198710-198808

W(SEAT HEATER),MEDIUM GRAY,TRIM1#

main71071-32500-04iCV20,SV21,25..LHD..(GL,GLI)198710-198808

W(SEAT HEATER),DARK BLUE,TRIM8#

main71071-32500-05iCV20,SV21..LHD..(GL,GLI)198708-198710

W/*SH,BEIGE,DARK BEIGE,TRIM4#

main71071-32510-03iCV20,SV21..LHD..(GL,GLI)198610-198710

GRAY,MEDIUM GRAY,TRIM1#

main71071-32510-04iCV20,SV21..LHD..(GL,GLI)198610-198710

BLUE,DARK BLUE,TRIM8#

main71071-32510-05iCV20,SV21,25..LHD..(GL,GLI)198710-198808

DARK BEIGE,TRIM4#

main71071-32530-02iCV20..RHD..XL198610-198710

MAROON,MAROON,TRIM3#

main71071-32530-04iCV20..RHD..XL198610-198710

BLUE,DARK BLUE,TRIM8#

main71071-32530-05iCV20..RHD..XL198710-198808

DARK BEIGE,TRIM4#

main71071-32580-03iVZV21198802-198808

MEDIUM GRAY,TRIM1#

main71071-32580-04iVZV21198802-198808

DARK BLUE,TRIM8#

main71071-32580-05iVZV21198802-198808

DARK BEIGE,TRIM4#

main71071-32600-03iVZV21198802-198808

W(SEAT HEATER),MEDIUM GRAY,TRIM1#

main71071-32600-04iVZV21198802-198808

W(SEAT HEATER),DARK BLUE,TRIM8#

main71071-32600-05iVZV21198802-198808

W(SEAT HEATER),DARK BEIGE,TRIM4#

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-32380-03iCV20,SV20,21..SED..(XL,XLI); CV20,SV20,21..WG..LHD..(XL,XLI)198710-198808

W(SEAT HEATER),MEDIUM GRAY,TRIM1#

main71072-32380-04iCV20,SV2#..LHD..(XL,XLI)198610-198710

W/*SH,BLUE,DARK BLUE,TRIM8#

main71072-32380-05iCV20,SV20,21..SED..(XL,XLI); CV20,SV20,21..WG..LHD..(XL,XLI)198710-198808

W(SEAT HEATER),DARK BEIGE,TRIM4#

main71072-32390-03iCV20,SV20,21..LHD..(XL,XLI)198710-198808

MEDIUM GRAY,TRIM1#

main71072-32390-04iCV20,SV2#..LHD..(XL,XLI)198610-198710

BLUE,DARK BLUE,TRIM8#

main71072-32390-05iCV20,SV20,21..LHD..(XL,XLI)198710-198808

DARK BEIGE,TRIM4#

main71072-32410-03iCV20,SV21..LHD..(GL,GLI)198610-198708

W/*SH,GRAY,MEDIUM GRAY,TRIM1#

main71072-32410-04iCV20,SV21..LHD..(GL,GLI)198610-198708

W/*SH,BLUE,DARK BLUE,TRIM8#

main71072-32410-05iCV20,SV21..LHD..(GL,GLI)198610-198708

W/*SH,BEIGE,DARK BEIGE,TRIM4#

main71072-32430-03iCV20,SV21,25..LHD..(GL,GLI)198710-198808

MEDIUM GRAY,TRIM1#

main71072-32430-04iCV20,SV21..LHD..(GL,GLI)198610-198710

BLUE,DARK BLUE,TRIM8#

main71072-32430-05iCV20,SV21,25..LHD..(GL,GLI)198710-198808

DARK BEIGE,TRIM4#

main71072-32460-02iCV20,SV21..RHD..(GL,GLI)198610-198710

MAROON,MAROON,TRIM3#

main71072-32460-04iCV20,SV21,25..RHD..(GL,GLI)198710-198808

DARK BLUE,TRIM8#

main71072-32460-05iCV20,SV21..RHD..(GL,GLI)198610-198710

BEIGE,DARK BEIGE,TRIM4#

main71072-32470-02iCV20..RHD..XL198610-198710

MAROON,MAROON,TRIM3#

main71072-32470-04iCV20..RHD..XL198710-198808

DARK BLUE,TRIM8#

main71072-32470-05iCV20..RHD..XL198610-198710

BEIGE,DARK BEIGE,TRIM4#

main71072-32510-03iCV20,SV21..LHD..(GL,GLI)198708-198710

W/*SH,GRAY,MEDIUM GRAY,TRIM1#

main71072-32510-04iCV20,SV21,25..LHD..(GL,GLI)198710-198808

W(SEAT HEATER),DARK BLUE,TRIM8#

main71072-32510-05iCV20,SV21..LHD..(GL,GLI)198708-198710

W/*SH,BEIGE,DARK BEIGE,TRIM4#

main71072-32560-03iVZV21198802-198808

MEDIUM GRAY,TRIM1#

main71072-32560-04iVZV21198802-198808

DARK BLUE,TRIM8#

main71072-32560-05iVZV21198802-198808

DARK BEIGE,TRIM4#

main71072-32580-03iVZV21198802-198808

W(SEAT HEATER),MEDIUM GRAY,TRIM1#

main71072-32580-04iVZV21198802-198808

W(SEAT HEATER),DARK BLUE,TRIM8#

main71072-32580-05iVZV21198802-198808

W(SEAT HEATER),DARK BEIGE,TRIM4#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-32360-02iCV20..RHD..XL198710-198808

MAROON,TRIM3#

main71073-32360-03iCV20,SV20,21..LHD..(XL,XLI)198710-198808

MEDIUM GRAY,TRIM1#

main71073-32360-04iCV20,SV20,21..XL,XLI198710-198808

DARK BLUE,TRIM8#

main71073-32360-05iCV20,SV2#..XL,XLI198610-198710

BEIGE,DARK BEIGE,TRIM4#

main71073-32370-02iCV20,SV21,25..RHD..(GL,GLI)198710-198808

MAROON,TRIM3#

main71073-32370-03iCV20,SV21,25..LHD..(GL,GLI)198710-198808

MEDIUM GRAY,TRIM1#

main71073-32370-04iCV20,SV21..GL,GLI198610-198710

BLUE,DARK BLUE,TRIM8#

main71073-32370-05iCV20,SV21..GL,GLI198610-198710

BEIGE,DARK BEIGE,TRIM4#

main71073-32410-03iCV20,SV20,21..SED..(XL,XLI); CV20,SV20,21..WG..LHD..(XL,XLI)198710-198808

W(SEAT HEATER),MEDIUM GRAY,TRIM1#

main71073-32410-04iCV20,SV20,21..SED..(XL,XLI); CV20,SV20,21..WG..LHD..(XL,XLI)198710-198808

W(SEAT HEATER),DARK BLUE,TRIM8#

main71073-32410-05iCV20,SV20,21..SED..(XL,XLI); CV20,SV20,21..WG..LHD..(XL,XLI)198710-198808

W(SEAT HEATER),DARK BEIGE,TRIM4#

main71073-32420-03iCV20,SV21..LHD..(GL,GLI)198610-198708

W/*SH,GRAY,MEDIUM GRAY,TRIM1#

main71073-32420-04iCV20,SV21..LHD..(GL,GLI)198610-198708

W/*SH,BLUE,DARK BLUE,TRIM8#

main71073-32420-05iCV20,SV21..LHD..(GL,GLI)198610-198708

W/*SH,BEIGE,DARK BEIGE,TRIM4#

main71073-32430-03iCV20,SV21..LHD..(GL,GLI)198708-198710

W/*SH,GRAY,MEDIAM GRAY,TRIM1#

main71073-32430-04iCV20,SV21,25..LHD..(GL,GLI)198710-198808

W(SEAT HEATER),DARK BLUE,TRIM8#

main71073-32430-05iCV20,SV21,25..LHD..(GL,GLI)198710-198808

W(SEAT HEATER),DARK BEIGE,TRIM4#

main71073-32490-03iVZV21198802-198808

MEDIUM GRAY,TRIM1#

main71073-32490-04iVZV21198802-198808

DARK BLUE,TRIM8#

main71073-32490-05iVZV21198802-198808

DARK BEIGE,TRIM4#

main71073-32500-03iVZV21198802-198808

W(SEAT HEATER),MEDIUM GRAY,TRIM1#

main71073-32500-05iVZV21198802-198808

W(SEAT HEATER),DARK BEIGE,TRIM4#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71073-32360-02iCV20..RHD..XL198710-198808

MAROON,TRIM3#

main71073-32360-03iCV20,SV20,21..LHD..(XL,XLI)198710-198808

MEDIUM GRAY,TRIM1#

main71073-32360-04iCV20,SV2#..XL,XLI198610-198710

BLUE,DARK BLUE,TRIM8#

main71073-32360-05iCV20,SV20,21..XL,XLI198710-198808

DARK BEIGE,TRIM4#

main71073-32370-02iCV20,SV21,25..RHD..(GL,GLI)198710-198808

MAROON,TRIM3#

main71073-32370-03iCV20,SV21,25..LHD..(GL,GLI)198710-198808

MEDIUM GRAY,TRIM1#

main71073-32370-04iCV20,SV21..GL,GLI198610-198710

BLUE,DARK BLUE,TRIM8#

main71073-32370-05iCV20,SV21..GL,GLI198610-198710

BEIGE,DARK BEIGE,TRIM4#

main71073-32490-03iVZV21198802-198808

MEDIUM GRAY,TRIM1#

main71073-32490-04iVZV21198802-198808

DARK BLUE,TRIM8#

main71073-32490-05iVZV21198802-198808

DARK BEIGE,TRIM4#

main71074-32130-03iCV20,SV21..LHD..(GL,GLI)198610-198708

W/*SH,GRAY,MEDIUM GRAY,TRIM1#

main71074-32130-04iCV20,SV21..LHD..(GL,GLI)198610-198708

W/*SH,BLUE,DARK BLUE,TRIM8#

main71074-32130-05iCV20,SV21..LHD..(GL,GLI)198610-198708

W/*SH,BEIGE,DARK BEIGE,TRIM4#

main71074-32210-03iCV20,SV20,21..SED..(XL,XLI); CV20,SV20,21..WG..LHD..(XL,XLI)198710-198808

W(SEAT HEATER),MEDIUM GRAY,TRIM1#

main71074-32210-04iCV20,SV20,21..SED..(XL,XLI); CV20,SV20,21..WG..LHD..(XL,XLI)198710-198808

W(SEAT HEATER),DARK BLUE,TRIM8#

main71074-32210-05iCV20,SV20,21..SED..(XL,XLI); CV20,SV20,21..WG..LHD..(XL,XLI)198710-198808

W(SEAT HEATER),DARK BEIGE,TRIM4#

main71074-32240-03iCV20,SV21..LHD..(GL,GLI)198708-198710

W/*SH,GRAY,MEDIUM GRAY,TRIM1#

main71074-32240-04iCV20,SV21..LHD..(GL,GLI)198708-198710

W/*SH,BLUE,DARK BLUE,TRIM8#

main71074-32240-05iCV20,SV21,25..LHD..(GL,GLI)198710-198808

W(SEAT HEATER),DARK BEIGE,TRIM4#

main71074-32260-03iVZV21198802-198808

W(SEAT HEATER),MEDIUM GRAY,TRIM1#

main71074-32260-04iVZV21198802-198808

W(SEAT HEATER),DARK BLUE,TRIM8#

main71074-32260-05iVZV21198802-198808

W(SEAT HEATER),DARK BEIGE,TRIM4#

71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71410-32420-03iCV20,SV20,21..LHD..(XL,XLI)198710-198808

MEDIUM GRAY,TRIM1#

main71410-32420-04iCV20,SV20,21..LHD..(XL,XLI)198710-198808

DARK BLUE,TRIM8#

main71410-32420-05iCV20,SV20,21..LHD..(XL,XLI)198710-198808

DARK BEIGE,TRIM4#

main71410-32430-02iCV20,SV21..RHD..(GL,GLI)198610-198710

MAROON,MAROON,TRIM3#

main71410-32430-04iCV20,SV21..RHD..(GL,GLI)198610-198710

BLUE,DARK BLUE,TRIM8#

main71410-32430-05iCV20,SV21,25..RHD..(GL,GLI)198710-198808

DARK BEIGE,TRIM4#

main71410-32470-03iCV20,SV21..LHD..(GL,GLI)198610-198708

W/*SH,GRAY,MEDIUM GRAY,TRIM1#

main71410-32470-04iCV20,SV21..LHD..(GL,GLI)198610-198708

W/*SH,BLUE,DARK BLUE,TRIM8#

main71410-32470-05iCV20,SV21..LHD..(GL,GLI)198610-198708

W/*SH,BEIGE,DARK BEIGE,TRIM4#

main71410-32480-03iCV20,SV21,25..LHD..(GL,GLI)198710-198808

W(SEAT HEATER),MEDIUM GRAY,TRIM1#

main71410-32480-04iCV20,SV21,25..LHD..(GL,GLI)198710-198808

W(SEAT HEATER),DARK BLUE,TRIM8#

main71410-32480-05iCV20,SV21..LHD..(GL,GLI)198708-198710

W/*SH,BEIGE,DARK BEIGE,TRIM4#

main71410-32490-03iCV20,SV20,21..SED..(XL,XLI); CV20,SV20,21..WG..LHD..(XL,XLI)198710-198808

W(SEAT HEATER),MEDIUM GRAY,TRIM1#

main71410-32490-04iCV20,SV20,21..SED..(XL,XLI); CV20,SV20,21..WG..LHD..(XL,XLI)198710-198808

W(SEAT HEATER),DARK BLUE,TRIM8#

main71410-32490-05iCV20,SV20,21..SED..(XL,XLI); CV20,SV20,21..WG..LHD..(XL,XLI)198710-198808

W(SEAT HEATER),DARK BEIGE,TRIM4#

main71410-32500-03iCV20,SV21..LHD..(GL,GLI)198610-198710

GRAY,MEDIUM GRAY,TRIM1#

main71410-32500-04iCV20,SV21..LHD..(GL,GLI)198610-198710

BLUE,DARK BLUE,TRIM8#

main71410-32500-05iCV20,SV21,25..LHD..(GL,GLI)198710-198808

DARK BEIGE,TRIM4#

main71410-32510-02iCV20..RHD..XL198710-198808

MAROON,TRIM3#

main71410-32510-04iCV20..RHD..XL198610-198710

BLUE,DARK BLUE,TRIM8#

main71410-32510-05iCV20..RHD..XL198610-198710

BEIGE,DARK BEIGE,TRIM4#

main71410-32570-03iVZV21198802-198808

MEDIUM GRAY,TRIM1#

main71410-32570-04iVZV21198802-198808

DARK BLUE,TRIM8#

main71410-32570-05iVZV21198802-198808

DARK BEIGE,TRIM4#

main71410-32590-03iVZV21198802-198808

W(SEAT HEATER),MEDIUM GRAY,TRIM1#

main71410-32590-04iVZV21198802-198808

W(SEAT HEATER),DARK BLUE,TRIM8#

main71410-32590-05iVZV21198802-198808

W(SEAT HEATER),DARK BEIGE,TRIM4#

71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

main71420-32350-03iCV20,SV2#..LHD..(XL,XLI)198610-198710

GRAY,MEDIUM GRAY,TRIM1#

main71420-32350-04iCV20,SV2#..LHD..(XL,XLI)198610-198710

BLUE,DARK BLUE,TRIM8#

main71420-32350-05iCV20,SV2#..LHD..(XL,XLI)198610-198710

BEIGE,DARK BEIGE,TRIM4#

main71420-32380-03iCV20,SV21..LHD..(GL,GLI)198610-198708

W/*SH,GRAY,MED GRAY,TRIM1#

main71420-32380-04iCV20,SV21..LHD..(GL,GLI)198610-198708

W/*SH,BLUE,DARK BLUE,TRIM8#

main71420-32380-05iCV20,SV21..LHD..(GL,GLI)198610-198708

W/*SH,BEIGE,DARK BEIGE,TRIM4#

main71420-32400-03iCV20,SV20,21..SED..(XL,XLI); CV20,SV20,21..WG..LHD..(XL,XLI)198710-198808

W(SEAT HEATER),MEDIUM GRAY,TRIM1#

main71420-32400-04iCV20,SV20,21..SED..(XL,XLI); CV20,SV20,21..WG..LHD..(XL,XLI)198710-198808

W(SEAT HEATER),DARK BLUE,TRIM8#

main71420-32400-05iCV20,SV20,21..SED..(XL,XLI); CV20,SV20,21..WG..LHD..(XL,XLI)198710-198808

W(SEAT HEATER),DARK BEIGE,TRIM4#

main71420-32410-03iCV20,SV21..LHD..(GL,GLI)198708-198710

W/*SH,GRAY,MEDIUM GRAY,TRIM1#

main71420-32410-04iCV20,SV21..LHD..(GL,GLI)198708-198710

W/*SH,BLUE,DARK BLUE,TRIM8#

main71420-32410-05iCV20,SV21..LHD..(GL,GLI)198708-198710

W/*SH,BEIGE,DARK BEIGE,TRIM4#

main71420-32420-03iCV20,SV21,25..LHD..(GL,GLI)198710-198808

MEDIUM GRAY,TRIM1#

main71420-32420-04iCV20,SV21..LHD..(GL,GLI)198610-198710

BLUE,DARK BLUE,TRIM8#

main71420-32420-05iCV20,SV21..LHD..(GL,GLI)198610-198710

BEIGE,DARK BEIGE,TRIM4#

main71420-32460-02iCV20,SV21..RHD..(GL,GLI)198610-198710

MAROON,MAROON,TRIM3#

main71420-32460-04iCV20,SV21..RHD..(GL,GLI)198610-198710

BLUE,DARK BLUE,TRIM8#

main71420-32460-05iCV20,SV21..RHD..(GL,GLI)198610-198710

BEIGE,DARK BEIGE,TRIM4#

main71420-32470-02iCV20..RHD..XL198710-198808

MAROON,TRIM3#

main71420-32470-04iCV20..RHD..XL198610-198710

BLUE,DARK BLUE,TRIM8#

main71420-32470-05iCV20..RHD..XL198610-198710

BEIGE,DARK BEIGE,TRIM4#

main71420-32530-03iVZV21198802-198808

MEDIUM GRAY,TRIM1#

main71420-32530-04iVZV21198802-198808

DARK BLUE,TRIM8#

main71420-32530-05iVZV21198802-198808

DARK BEIGE,TRIM4#

main71420-32550-03iVZV21198802-198808

W(SEAT HEATER),MEDIUM GRAY,TRIM1#

main71420-32550-04iVZV21198802-198808

W(SEAT HEATER),DARK BLUE,TRIM8#

main71420-32550-05iVZV21198802-198808

W(SEAT HEATER),DARK BEIGE,TRIM4#

71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71430-32350-03iCV20,SV21,25..LHD..(GL,GLI)198710-198808

W(SEAT HEATER),MEDIUM GRAY,TRIM1#

main71430-32350-04iCV20,SV21,25..LHD..(GL,GLI)198710-198808

W(SEAT HEATER),DARK BLUE,TRIM8#

main71430-32350-05iCV20,SV21..LHD..(GL,GLI)198708-198710

W/*SH,BEIGE,DARK BEIGE,TRIM4#

main71430-32380-02iCV20..RHD..XL198610-198710

MAROON,MAROON,TRIM3#

main71430-32380-03iCV20,SV2#..LHD..(XL,XLI)198610-198710

GRAY,MEDIUM GRAY,TRIM1#

main71430-32380-04iCV20,SV2#..XL,XLI198610-198710

BLUE,DARK BLUE,TRIM8#

main71430-32380-05iCV20,SV2#..XL,XLI198610-198710

BEIGE,DARK BEIGE,TRIM4#

main71430-32390-02iCV20,SV21,25..RHD..(GL,GLI)198710-198808

MAROON,TRIM3#

main71430-32390-04iCV20,SV21,25..RHD..(GL,GLI)198710-198808

DARK BLUE,TRIM8#

main71430-32390-05iCV20,SV21..RHD..(GL,GLI)198610-198710

BEIGE,DARK BEIGE,TRIM4#

main71430-32410-03iVZV21198802-198808

MEDIUM GRAY,TRIM1#

main71430-32410-04iVZV21198802-198808

DARK BLUE,TRIM8#

main71430-32410-05iVZV21198802-198808

DARK BEIGE,TRIM4#

main71430-32430-03iCV20,SV21..LHD..(GL,GLI)198610-198708

W/*SH,GRAY,MEDIUM GRAY,TRIM1#

main71430-32430-04iCV20,SV21..LHD..(GL,GLI)198610-198708

W/*SH,BLUE,DARK BLUE,TRIM8#

main71430-32430-05iCV20,SV21..LHD..(GL,GLI)198610-198708

W/*SH,BEIGE,DARK BEIGE,TRIM4#

main71430-32440-03iVZV21198802-198808

W(SEAT HEATER),MEDIUM GRAY,TRIM1#

main71430-32440-04iVZV21198802-198808

W(SEAT HEATER),DARK BLUE,TRIM8#

main71430-32440-05iVZV21198802-198808

W(SEAT HEATER),DARK BEIGE,TRIM4#

main71430-32450-03iCV20,SV20,21..SED..(XL,XLI); CV20,SV20,21..WG..LHD..(XL,XLI)198710-198808

W(SEAT HEATER),MEDIUM GRAY,TRIM1#

main71430-32450-04iCV20,SV20,21..SED..(XL,XLI); CV20,SV20,21..WG..LHD..(XL,XLI)198710-198808

W(SEAT HEATER),DARK BLUE,TRIM8#

main71430-32450-05iCV20,SV20,21..SED..(XL,XLI); CV20,SV20,21..WG..LHD..(XL,XLI)198710-198808

W(SEAT HEATER),DARK BEIGE,TRIM4#

main71430-32460-03iCV20,SV21,25..LHD..(GL,GLI)198710-198808

MEDIUM GRAY,TRIM1#

main71430-32460-04iCV20,SV21..LHD..(GL,GLI)198610-198710

BLUE,DARK BLUE,TRIM8#

main71430-32460-05iCV20,SV21,25..LHD..(GL,GLI)198710-198808

DARK BEIGE,TRIM4#

71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

main71430-32380-02iCV20..RHD..XL198610-198710

MAROON,MAROON,TRIM3#

main71430-32380-03iCV20,SV2#..LHD..(XL,XLI)198610-198710

GRAY,MEDIUM GRAY,TRIM1#

main71430-32380-04iCV20,SV2#..XL,XLI198610-198710

BLUE,DARK BLUE,TRIM8#

main71430-32380-05iCV20,SV2#..XL,XLI198610-198710

BEIGE,DARK BEIGE,TRIM4#

main71430-32460-02iCV20,SV21,25..RHD..(GL,GLI)198710-198808

MAROON,TRIM3#

main71430-32460-04iCV20,SV21,25..RHD..(GL,GLI)198710-198808

DARK BLUE,TRIM8#

main71430-32460-05iCV20,SV21,25..RHD..(GL,GLI)198710-198808

DARK BEIGE,TRIM4#

main71440-32250-03iCV20,SV21..LHD..(GL,GLI)198708-198710

W/*SH,GRAY,MEDIUM GRAY,TRIM1#

main71440-32250-04iCV20,SV21..LHD..(GL,GLI)198708-198710

W/*SH,BLUE,DARK BLUE,TRIM8#

main71440-32250-05iCV20,SV21..LHD..(GL,GLI)198708-198710

W/*SH,BEIGE,DARK BEIGE,TRIM4#

main71440-32290-03iCV20,SV21..LHD..(GL,GLI)198610-198708

W/*SH,GRAY,MEDIUM GRAY,TRIM1#

main71440-32290-04iCV20,SV21..LHD..(GL,GLI)198610-198708

W/*SH,BLUE,DARK BLUE,TRIM8#

main71440-32290-05iCV20,SV21..LHD..(GL,GLI)198610-198708

W/*SH,BEIGE,DARK BEIGE,TRIM4#

main71440-32300-03iVZV21198802-198808

MEDIUM GRAY,TRIM1#

main71440-32300-04iVZV21198802-198808

DARK BLUE,TRIM8#

main71440-32300-05iVZV21198802-198808

DARK BEIGE,TRIM4#

main71440-32310-03iCV20,SV21..LHD..(GL,GLI)198610-198710

GRAY,MEDIUM GRAY,TRIM1#

main71440-32310-04iCV20,SV21..LHD..(GL,GLI)198610-198710

BLUE,DARK BLUE,TRIM8#

main71440-32310-05iCV20,SV21..LHD..(GL,GLI)198610-198710

BEIGE,DARK BEIGE,TRIM4#

main71440-32330-03iCV20,SV20,21..SED..(XL,XLI); CV20,SV20,21..WG..LHD..(XL,XLI)198710-198808

W(SEAT HEATER),MEDIUM GRAY,TRIM1#

main71440-32330-04iCV20,SV20,21..SED..(XL,XLI); CV20,SV20,21..WG..LHD..(XL,XLI)198710-198808

W(SEAT HEATER),DARK BLUE,TRIM8#

main71440-32330-05iCV20,SV20,21..SED..(XL,XLI); CV20,SV20,21..WG..LHD..(XL,XLI)198710-198808

W(SEAT HEATER),DARK BEIGE,TRIM4#

main71440-32370-03iVZV21198802-198808

W(SEAT HEATER),MEDIUM GRAY,TRIM1#

main71440-32370-04iVZV21198802-198808

W(SEAT HEATER),DARK BLUE,TRIM8#

main71440-32370-05iVZV21198802-198808

W(SEAT HEATER),DARK BEIGE,TRIM4#

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-32100iCV20,SV21,25,VZV21..GL,GLI,GXI198710-198808

main71511-32130iCV20,SV20,21..XL,XLI198710-198808

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71511-32100iCV20,SV21..RHD198610-198710

main71511-32130iCV20,SV20,21..XL,XLI198710-198808

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-32100iCV20,SV20,21..XL,XLI198710-198808

main71551-32110iCV20,SV21,25,VZV21..GL,GLI,GXI198710-198808

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71551-32100iCV20,SV20,21..XL,XLI198710-198808

main71551-32110iCV20,SV21..GL,GLI198610-198710

71564PAD, FRONT SEATBACK, SIDE

main71563-32030×2iCV20,SV20,21..XL,XLI198710-198808

RH

main71563-32040×2iCV20,SV21,25,VZV21..GL,GLI,GXI198710-198808

RH

main71564-32030×2iCV20,SV20,21..XL,XLI198710-198808

LH

main71564-32040×2iCV20,SV21..GL,GLI198610-198710

LH

71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71610-32030iCV20,SV2#,VZV21..LHD198710-198808

main71610-32040iCV20,SV2#..LHD198610-198710

71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71610-32030iCV20,SV21,25..RHD198710-198808

main71610-32050iCV20,SV2#,VZV21..LHD198710-198808

71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71630-32110iCV20,SV21..RHD..(GL,GLI)198610-198710

main71630-32120iCV20..XL;CV20..LHD..GL;SV2#,VZV21..LHD198710-198808

71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71630-32110iCV20,SV21..LHD..(GL,GLI)198610-198710

main71630-32120iCV20,SV2#..LHD..(XL,XLI); CV20,SV21..RHD198610-198710

71705BOARD SUB-ASSY, FRONT SEATBACK, RH

main71705-32170-02iCV20,SV21..RHD..(GL,GLI)198610-198710

MAROON,MAROON,TRIM3#

main71705-32170-03iCV20,SV21,25,VZV21..LHD..(GL,GLI,GXI)198710-198808

MEDIUM GRAY,TRIM1#

main71705-32170-04iCV20,SV21,25,VZV21..GL,GLI,GXI198710-198808

DARK BLUE,TRIM8#

main71705-32170-05iCV20,SV21..GL,GLI198610-198710

BEIGE,DARK BEIGE,TRIM4#

71705BCAP(FOR FRONT SEATBACK BOARD)

main90339-10001-22×4iCV20,SV21,25..RHD..(GL,GLI)198710-198807

MAROON,TRIM3#

main90339-10001-24×4iCV20,SV21..GL,GLI198610-198710

BLUE,DARK BLUE,TRIM8#

main90339-10001-33×4iCV20,SV21..LHD..(GL,GLI)198610-198710

GRAY,MEDIUM GRAY,TRIM1#

main90339-10001-45×4iCV20,SV21,25,VZV21..GL,GLI,GXI198710-198808

DARK BEIGE,TRIM4#

71706BOARD SUB-ASSY, FRONT SEATBACK, LH

main71705-32170-02iCV20,SV21,25..RHD..(GL,GLI)198710-198808

MAROON,TRIM3#

main71705-32170-03iCV20,SV21..LHD..(GL,GLI)198610-198710

GRAY,MEDIUM GRAY,TRIM1#

main71705-32170-04iCV20,SV21,25,VZV21..GL,GLI,GXI198710-198808

DARK BLUE,TRIM8#

main71705-32170-05iCV20,SV21..GL,GLI198610-198710

BEIGE,DARK BEIGE,TRIM4#

71812ARING, HOG, SMALL (FOR FRONT SEAT)

main90468-18071×33iCV20,SV2#198610-198710

71950HEADREST ASSY, FRONT SEAT

main71910-32270-02×2iCV20..RHD..XL198710-198808

MAROON,TRIM3#

main71910-32270-03×2iCV20,SV20,21..LHD..(XL,XLI)198710-198808

MEDIUM GRAY,TRIM1#

main71910-32270-04×2iCV20,SV20,21..XL,XLI198710-198808

DARK BLUE,TRIM8#

main71910-32270-05×2iCV20,SV20,21..XL,XLI198710-198808

DARK BEIGE,TRIM4#

main71910-32280-02×2iCV20,SV21..RHD..(GL,GLI)198610-198710

MAROON,MAROON,TRIM3#

main71910-32280-03×2iCV20,SV21,25,VZV21..LHD..(GL,GLI,GXI)198710-198808

MEDIUM GRAY,TRIM1#

main71910-32280-04×2iCV20,SV21..GL,GLI198610-198710

BLUE,DARK BLUE,TRIM8#

main71910-32280-05×2iCV20,SV21..GL,GLI198610-198710

BEIGE,DARK BEIGE,TRIM4#

71956ASUPPORT, FRONT SEAT HEADREST

main71930-10060-10iCV20,SV2#198610-198710

W(LOCK),W/LOCK,BEIGE,DARK BEIGE,TRIM4#

main71930-10060-42iCV20,SV21..RHD198610-198710

W(LOCK),W/LOCK,MAROON,MAROON,TRIM3#

main71930-10060-53×2iCV20,SV2#,VZV21..LHD198710-198807

W(LOCK),MEDIUM GRAY,TRIM1#

main71930-10060-54×2iCV20,SV2#,VZV21198710-198807

W(LOCK),DARK BLUE,TRIM8#

main71931-10010-10×2iCV20,SV2#,VZV21198710-198808

W/O(LOCK),DARK BEIGE,TRIM4#

main71931-10010-42×2iCV20,SV21,25..RHD198710-198807

W/O(LOCK),MAROON,TRIM3#

main71931-10010-53×2iCV20,SV2#,VZV21..LHD198710-198807

W/O(LOCK),MEDIUM GRAY,TRIM1#

main71931-10010-54×2iCV20,SV2#,VZV21198710-198807

W/O(LOCK),DARK BLUE,TRIM8#

72760AADJUSTER ASSY, LUMBAR SUPPORT

main72750-32030iCV20,SV21,25..RHD..(GL,GLI)198710-198808

main72760-32020iCV20,SV21..LHD..(GL,GLI)198610-198710

72774PROTECTOR, LUMBAR SUPPORT SPRING

main72774-32010iCV20,SV21..RHD..(GL,GLI)198610-198710

main72775-32010iCV20,SV21..LHD..(GL,GLI)198610-198710

72791LEVER, LUMBAR SUPPORT

main72791-22020-32iCV20,SV21,25..RHD..(GL,GLI)198710-198807

MAROON,TRIM3#

main72791-22020-34iCV20,SV21..GL,GLI198704-198710

BLUE,DARK BLUE,TRIM8#

main72791-22020-45iCV20,SV21,25,VZV21..GL,GLI,GXI198710-198808

DARK BEIGE,TRIM4#

main72791-22020-53iCV20,SV21,25,VZV21..LHD..(GL,GLI,GXI)198710-198808

MEDIUM GRAY,TRIM1#

main72791-30030-13iCV20,SV21..LHD..(GL,GLI)198610-198704

GRAY,MEDIUM GRAY,TRIM1#

main72791-30030-22iCV20,SV21..RHD..(GL,GLI)198610-198704

MAROON,MAROON,TRIM3#

main72791-30030-34iCV20,SV21..GL,GLI198610-198704

BLUE,DARK BLUE,TRIM8#

main72791-30030-35iCV20,SV21..GL,GLI198610-198704

BEIGE,DARK BEIGE,TRIM4#

8513SEAT MOTOR & SEAT HEATER

→ Go to FIG 85-13

9015940088

main90159-40088

9052001002

main90520-01002

9166640616

main91666-40616

9356054012

main93560-54012

31 parts on this diagram · 2 diagrams in section
