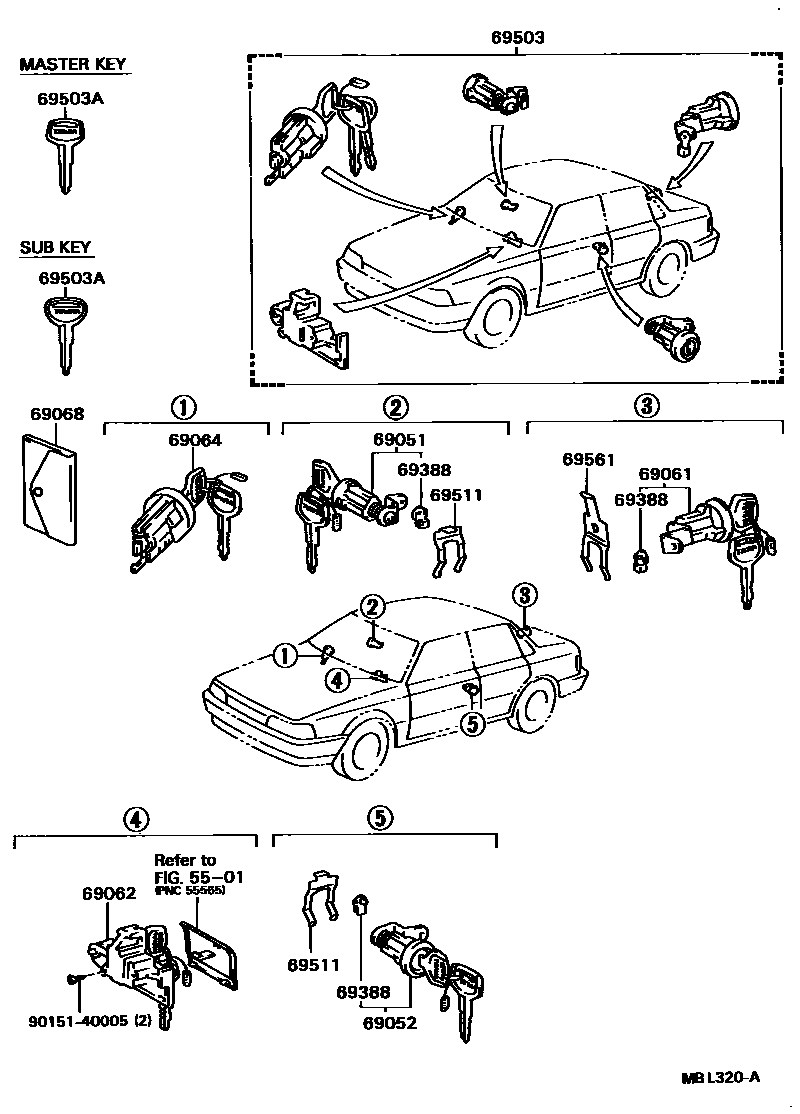

LOCK CYLINDER SET

0001 1 0002 1

5501

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-32090iCV20,SV2#,VZV21198610-198808

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-32090iCV20,SV2#198610-198808

69061CYLINDER & KEY SET, LUGGAGE LOCK

main69055-32160iCV20,SV2#..SED198610-198808

69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-32080iCV20,SV2#198610-198808

sub69056-20140

69064CYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-32090iCV20,SV21..RHD198610-198808

main69057-32100iCV20,SV2#..LHD198610-198808

69068COVER SUB-ASSY, KEY

main69555-20010iCV20,SV2#198610-198808

69388SNAP, ROD(FOR DOOR LOCK)

main69759-20080iCV20,SV2#..WG198610-198808

BACK DOOR

main69759-24080iCV20,SV2#,VZV21..SED198610-198808

LUGGAGE DOOR

main69759-32070iCV20,SV2#,VZV21198610-198808

FR DOOR,RH

sub69759-45010

main69759-32080iCV20,SV2#,VZV21198610-198808

FR DOOR,LH

sub69759-45020

69503CYLINDER SET, LOCK

main69005-32260iCV20,SV2#,VZV21..SED..LHD198610-198808

main69005-32270iCV20,SV21,25..SED..RHD198610-198808

main69005-32290iCV20,SV20,21..WG..LHD198610-198808

main69005-32340iCV20,SV21..WG..RHD198610-198808

69503AKEY, BLANK

main90999-00119iCV20,SV2#198610-198710

MASTER KEY,W(*68),MASTER KEY,W/*68

sub90999-00211

main90999-00119iCV20,SV2#,VZV21198710-198808

MASTER KEY,W(*68)

sub90999-00211

main90999-00120iCV20,SV2#198610-198710

MASTER KEY,W(*69),MASTER KEY,W/*69

sub90999-00119

main90999-00120iCV20,SV2#,VZV21198710-198808

MASTER KEY,W(*69)

sub90999-00119

main90999-00121iCV20,SV2#,VZV21198710-198808

SUB KEY,W(*68)

main90999-00121iCV20,SV2#198610-198710

SUB KEY,W(*68),8UB KEY,W/*68

main90999-00122iCV20,SV2#198610-198710

SUB KEY,W(*69),8UB KEY,W/*69

sub90999-00121

main90999-00122iCV20,SV2#,VZV21198710-198808

SUB KEY,W(*69)

sub90999-00121

69511RETAINER, FRONT DOOR LOCK CYLINDER

main69511-32020iCV20,SV2#198610-198808

69561RETAINER, LUGGAGE COMPARTMENT OR BACK DOOR LOCK CYLINDER

main69561-32020iCV20,SV2#..SED198610-198808

9015140005

main90151-40005

13 parts on this diagram · 2 diagrams in section
