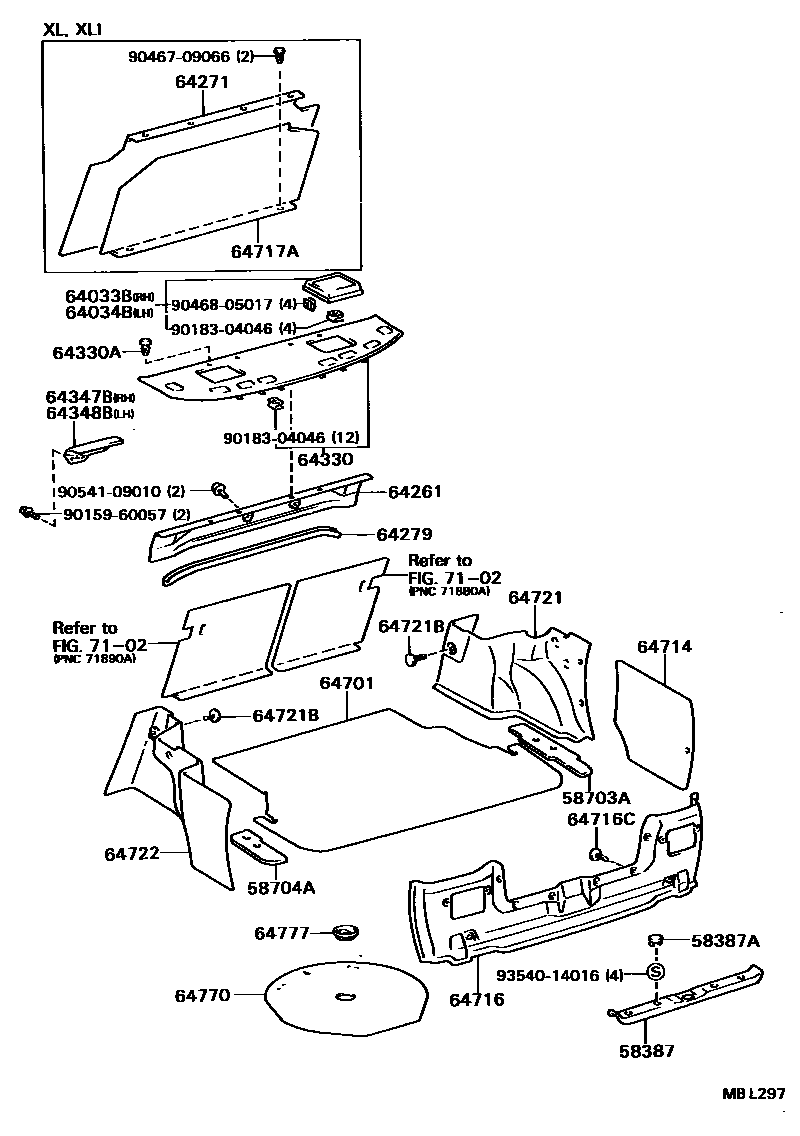

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

0001 1 0002 1

58387PLATE, REAR FLOOR FINISH

main58387-32020-03iCV20,SV2#,VZV21..SED198710-198808

LIGHT GRAY,TRIM1#,3#,4#,8#

main58387-32020-03iCV20,SV2#..SED198610-198710

GRAY,LIGHT GRAY

58387APLUG, HOLE(FOR REAR FLOOR FINISH PLATE)

main90950-01503-05iCV20,SV2#..SED198710-198807

DARK BEIGE,TRIM4#

sub90950-01503

main90950-01503-12iCV20,SV21,25..SED..RHD198710-198807

MAROON,TRIM3#

sub90950-01503

main90950-01503-13iCV20,SV2#..SED..LHD198710-198807

MEDIUM GRAY,TRIM1#

sub90950-01503

main90950-01503-14iCV20,SV2#..SED198710-198807

DARK BLUE,TRIM8#

sub90950-01503

main90950-01503-23iCV20,SV2#..SED198610-198710

GRAY,LIGHT GRAY

sub90950-01503

main90950-01503-23iCV20,SV2#..SED198710-198807

LIGHT GRAY,TRIM1#,3#,4#,8#

sub90950-01503

58703ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH

main58703-32010iCV20,SV20,21,VZV21..SED198610-198808

main58703-32020iSV25198710-198808

58704ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH

main58704-32010iCV20,SV2#..SED198610-198808

main58704-32040iSV25198710-198808

64033BGRILLE SUB-ASSY, REAR SPEAKER, RH

main64033-22040-02iCV20,SV21..SED..RHD198610-198710

MAROON,MEDIUM GRAY,TRIM3#

main64033-22040-02iCV20,SV21,25..SED..RHD198710-198808

MAROON,TRIM3#

main64033-22040-03iCV20,SV2#,VZV21..SED..LHD198710-198808

MEDIUM GRAY,TRIM1#

main64033-22040-03iCV20,SV2#..SED..LHD198610-198710

GRAY,MEDIUM GRAY,TRIM1#

main64033-22040-04iCV20,SV2#..SED198610-198710

BLUE,DARK BLUE,TRIM8#

main64033-22040-04iCV20,SV2#,VZV21..SED198710-198808

DARK BLUE,TRIM8#

main64033-22040-05iCV20,SV2#..SED198610-198710

BEIGE,DARK BEIGE,TRIM4#

main64033-22040-05iCV20,SV2#,VZV21..SED198710-198808

DARK BEIGE,TRIM4#

64034BGRILLE SUB-ASSY, REAR SPEAKER, LH

main64033-22040-02iCV20,SV21..SED..RHD198610-198710

MAROON,MEDIUM GRAY,TRIM3#

main64033-22040-02iCV20,SV21,25..SED..RHD198710-198808

MAROON,TRIM3#

main64033-22040-03iCV20,SV2#,VZV21..SED..LHD198710-198808

MEDIUM GRAY,TRIM1#

main64033-22040-03iCV20,SV2#..SED..LHD198610-198710

GRAY,MEDIUM GRAY,TRIM1#

main64033-22040-04iCV20,SV2#..SED198610-198710

BLUE,DARK BLUE,TRIM8#

main64033-22040-04iCV20,SV2#,VZV21..SED198710-198808

DARK BLUE,TRIM8#

main64033-22040-05iCV20,SV2#..SED198610-198710

BEIGE,DARK BEIGE,TRIM4#

main64033-22040-05iCV20,SV2#,VZV21..SED198710-198808

DARK BEIGE,TRIM4#

64261GARNISH, ROOM PARTITION

main64261-32010-02iCV20,SV21..SED..RHD198610-198710

MAROON,MAROON,TRIM3#

sub64261-32010

main64261-32010-02iCV20,SV21,25..SED..RHD198710-198808

MAROON,TRIM3#

sub64261-32010

main64261-32010-03iCV20,SV20,21..SED..(XL,XLI)198710-198808

MEDIUM GRAY,TRIM1#

sub64261-32010

main64261-32010-03iCV20,SV2#..SED..LHD198610-198710

GRAY,MEDIUM GRAY,TRIM1#

sub64261-32010

main64261-32010-04iCV20,SV2#..SED198610-198710

BLUE,DARK BLUE,TRIM8#

sub64261-32010

main64261-32010-04iCV20,SV20,21..SED..(XL,XLI)198710-198808

DARK BLUE,TRIM8#

sub64261-32010

main64261-32010-05iCV20,SV21,25,VZV21..SED..(GL,GLI,GXI)198710-198808

DARK BEIGE,TRIM4#

sub64261-32010

main64261-32010-05iCV20,SV2#..SED198610-198710

BEIGE,DARK BEIGE,TRIM4#

sub64261-32010

64271BOARD, ROOM PARTITION, NO.1

main64271-32030iCV20,SV20,21..SED..(XL,XLI)198610-198808

64279PROTECTOR, ROOM PARTITION

main64279-32020-02iCV20,SV21..SED..RHD198610-198710

MAROON,MAROON,TRIM3#

main64279-32020-02iCV20,SV21,25..SED..RHD198710-198808

MAROON,TRIM3#

main64279-32020-03iCV20,SV21,25,VZV21..SED..LHD..(GL,GLI,GXI)198710-198808

MEDIUM GRAY,TRIM1#

main64279-32020-03iCV20,SV2#..SED..LHD198610-198710

GRAY,MEDIUM GRAY,TRIM1#

main64279-32020-04iCV20,SV21,25,VZV21..SED..(GL,GLI,GXI)198710-198808

DARK BLUE,TRIM8#

main64279-32020-04iCV20,SV2#..SED198610-198710

BLUE,DARK BLUE,TRIM8#

main64279-32020-05iCV20,SV20,21..SED..(XL,XLI)198710-198808

DARK BEIGE,TRIM4#

main64279-32020-05iCV20,SV2#..SED198610-198710

BEIGE,DARK BEIGE,TRIM4#

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-32160-02iCV20,SV21..SED..RHD198610-198707

MAROON,MAROON,TRIM3#

sub64330-32161

main64330-32160-03iCV20,SV21..SED..LHD..(GL,GLI)198610-198707

GRAY,MEDIUM GRAY,TRIM1#

sub64330-32161

main64330-32160-04iCV20,SV21..SED..(GL,GLI)198610-198707

BLUE,DARK BLUE,TRIM8#

sub64330-32161

main64330-32160-05iCV20,SV21..SED..(GL,GLI)198610-198707

BEIGE,DARK BEIGE,TRIM4#

sub64330-32161

main64330-32161-02iSV25..RHD198710-198808

W(SPEAKER),MAROON,TRIM3#

sub64330-32161

main64330-32161-02iSV25..RHD198710-198808

MAROON,TRIM3#

sub64330-32161

main64330-32161-02iCV20,SV21..SED..RHD198707-198710

MAROON,MAROON,TRIM3#

sub64330-32161

main64330-32161-03iSV25..LHD198710-198808

W(SPEAKER),MEDIUM GRAY,TRIM1#

sub64330-32161

main64330-32161-03iCV20,SV21..SED..LHD..(GL,GLI)198707-198710

GRAY,MEDIUM GRAY,TRIM1#

sub64330-32161

main64330-32161-03iSV25..LHD198710-198808

MEDIUM GRAY,TRIM1#

sub64330-32161

main64330-32161-04iCV20,SV21..SED..(GL,GLI)198710-198808

W(SPEAKER),DARK BLUE,TRIM8#

sub64330-32161

main64330-32161-04iCV20,SV21..SED..(GL,GLI)198710-198808

DARK BLUE,TRIM8#

sub64330-32161

main64330-32161-04iCV20,SV21..SED..(GL,GLI)198707-198710

BLUE,DARK BLUE,TRIM8#

sub64330-32161

main64330-32161-05iCV20,SV21,VZV21..SED..(GL,GLI,GXI)198710-198808

DARK BEIGE,TRIM4#

sub64330-32161

main64330-32161-05iCV20,SV21,VZV21..SED..(GL,GLI,GXI)198710-198808

W(SPEAKER),DARK BEIGE,TRIM4#

sub64330-32161

main64330-32161-05iCV20,SV21..SED..(GL,GLI)198707-198710

BEIGE,DARK BEIGE,TRIM4#

sub64330-32161

main64330-32170-02iCV20,SV21..SED..RHD198610-198707

*45,MAROON,MAROON,TRIM3#

sub64330-32171

main64330-32170-03iCV20,SV21..SED..LHD..(GL,GLI)198610-198707

*45,GRAY,MEDIUM GRAY,TRIM1#

sub64330-32171

main64330-32170-04iCV20,SV21..SED..(GL,GLI)198610-198707

*45,BLUE,DARK BLUE,TRIM8#

sub64330-32171

main64330-32170-05iCV20,SV21..SED..(GL,GLI)198610-198707

*45,BEIGE,DARK BEIGE,TRIM4#

sub64330-32171

main64330-32171-02iCV20,SV21..SED..RHD198707-198710

*45,MAROON,MAROON,TRIM3#

main64330-32171-02iCV20,SV21,25..SED..RHD198710-198808

*45,MAROON,TRIM3#

main64330-32171-03iCV20,SV21,25..SED..LHD..(GL,GLI)198710-198808

*45,MEDIUM GRAY,TRIM1#

main64330-32171-03iCV20,SV21..SED..LHD..(GL,GLI)198707-198710

*45,GRAY,MEDIUM GRAY,TRIM1#

main64330-32171-04iCV20,SV21..SED..(GL,GLI)198707-198710

*45,BLUE,DARK BLUE,TRIM8#

main64330-32171-04iCV20,SV21,25..SED..(GL,GLI)198710-198808

*45,DARK BLUE,TRIM8#

main64330-32171-05iCV20,SV21,25..SED..(GL,GLI)198710-198808

*45,DARK BEIGE,TRIM4#

main64330-32171-05iCV20,SV21..SED..(GL,GLI)198707-198710

*45,BEIGE,DARK BEIGE,TRIM4#

main64330-32190-03iCV20,SV2#..SED..(XL,XLI)198610-198707

GRAY,MEDIUM GRAY,TRIM1#

sub64330-32191

main64330-32190-04iCV20,SV2#..SED..(XL,XLI)198610-198707

BLUE,DARK BLUE,TRIM8#

sub64330-32191

main64330-32190-05iCV20,SV2#..SED..(XL,XLI)198610-198707

BEIGE,DARK BEIGE,TRIM4#

sub64330-32191

main64330-32191-03iSV21..SED..XLI198710-198808

MEDIUM GRAY,TRIM1#

sub64330-32161

sub64330-32191

main64330-32191-03iCV20,SV2#..SED..(XL,XLI)198707-198710

GRAY,MEDIUM GRAY,TRIM1#

sub64330-32161

sub64330-32191

main64330-32191-04iSV21..SED..XLI198710-198808

DARK BLUE,TRIM8#

sub64330-32161

sub64330-32191

main64330-32191-04iCV20,SV2#..SED..(XL,XLI)198707-198710

BLUE,DARK BLUE,TRIM8#

sub64330-32161

sub64330-32191

main64330-32191-05iCV20,SV20..SED..XL198710-198808

DARK BEIGE,TRIM4#

sub64330-32161

sub64330-32191

main64330-32191-05iCV20,SV2#..SED..(XL,XLI)198707-198710

BEIGE,DARK BEIGE,TRIM4#

sub64330-32161

sub64330-32191

main64330-32200-03iCV20,SV2#..SED..(XL,XLI)198610-198707

*45,GRAY,MEDIUM GRAY,TRIM1#

sub64330-32201

main64330-32200-04iCV20,SV2#..SED..(XL,XLI)198610-198707

*45,BLUE,DARK BLUE,TRIM8#

sub64330-32201

main64330-32200-05iCV20,SV2#..SED..(XL,XLI)198610-198707

*45,BEIGE,DARK BEIGE,TRIM4#

sub64330-32201

main64330-32201-03iCV20,SV2#..SED..(XL,XLI)198707-198710

*45,GRAY,MEDIUM GRAY,TRIM1#

main64330-32201-03iCV20,SV20,21..SED..(XL,XLI)198710-198808

*45,MEDIUM GRAY,TRIM1#

main64330-32201-04iCV20,SV2#..SED..(XL,XLI)198707-198710

*45,BLUE,DARK BLUE,TRIM8#

main64330-32201-04iCV20,SV20,21..SED..(XL,XLI)198710-198808

*45,DARK BLUE,TRIM8#

main64330-32201-05iCV20,SV20,21..SED..(XL,XLI)198710-198808

*45,DARK BEIGE,TRIM4#

main64330-32201-05iCV20,SV2#..SED..(XL,XLI)198707-198710

*45,BEIGE,DARK BEIGE,TRIM4#

main64330-32210-02iCV20,SV21..SED..RHD198610-198707

W/SPEAKER,MAROON,MAROON,TRIM3#

sub64330-32211

main64330-32210-03iCV20,SV21..SED..LHD..(GL,GLI)198610-198707

W/SPEAKER,GRAY,MEDIUM GRAY,TRIM1#

sub64330-32211

main64330-32210-04iCV20,SV21..SED..(GL,GLI)198610-198707

W/SPEAKER,BLUE,DARK BLUE,TRIM8#

sub64330-32211

main64330-32210-05iCV20,SV21..SED..(GL,GLI)198610-198707

W/SPEAKER,BEIGE,DARK BEIGE,TRIM4#

sub64330-32211

main64330-32211-02iCV20,SV21,25..SED..RHD198710-198808

W(SPEAKER),MAROON,TRIM3#

main64330-32211-02iCV20,SV21..SED..RHD198707-198710

W/SPEAKER,MAROON,MAROON,TRIM3#

main64330-32211-03iCV20,SV21,25,VZV21..SED..LHD..(GL,GLI,GXI)198710-198808

W(SPEAKER),MEDIUM GRAY,TRIM1#

main64330-32211-03iCV20,SV21..SED..LHD..(GL,GLI)198707-198710

W/SPEAKER,GRAY,MEDIUM GRAY,TRIM1#

main64330-32211-04iCV20,SV21..SED..(GL,GLI)198707-198710

W/SPEAKER,BLUE,DARK BLUE,TRIM8#

main64330-32211-04iCV20,SV21,25,VZV21..SED..(GL,GLI,GXI)198710-198808

W(SPEAKER),DARK BLUE,TRIM8#

main64330-32211-05iCV20,SV21,25,VZV21..SED..(GL,GLI,GXI)198710-198808

W(SPEAKER),DARK BEIGE,TRIM4#

main64330-32211-05iCV20,SV21..SED..(GL,GLI)198707-198710

W/SPEAKER,BEIGE,DARK BEIGE,TRIM4#

main64330-32220-02iCV20,SV21..SED..RHD198610-198707

W/SPEAKER,*45,MAROON,MAROON,TRIM3#

sub64330-32221

main64330-32220-03iCV20,SV21..SED..LHD..(GL,GLI)198610-198707

W/SPEAKER,*45,GRAY,MEDIUM GRAY,TRIM1#

sub64330-32221

main64330-32220-04iCV20,SV21..SED..(GL,GLI)198610-198707

W/SPEAKER,*45,BLUE,DARK BLUE,TRIM8#

sub64330-32221

main64330-32220-05iCV20,SV21..SED..(GL,GLI)198610-198707

W/SPEAKER,*45,BEIGE,DARK BEIGE,TRIM4#

sub64330-32221

main64330-32221-02iCV20,SV21,25..SED..RHD198710-198808

*45 & W(SPEAKER),MAROON,TRIM3#

main64330-32221-02iCV20,SV21..SED..RHD198707-198710

W/SPEAKER,*45,MAROON,MAROON,TRIM3#

main64330-32221-03iCV20,SV21..SED..LHD..(GL,GLI)198707-198710

W/SPEAKER,*45,GRAY,MEDIUM GRAY,TRIM1#

main64330-32221-03iCV20,SV21,25,VZV21..SED..LHD..(GL,GLI,GXI)198710-198808

MEDIUM GRAY,TRIM1#

main64330-32221-04iCV20,SV21,25,VZV21..SED..(GL,GLI,GXI)198710-198808

*45 & W(SPEAKER),DARK BLUE,TRIM8#

main64330-32221-04iCV20,SV21..SED..(GL,GLI)198707-198710

W/SPEAKER,*45,BLUE,DARK BLUE,TRIM8#

main64330-32221-05iCV20,SV21,25,VZV21..SED..(GL,GLI,GXI)198710-198808

*45 & W(SPEAKER),DARK BEIGE,TRIM4#

main64330-32221-05iCV20,SV21..SED..(GL,GLI)198707-198710

W/SPEAKER,*45,BEIGE,DARK BEIGE,TRIM4#

main64330-32320-03iCV20,SV2#..SED..(XL,XLI)198610-198707

W/SPEAKER,GRAY,MEDIUM GRAY,TRIM1#

sub64330-32321

main64330-32320-04iCV20,SV2#..SED..(XL,XLI)198610-198707

W/SPEAKER,BLUE,DARK BLUE,TRIM8#

sub64330-32321

main64330-32320-05iCV20,SV2#..SED..(XL,XLI)198610-198707

W/SPEAKER,BEIGE,DARK BEIGE,TRIM4#

sub64330-32321

main64330-32321-03iCV20,SV2#..SED..(XL,XLI)198707-198710

W/SPEAKER,GRAY,MEDIUM GRAY,TRIM1#

main64330-32321-03iCV20,SV20,21..SED..(XL,XLI)198710-198808

W(SPEAKER),MEDIUM GRAY,TRIM1#

main64330-32321-04iCV20,SV20,21..SED..(XL,XLI)198710-198808

W(SPEAKER),DARK BLUE,TRIM8#

main64330-32321-04iCV20,SV2#..SED..(XL,XLI)198707-198710

W/SPEAKER,BLUE,DARK BLUE,TRIM8#

main64330-32321-05iCV20,SV20,21..SED..(XL,XLI)198710-198808

W(SPEAKER),DARK BEIGE,TRIM4#

main64330-32321-05iCV20,SV2#..SED..(XL,XLI)198707-198710

W/SPEAKER,BEIGE,DARK BEIGE,TRIM4#

main64330-32330-03iCV20,SV2#..SED..(XL,XLI)198610-198707

W/SPEAKER,*45,GRAY,MEDIUM GRAY,TRIM1#

sub64330-32331

main64330-32330-04iCV20,SV2#..SED..(XL,XLI)198610-198707

W/SPEAKER,*45,BLUE,DARK BLUE,TRIM8#

sub64330-32331

main64330-32330-05iCV20,SV2#..SED..(XL,XLI)198610-198707

W/SPEAKER,*45,BEIGE,DARK BEIGE,TRIM4#

sub64330-32331

main64330-32331-03iCV20,SV20,21..SED..(XL,XLI)198710-198808

*45 & W(SPEAKER),MAROON,TRIM1#

main64330-32331-03iCV20,SV2#..SED..(XL,XLI)198707-198710

W/SPEAKER,*45,GRAY,MAROON,TRIM1#

main64330-32331-04iCV20,SV2#..SED..(XL,XLI)198707-198710

W/SPEAKER,*45,BLUE,DARK BLUE,TRIM8#

main64330-32331-04iCV20,SV20,21..SED..(XL,XLI)198710-198808

*45 & W(SPEAKER),DARK BLUE,TRIM8#

main64330-32331-05iCV20,SV2#..SED..(XL,XLI)198707-198710

W/SPEAKER,*45,BEIGE,DARK BEIGE,TRIM4#

main64330-32331-05iCV20,SV20,21..SED..(XL,XLI)198710-198808

*45 & W(SPEAKER),DARK BEIGE,TRIM4#

64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-08046-05iSV25;SV21..SED..XLI198710-198808

DARK BEIGE,TRIM4#

sub90467-08046

sub90467-08037

main90467-08046-05iCV20,SV2#..SED198610-198710

BEIGE,DARK BEIGE,TRIM4#

sub90467-08046

sub90467-08037

main90467-08046-12iSV25..RHD198710-198807

MAROON,TRIM3#

sub90467-08046

sub90467-08037

main90467-08046-12iCV20,SV21..SED..RHD198610-198710

MAROON,MAROON,TRIM3#

sub90467-08046

sub90467-08037

main90467-08046-13iCV20,SV20,21,VZV21..SED..LHD..(GL,GLI,GXI,XL)198710-198807

MEDIUM GRAY,TRIM1#

sub90467-08046

sub90467-08037

main90467-08046-13iCV20,SV2#..SED..LHD198610-198710

GRAY,MEDIUM GRAY,TRIM1#

sub90467-08046

sub90467-08037

main90467-08046-24iCV20,SV20,21,VZV21..SED..(GL,GLI,GXI,XL)198710-198807

DARK BLUE,TRIM8#

sub90467-08046

sub90467-08037

main90467-08046-24iCV20,SV2#..SED198610-198710

BLUE,DARK BLUE,TRIM8#

sub90467-08046

sub90467-08037

64347BBRACKET, PACKAGE TRAY REINFORCEMENT, RH

main64347-32020iCV20,SV20,21,VZV21..SED..(GL,GLI,GXI,XL)198610-198808

64348BBRACKET, PACKAGE TRAY REINFORCEMENT, LH

main64348-32010iCV20,SV2#..SED198610-198808

sub64348-32020

64701MAT SUB-ASSY, LUGGAGE COMPARTMENT

main64711-32040-03iCV20,SV20,21,VZV21..SED198710-198808

LIGHT GRAY,TRIM1#,3#,4#,8#

main64711-32040-03iCV20,SV2#..SED198610-198710

GRAY,LIGHT GRAY

main64711-32130-03iSV25198710-198808

LIGHT GRAY,LIGHT GRAY,TRIM1#,3#,4#,8#

64714COVER, LUGGAGE COMPARTMENT, RH

main64714-32040-03iCV20,SV20,21,VZV21..SED198710-198808

LIGHT GRAY,TRIM1#,3#,4#,8#

main64714-32040-03iCV20,SV2#..SED198610-198710

GRAY,LIGHT GRAY

main64714-32120-03iSV25198710-198808

GRAY,GRAY,TRIM1#,3#,4#,8#

64716COVER, LUGGAGE COMPARTMENT, REAR CENTER

main64716-32040-03iCV20,SV20,21..SED..(XL,XLI)198710-198808

LIGHT GRAY,TRIM1#,4#,8#

sub64716-32050

main64716-32040-03iCV20,SV2#..SED..(XL,XLI)198610-198710

GRAY,LIGHT GRAY

sub64716-32050

main64716-32050-03iCV20,SV21..SED..(GL,GLI)198610-198710

GRAY,LIGHT GRAY

main64716-32050-03iCV20,SV21,VZV21..SED..(GL,GLI,GXI)198710-198808

LIGHT GRAY,TRIM1#,3#,4#,8#

main64716-32130-03iSV25198710-198808

LIGHT GRAY,TRIM1#,3#,4#,8#

64716CCLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)

main90467-05004-33iCV20,SV2#,VZV21..SED198710-198808

GRAY,TRIM1#,3#,4#,8#

sub90467-05004

main90467-05004-33iCV20,SV2#..SED198610-198710

GRAY,GRAY

sub90467-05004

64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT

main64717-32030-03iCV20,SV20,21..SED..(XL,XLI)198710-198808

LIGHT GRAY,TRIM1#,4#,8#

main64717-32030-03iCV20,SV21..SED..(GL,GLI)198610-198710

GRAY,LIGHT GRAY

64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH

main64721-32050-03iCV20,SV20,21,VZV21..SED198710-198808

LIGHT GRAY,TRIM1#,3#,4#,8#

main64721-32050-03iCV20,SV2#..SED198610-198710

GRAY,LIGHT GRAY

main64721-32100-03iSV25198710-198808

LIGHT GRAY,TRIM1#,3#,4#,8#

main64721-32110-03iCV20,SV2#..SED198708-198710

W/RR 3-POINT SEAT BELT,GRAY,LIGHT GRAY

main64721-32110-03iCV20,SV20,21,VZV21..SED198710-198808

LIGHT GRAY,TRIM1#,3#,4#,8#

main64721-32120-03iSV25198710-198808

W(RR 3-POINT SEAT BELT),LIGHT GRAY,TRIM1#,3#,4#,8#

64721BCOVER, LUGGAGE COMPARTMENT TRIM, NO.1

main90467-07042-03iCV20,SV20,21..SED..(XL,XLI)198710-198807

GRAY,TRIM1#,4#,8#

sub90467-07042

sub90467-06175

main90467-07042-03iCV20,SV2#..SED198610-198710

GRAY,GRAY

sub90467-07042

sub90467-06175

main90467-07042-03iCV20,SV20,21..SED..(XL,XLI)198710-198807

GRAY,TRIM1#,3#,4#,8#

sub90467-07042

sub90467-06175

64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH

main64722-32050-03iCV20,SV20,21,VZV21..SED198710-198808

LIGHT GRAY,TRIM1#,3#,4#,8#

main64722-32050-03iCV20,SV2#..SED198610-198710

GRAY,LIGHT GRAY

main64722-32100-03iSV25198710-198808

LIGHT GRAY,TRIM1#,3#,4#,8#

main64722-32110-03iCV20,SV20,21,VZV21..SED198710-198808

W/RR 3-POINT SEAT BELT,LIGHT GRAY,LIGHT GRAY,TRIM1#,3#,4#,8#

main64722-32110-03iCV20,SV2#..SED198708-198710

W/RR 3-POINT SEAT BELT,GRAY,LIGHT GRAY

main64722-32120-03iSV25198710-198808

W(RR 3-POINT SEAT BELT),LIGHT GRAY,TRIM1#,3#,4#,8#

64770COVER ASSY, SPARE WHEEL

main64770-32060iSV25198710-198808

main64771-32040iCV20,SV2#..SED198610-198808

64777CLAMP, SPARE WHEEL COVER

main64777-32020iCV20,SV2#..SED198610-198612

sub64777-32030

main64777-32030iCV20,SV2#..SED198612-198808

7102

9015960057

main90159-60057

9018304046

main90183-04046

9046709066

main90467-09066

9046805017

main90468-05017

9054109010

main90541-09010

9354014016

main93540-14016

30 parts on this diagram · 2 diagrams in section
