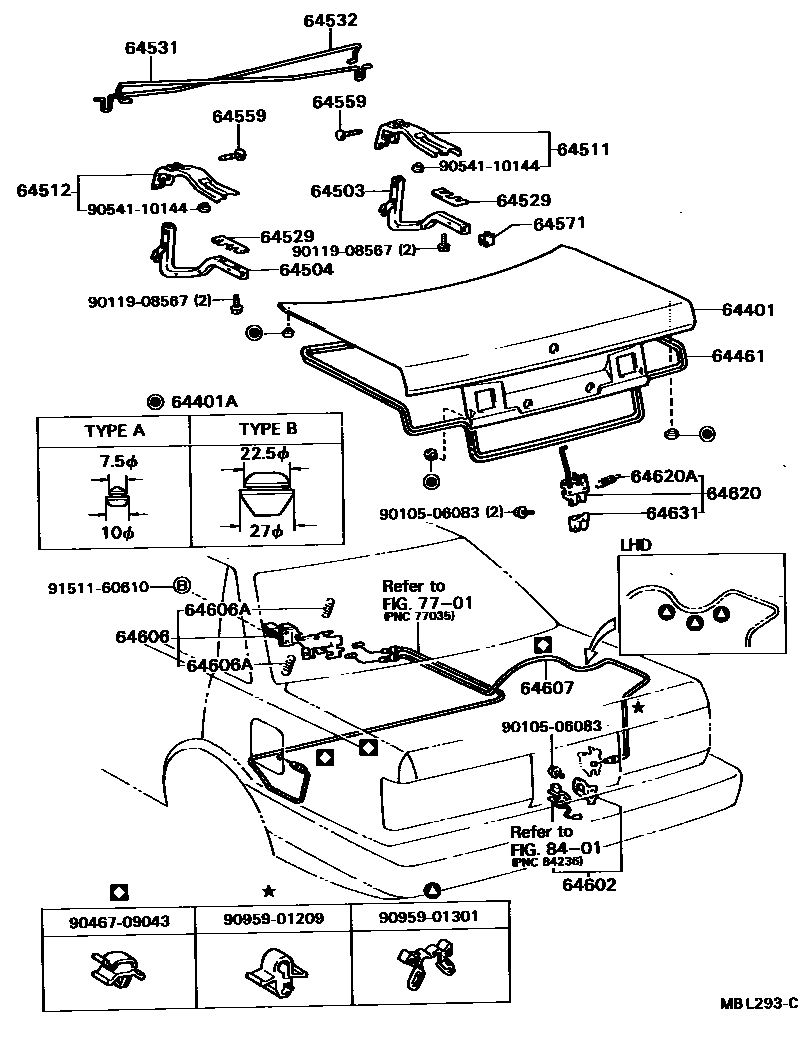

LUGGAGE COMPARTMENT DOOR & LOCK

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-32120iCV20,SV21,25..SED..(GL,GLI); VZV21198710-198808

W(FRONT SPOILER); W(REAR SPOILER)

main64401-32130iCV20,SV2#..SED198610-198710

main64401-32270iSV21..SED..GLI..FRG198610-198710

*SWZ,W/SPOILER

main64401-32280iSV21..SED..GLI..FRG198610-198710

*SWZ

main64401-32310iSV21,25,VZV21..SED..FRG198710-198808

SWITZERLAND SPEC

main64401-32320iSV21,25..SED..GLI..FRG; VZV21198710-198808

SWITZERLAND SPEC & W(FRONT SPOILER); SWITZERLAND SPEC & W(REAR SPOILER)

64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main90541-06076×2iCV20,SV2#..SED198610-198710

TYPE A

main90541-19001×2iCV20,SV2#..SED198610-198710

TYPE B

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-32050iCV20,SV2#..SED198610-198710

64503ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64503-32010iCV20,SV2#,VZV21..SED198710-198808

64504ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64503-32010iCV20,SV2#..SED198610-198710

64511SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64511-32020iCV20,SV2#..SED198610-198710

64512SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64512-32020iCV20,SV2#..SED198610-198710

64529SPACER, LUGGAGE COMPARTMENT DOOR HINGE

main64529-14010×4iCV20,SV2#..SED198610-198710

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-32030iCV20,SV20,21,VZV21..SED198710-198808

main64531-32040iCV20,SV21,VZV21..SED..(GL,GLI,GXI); SV25198710-198808

W(REAR SPOILER)

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-32030iCV20,SV2#..SED198610-198710

main64532-32040iCV20,SV21..SED..(GL,GLI)198610-198710

W/SPOILER

64559PIN, LUGGAGE DOOR HINGE

main64559-32010×2iCV20,SV2#..SED198610-198710

64571COVER, LUGGAGE COMPARTMENT DOOR HINGE

main64571-30020×2iCV20,SV2#,VZV21198711-198808

64602STRIKER SUB-ASSY, LUGGAGE COMPARTMENT DOOR LOCK

main64620-20050iCV20,SV2#..SED198610-198710

64606LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN

main64606-14060iCV20,SV2#..SED..LHD198610-198710

main64606-14070iCV20,SV21..SED..RHD198610-198710

64606ASPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER)

main90506-09004×2iCV20,SV2#..SED198610-198710

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-32110iCV20,SV2#,VZV21..SED..LHD198710-198808

main64607-32160iCV20,SV21..SED..RHD198610-198710

64620LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64610-32030iCV20,SV2#..SED198610-198710

64620ASPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK)

main90506-08001iCV20,SV2#..SED198610-198710

64631PROTECTOR, LUGGAGE DOOR LOCK

main64631-91D01iCV20,SV2#..SED198703-198710

7701FUEL TANK & TUBE

→ Go to FIG 77-01

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010506083

main90105-06083

9011908567

main90119-08567

9046709043

main90467-09043

9054110144

main90541-10144

9095901209

main90959-01209

9095901301

main90959-01301

9151160610

main91511-60610

28 parts on this diagram · 1 diagram in section
